Description

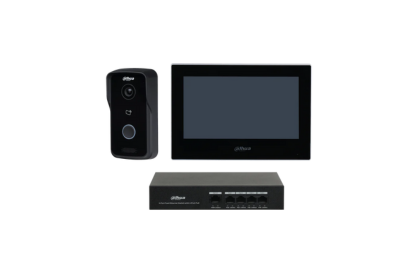

IP Video Intercom KIT
IP Villa Door Station
-
Megapixel image sensor
-
Supports IR illumination and night vision
-
Two-way audio and voice call via app
-
Managed through platform; supports app-to-door station voice calls
-
Card unlock, indoor monitor unlock, and remote unlock via app
-
IP65 rated (requires silicone sealant; see quick start guide)
-
Supports 10,000 cards
-
Standard PoE power supply
-
Controls two locks
IP Indoor Monitor
-
7" TFT capacitive touch screen, 1024 × 600
-
6-channel alarm input and 1-channel alarm output
-
Standard PoE
-
Door station and IPC monitor
-
H.265 and H.264 video decoding
-
High performance and cost-effective
IP Video Intercom Kit Specifications
IP Villa Door Station (Model: DHI-VTO2111D-P-S3)
System
-
Embedded processor running Linux OS
-
Mechanical button design
-
ONVIF and CGI interoperability
-
Network protocols: SIP, P2P, IPv4, DNS, RTSP, RTP, TCP, UDP
Camera
-
1/2.8" 2MP CMOS, low light performance, DWDR, color/IR
-
Field of view: H: 107°, V: 60°, D: 122°
-
3D noise reduction
-
Video compression: H.264, H.265
-
Resolution:
-
Main stream: 720p, WVGA, D1, CIF
-
Sub stream: 1080p, WVGA, D1, QVGA, CIF
-
-
Frame rate: 25 fps (PAL), 30 fps (NTSC)
-
Bit rate: 256 Kbps – 8 Mbps
-
Auto IR illumination
-
Day/Night mode: Auto(ICR)/Color/B&W
Audio
-
Compression: G.711a, G.711u, PCM
-
Input: 1 mic
-
Output: Built-in speaker
-
Two-way audio
-
Echo suppression and digital noise reduction
-
Bit rate: 16 kHz, 16 bit
Functionality
-
Full digital communication
-
Unlock via card, app, or indoor monitor
-
Supports IC cards (up to 10,000 cards)
-
Local card issuing supported
-
Leave video messages (requires SD card in indoor monitor)
-
Web configuration available
Interfaces
-
RS-485: 1
-
Power output: 12 V, 200 mA
-
Exit button: 1
-
Door status detection: 1
-
Lock control: 1 (normally closed by default)
-
Network: 1 × 10/100 Mbps (8-core ribbon cable)
Alarm & Security
-
Tamper alarm supported
-
IP65 weatherproof (requires silicone sealant)
-
IK04 impact protection
-
Anti-corrosion: Basic
General
-
Material: PC + Acrylic
-
Color: Black
-
Power: 12 VDC, 1 A or standard PoE
-
Installation: Surface mount
-
Operating temperature: –30°C to +60°C
-
Humidity: 10%–90% RH
-
Outdoor use
-
Power consumption: ≤1 W (standby), ≤5 W (active)
-
Dimensions: 135.1 × 70.6 × 34.6 mm
-
Weight: 326 g
-
Certifications: CE
-
Included accessories: Rain cover, alarm cable, brackets
IP Indoor Monitor (Model: DHI-VTH2621G-P)
System
-
Embedded processor with Linux OS
Display
-
7" TFT capacitive touchscreen
-
Resolution: 1024 × 600
Audio
-
Compression: G.711a, G.711u, PCM
-
Input: 1 mic
-
Output: Built-in speaker
-
Two-way voice talk
-
Echo suppression
-
Bit rate: 16 kHz, 16 bit
Functionality
-
Full digital communication
-
View messages from management center
-
Leave video messages (with SD card)
-
Do Not Disturb mode available
-
Extensions:
-
Villa: 9
-
Apartment: 4
-
-
Supports micro SD card up to 64 GB (reserved for software)
Interfaces
-
Alarm input: 6
-
Alarm output: 1
-
Network: 1 × 10/100 Mbps Ethernet
General
-
Material: PC + ABS
-
Color: Black
-
Power: 12 VDC, 1 A or standard PoE
-
Installation: Surface mount
-
Dimensions: 189.6 × 134.6 × 26.0 mm
-
Operating temperature: –10°C to +55°C
-
Humidity: 10%–95% RH
-
Power consumption: ≤2 W (standby), ≤6 W (active)
-
Weight: 575 g
-
Included accessories: Mounting bracket, alarm ribbon cable
6-Port PoE Switch (Model: DH-PFS3006-4ET-36)
System
-
Embedded processor
Ports
-
4 × PoE ports (10/100 Mbps Base-TX)
-
2 × uplink ports (10/100 Mbps Base-TX)
General
-
Color: Black
-
Dimensions: 194.0 × 108.1 × 35.0 mm
-
Weight: 0.56 kg
-
Certifications: CE, FCC
-
Anti-corrosion: Basic Protection
