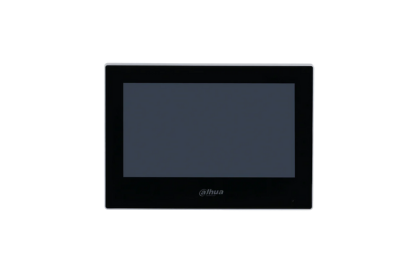

Dahua IP Indoor Monitor Black DHI-VTH2621G-P

IP Indoor Monitor

• 7" TFT capacitive touch screen, 1024 × 600

• 6-channel alarm input and 1-channel alarm output

• Standard PoE

• Supports door station and IPC monitoring

• H.265 and H.264 video decoding

• High performance and cost-effective

• Datasheet

System

• Main Processor: Embedded processor

• OS: Embedded Linux

• Interoperability: ONVIF, SDK

• Network Protocol: RTSP, RTP, SIP, DNS, SSH

• ROM: 128 MB

• RAM: 128 MB

• CPU: Dual core 1.2 GHz

Basic

• Screen: 7" capacitive touchscreen, 1024 × 600

• Audio: 1 input, built-in speaker, 2-way audio, echo suppression, 16 kHz/16 bit

• Video Compression: H.264

• Storage: Micro SD up to 64 GB (for software)

Function

• Communication: Full digital

• Info Release: Receive text from management

• Leave Videos: Supported (with SD card in VTO)

• DND Mode: Supported

• Extensions: Villa 9, Apartment 4

Performance

• Casing: PC + ABS

• Ports: 6 alarm inputs, 1 alarm output, doorbell on any alarm input

• Network: 10/100 Mbps Ethernet

General

• Color: Black / White

• Power: 12 VDC 1A, PoE (36–57 V, 0.35 A)

• Installation: Surface mount

• Certifications: CE, FCC

• Size: 189.6 × 134.6 × 26 mm

• Temp: –10°C to +55°C

• Humidity: 10%–95% RH

• Power Consumption: ≤2 W standby, ≤6 W working

• Weight: 0.34 kg (net), 0.58 kg (gross)
