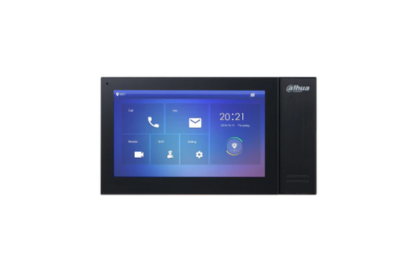

Dahua IP Indoor Monitor, DHI-VTH2421FB-P

IP Indoor Monitor

• 7" TFT capacitive touch screen, 1024 × 600

• IPC surveillance

• Alarm integration

• High performance and cost-effective

• Embedded 8 GB SD card

• Supports standard PoE

• Datasheet

IP Indoor Monitor – Technical Specification

• Main processor: High performance embedded processor

• Operating system: Embedded Linux OS

• Screen type: Capacitive screen

• Display: 7-inch TFT screen

• Resolution: 1024 × 600

• Video compression: H.264

• Audio compression: G.711A / G.711U / PCM

• Audio input: 1-channel omnidirectional microphone

• Audio output: Built-in 1.5W loudspeaker

• Audio mode: Dual-way bidirectional talk

• Audio enhancement: Echo cancellation and DNR

• Audio bit rate: 16 kbps

• Communication mode: Full digital

• Information release: Supports receiving and viewing notifications from the center

• Leave videos or text messages: Supported

• DND mode: Supports DND period setting

• Sub-station quantity: 9

• Alarm input: 6 channels (switch input)

• Alarm output: 1 channel

• Network: 1 × RJ-45

• SOS alarm: Supported

• Casing: PC + ABS

• Appearance color: White

• Power supply: Standard PoE / DC 12V 1A

• Installation: Wall mount

• Accessories: Default bracket and alarm cable

• Dimensions: 119.6 mm × 221.5 mm × 21.5 mm (4.71" × 8.72" × 0.85")

• Operating temperature: –10°C to +55°C (14°F to 131°F)

• Operating humidity: 10%–95% RH

• Power consumption: Standby ≤ 4W, Working ≤ 6W

• Gross weight: 0.35 kg (0.77 lb)

• Power supply mode: PoE

• Storage: Supports Micro SD, max. 32 GB (standard 8 GB)
