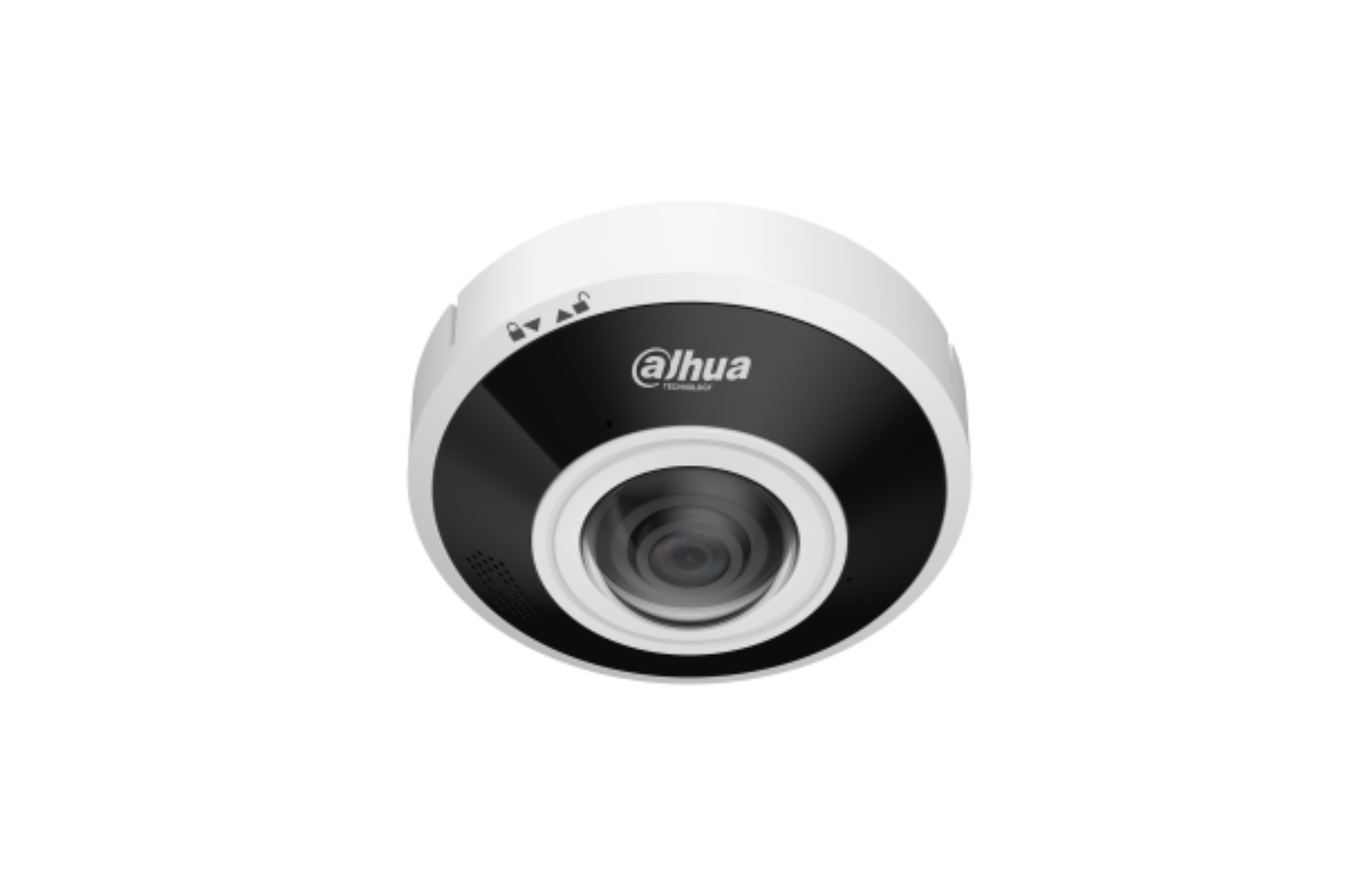

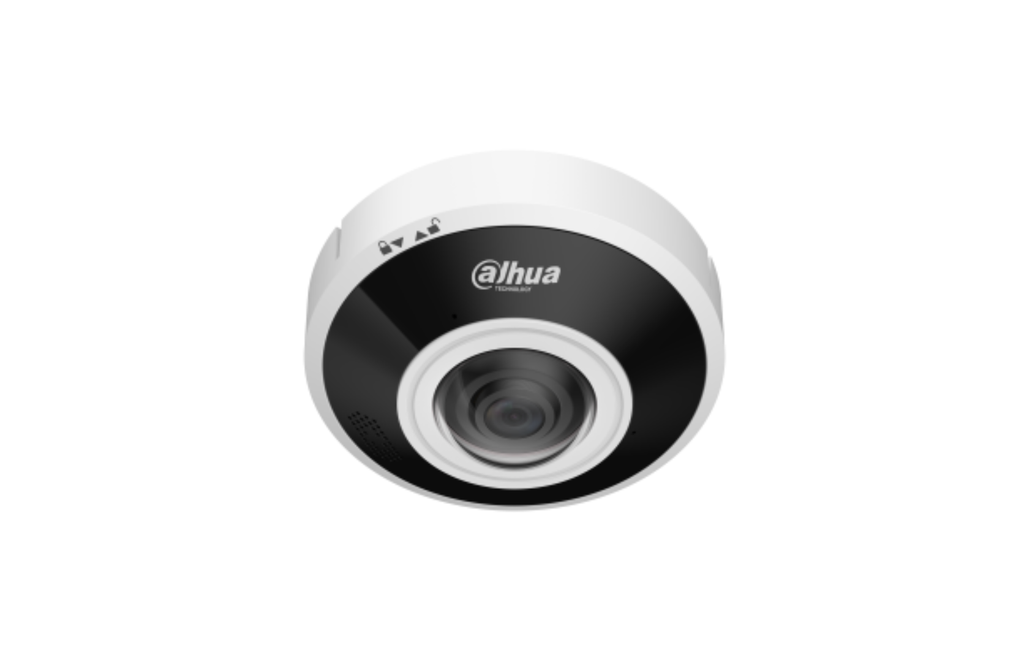

6MP IR Fisheye WizMind Network Camera

Key Features

• Panoramic fisheye view

• Maximum 6MP resolution at 2560 × 2560 @ 30 fps

• Supports front-dewarp and back-dewarp for intuitive viewing

• Built-in IR LEDs with illumination distance up to 15 m

• Built-in dual microphones and speaker for real-time two-way audio

• 120 dB WDR for clear imaging in strong backlight conditions

• People counting and heat map functions for customer traffic analytics

• IP67 weather resistance

• IK10 vandal resistance

• Datasheet

Camera

• Image Sensor: 1/2.5" CMOS

• Maximum Resolution: 2560 × 2560

• ROM: 4 GB

• RAM: 1 GB

• Scanning System: Progressive

• Electronic Shutter Speed: Auto / Manual, 1/3 s–1/100,000 s

• Minimum Illumination:

  • 0.006 lux @ F2.0 (Color, 30 IRE)

  • 0.0006 lux @ F2.0 (B/W, 30 IRE)

  • 0 lux with illuminator on

• S/N Ratio: >56 dB

• IR Illumination Distance: Up to 15 m (49.21 ft)

• Illuminator Control: Auto / Manual

• Illuminators: 3 × IR LEDs

Lens

• Lens Type: Fixed-focal

• Lens Mount: M12

• Focal Length: 1.68 mm

• Maximum Aperture: F2.0

• Field of View:

  • Horizontal: 185°

  • Vertical: 185°

  • Diagonal: 185°

• Iris Control: Fixed

• Close Focus Distance: 0.3 m (0.98 ft)

DORI Distance – 1.68 mm Lens

• Detect: 33.6 m (110.24 ft)

• Observe: 13.4 m (43.96 ft)

• Recognize: 6.7 m (21.98 ft)

• Identify: 3.4 m (11.15 ft)

DORI (Detect, Observe, Recognize, Identify) is based on EN 62676-4 and defines the ability to distinguish persons or objects within a covered area. These figures do not represent intelligent-function detection distances.

Intelligence

• EPTZ: Supported

• IVS / Perimeter Protection:

  • Tripwire

  • Intrusion detection

  • Accurate human detection supported for both functions

• People Counting:

  • Tripwire people counting

  • Daily, monthly and yearly reports

  • Queue management

  • People counting within defined areas

  • Daily and monthly reporting

  • Up to 4 rules for tripwire, area people counting and queue management

• Heat Map: Supported

• Smart Search: Works with compatible Smart NVRs for refined intelligent search, event extraction and event-video merging

Video

• Video Compression:

  • H.265

  • H.264

  • H.264H

  • H.264B

  • MJPEG (sub stream only)

• AI Coding:

  • AI H.265

  • AI H.264

  • Includes Smart H.265+ and Smart H.264+ technology

• Streaming Capability: 3 streams

Frame Rate & Display Modes

O Mode – Maximum Resolution

• Main Stream: 2560 × 2560 @ 1–25/30 fps

• Sub Stream: 1440 × 1440 @ 1–25/30 fps

• Third Stream: 1440 × 1440 @ 1–25/30 fps

2P Mode – 2 Split Windows

• Panoramic View / Split Window:

  • 1920 × 1440 @ 1–25/30 fps

  • 640 × 480 @ 1–25/30 fps

  • 320 × 240 @ 1–25/30 fps

• Supported on sub stream and third stream

2R Mode – 2 Split Windows

• Panoramic View / Split Window:

  • 2560 × 960 @ 1–25/30 fps

  • 1280 × 480 @ 1–25/30 fps

  • 640 × 240 @ 1–25/30 fps

• Supported on sub stream and third stream

4R Mode – 4 Split Windows

• Panoramic View / Split Window:

  • 1920 × 1440 @ 1–25/30 fps

  • 640 × 480 @ 1–25/30 fps

  • 320 × 240 @ 1–25/30 fps

• Supported on sub stream and third stream

Supported Resolutions

• 6MP: 2560 × 2560

• 4MP: 2048 × 2048

• 2MP: 1440 × 1440

• 1.6MP: 1280 × 1280

• 1MP: 1024 × 1024

• 720 × 720

• SVCD: 480 × 480

• 2.5MP: 2560 × 960

• 1.5MP: 2048 × 768

• 1.3MP: 1920 × 720

• 1280 × 480

• 640 × 240

• VGA: 640 × 480

• QVGA: 320 × 240

• 3MP: 2048 × 1536

• 2.7MP: 1920 × 1440

• XVGA: 1024 × 768

• UVGA: 1600 × 1200

Image & Video Settings

• Bit Rate Control: VBR / CBR / ABR

• Video Bit Rate:

  • H.264: 3 kbps–16,384 kbps

  • H.265: 3 kbps–16,384 kbps

• Day/Night: Auto (ICR) / Color / B&W

• BLC: Supported

• HLC: Supported

• WDR: 120 dB

• Scene Self-Adaptation (SSA): Supported

• White Balance: Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom

• Gain Control: Auto / Manual

• Noise Reduction: 3D NR

• Motion Detection: On / Off, up to 4 rectangular areas

• Region of Interest: Up to 4 areas

• Defog: Supported

• Image Rotation: 0° / 180°

• Mirror: Supported

• Privacy Masking: 4 mosaics + 4 color blocks

Fisheye Functions

• Installation Options:

  • Ceiling mount

  • Wall mount

  • Ground mount

• Dewarping: Front-dewarp and back-dewarp

Front-Dewarp Display Modes

• 1O

• 1P

• 2P

• 1R

• 2R

• 4R

• 1O + 3R

• 2P / 2R supports 2-window split screen

• 4R supports 4-window split screen

Display Definitions:

• O = Fisheye image view

• P = Panoramic image view

• R = Region image view

Back-Dewarp Display Modes

• Fisheye view

• 360° panoramic view + PTZ

• Dual-channel 180° panoramic view

• Fisheye + 2 PTZ

• Fisheye + 3 PTZ

• Fisheye + 4 PTZ

• 360° panoramic view + 6 PTZ

• Fisheye + 8 PTZ

• 180° panoramic view

• 180° panoramic view + 3 PTZ

• 180° panoramic view + 4 PTZ

• 180° panoramic view + 8 PTZ

• VR modes:

  • Panorama

  • Semi-circle

  • Cylinder

  • Asteroid

Audio

• Built-in Microphone: Dual microphones

• Built-in Speaker: Yes

• Audio Compression:

  • PCM

  • G.711a

  • G.711Mu

  • G.726

Alarm Events

Supports alarm events including:

• No SD card

• SD card full

• SD card error

• Network disconnection

• IP conflict

• Illegal access

• Motion detection

• Video tampering

• Scene changing

• Tripwire

• Intrusion

• Audio detection

• Intensity change

• Voltage detection

• External alarm

• People counting in area

• Stay detection

• People counting

• Abnormal number of people detection

• Security exception

Network

• Network Port: RJ-45 10/100 Base-T

• SDK & API: Supported

• Network Protocols:

  • IPv4

  • IPv6

  • HTTP

  • TCP

  • UDP

  • ARP

  • RTP

  • RTSP

  • RTCP

  • RTMP

  • SMTP

  • FTP

  • SFTP

  • DHCP

  • DNS

  • DDNS

  • QoS

  • UPnP

  • NTP

  • Multicast

  • ICMP

  • IGMP

  • NFS

  • SAMBA

  • PPPoE

  • SNMP

  • P2P

• Interoperability: ONVIF Profile S, G and T; CGI

• Users/Hosts: Up to 20

• Storage:

  • FTP

  • SFTP

  • MicroSD card up to 1 TB

  • NAS

• Browser Support:

  • Internet Explorer 11

  • Chrome

  • Firefox

• Management Software:

  • SmartPSS Lite

  • DSS

  • DMSS

  • DoLynk Care

Security

• Digest authentication

• WSSE

• Account lockout

• Security logs

• IP/MAC filtering

• X.509 certificate generation and importing

• Syslog

• HTTPS

• 802.1X

• Trusted boot

• Trusted execution

• Trusted upgrade

• Session security

• Security warning

Ports

• RS-485: 1 × port, 1200–115,200 bps

• Audio Input: 1 × RCA

• Audio Output: 1 × RCA

• Alarm Input: 1 channel, wet contact, 5 mA at 3–5 VDC

• Alarm Output: 1 channel, wet contact, 300 mA at 12 VDC

Power

• Power Supply: 12 VDC, 1 A or PoE (802.3af)

• Dual Power Backup: If both PoE and the power adapter are connected, disconnecting one power source allows the camera to continue operating without restarting.

• Basic Power Consumption:

  • 1.4 W at 12 VDC

  • 2.6 W via PoE

• Maximum Power Consumption:

  • 8.1 W at 12 VDC

  • 10.1 W via PoE

  • Maximum figures include ICR switching and IR illumination

Environment

• Operating Temperature: –30 °C to +60 °C (–22 °F to +140 °F)

• Operating Humidity: ≤95% RH, non-condensing

• Storage Temperature: –30 °C to +60 °C (–22 °F to +140 °F)

• Storage Humidity: ≤95% RH, non-condensing

• Weather Protection: IP67

• Vandal Resistance: IK10

• Anti-Corrosion Level: Basic protection

Designed for general use, including environments without specific anti-corrosion requirements.

Certification

• CE-LVD: EN 62368-1

• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Structure

• Casing Material: Metal + Plastic

• Dimensions: Φ122 mm × 53.3 mm (Φ4.80" × 2.10")

• Net Weight: 0.46 kg (1.01 lb)

• Gross Weight: 0.75 kg (1.65 lb)
