Description

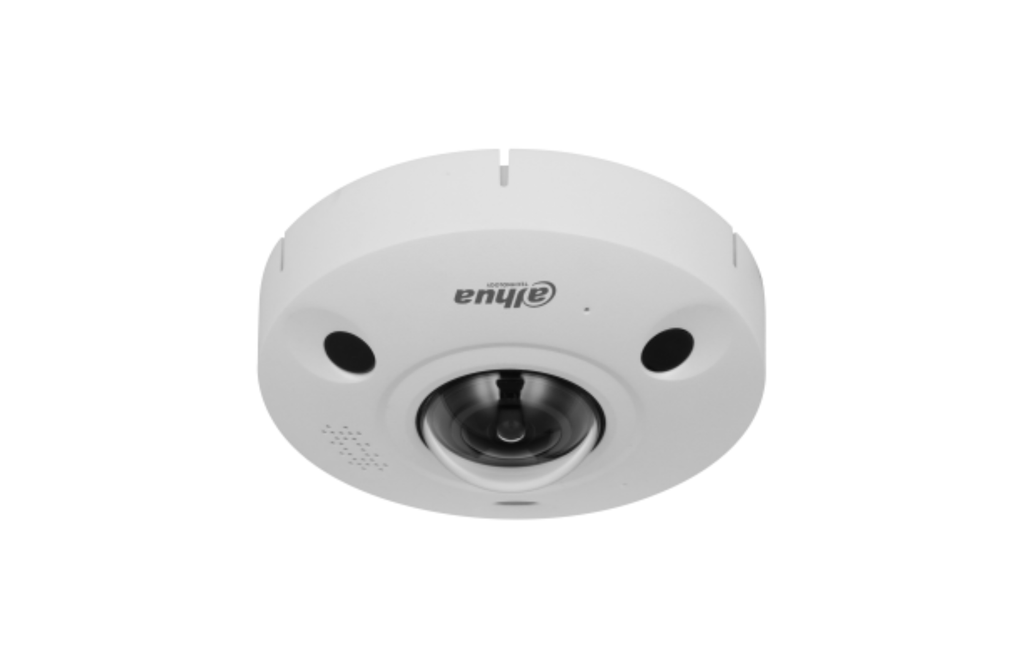

12 MP IR Fisheye WizMind Network Camera
Key Features
• 12MP 1/1.7" CMOS image sensor
• Maximum resolution 4000 × 3000 @ 25 fps
• Supports 8MP (3280 × 2480) @ 25/30 fps
• Built-in IR LED with up to 10 m illumination distance
• Supports intelligent features including tripwire, intrusion, heat map, and people counting
• Smart H.264+ / Smart H.265+ compression for reduced bandwidth and storage usage
• 2 alarm inputs, 2 alarm outputs
• 1 audio input, 1 audio output
• Supports up to 256 GB Micro SD card
• Built-in dual-array microphone and speaker
• Supports 12 VDC and PoE+ power supply
• IP67 weatherproof and IK10 vandal resistant
Camera
• Image sensor: 1/1.7" CMOS
• Maximum resolution: 4000 × 3000
• ROM: 4 GB
• RAM: 2 GB
• Scanning system: Progressive
• Electronic shutter speed: Auto/Manual, 1/3 s to 1/100,000 s
• Minimum illumination:
• 0.01 Lux @ F2.0 (Color)
• 0.001 Lux @ F2.0 (B/W)
• 0 Lux with IR on
• S/N ratio: >56 dB
IR
• IR illumination distance up to 10 m
• IR on/off control: Auto / Manual
• IR LEDs: 3
Lens
• Lens type: Fixed focal
• Lens mount: M12
• Focal length: 1.85 mm
• Maximum aperture: F2.0
• Field of view: Horizontal 185°, Vertical 180°
• Iris control: Fixed
• Close focus distance: 0.4 m
DORI Distance
• Detect: 40.0 m
• Observe: 16.0 m
• Recognize: 8.0 m
• Identify: 4.0 m
Intelligent Functions
• Heat map supported
• IVS perimeter protection:
• Tripwire
• Intrusion
• Accurate human detection supported
• People counting supports:
• Counting entering, exiting, and staying
• Area people counting
• Queue management
• Alarm linkage when thresholds are exceeded
• Report export by year, month, week, day, or custom time
• Smart Search works with Smart NVR for refined intelligent event search
Video
• Compression: H.265 / H.264 / H.264H / MJPEG
• Smart codec: Smart H.265+ / Smart H.264+
• Main stream: 4000 × 3000 @ up to 25 fps
• Sub stream: 704 × 576 @ up to 25/30 fps
• Third stream: 1280 × 960 @ up to 17 fps
• Fisheye display modes:
• 1O
• 1P
• 2P
• 1R
• 2R
• 4R
• 1O + 3R
• Supports 3 streams
• Resolution options include:
• 4000 × 3000
• 3280 × 2480
• 2880 × 2160
• 2048 × 1536
• 1280 × 960
• D1
• CIF
• Bit rate control: CBR / VBR
• H.264 bit rate: 8 kbps to 16384 kbps
• H.265 bit rate: 3 kbps to 16384 kbps
Image Features
• Day/Night: Auto (ICR) / Color / B/W
• BLC supported
• HLC supported
• WDR: DWDR
• White balance: Auto / Natural / Street lamp / Outdoor / Manual / Regional custom
• Gain control: Auto
• Noise reduction: 3D NR
• Motion detection: 4 rectangular areas
• Region of interest: 4 areas
• Defog supported
• Privacy masking: 4 areas
Audio
• Built-in dual microphone
• Built-in speaker
• Audio compression: PCM / G.711A / G.711Mu / G.726 / G.723
Alarm
• Alarm events include:
• No SD card
• SD card full
• SD card durability warning
• SD card error
• Network disconnection
• IP conflict
• Illegal access
• Motion detection
• Video tampering
• Tripwire
• Intrusion
• Scene changing
• Audio detection
• Voltage detection
• External alarm
• People counting in area
• Stay detection
• Security exception
Network
• Network port: RJ-45 (10/100/1000 Base-T)
• SDK and API supported
• Max users: 20
• Security features include:
• Digest
• WSSE
• Account lockout
• Security logs
• IP/MAC filtering
• X.509 certificate import/export
• Syslog
• HTTPS
• 802.1x
• Trusted boot
• Trusted execution
• Trusted upgrade
• Supported protocols include:
• IPv4 / IPv6
• HTTP / TCP / UDP
• ARP / RTP / RTSP / RTCP / RTMP
• SMTP / FTP / SFTP
• DHCP / DNS / DDNS
• QoS / UPnP / NTP
• Multicast / ICMP / IGMP
• NFS / SAMBA / PPPoE / SNMP
• Interoperability:
• ONVIF Profile S / G / T
• CGI
• Milestone
• Genetec
• P2P (general version only)
Storage
• Supports FTP / SFTP / NAS
• Supports Micro SD card up to 256 GB
Software
• Browser support: IE11 / IE10 / Chrome / Firefox / Edge
• Management software: Smart PSS, DSS, DMSS
Ports
• Audio input: 1 channel (RCA)
• Audio output: 1 channel (RCA)
• Alarm input: 2 channels
• Alarm output: 2 channels
Power
• Power supply: 12 VDC / PoE+
• Power consumption:
• Basic: 6.5 W (12 VDC), 6.1 W (PoE)
• Max: 13 W (12 VDC), 13.9 W (PoE)
• Heating: 3 W (12 VDC), 3 W (PoE)
Environment
• Operating temperature: –40 °C to +60 °C
• Operating humidity: ≤95%
• Storage temperature: –30 °C to +70 °C
Protection
• Protection rating: IP67
• Impact rating: IK10
General
• Casing: Metal
• Product dimensions: 59.8 mm × Φ149.8 mm
• Net weight: 0.79 kg
• Gross weight: 1.21 kg
Certifications
• CE-LVD: EN62368-1
• CE-EMC: 2014/30/EU
• FCC: 47 CFR FCC Part 15, Subpart B
• UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
