Description

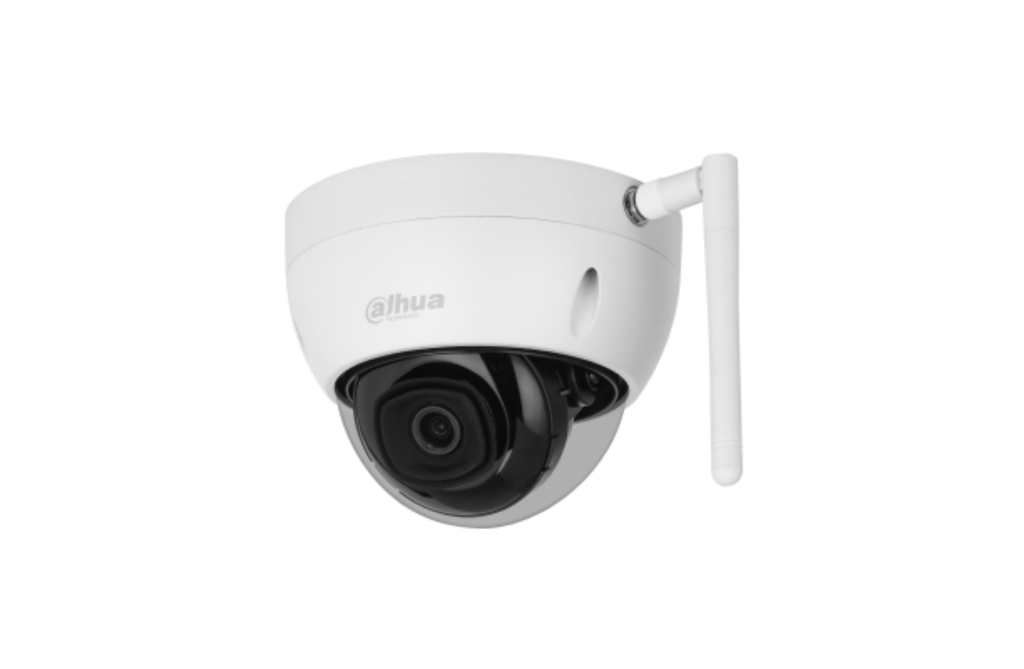

4MP IR Fixed-focal Wi-Fi Dome Network Camera
Key Features
• 4MP 1/3" CMOS image sensor for clear HD video
• Maximum resolution 2560 × 1440 @ 20fps
• Supports 3MP (2304 × 1296) @ 25/30fps
• H.265 compression for lower bandwidth and storage usage
• Built-in IR LED with up to 30 m night vision
• Smart H.265+ / Smart H.264+ codec supported
• Image features including DWDR, 3D NR, BLC and digital watermarking
• Abnormal event detection including motion detection, video tampering and SD card errors
• Built-in 2.4 GHz Wi-Fi with up to 80 m wireless range
• Supports MicroSD card up to 256 GB
• 12 VDC power supply
• IP67 weatherproof and IK10 vandal resistant
Camera
• Image sensor: 1/3" CMOS
• Maximum resolution: 2560 × 1440
• ROM: 16 MB
• RAM: 64 MB
• Scanning system: Progressive
• Electronic shutter speed: 1/3 s – 1/100,000 s
• Minimum illumination:
• 0.03 Lux (Color)
• 0.003 Lux (B/W)
• 0 Lux with IR
• S/N ratio: >56 dB
IR
• IR illumination distance: up to 30 m
• IR control: Auto / Manual
• IR LEDs: 3
Camera Adjustment
• Pan: 0° to 355°
• Tilt: 0° to 75°
• Rotation: 0° to 355°
Lens
• Lens type: Fixed focal
• Lens mount: M12
• Focal length options: 2.8 mm or 3.6 mm
• Maximum aperture: F2.0
• Field of view:
• 2.8 mm: H 90°, V 50°, D 107°
• 3.6 mm: H 76°, V 40°, D 92°
• Close focus distance:
• 2.8 mm: 1.0 m
• 3.6 mm: 1.4 m
DORI Distance
2.8 mm lens
• Detect: 68 m
• Observe: 27.2 m
• Recognize: 13.6 m
• Identify: 6.8 m
3.6 mm lens
• Detect: 85.2 m
• Observe: 34.1 m
• Recognize: 17.0 m
• Identify: 8.5 m
Video
• Compression: H.264B / H.264 / H.264H / H.265
• Smart codec: Smart H.265+ / Smart H.264+
• Main stream: 2560 × 1440 @ up to 20 fps
• Sub stream: 640 × 480 @ up to 25/30 fps
• Streaming capability: 2 streams
• Resolution support:
• 2560 × 1440
• 2304 × 1296
• 1920 × 1080
• 1280 × 960
• 1280 × 720
• Bit rate control: CBR / VBR
• H.264 bit rate: 24 kbps – 4096 kbps
• H.265 bit rate: 9 kbps – 4096 kbps
Image Features
• Day/Night: Auto (ICR) / Color / B/W
• BLC supported
• WDR: DWDR
• White balance: Auto / Natural / Street lamp / Outdoor / Manual / Custom
• Gain control: Auto
• Noise reduction: 3D NR
• Motion detection: 4 areas
• Region of interest: 4 areas
• Smart illumination supported
• Image rotation: 0° / 180°
• Mirror supported
Alarm Events
• Motion detection
• Video tampering
• No SD card
• SD card full
• SD card error
• Network disconnection
• IP conflict
• Illegal access
Network
• Network port: RJ-45 (10/100 Base-T)
• Wi-Fi: IEEE 802.11 b/g/n (2.4 GHz)
• Wireless range: up to 80 m (open area)
• Maximum users: 6
• Total bandwidth: 36 Mbps
• Supported protocols:
• IPv4
• HTTP / TCP / UDP
• ARP / RTP / RTSP / RTCP
• DHCP / DNS / NTP
• Multicast / RTMP
• ONVIF support: Profile S / Profile G
Storage
• MicroSD card support up to 256 GB (sold separately)
Software
• Browser support: IE, Chrome, Firefox
• Management software: Smart PSS, DSS, DMSS
• Mobile support: iOS and Android
Security
• Video encryption
• Configuration encryption
• Digest / WSSE authentication
• Account lockout
• Security logs
• X.509 certificate support
• HTTPS
• Trusted boot / trusted upgrade
Power
• Power supply: 12 VDC
• Power consumption:
• Basic: 2 W
• Max: 4.9 W (H.265 + IR)
Environment
• Operating temperature: –40 °C to +60 °C
• Operating humidity: ≤95%
• Storage temperature: –30 °C to +60 °C
Protection
• Weather protection: IP67
• Vandal resistance: IK10
General
• Casing: Metal
• Dimensions: Φ110.7 mm × 88.7 mm
• Net weight: 414 g
• Gross weight: 592 g
Certifications
• CE-LVD: EN62368-1
• CE-EMC: 2014/30/EU
• CE-RED: 2014/53/EU
• FCC: Part 15 Subpart B
• FCC ID: FCC PART 15C
