Description

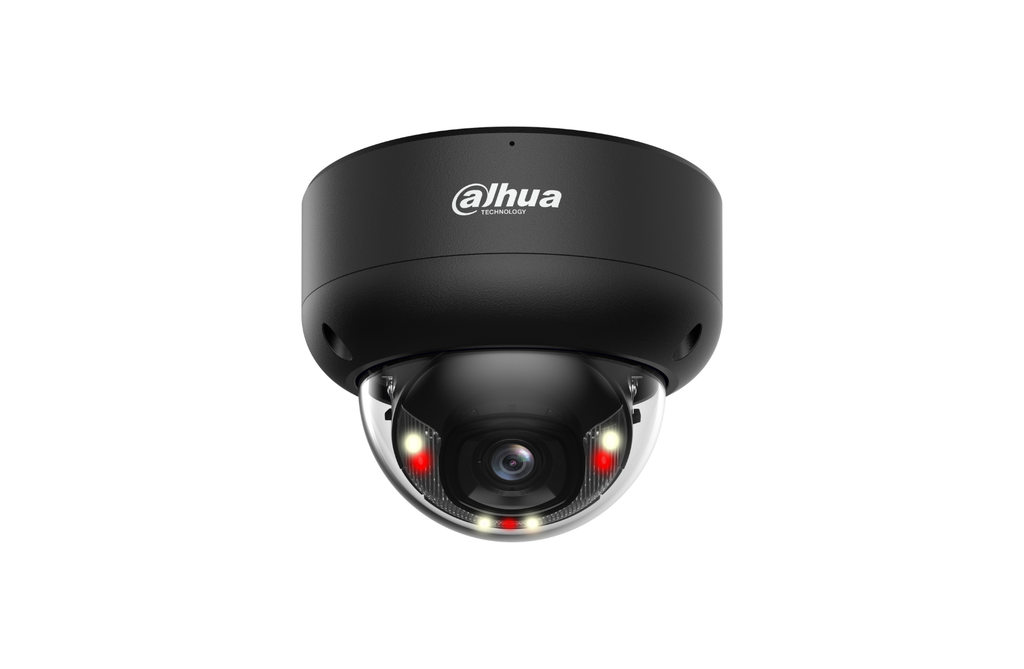

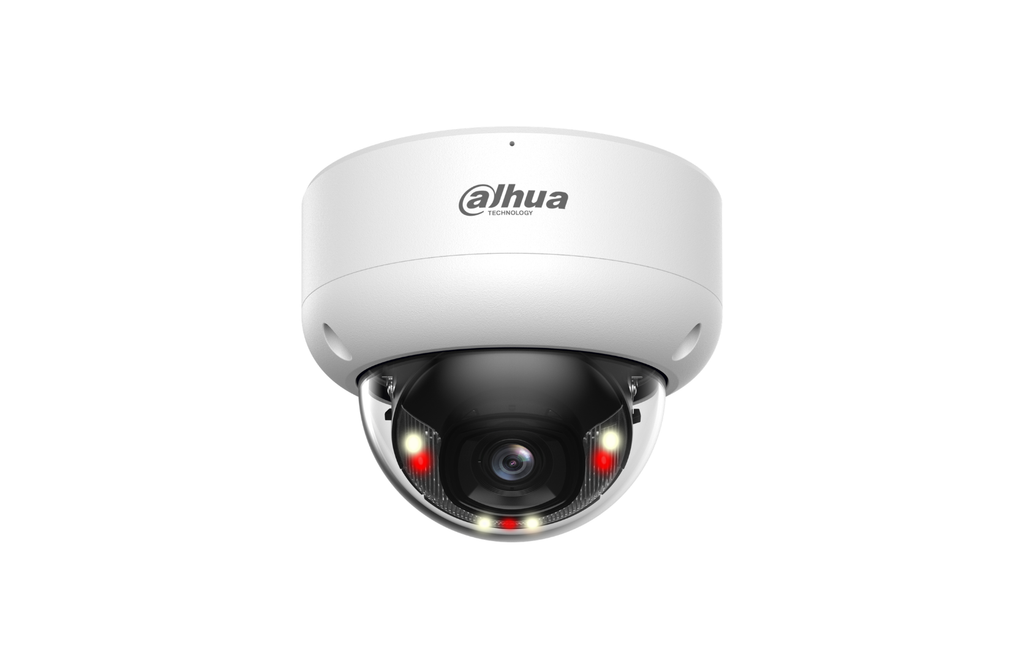

6MP Smart Dual Light Fixed-focal Dome WizSense Network Camera
Key Features
• 6MP 1/2.7" CMOS image sensor for high-quality video
• Maximum resolution 3288 × 1850 @ 25/30 fps
• H.265 compression for efficient bandwidth and storage usage
• Smart Dual Light technology with IR and warm light illumination
• IR night vision up to 30 m
• Warm light illumination up to 30 m
• Smart H.265+ / Smart H.264+ and AI coding supported
• Image processing features including WDR, 3D NR, HLC, BLC
• Perimeter protection with intrusion and tripwire detection
• Accurate human and vehicle classification
• SMD 4.0 smart motion detection
• Supports AI SSA scene self-adaptation
• Supports AcuPick AI search with supported NVRs
• Built-in microphone
• Supports 512 GB MicroSD storage
• Alarm input and output supported
• Supports 12 VDC or PoE power supply
• IP67 weatherproof and IK10 vandal resistant
Camera
• Image sensor: 1/2.7" CMOS
• Maximum resolution: 3288 × 1850
• ROM: 256 MB
• RAM: 1 GB
• Scanning system: Progressive scan
• Electronic shutter speed: 1/3 s – 1/100,000 s
• Minimum illumination:
• 0.005 Lux (Color)
• 0.0005 Lux (B/W)
• 0 Lux with illumination on
• S/N ratio: >56 dB
Illumination
• IR distance up to 30 m
• Warm light distance up to 30 m
• IR LEDs: 3
• Warm light LEDs: 4
• Illumination control: Auto / Manual
Camera Adjustment
• Pan: 0° to 355°
• Tilt: 0° to 75°
• Rotation: 0° to 355°
Lens
• Lens type: Fixed focal
• Lens mount: M12
• Focal length options: 2.8 mm or 3.6 mm
• Maximum aperture: F1.4
• Field of view:
• 2.8 mm: H 110°, V 58°, D 132°
• 3.6 mm: H 86°, V 49°, D 100°
• Close focus distance:
• 2.8 mm: 1.4 m
• 3.6 mm: 1.9 m
DORI Distance
2.8 mm lens
• Detect: 84.8 m
• Observe: 33.9 m
• Recognize: 17.0 m
• Identify: 8.5 m
3.6 mm lens
• Detect: 98.7 m
• Observe: 39.5 m
• Recognize: 19.7 m
• Identify: 9.9 m
Intelligence
• Perimeter protection:
• Intrusion detection
• Tripwire detection
• Human and vehicle classification
• SMD 4.0 smart motion detection
• AcuPick AI search supported with compatible NVR
• AI SSA scene self-adaptation
• Smart search supported with Smart NVR
Video
• Compression: H.265 / H.264 / H.264H / H.264B / MJPEG
• AI coding: AI H.265 / AI H.264
• Smart codec: Smart H.265+ / Smart H.264+
• Main stream: 3288 × 1850 @ up to 30 fps
• Sub stream: 1920 × 1080 @ up to 30 fps
• Third stream: 1920 × 1080 @ up to 30 fps
• Streaming capability: 3 streams
• Resolution support:
• 6MP (3288 × 1850 / 3200 × 1800)
• 5MP (2960 × 1688 / 2880 × 1620)
• 4MP (2688 × 1520 / 2560 × 1440)
• 3MP (2304 × 1296)
• 1080p
• 720p
• D1
• VGA
• CIF
• Bit rate control: CBR / VBR / ABR
• Bit rate: 3 kbps – 16384 kbps
Image Features
• Day/Night: Auto (ICR) / Color / B/W
• WDR: 120 dB
• BLC supported
• HLC supported
• Scene self-adaptation supported
• White balance: Auto / Natural / Street lamp / Outdoor / Manual / Custom
• Gain control: Auto / Manual
• Noise reduction: 3D NR
• Motion detection: 4 configurable areas
• Region of interest: 4 areas
• Smart illumination supported
• Smart dual light supported
• Defog supported
• Image rotation: 0° / 90° / 180° / 270°
• Mirror supported
• Privacy masking: 8 areas
• Lens distortion correction supported
Audio
• Built-in microphone
• Audio compression: PCM / G.711a / G.711Mu / G.726 / G.723
Alarm
• Alarm input: 1 channel
• Alarm output: 1 channel
• Alarm events include:
• Motion detection
• Video tampering
• Tripwire
• Intrusion
• Scene change
• Audio detection
• Voltage detection
• External alarm
• SD card errors
• Network disconnection
• Illegal access
Network
• Network port: RJ-45 (10/100 Base-T)
• Max users: 20
• Total bandwidth: 64 Mbps
• Supported protocols include:
• IPv4 / IPv6
• HTTP / TCP / UDP
• ARP / RTP / RTSP / RTCP / RTMP
• SMTP / FTP / SFTP
• DHCP / DNS / DDNS
• QoS / UPnP / NTP
• Multicast / ICMP / IGMP
• NFS / SAMBA / PPPoE / SNMP
• P2P
• ONVIF support: Profile S / G / T / M
Storage
• MicroSD card support up to 512 GB
• NAS storage supported
• FTP / SFTP storage supported
Software
• Browser support: IE11, Chrome, Firefox
• Management software: Smart PSS Lite, DSS, DMSS, DoLynk Care
• Mobile support: iOS and Android
Security
• Digest / WSSE authentication
• Account lockout
• Security logs
• IP/MAC filtering
• X.509 certificate support
• HTTPS
• 802.1x authentication
• Trusted boot / trusted execution / trusted upgrade
Power
• Power supply: 12 VDC or PoE (802.3af)
• Power consumption:
• Basic: 3.7 W (12V) / 4.6 W (PoE)
• Maximum: 6.4 W (12V) / 7.5 W (PoE)
Environment
• Operating temperature: –40 °C to +60 °C
• Operating humidity: ≤95%
• Storage temperature: –40 °C to +60 °C
Protection
• Weather rating: IP67
• Impact rating: IK10
General
• Casing material: Metal
• Dimensions: 89.1 mm × Φ111.7 mm
• Net weight: 528 g
• Gross weight: 690 g
Certifications
• CE-LVD: EN62368-1
• CE-EMC: 2014/30/EU
