Description

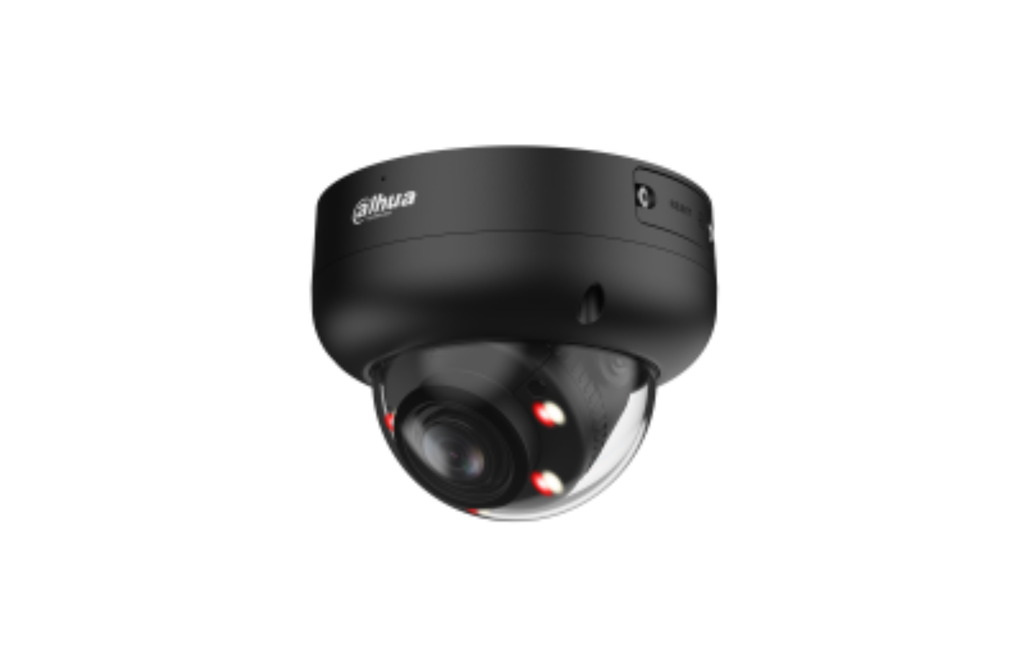

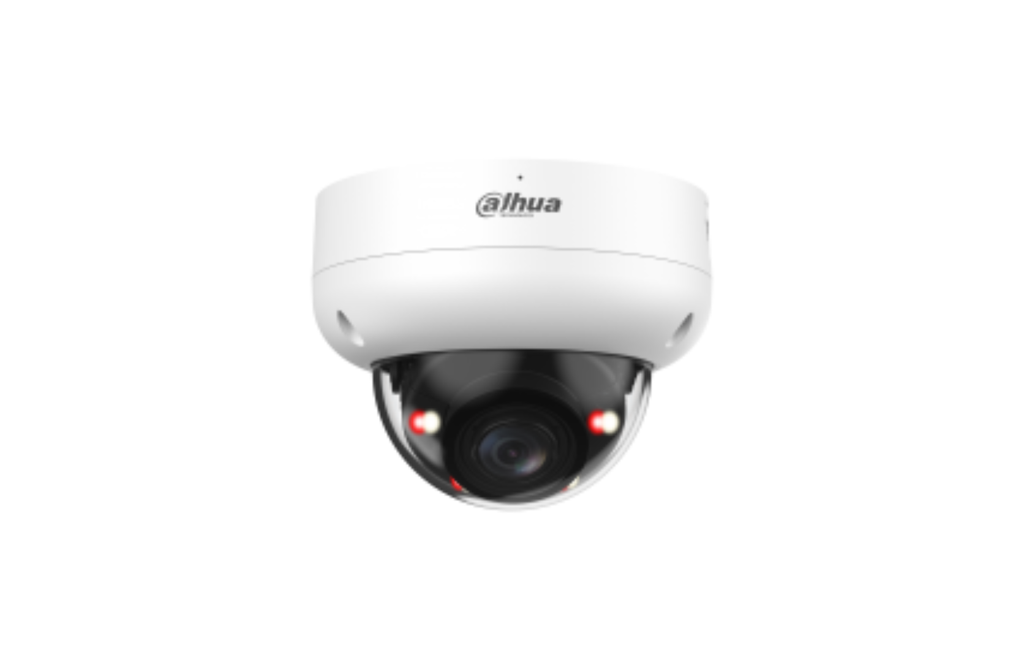

8MP Smart Dual Light Vari-focal Dome WizSense Network Camera
Key Features
• 8MP 1/2.7" CMOS image sensor
• Maximum resolution 3840 × 2160 @ 25/30 fps
• H.265 compression with ultra-low bit rate
• Built-in multi-core light with IR and warm light
• IR distance up to 50 m
• Warm light distance up to 50 m
• Supports Smart H.264+ / Smart H.265+
• Supports AI H.264 / AI H.265 coding
• WDR, 3D NR, HLC, BLC, digital watermarking
• Intelligent monitoring with intrusion and tripwire
• Accurate human and vehicle classification
• SMD 4.0 supported
• Supports AI SSA
• Supports AcuPick with compatible back-end devices
• Built-in microphone
• Supports alarm I/O and audio I/O
• Supports Micro SD card up to 512 GB
• 12 VDC / PoE power supply
• IP67 weatherproof and IK10 vandal resistant
Camera
• Image sensor: 1/2.7" CMOS
• Maximum resolution: 3840 × 2160
• ROM: 256 MB
• RAM: 1 GB
• Scanning system: Progressive
• Electronic shutter speed: Auto/Manual 1/3 s to 1/100,000 s
• Minimum illumination:
• 0.007 Lux @ F1.4 (Color)
• 0.0007 Lux @ F1.4 (B/W)
• 0 Lux with illuminator on
• S/N ratio: >56 dB
Illumination
• IR distance up to 50 m
• Warm light distance up to 50 m
• Illuminator control: Auto / Manual
• Illuminators: 4 multi-core lights (IR + warm light)
Angle Adjustment
• Pan: 0° to 355°
• Tilt: 0° to 80°
• Rotation: 0° to 355°
Lens
• Lens type: Motorized vari-focal
• Lens mount: φ14
• Focal length: 2.7 mm to 13.5 mm
• Maximum aperture: F1.4
• Field of view: H 114°–32°, V 58°–17°, D 138°–36°
• Iris control: Fixed
• Close focus distance: 0.1 m
DORI Distance
Wide
• Detect: 85.3 m
• Observe: 34.0 m
• Recognize: 17.1 m
• Identify: 8.5 m
Tele
• Detect: 280.0 m
• Observe: 112.0 m
• Recognize: 56.0 m
• Identify: 28.0 m
Intelligence
• Perimeter protection:
• Intrusion
• Tripwire
• Human and vehicle classification
• SMD 4.0
• AcuPick supported with compatible back-end devices
• AI SSA scene self-adaptation
• Smart Search works with Smart NVR for refined event search
Video
• Compression: H.265 / H.264 / H.264H / H.264B / MJPEG
• Smart codec: Smart H.265+ / Smart H.264+
• AI coding: AI H.265 / AI H.264
• Main stream: 3840 × 2160 @ up to 25/30 fps
• Sub stream: 1920 × 1080 @ up to 25/30 fps
• Third stream: 1920 × 1080 @ up to 25/30 fps
• Stream capability: 3 streams
• Resolution support:
• 8M (3840 × 2160)
• 6M (3200 × 1800)
• 5M (3072 × 1728)
• 4M (2688 × 1520 / 2560 × 1440)
• 3M (2304 × 1296)
• 1080p
• 720p
• D1
• VGA
• CIF
• Bit rate control: VBR / CBR / ABR
• Video bit rate: 3 kbps to 16384 kbps
Image Features
• Day/Night: Auto (ICR) / Color / B/W
• BLC supported
• HLC supported
• WDR: 120 dB
• Scene self-adaptation supported
• White balance: Auto / Natural / Street lamp / Outdoor / Manual / Regional custom
• Gain control: Auto
• Noise reduction: 3D NR
• Motion detection: 4 rectangular areas
• Electronic image stabilization supported
• Region of interest: 4 areas
• Smart illumination supported
• Smart dual light supported
• Defog supported
• AFSA supported
• Image rotation: 0° / 90° / 180° / 270°
• Mirror supported
• Privacy masking: 8 areas
Audio
• Built-in microphone
• Audio compression: G.711a / G.711Mu / PCM / G.726 / G.723
Alarm
• Alarm input: 1 channel
• Alarm output: 1 channel
• Alarm events include:
• No SD card
• SD card full
• SD card error
• Service life warning
• Network disconnection
• IP conflict
• Illegal access
• Motion detection
• Video tampering
• Intrusion
• Tripwire
• Scene changing
• Audio detection
• Voltage detection
• Defocus detection
• External alarm
• SMD
• Safety exception
Network
• Network port: RJ-45 (10/100 Base-T)
• SDK and API supported
• User/host: 20
• Total bandwidth: 64 Mbps
• Supported protocols include:
• IPv4 / IPv6
• HTTP / TCP / UDP
• ARP / RTP / RTSP / RTCP / RTMP
• SMTP / FTP / SFTP
• DHCP / DNS / DDNS
• QoS / UPnP / NTP
• Multicast / ICMP / IGMP
• NFS / SAMBA / PPPoE / SNMP / P2P
• Interoperability: ONVIF Profile S / G / T / M, CGI
Storage
• Supports FTP / SFTP / NAS
• Supports Micro SD card up to 512 GB
Software
• Browser support: IE11, Chrome, Firefox
• Management software: SmartPSS Lite, DSS, DMSS
• Mobile client: iOS / Android
Cyber Security
• Video encryption
• Firmware encryption
• Configuration encryption
• Digest / WSSE authentication
• Account lockout
• Security logs
• IP/MAC filtering
• X.509 certificate support
• Syslog
• HTTPS
• 802.1x
• Trusted boot
• Trusted execution
• Trusted upgrade
Ports
• Audio input: 1 channel (RCA)
• Audio output: 1 channel (RCA)
• Alarm input: 1 channel in
• Alarm output: 1 channel out
Power
• Power supply: 12 VDC / PoE (802.3af)
• Dual power backup supported
• Power consumption:
• Basic: 3.3 W (12 VDC) / 4.0 W (PoE)
• Max: 9.2 W (12 VDC) / 11.3 W (PoE)
Environment
• Operating temperature: –30 °C to +60 °C
• Operating humidity: ≤95% RH, non-condensing
• Storage temperature: –40 °C to +60 °C
• Storage humidity: ≤95% RH, non-condensing
Protection
• Weather rating: IP67
• Impact rating: IK10
General
• Casing material: Metal
• Product dimensions: 94.0 mm × Φ122.0 mm
• Net weight: 560 g
• Gross weight: 740 g
Certifications
• CE-LVD: EN62368-1
• CE-EMC: 2014/30/EU
