Description

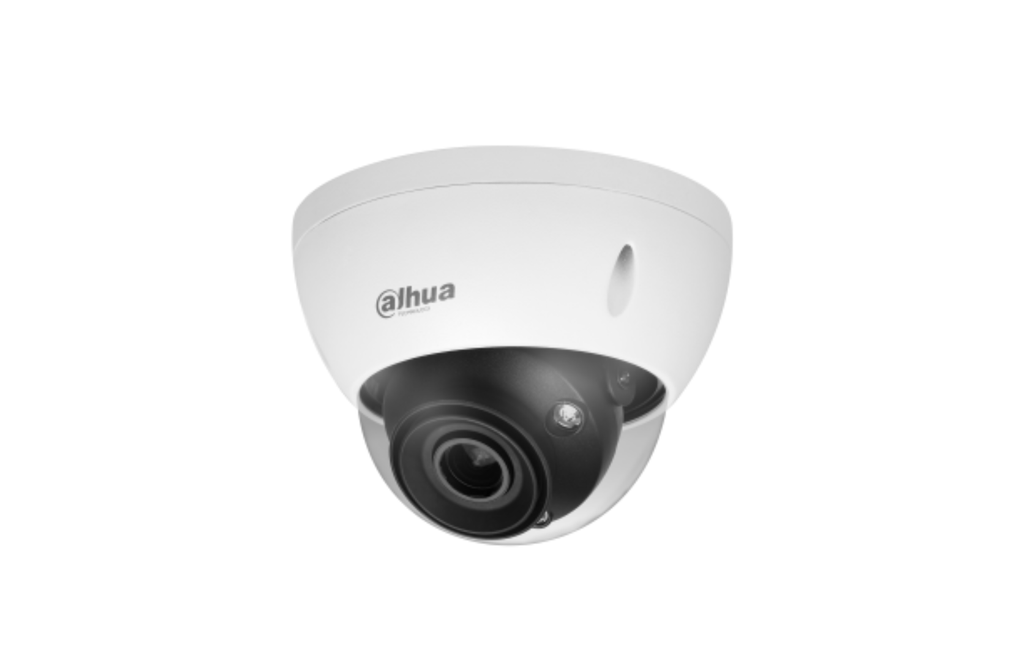

4MP IR Vari-focal Vandal-proof Dome WizMind Network Camera
Key Features
• 4MP 1/2.9" CMOS image sensor
• Maximum resolution 2688 × 1520 @ 25/30 fps
• Built-in IR LED with up to 40 m night vision
• Motorized vari-focal lens (2.7–13.5 mm)
• Supports ROI, SVC, Smart H.264+ / Smart H.265+, AI H.264 / H.265
• Supports encoding after filter for efficient bandwidth usage
• Image processing including WDR, 3D NR, HLC, BLC, digital watermarking
• Intelligent functions including IVS, face detection, video metadata, smart object detection and people counting
• Built-in microphone
• 2 alarm inputs, 1 alarm output
• 1 audio input, 1 audio output
• Supports Micro SD card up to 512 GB
• 12 VDC / PoE / ePoE power supply
• HDMI 1.4a output up to 2560 × 1440 @ 25/30 fps
• HDMI self-adaptation supported
• SMD 3.0 smart motion detection
• IP67 weatherproof and IK10 vandal resistant
Camera
• Image sensor: 1/2.9" CMOS
• Maximum resolution: 2688 × 1520
• ROM: 256 MB
• RAM: 1 GB
• Scanning system: Progressive
• Electronic shutter speed: Auto/Manual 1/3 s – 1/100,000 s
• Minimum illumination:
• 0.002 Lux @ F1.6 (Color)
• 0.0002 Lux @ F1.6 (B/W)
• 0 Lux with IR on
• S/N ratio: >56 dB
Illumination
• IR distance up to 40 m
• Illuminator control: Auto / Manual / Zoom priority
• IR LEDs: 3
Angle Adjustment
• Pan: 0°–355°
• Tilt: 0°–65°
• Rotation: 0°–355°
Lens
• Lens type: Motorized vari-focal
• Lens mount: φ14
• Focal length: 2.7–13.5 mm
• Maximum aperture: F1.6
• Iris control: Auto
• Field of view:
• Horizontal 104°–29°
• Vertical 54°–16°
• Diagonal 125°–34°
• Close focus distance: 0.1 m
DORI Distance
Wide
• Detect: 64.0 m
• Observe: 25.6 m
• Recognize: 12.8 m
• Identify: 6.4 m
Tele
• Detect: 210.0 m
• Observe: 84.0 m
• Recognize: 42.0 m
• Identify: 21.0 m
Intelligence
• IVS perimeter protection:
• Intrusion detection
• Tripwire
• Fast moving detection
• Human and vehicle classification
• Additional IVS:
• Loitering detection
• People gathering
• Parking detection
• Smart object detection:
• Abandoned object detection
• Missing object detection
• SMD 3.0
• AcuPick AI search
• Face detection features:
• Face snapshot
• Snapshot optimization
• Face attribute extraction
• Face angle filtering
• Snapshot strategy settings
• People counting:
• Tripwire people counting
• Area people counting
• Queue management
• Report export (day/week/month/year)
• Heat map supported
• Video metadata supports detection of:
• Motor vehicles
• Non-motor vehicles
• Faces
• Human body attributes
Video
• Compression: H.265 / H.264 / H.264H / H.264B / MJPEG
• Smart codec: Smart H.265+ / Smart H.264+
• AI coding: AI H.265 / AI H.264
• Main stream: 2688 × 1520 @ up to 25/30 fps
• Sub stream: 704 × 576 / 704 × 480
• Third stream: 1920 × 1080
• Stream capability: 3 streams
• Resolution support:
• 4MP
• 3MP
• 1080p
• 1.3MP
• 720p
• D1
• VGA
• CIF
• Bit rate control: CBR / VBR
• Video bit rate: 3 kbps – 16384 kbps
• HDMI output:
• 2560 × 1440 @ 25/30 fps
• 1920 × 1080 @ 25/30/50/60 fps
• 1280 × 720 @ 25/30/50/60 fps
Image Features
• Day/Night: Auto (ICR) / Color / B/W
• WDR: 120 dB
• BLC supported
• HLC supported
• Scene self-adaptation supported
• White balance: Auto / Natural / Street lamp / Outdoor / Manual / Custom
• Gain control: Auto / Manual
• Noise reduction: 3D NR
• Motion detection: 4 areas
• Region of interest: 4 areas
• Electronic image stabilization supported
• Smart illumination supported
• Defog supported
• Image rotation supported
• Mirror supported
• Privacy masking: 4 areas
• LDC supported
Audio
• Built-in microphone
• Audio compression: PCM / G.711a / G.711Mu / G.726 / G.723
Alarm
• Alarm input: 2 channels
• Alarm output: 1 channel
• Alarm events include:
• Motion detection
• Video tampering
• Intrusion
• Tripwire
• Fast moving
• Abandoned object
• Missing object
• Loitering detection
• People gathering
• Parking detection
• Scene change
• Audio detection
• Voltage detection
• Face detection
• Video metadata
• SMD
• People counting alarms
• Queue alarms
• Security exception
• Defocus detection
Network
• Network port: RJ-45 (10/100 Base-T)
• SDK and API supported
• Max users: 20
• Total bandwidth: 80 Mbps
• Supported protocols include:
• IPv4 / IPv6
• HTTP / TCP / UDP
• RTP / RTSP / RTCP / RTMP
• SMTP / FTP / SFTP
• DHCP / DNS / DDNS
• QoS / UPnP / NTP
• Multicast / ICMP / IGMP
• NFS / PPPoE / SNMP / P2P
• Interoperability: ONVIF Profile S / G / T
Storage
• Supports Micro SD card up to 512 GB
• NAS storage supported
• FTP / SFTP supported
Software
• Browser support: IE11+, Chrome 45+, Firefox 46+, Safari 12+
• Management software: SmartPSS Lite, DSS, DMSS
• Mobile client: iOS / Android
Cyber Security
• Video encryption
• Firmware encryption
• Configuration encryption
• Digest / WSSE authentication
• Account lockout
• Security logs
• IP/MAC filtering
• X.509 certificate support
• HTTPS
• 802.1x
• Trusted boot
• Trusted execution
• Trusted upgrade
Ports
• HDMI: HDMI 1.4a Type-A
• Audio input: 1 channel (RCA)
• Audio output: 1 channel (RCA)
• Alarm input: 2 channels
• Alarm output: 1 channel
Power
• Power supply: 12 VDC / PoE (802.3af) / ePoE
• Dual power backup supported
• Power consumption:
• Basic: 3.6 W (12V) / 4.7 W (PoE)
• Maximum: 8.3 W (12V) / 8.8 W (PoE)
Environment
• Operating temperature: –30 °C to +60 °C
• Operating humidity: ≤95% RH
• Storage temperature: –40 °C to +60 °C
Protection
• Weather protection: IP67
• Vandal resistance: IK10
General
• Casing material: Metal
• Dimensions: Φ159.1 mm × 118.1 mm
• Net weight: 0.92 kg
• Gross weight: 1.22 kg
Certifications
• CE-LVD: EN62368-1
• CE-EMC: 2014/30/EU
