Description

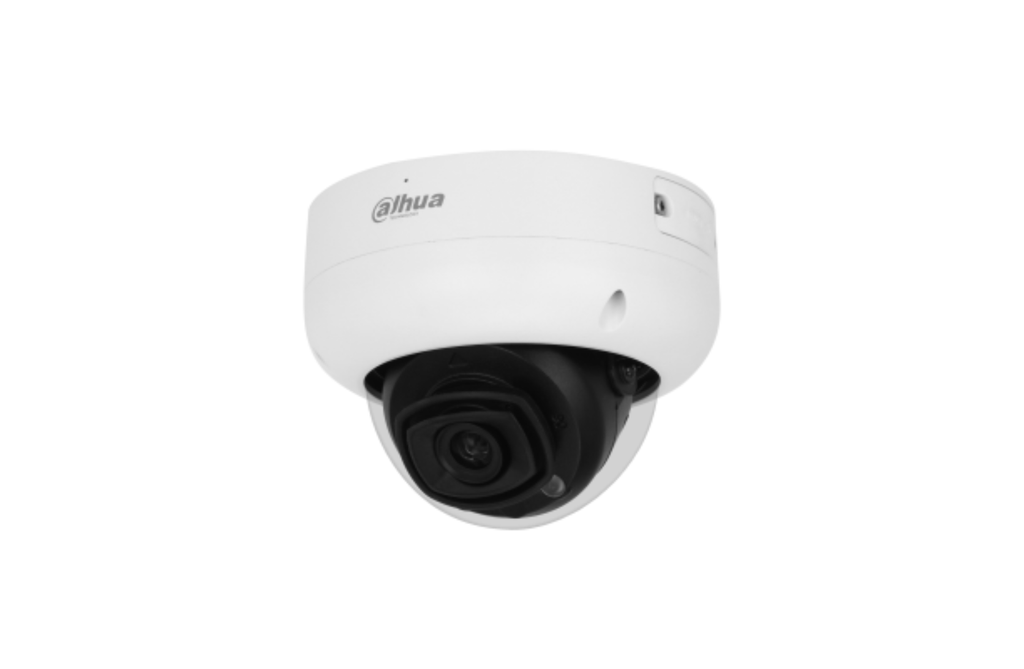

4MP IR Fixed-focal Dome WizMind Network Camera
Key Features
• 4MP 1/2.9" CMOS image sensor
• Maximum resolution 2688 × 1520 @ 25/30 fps
• Built-in IR LED with up to 50 m illumination distance
• Supports ROI, SVC, Smart H.264+ / Smart H.265+, AI H.264 / AI H.265
• Supports encoding after filter for bandwidth and storage optimization
• Image features include WDR, 3D NR, HLC, BLC, digital watermarking
• Supports intelligent functions including video metadata, IVS, face detection, smart object detection, and people counting
• Built-in microphone
• Supports 1 alarm input, 1 alarm output, 1 audio input, 1 audio output
• Supports Micro SD card up to 512 GB
• Supports 12 VDC, PoE and ePoE
• HDMI 1.4a output with up to 2560 × 1440 @ 25/30 fps
• HDMI self-adaptation supported
• SMD 3.0
• IP54 and IK10 protection
Camera
• Image sensor: 1/2.9" CMOS
• Maximum resolution: 2688 × 1520
• ROM: 256 MB
• RAM: 1 GB
• Scanning system: Progressive
• Electronic shutter speed: Auto/Manual 1/3 s to 1/100,000 s
• Minimum illumination:
• 0.002 Lux @ F1.6 (Color)
• 0.0002 Lux @ F1.6 (B/W)
• 0 Lux with IR on
• S/N ratio: >56 dB
Illumination
• IR illumination distance up to 50 m
• Illuminator control: Auto / Manual
• Illuminators: 2 IR LEDs
Angle Adjustment
• Pan: 0° to 355°
• Tilt: 0° to 80°
• Rotation: 0° to 355°
Lens
• Lens type: Fixed-focal
• Lens mount: M12
• Focal length options: 2.8 mm / 3.6 mm / 6 mm
• Maximum aperture: F1.6
• Field of view:
• 2.8 mm: H 101°, V 55°, D 121°
• 3.6 mm: H 84°, V 43°, D 100°
• 6 mm: H 52°, V 28°, D 61°
• Iris control: Fixed
• Close focus distance:
• 2.8 mm: 1.1 m
• 3.6 mm: 1.7 m
• 6 mm: 3.2 m
DORI Distance
2.8 mm
• Detect: 63.6 m
• Observe: 25.4 m
• Recognize: 12.7 m
• Identify: 6.4 m
3.6 mm
• Detect: 85.4 m
• Observe: 34.2 m
• Recognize: 17.1 m
• Identify: 8.5 m
6 mm
• Detect: 124.0 m
• Observe: 49.6 m
• Recognize: 24.8 m
• Identify: 12.4 m
Intelligence
• IVS perimeter protection:
• Intrusion
• Tripwire
• Fast moving
• Supports accurate human and vehicle classification
• Additional IVS functions:
• Loitering detection
• People gathering
• Parking detection
• Smart object detection:
• Abandoned object
• Missing object
• SMD 3.0
• AcuPick supported with compatible back-end devices
• Face detection supports:
• Face detection
• Snapshot
• Snapshot optimization
• Optimal face snapshot upload
• Face snapshot enhancement
• Face exposure
• Face attributes extraction
• Face angle filter
• Snapshot strategy settings
• People counting supports:
• Tripwire people counting
• Area people counting
• Queue management
• Report export by day / week / month / year
• Up to 4 rules
• Heat map supported
• Video metadata supports:
• Motor vehicle detection
• Non-motor vehicle detection
• Face detection
• Human body detection
• Attribute extraction for vehicles, faces, and human body
Video
• Compression: H.265 / H.264 / H.264H / H.264B / MJPEG
• Smart codec: Smart H.265+ / Smart H.264+
• AI coding: AI H.265 / AI H.264
• Main stream: 2688 × 1520 @ 1–25/30 fps
• Sub stream: 704 × 576 @ 1–25 fps / 704 × 480 @ 1–30 fps
• Third stream: 1920 × 1080 @ 1–25/30 fps
• Stream capability: 3 streams
• Resolution support:
• 4M (2688 × 1520 / 2560 × 1440)
• 3M (2048 × 1536 / 2304 × 1296)
• 1080p
• 1.3M
• 720p
• D1
• VGA
• CIF
• Bit rate control: VBR / CBR
• Video bit rate: 3 kbps to 16384 kbps
• HDMI output resolutions:
• 2560 × 1440 @ 25/30 fps
• 1920 × 1080 @ 25/30/50/60 fps
• 1280 × 720 @ 25/30/50/60 fps
Image Features
• Day/Night: Auto (ICR) / Color / B/W
• BLC supported
• HLC supported
• WDR: 120 dB
• Scene self-adaptation supported
• White balance: Auto / Natural / Street lamp / Outdoor / Manual / Regional custom
• Gain control: Auto / Manual
• Noise reduction: 3D NR
• Motion detection: 4 rectangular areas
• Region of interest: 4 areas
• Smart illumination supported
• Defog supported
• Image rotation supported
• Mirror supported
• Privacy masking: 4 areas
• LDC supported
Audio
• Built-in microphone
• Audio compression: PCM / G.711a / G.711Mu / G.726 / G.723
Alarm
• Alarm input: 1 channel
• Alarm output: 1 channel
• Alarm events include:
• No SD card
• SD card full
• SD card error
• Network disconnection
• IP conflict
• Illegal access
• Motion detection
• Video tampering
• Tripwire
• Intrusion
• Fast moving
• Abandoned object
• Missing object
• Loitering detection
• People gathering
• Parking detection
• Scene changing
• Audio detection
• Voltage detection
• External alarm
• Face detection
• Video metadata
• SMD
• People counting in area
• Stay detection
• People counting
• People number error detection
• Queue people number alarm
• Queue time alarm
• Security exception
Network
• Network port: RJ-45 (10/100 Base-T)
• SDK and API supported
• User/host: 20
• Total bandwidth: 80 Mbps
• Supported protocols include:
• IPv4 / IPv6
• HTTP / TCP / UDP
• ARP / RTP / RTSP / RTCP / RTMP
• SMTP / FTP / SFTP
• DHCP / DNS / DDNS
• QoS / UPnP / NTP
• Multicast / ICMP / IGMP
• NFS / PPPoE / SNMP / P2P
• Interoperability: ONVIF Profile S / G / T, CGI
Storage
• Supports FTP / SFTP / NAS
• Supports Micro SD card up to 512 GB
Software
• Browser support:
• IE 11 and later
• Chrome 45 and later
• Firefox 46 and later
• Safari 12 and later
• Management software: SmartPSS Lite, DSS, DMSS
• Mobile client: iOS / Android
Cyber Security
• Video encryption
• Firmware encryption
• Configuration encryption
• Digest / WSSE authentication
• Account lockout
• Security logs
• IP/MAC filtering
• X.509 certificate support
• Syslog
• HTTPS
• 802.1x
• Trusted boot
• Trusted execution
• Trusted upgrade
Ports
• HDMI: HDMI 1.4a, Type A, female
• Audio input: 1 channel (RCA)
• Audio output: 1 channel (RCA)
• Alarm input: 1 channel in
• Alarm output: 1 channel out
Power
• Power supply: 12 VDC / PoE (802.3af) / ePoE
• Dual power backup supported
• Power consumption:
• Basic: 3.6 W (12 VDC) / 4.5 W (PoE)
• Max: 5.9 W (12 VDC) / 6.9 W (PoE)
Environment
• Operating temperature: –40 °C to +60 °C
• Operating humidity: ≤95% RH, non-condensing
• Storage temperature: –40 °C to +60 °C
• Storage humidity: ≤95% RH, non-condensing
Protection
• Weather rating: IP54
• Impact rating: IK10
General
• Casing material: Metal
• Product dimensions: Φ122.0 mm × 94 mm
• Net weight: 0.55 kg
• Gross weight: 0.73 kg
Certifications
• CE-LVD: EN62368-1
• CE-EMC: 2014/30/EU
