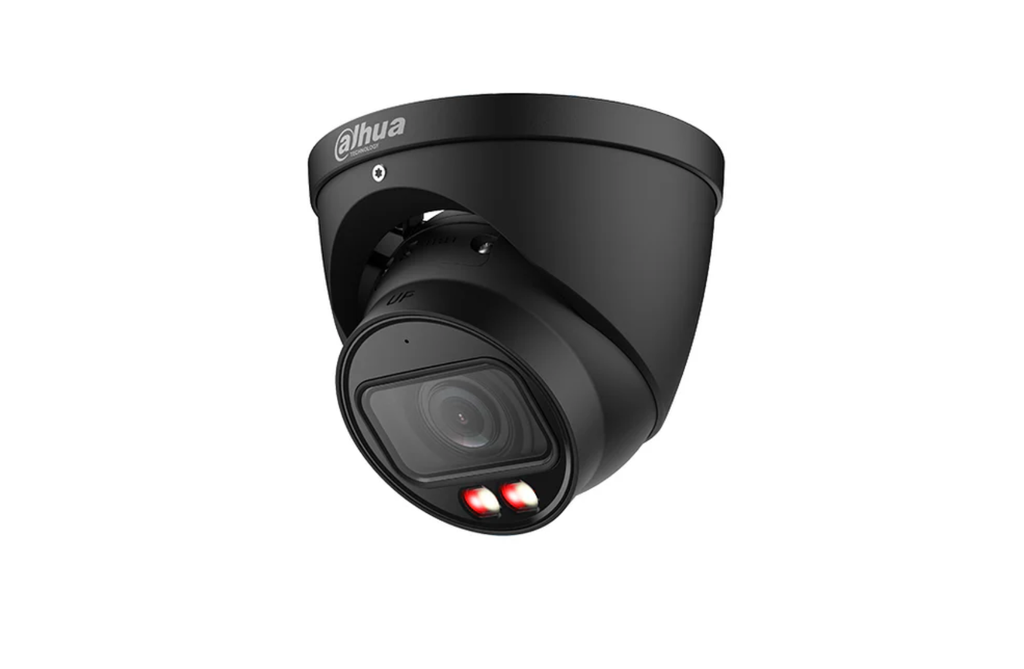

Dahua IPC-HDW3667EM-S-IL-ANZ 6MP Smart Dual Light Fixed-focal Eyeball WizSense Network Camera

6MP Smart Dual Light Fixed-focal Eyeball WizSense Network Camera

Key Features

• 6MP 1/2.7" CMOS image sensor with low luminance and high-definition image quality

• Max. output: 6MP (3288 × 1850) @ 25/30 fps

• H.265 codec for high compression and ultra-low bit rate

• Built-in multi-core light:

  • IR distance: up to 30 m

  • Warm light distance: up to 30 m

• ROI, Smart H.264+/H.265+, AI H.264/H.265 for flexible coding and efficient bandwidth/storage usage

• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking

• Intelligent Monitoring: Intrusion, Tripwire (supports human/vehicle classification and accurate detection)

• Abnormality Detection: motion detection, video tampering, scene changing, audio detection, missing SD card, SD card full/error, network disconnection, IP conflict, illegal access, and voltage detection

• Supports up to 512 GB MicroSD card

• Built-in microphone

• Power supply: 12 VDC / PoE

• Protection rating: IP67

• SMD 4.0 supported

• AI SSA supported

• SMD area configurable in warm light zones for alarm triggering



Camera

• Image Sensor: 1/2.7" CMOS

• Max. Resolution: 3288 (H) × 1850 (V)

• ROM / RAM: 256 MB / 1 GB

• Scanning System: Progressive

• Electronic Shutter Speed: Auto/Manual 1/3 s – 1/100,000 s

• Min. Illumination:

  • 0.005 lux @ F1.4 (Color, 30 IRE)

  • 0.0005 lux @ F1.4 (B/W, 30 IRE)

  • 0 lux (Illuminator on)

• S/N Ratio: >56 dB

• Illumination Distance: Up to 30 m IR / 30 m warm light

• Illuminator Control: Auto / Manual

• Illuminator Number: 2 (multi-core IR + warm light)

• Angle Adjustment: Pan 0°–360°; Tilt 0°–80°; Rotation 0°–360°

---

Lens

• Type: Fixed-focal

• Mount: M12

• Focal Lengths: 2.8 mm / 3.6 mm

• Max. Aperture: F1.4

• Field of View:

  • 2.8 mm: H 110°; V 58°; D 132°

  • 3.6 mm: H 86°; V 49°; D 100°

• Iris Control: Fixed

• Close Focus Distance:

  • 2.8 mm: 1.4 m

  • 3.6 mm: 1.9 m

DORI Distance (EN-62676-4 Standard)

---

Intelligence

• IVS (Perimeter Protection): Intrusion, tripwire (vehicle & human classification)

• SMD: SMD 4.0

• AcuPick: Deep learning-based target search (people, vehicles)

• AI SSA: Automatic scene self-adaptation with deep learning

• Smart Search: Refined intelligent search, event extraction & video merging (with Smart NVR)

---

Video

• Compression: H.265; H.264; H.264H; H.264B; MJPEG (sub-stream only)

• AI Coding: AI H.265; AI H.264 (SmartCodec H.264+/H.265+)

• Frame Rate:

  • Main: 3288 × 1850 @ 1–25/30 fps

  • Sub: 1920 × 1080 @ 1–25/30 fps

  • Third: 1920 × 1080 @ 1–25/30 fps

• Streams: 3

• Resolutions: 6MP / 5MP / 4MP / 3MP / 1080p / 720p / D1 / VGA / CIF

• Bit Rate Control: VBR / CBR / ABR

• Bit Rate: H.264 & H.265: 3 kbps – 16,384 kbps

• Day/Night: Auto (ICR) / Color / B/W

• WDR: 120 dB

• BLC / HLC / SSA / Defog / 3D NR / RoI / Smart Illumination / Smart Dual Light / LDC: Supported

• Motion Detection: 4 configurable areas

• Privacy Masking: Up to 8 areas

• Rotation: 0°/90°/180°/270° (90°/270° supported up to 2688 × 1520)

• Mirror: Supported

---

Audio

• Built-in Mic: Yes

• Compression: PCM; G.711a; G.711Mu; G.726; G.723

---

Alarm

• Events: No SD card; SD error/full; network disconnection; IP conflict; illegal access; motion; tampering; tripwire; intrusion; scene change; audio detection; voltage detection; SMD; security exception

---

Network

• Port: RJ-45 (10/100 Base-T)

• Protocols: IPv4/IPv6, HTTP, TCP/UDP, RTP/RTSP/RTMP, SMTP, FTP/SFTP, DHCP, DNS, DDNS, NTP, QoS, UPnP, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P

• Interoperability: ONVIF (S, G, T, M); CGI

• Users: 20 (total bandwidth 64 M)

• Storage: FTP, SFTP, Micro SD (max. 512 GB), NAS

• SDK/API: Supported

• Browser: IE11, Chrome, Firefox

• Management Software: Smart PSS Lite, DSS, DMSS, DoLynk Care

• Mobile Apps: iOS, Android

---

Security

• Digest, WSSE, account lockout, logs, IP/MAC filtering, X.509 certificates, syslog, HTTPS, 802.1x, trusted boot/execution/upgrade, session security, alerts

---

Certification

• CE-LVD: EN62368-1

• CE-EMC: 2014/30/EU

---

Power

• Supply: 12 VDC / PoE (802.3af)

• Dual Power Backup: Supported

• Consumption:

  • Basic: 3.7 W (12 VDC); 5.3 W (PoE)

  • Max.: 7.4 W (12 VDC); 9.5 W (PoE) (H.265 + WDR + warm light + AI on)

---

Environment

• Operating Temp.: –40 °C to +60 °C (–40 °F to +140 °F)

• Storage Temp.: –40 °C to +60 °C (–40 °F to +140 °F)

• Humidity: ≤95% RH (non-condensing)

• Protection: IP67

---

Structure

• Material: Metal

• Dimensions: 105.5 mm × Φ122.0 mm (4.16" × Φ4.80")

• Net Weight: 0.53 kg (1.17 lb)

• Gross Weight: 0.71 kg (1.57 lb)
