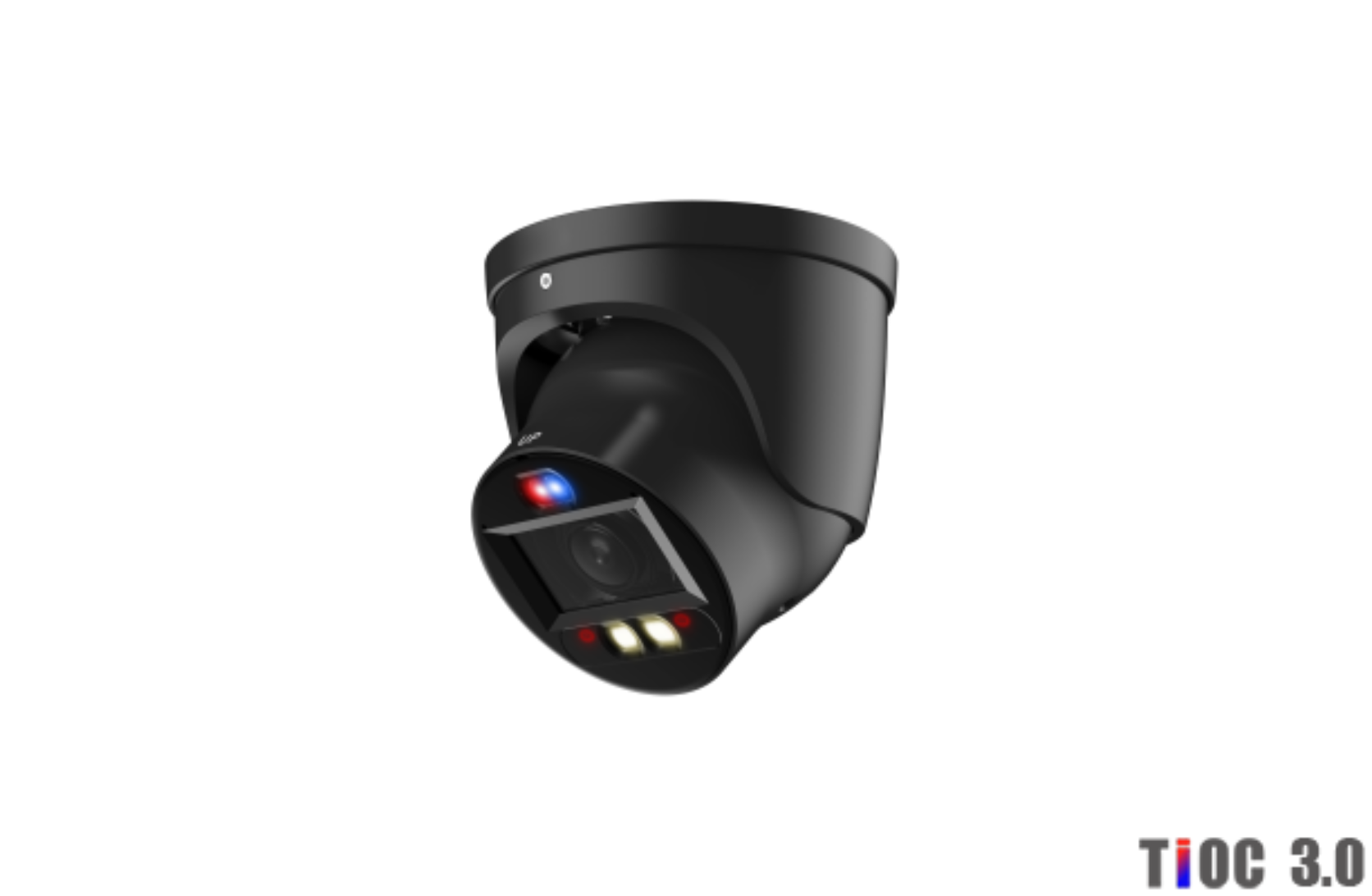

Dahua DH-IPC-HDW3849H-ZAS-PV-ANZ-S2-BLK 8MP Smart Dual Light Active Deterrence Vari-focal Eyeball WizSense Network Camera Black

Dahua DH-IPC-HDW3849H-ZAS-PV-ANZ-S2-BLK 8MP Smart Dual Light Active Deterrence Vari-Focal Eyeball WizSense Network Camera Black

NOTE: Lead time exists - 4 to 8 weeks.

Key Features

• 8MP resolution with a 1/2.8" CMOS image sensor.

• Outputs up to 3840 × 2160 at 25/30 fps.

• Motorised vari-focal 2.7 mm–13.5 mm lens.

• Built-in IR and warm light.

• IR illumination distance up to 50 m.

• Warm light illumination distance up to 40 m.

• Supports Smart H.265+, Smart H.264+, AI H.265 and AI H.264.

• Supports 120 dB WDR, 3D NR, HLC, BLC, defog and digital watermarking.

• Supports intrusion and tripwire detection with human and vehicle classification.

• Supports SMD 4.0.

• Supports AcuPick with compatible back-end devices.

• Supports AI SSA for automatic image optimisation.

• Supports smart search with compatible Smart NVRs.

• Built-in dual microphones and built-in speaker.

• Supports two-way talk.

• Sound and light active deterrence with red and blue warning lights.

• Alarm: 1 input and 1 output.

• Audio: 1 input and 1 output.

• Supports Micro SD card storage up to 512 GB.

• Supports 12 VDC or PoE power supply.

• IP67 weather protection.

• Datasheet

Camera

• Image Sensor: 1/2.8" CMOS

• Maximum Resolution: 3840 × 2160

• ROM: 256 MB

• RAM: 2 GB

• Scanning System: Progressive

• Electronic Shutter Speed: Auto/manual, 1/3 s to 1/100,000 s

• Signal-to-Noise Ratio: More than 56 dB

Minimum Illumination

• Colour: 0.004 lux at F1.0

• Black and white: 0.0004 lux at F1.0

• 0 lux with illuminator on

Illumination Distance

• IR: Up to 50 m

• Warm light: Up to 40 m

Illuminators

• 2 × IR LEDs

• 2 × warm lights

Illuminator Control

• Auto

• Manual

Angle Adjustment

• Pan: 0° to 360°

• Tilt: 0° to 78°

• Rotation: 0° to 360°

Lens

• Lens Type: Motorised vari-focal

• Lens Mount: φ16

• Focal Length: 2.7 mm–13.5 mm

• Maximum Aperture: F1.0

• Iris Control: Fixed

• Close Focus Distance: 1.5 m

Field of View

• Horizontal: 108°–34°

• Vertical: 56°–19°

• Diagonal: 130°–39°

DORI Distance at Wide Angle

• Detect: 89.9 m

• Observe: 36 m

• Recognise: 18 m

• Identify: 9 m

DORI Distance at Telephoto

• Detect: 257.4 m

• Observe: 103 m

• Recognise: 51.5 m

• Identify: 25.7 m

Intelligence

IVS Perimeter Protection

• Intrusion

• Tripwire

• Supports human and vehicle classification.

• Supports accurate detection of people and vehicles.

SMD

• Supports SMD 4.0

AcuPick

• Uses deep learning algorithms to match people and vehicles.

• Works with compatible back-end devices.

• Helps search live and recorded video to quickly locate targets.

AI SSA

• Uses deep learning algorithms to adjust image parameters automatically.

• Helps optimise the image for different scene conditions.

Smart Search

• Works with compatible Smart NVRs.

• Supports refined intelligent search.

• Supports event extraction and event video merging.

Video

• Video Compression: H.265, H.264, H.264H, H.264B and MJPEG on sub stream

• Smart Codec: Smart H.265+ and Smart H.264+

• AI Coding: AI H.265 and AI H.264

• Stream Capability: 3 streams

• Bit Rate Control: CBR, VBR and ABR

• Video Bit Rate: 3 kbps to 16384 kbps for H.264 and H.265

Video Frame Rate

• Main stream: 3840 × 2160 at 1–25/30 fps

• Sub stream: 704 × 576 at 1–25 fps or 704 × 480 at 1–30 fps

• Third stream: 1920 × 1080 at 1–25/30 fps

Supported Resolutions

• 8MP: 3840 × 2160

• 6MP: 3072 × 2048

• 5MP: 3072 × 1728 / 2592 × 1944

• 4MP: 2688 × 1520 / 2560 × 1440

• 3MP: 2048 × 1536 / 2304 × 1296

• 1080p: 1920 × 1080

• 1.3MP: 1280 × 960

• 720p: 1280 × 720

• D1: 704 × 576 / 704 × 480

• VGA: 640 × 480

• CIF: 352 × 288 / 352 × 240

Image Settings

• Day/Night: Auto ICR, colour and black and white

• BLC: Supported

• HLC: Supported

• WDR: 120 dB

• Scene Self-adaptation: Supported

• White Balance: Auto, natural, street lamp, outdoor, manual and regional custom

• Gain Control: Auto and manual

• Noise Reduction: 3D NR

• Motion Detection: 4 rectangular areas

• Region of Interest: 4 areas

• Electronic Image Stabilisation: Supported

• Smart Illumination: Supported

• Defog: Supported

• Image Rotation: 0°, 90°, 180° and 270°

• Mirror: Supported

• Privacy Masking: 4 areas

Audio

• Built-in Microphone: Dual microphones

• Built-in Speaker: Yes

• Two-Way Talk: Supported

• Audio Input: 1 RCA port

• Audio Output: 1 RCA port

• Audio Compression: G.711a, G.711Mu, PCM, G.726 and G.723

Alarm

Alarm Events

• No SD card

• SD card full

• SD card error

• Network disconnection

• IP conflict

• Illegal access

• Motion detection

• Video tampering

• Tripwire

• Intrusion

• Scene change

• Audio detection

• Defocus detection

• Voltage detection

• External alarm

• SMD

• Security exception

Active Deterrence

• Sound alarm

• Red and blue light alarm

• Warm light alarm triggering area support

Network

• Network Port: RJ45 10/100 Base-T

• SDK and API: Supported

• User/Host: 20 users

• Total Bandwidth: 64 Mbps

Network Protocols

• IPv4

• IPv6

• HTTP

• TCP

• UDP

• ARP

• RTP

• RTSP

• RTCP

• RTMP

• SMTP

• FTP

• SFTP

• DHCP

• DNS

• DDNS

• QoS

• UPnP

• NTP

• Multicast

• ICMP

• IGMP

• NFS

• PPPoE

• SNMP

• P2P

Interoperability

• ONVIF Profile S

• ONVIF Profile G

• ONVIF Profile T

• CGI

Browser Support

• Internet Explorer 9/11

• Chrome

• Firefox

Management Software

• SmartPSS Lite

• DSS

• DMSS

Mobile Client

• iOS

• Android

Cybersecurity

• Video encryption

• Firmware encryption

• Configuration encryption

• Digest

• WSSE

• Account lockout

• Security logs

• IP and MAC filtering

• X.509 certificate generation and import

• Syslog

• HTTPS

• 802.1x

• Trusted boot

• Trusted execution

• Trusted upgrade

Storage

• Micro SD Card: Supports up to 512 GB

• Network Storage: FTP, SFTP and NAS

Ports

• Audio Input: 1 RCA port

• Audio Output: 1 RCA port

• Alarm Input: 1 channel, wet contact, 5 mA, 3–5 VDC

• Alarm Output: 1 channel, wet contact, 300 mA, 12 VDC

Power

• Power Supply: 12 VDC or PoE

• PoE Standard: IEEE 802.3af

• Basic Power Consumption: 4.5 W with 12 VDC or 5.8 W with PoE

• Maximum Power Consumption: 10.3 W with 12 VDC or 12.1 W with PoE

Environment

• Operating Temperature: –30°C to +60°C

• Storage Temperature: –40°C to +60°C

• Operating Humidity: Up to 95% RH, non-condensing

• Storage Humidity: Up to 95% RH, non-condensing

Protection

• Weather Protection: IP67

Structure

• Casing Material: Metal

• Product Dimensions: 127.6 × Φ122 mm

• Net Weight: 0.885 kg

• Gross Weight: 1.060 kg

Certifications

• CE-LVD: EN 62368-1

• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
