Description

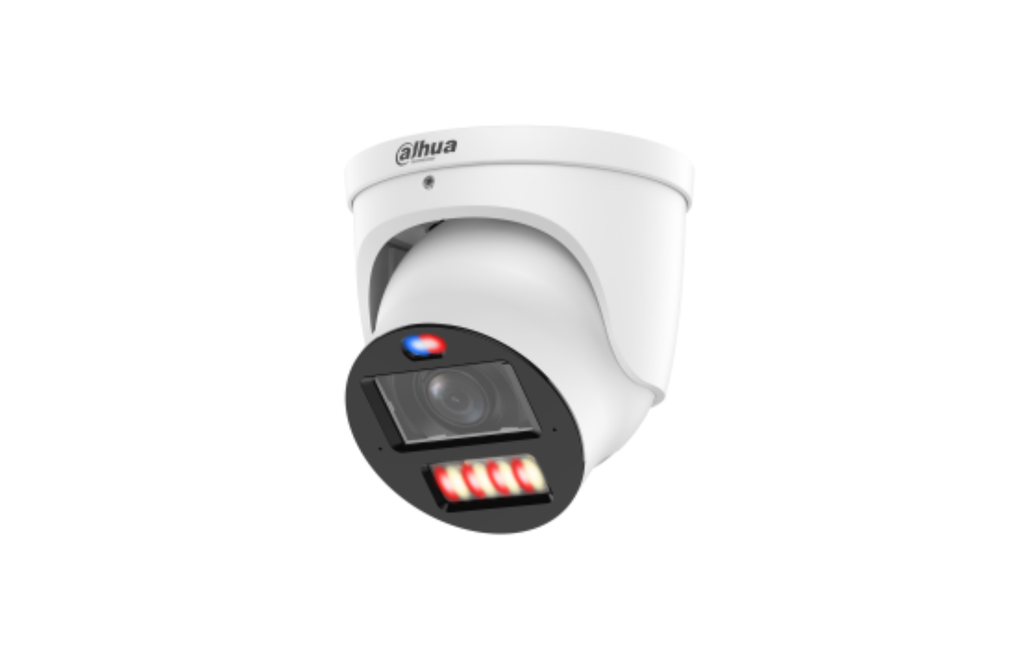

8MP WizColor TiOC PRO Vari-focal Eyeball WizSense Network Camera
Key Features
• 8MP 1/1.8" CMOS image sensor
• Maximum resolution 3840 × 2160 @ 25/30 fps
• H.265 compression with ultra-low bit rate
• Built-in multi-core light with IR and warm light
• IR distance up to 50 m
• Warm light distance up to 50 m
• Supports Smart H.264+ / Smart H.265+
• Supports AI H.264 / AI H.265 coding
• WDR, 3D NR, HLC, BLC, digital watermarking
• Intelligent monitoring with intrusion, tripwire, stay detection, and loitering detection
• Accurate human and vehicle classification
• Full-image face detection supported
• SMD 4.0 supported
• Supports AI SSA
• Supports AcuPick with compatible back-end devices
• Built-in dual microphones and speaker
• Supports two-way talk
• Sound and light alarm with red and blue lights
• Supports one-tap arming and disarming
• Supports alarm I/O and audio I/O
• Supports Micro SD card up to 512 GB
• 12 VDC / PoE+ power supply
• IP67 weatherproof
Camera
• Image sensor: 1/1.8" CMOS
• Maximum resolution: 3840 × 2160
• ROM: 256 MB
• RAM: 1 GB
• Scanning system: Progressive
• Electronic shutter speed: Auto/Manual 1/3 s to 1/100,000 s
• Minimum illumination:
• 0.0006 Lux @ F1.2 (Color)
• 0.0003 Lux @ F1.2 (B/W)
• 0 Lux with illuminator on
• S/N ratio: >56 dB
Illumination
• IR distance up to 50 m
• Warm light distance up to 50 m
• Illuminator control: Auto / Manual / Zoom priority
• Illuminators: 4 multi-core lights (IR + warm light)
Angle Adjustment
• Pan: 0° to 360°
• Tilt: 0° to 78°
• Rotation: 0° to 360°
Lens
• Lens type: Motorized vari-focal
• Lens mount: φ16
• Focal length: 2.7 mm to 12 mm
• Maximum aperture: F1.2
• Field of view: H 112°–48°, V 58°–27°, D 137°–55°
• Iris control: Fixed
• Close focus distance:
• Wide: 1.75 m
• Tele: 5.21 m
DORI Distance
Wide
• Detect: 87.6 m
• Observe: 35.0 m
• Recognize: 17.5 m
• Identify: 8.8 m
Tele
• Detect: 186.6 m
• Observe: 74.6 m
• Recognize: 37.3 m
• Identify: 18.7 m
Intelligence
• Perimeter protection:
• Intrusion
• Tripwire
• Stay detection
• Loitering detection
• Human and vehicle classification
• Full-image face detection supports:
• Face detection
• Snapshot
• Snapshot optimization
• Optimal face snapshot upload
• Face enhancement
• Face angle filter
• Time optimization settings
• SMD 4.0
• AcuPick supported with compatible back-end devices
• AI SSA scene self-adaptation
• Smart Search works with Smart NVR for refined event search
Video
• Compression: H.265 / H.264 / H.264H / H.264B / MJPEG
• AI coding: AI H.265 / AI H.264
• Includes Smart H.265+ / Smart H.264+
• Main stream: 3840 × 2160 @ up to 25/30 fps
• Sub stream: 1920 × 1080 @ up to 25/30 fps
• Third stream: 1920 × 1080 @ up to 25/30 fps
• Stream capability: 3 streams
• Resolution support:
• 8M (3840 × 2160)
• 6M (3200 × 1800)
• 5M (3072 × 1728)
• 4M (2688 × 1520 / 2560 × 1440)
• 3M (2304 × 1296)
• 1080p
• 720p
• D1
• VGA
• CIF
• Bit rate control: CBR / VBR / ABR
• Video bit rate: 3 kbps to 16384 kbps
Image Features
• Day/Night: Auto (ICR) / Color / B/W
• BLC supported
• HLC supported
• WDR: 120 dB
• Scene self-adaptation supported
• White balance: Auto / Natural / Street lamp / Outdoor / Manual / Regional custom
• Gain control: Auto
• Noise reduction: 3D NR
• Motion detection: 4 rectangular areas
• Region of interest: 4 areas
• Electronic image stabilization supported
• Smart illumination supported
• Smart dual light supported
• Defog supported
• Image rotation: 0° / 90° / 180° / 270°
• Mirror supported
• Privacy masking: 8 areas
Audio
• Built-in dual microphones
• Built-in speaker
• Supports two-way talk
• Max speaker power consumption: 2 W
• Max sound level at 10 cm: 110 dB
• Audio compression: PCM / G.711a / G.711Mu / G.726 / G.723
Alarm
• Alarm input: 1 channel
• Alarm output: 1 channel
• Alarm events include:
• No SD card
• SD card full
• SD card error
• Network disconnection
• IP conflict
• Illegal access
• Motion detection
• Video tampering
• Tripwire
• Intrusion
• Stay detection
• Loitering detection
• Full-image face detection
• Scene changing
• Audio detection
• Voltage detection
• Defocus detection
• SMD
• Security exception
Network
• Network port: RJ-45 (10/100/1000 Base-T)
• SDK and API supported
• User/host: 20
• Total bandwidth: 64 Mbps
• Supported protocols include:
• IPv4 / IPv6
• HTTP / TCP / UDP
• ARP / RTP / RTSP / RTCP / RTMP
• SMTP / FTP / SFTP
• DHCP / DNS / DDNS
• QoS / UPnP / NTP
• Multicast / ICMP / IGMP
• NFS / SAMBA / PPPoE / SNMP / P2P
• Bonjour
• Auto Registration
• Interoperability: ONVIF Profile S / G / T / M, CGI
Storage
• Supports FTP / SFTP / NAS
• Supports Micro SD card up to 512 GB
Software
• Browser support: IE11, Chrome, Firefox
• Management software: Smart PSS Lite, DSS, DMSS, DoLynk Care
• Mobile client: iOS / Android
Security
• Digest / WSSE authentication
• Account lockout
• Security logs
• IP/MAC filtering
• X.509 certificate support
• Syslog
• HTTPS
• 802.1x
• Trusted boot
• Trusted execution
• Trusted upgrade
Ports
• Audio input: 1 channel (RCA)
• Audio output: 1 channel (RCA)
• Alarm input: 1 channel in
• Alarm output: 1 channel out: dry contact, 1000 mA 30 VDC / 500 mA 50 VAC
Power
• Power supply: 12 VDC / PoE+ (802.3at)
• Dual power backup supported
• Power consumption:
• Basic: 4.1 W (12 VDC) / 5.3 W (PoE)
• Max: 11.3 W (12 VDC) / 13.8 W (PoE)
Environment
• Operating temperature: –30 °C to +60 °C
• Operating humidity: ≤95%
• Storage temperature: –40 °C to +60 °C
• Storage humidity: ≤95% RH, non-condensing
Protection
• Weather rating: IP67
General
• Casing material: Metal
• Product dimensions: 127.6 mm × Φ122.0 mm
• Net weight: 0.94 kg
• Gross weight: 1.17 kg
