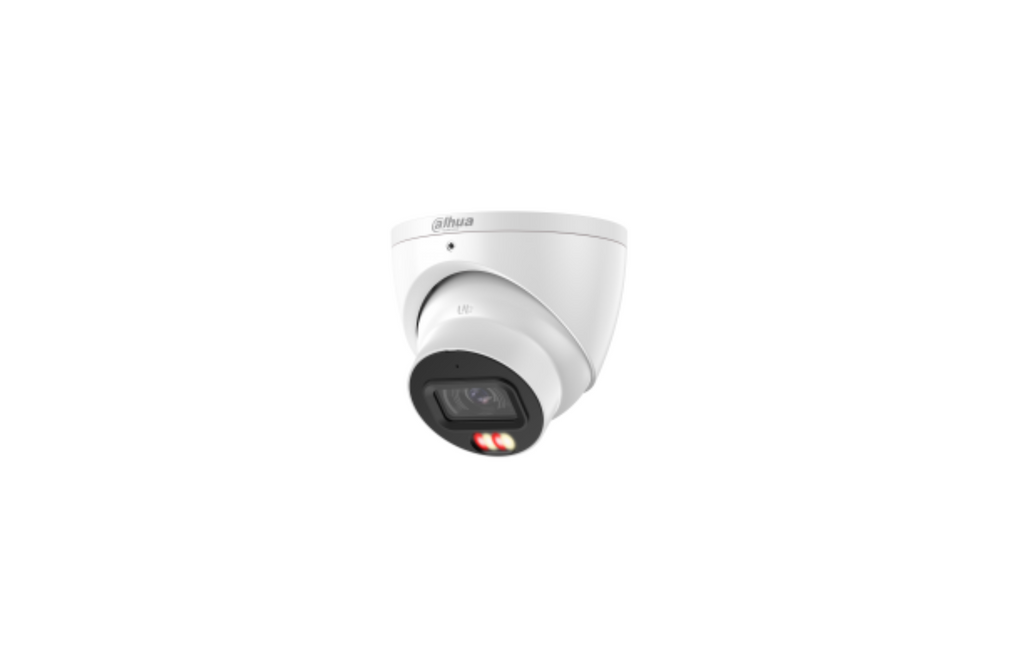

Dahua IPC-HDW3867EM-S-IL-ANZ 8MP Smart Dual Light Fixed-focal Eyeball WizSense Network Camera

8MP Smart Dual Light Fixed-focal Eyeball WizSense Network Camera

---

Key Features

• 8MP 1/2.7" CMOS image sensor, low luminance, high definition image

• Max. output: 8MP (3840 × 2160) @ 25/30 fps

• H.265 codec for high compression and ultra-low bit rate

• Built-in multi-core light: IR up to 30 m / Warm light up to 30 m

• ROI, Smart H.264+/H.265+, AI H.264/H.265, flexible coding

• WDR, 3D NR, HLC, BLC, rotation mode, digital watermarking

• Intelligent Monitoring: Intrusion, tripwire (vehicle & human classification)

• Abnormality Detection: Motion detection, tampering, scene change, audio detection, no SD card, SD error/full, network disconnection, IP conflict, illegal access, voltage detection

• Supports 512 GB MicroSD & built-in Mic

• Power supply: 12 VDC / PoE (802.3af)

• IP67 protection

• SMD 4.0 with configurable SMD warm light zones

• AI SSA supported

---

Camera

• Image Sensor: 1/2.7" CMOS

• Max. Resolution: 3840 (H) × 2160 (V)

• ROM / RAM: 256 MB / 1 GB

• Scanning System: Progressive

• Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s

• Min. Illumination:

  • 0.007 lux @ F1.4 (Color, 30 IRE)

  • 0.0007 lux @ F1.4 (B/W, 30 IRE)

  • 0 lux (Illuminator on)

• S/N Ratio: >56 dB

• Illumination Distance: IR up to 30 m / Warm light up to 30 m

• Illuminator Control: Auto / Manual

• Illuminator Number: 2 (multi-core IR + warm light)

• Angle Adjustment: Pan 0°–360°; Tilt 0°–80°; Rotation 0°–360°

---

Lens

• Type: Fixed-focal

• Mount: M12

• Focal Length: 2.8 mm / 3.6 mm

• Max. Aperture: F1.4

• Field of View:

  • 2.8 mm: H 110°; V 58°; D 132°

  • 3.6 mm: H 86°; V 49°; D 100°

• Iris Control: Fixed

• Close Focus Distance:

  • 2.8 mm: 1.4 m (4.59 ft)

  • 3.6 mm: 1.9 m (6.23 ft)

DORI Distance (EN-62676-4 Standard)

---

Intelligence

• IVS (Perimeter Protection): Intrusion, Tripwire (vehicle/human classification)

• SMD: SMD 4.0

• AcuPick: Deep learning–based target search (people, vehicles)

• AI SSA: Scene self-adaptation with deep learning

• Smart Search: Event refinement and extraction with Smart NVR

---

Video

• Compression: H.265; H.264; H.264H; H.264B; MJPEG (sub-stream only)

• AI Coding: AI H.265 / AI H.264

• Frame Rate:

  • Main: 3840 × 2160 @ 1–25/30 fps

  • Sub: 1920 × 1080 @ 1–25/30 fps

  • Third: 1920 × 1080 @ 1–25/30 fps

• Streams: 3

• Resolution: 8M / 6M / 5M / 4M / 3M / 1080p / 720p / D1 / VGA / CIF

• Bit Rate Control: VBR / CBR / ABR

• Bit Rate: 3 kbps – 16,384 kbps (H.264/H.265)

• Day/Night: Auto (ICR) / Color / B/W

• WDR: 120 dB

• BLC / HLC / SSA / Defog / 3D NR / RoI / Smart Illumination / Smart Dual Light / LDC: Supported

• Motion Detection: 4 configurable areas

• Privacy Masking: Up to 8 areas

• Rotation: 0°/90°/180°/270° (supports 90°/270° with ≤2688 × 1520)

• Mirror: Supported

---

Audio

• Built-in Mic: Yes

• Compression: PCM; G.711a; G.711Mu; G.726; G.723

---

Alarm

• Events: Motion, tampering, tripwire, intrusion, scene change, audio detection, no SD card, SD error/full, network disconnection, IP conflict, illegal access, voltage detection, SMD, security exception

---

Network

• Port: RJ-45 (10/100 Base-T)

• Protocols: IPv4/IPv6, HTTP, TCP/UDP, RTP/RTSP/RTMP, SMTP, FTP/SFTP, DHCP, DNS, DDNS, NTP, QoS, UPnP, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P

• Interoperability: ONVIF (Profiles S/G/T/M), CGI

• Users: 20 (total bandwidth 64 M)

• Storage: FTP, SFTP, Micro SD (max. 512 GB), NAS

• SDK/API: Supported

• Browser: IE11, Chrome, Firefox

• Management Software: Smart PSS Lite, DSS, DMSS, DoLynk Care

• Mobile Apps: iOS, Android

---

Cyber Security

• Video/Firmware/Configuration encryption

• Digest, WSSE, account lockout, security logs

• IP/MAC filtering, X.509 certificates, syslog, HTTPS, 802.1x

• Trusted boot, execution & upgrade

• Session security, security alerts

---

Certification

• CE-LVD: EN62368-1

• CE-EMC: 2014/30/EU

---

Power

• Supply: 12 VDC / PoE (802.3af)

• Dual Power Backup: Supported

• Consumption:

  • Basic: 3.7 W (12 VDC) / 5.3 W (PoE)

  • Max.: 7.4 W (12 VDC) / 9.5 W (PoE) (H.265 + WDR + warm light + AI on)

---

Environment

• Operating Temp.: –40 °C to +60 °C (–40 °F to +140 °F)

• Storage Temp.: –40 °C to +60 °C (–40 °F to +140 °F)

• Humidity: ≤95% RH (non-condensing)

• Protection: IP67

---

Structure

• Material: Metal

• Dimensions: 105.5 mm × Φ122.0 mm (4.16" × Φ4.80")

• Net Weight: 0.53 kg (1.17 lb)

• Gross Weight: 0.71 kg (1.57 lb)
