Description

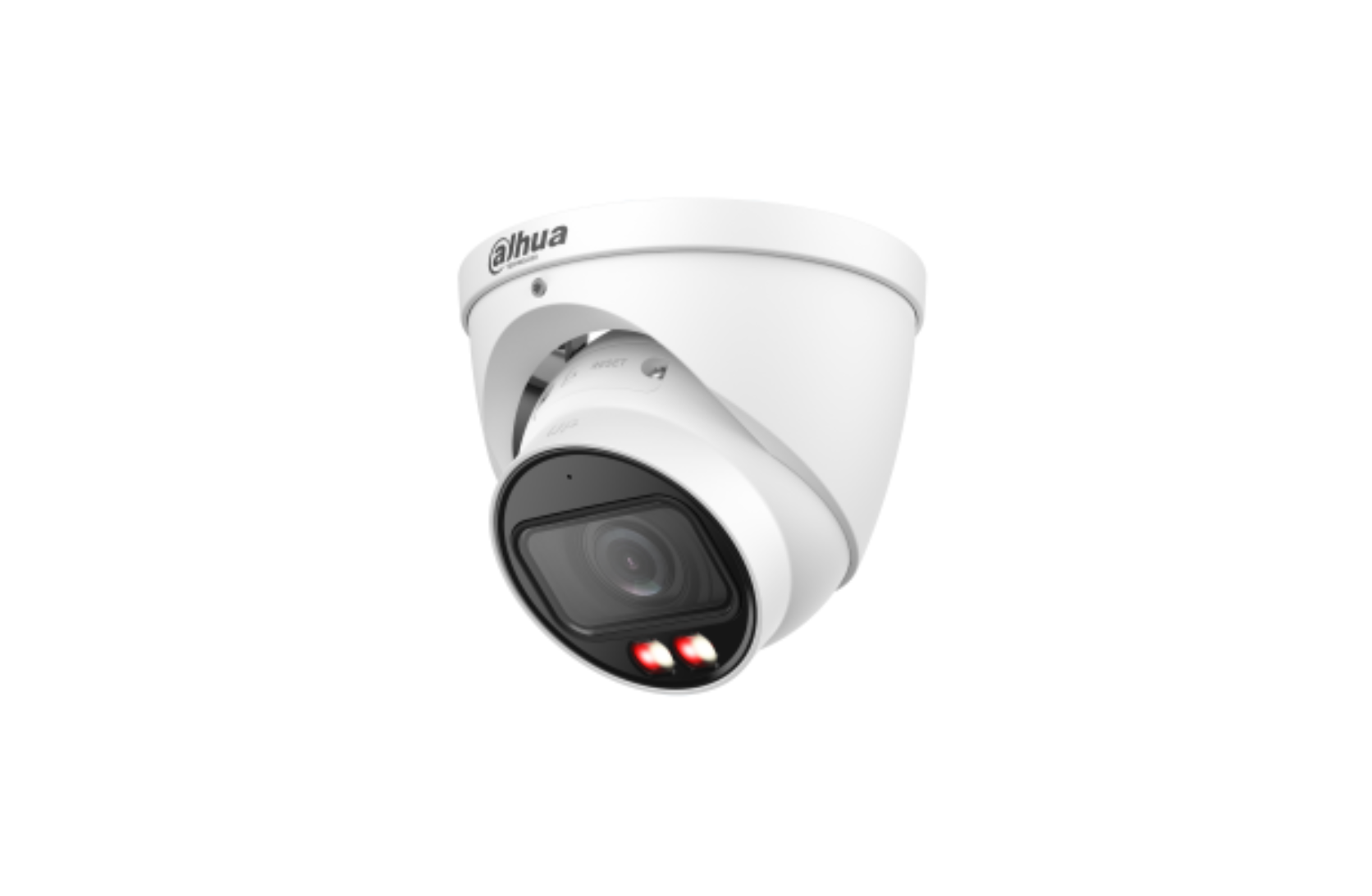

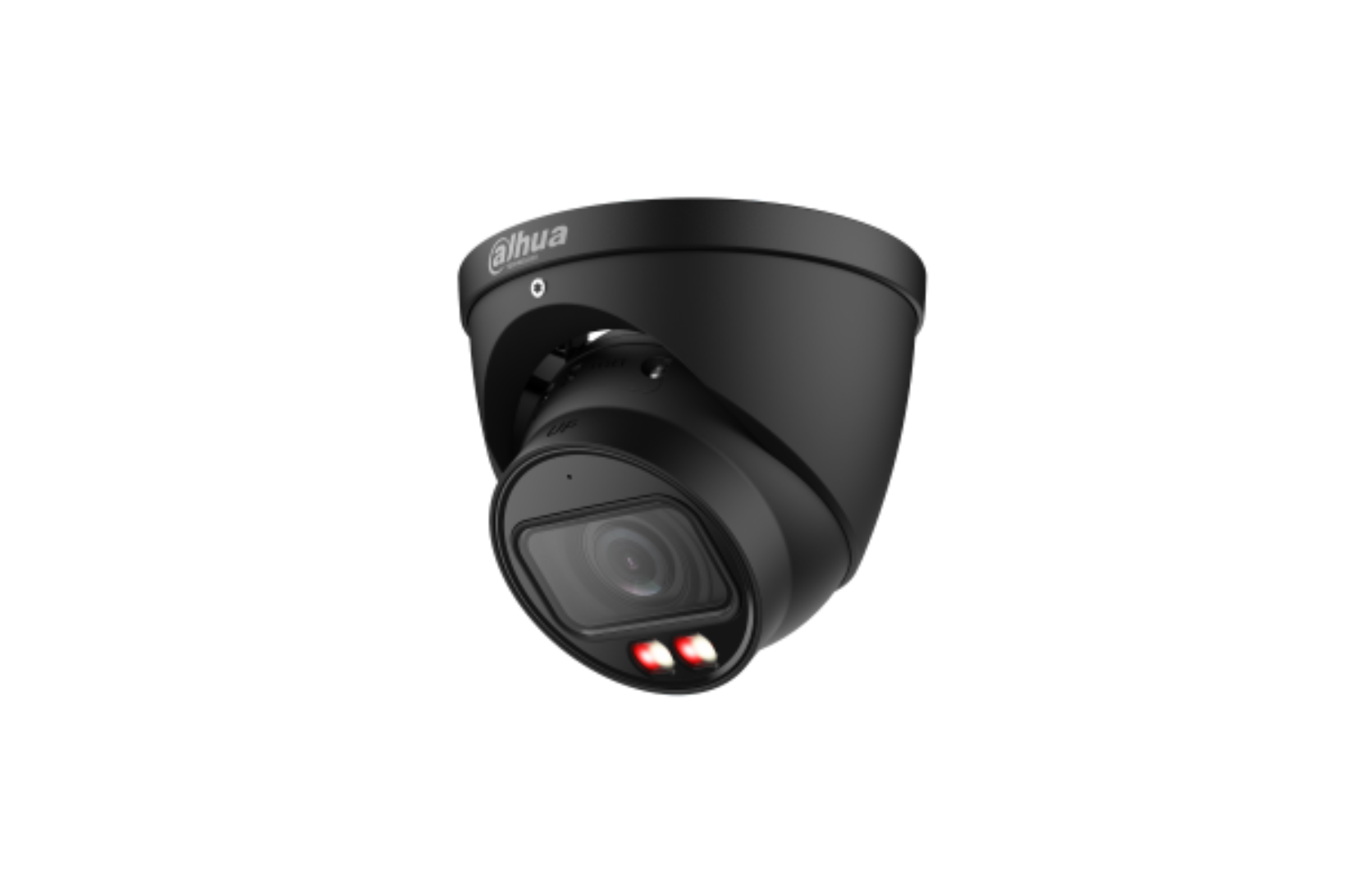

Dahua DH-IPC-HDW3867T-ZS-IL-ANZ 8MP Smart Dual Light Vari-focal Eyeball WizSense Network Camera
Key Features
• 8 MP high resolution imaging
• Smart Dual Light with IR and warm light illumination
• Motorized vari-focal lens (2.7–13.5 mm)
• SMD 4.0 smart motion detection
• Human and vehicle classification with IVS analytics
• Built-in microphone for audio recording
• Supports AI SSA image optimization
• Supports up to 512 GB MicroSD card
• IP67 weatherproof metal housing
• Power via 12 VDC or PoE
Camera
• Image sensor: 1/2.7" CMOS
• Maximum resolution: 3840 × 2160 (8 MP)
• ROM: 256 MB
• RAM: 1 GB
• Scanning system: Progressive
• Electronic shutter: 1/3 s – 1/100,000 s
• Minimum illumination:
• 0.007 lux (color)
• 0.0007 lux (B/W)
• 0 lux with illuminator
• Signal-to-noise ratio: >56 dB
Illumination
• IR distance: Up to 50 m
• Warm light distance: Up to 40 m
• Illuminator type: Multi-core IR + warm light
• Number of LEDs: 4
• Illumination control:
• Auto
• Manual
Lens
• Lens type: Motorized vari-focal
• Focal length: 2.7 mm – 13.5 mm
• Aperture: F1.4
• Field of view:
• Horizontal: 114° – 32°
• Vertical: 58° – 17°
• Diagonal: 138° – 36°
• Close focus distance: 0.1 m
DORI Distance
• Wide lens:
• Detect: 85.3 m
• Observe: 34.0 m
• Recognize: 17.1 m
• Identify: 8.5 m
• Tele lens:
• Detect: 280.0 m
• Observe: 112.0 m
• Recognize: 56.0 m
• Identify: 28.0 m
Intelligence
• IVS perimeter protection:
• Tripwire detection
• Intrusion detection
• Target classification:
• Human
• Vehicle
• Smart Motion Detection: SMD 4.0
• AcuPick target search with Smart NVR
• AI SSA automatic image parameter adjustment
• Smart search supported with compatible NVR
Video
• Video compression:
• H.265
• H.264
• H.264H
• H.264B
• MJPEG
• Smart codec:
• Smart H.265+
• Smart H.264+
• AI coding:
• AI H.265 / AI H.264
• Maximum frame rate:
• 3840 × 2160 @ 25/30 fps
• Stream capability: 3 streams
• Supported resolutions include:
• 8 MP
• 6 MP
• 5 MP
• 4 MP
• 3 MP
• 1080p
• 720p
• D1 / VGA / CIF
• Bit rate: 3 kbps – 16384 kbps
• Bit rate control:
• VBR
• CBR
• ABR
• Day/Night: Auto / Color / B&W
• WDR: 120 dB
• Image enhancements:
• BLC
• HLC
• 3D noise reduction
• Defog
• Image stabilization: EIS
• Region of interest: 4 areas
• Motion detection: 4 configurable areas
• Image rotation: 0° / 90° / 180° / 270°
• Privacy masking: 8 areas
Audio
• Built-in microphone
• Audio compression:
• G.711a
• G.711Mu
• PCM
• G.726
• G.723
Network
• Ethernet: RJ-45 10/100 Mbps
• Supported protocols include:
• IPv4 / IPv6
• HTTP / HTTPS
• TCP / UDP
• RTSP / RTP / RTCP
• SMTP
• FTP / SFTP
• DHCP
• DNS / DDNS
• QoS
• SNMP
• NTP
• UPnP
• P2P
• ONVIF compatibility:
• Profile S / G / T / M
• Maximum users: 20
Storage
• MicroSD card: Up to 512 GB
• Network storage:
• FTP
• SFTP
• NAS
Software
• Management software:
• SmartPSS Lite
• DSS
• Mobile app:
• DMSS (iOS / Android)
Security
• Video encryption
• Firmware encryption
• Configuration encryption
• HTTPS
• 802.1x authentication
• IP/MAC filtering
• Security logs
• Trusted boot and upgrade
Power
• Power supply:
• 12 VDC
• PoE (802.3af)
• Basic consumption:
• 3.7 W (12 VDC)
• 4.5 W (PoE)
• Maximum consumption:
• 8.2 W (12 VDC)
• 9.8 W (PoE)
Environment
• Operating temperature:
• -30°C to +60°C
• Operating humidity:
• ≤95% RH
• Storage temperature:
• -40°C to +60°C
Protection
• IP67 weatherproof
Construction
• Housing: Metal
• Dimensions: 108.3 × Ø122 mm
• Net weight: 690 g
• Gross weight: 920 g
