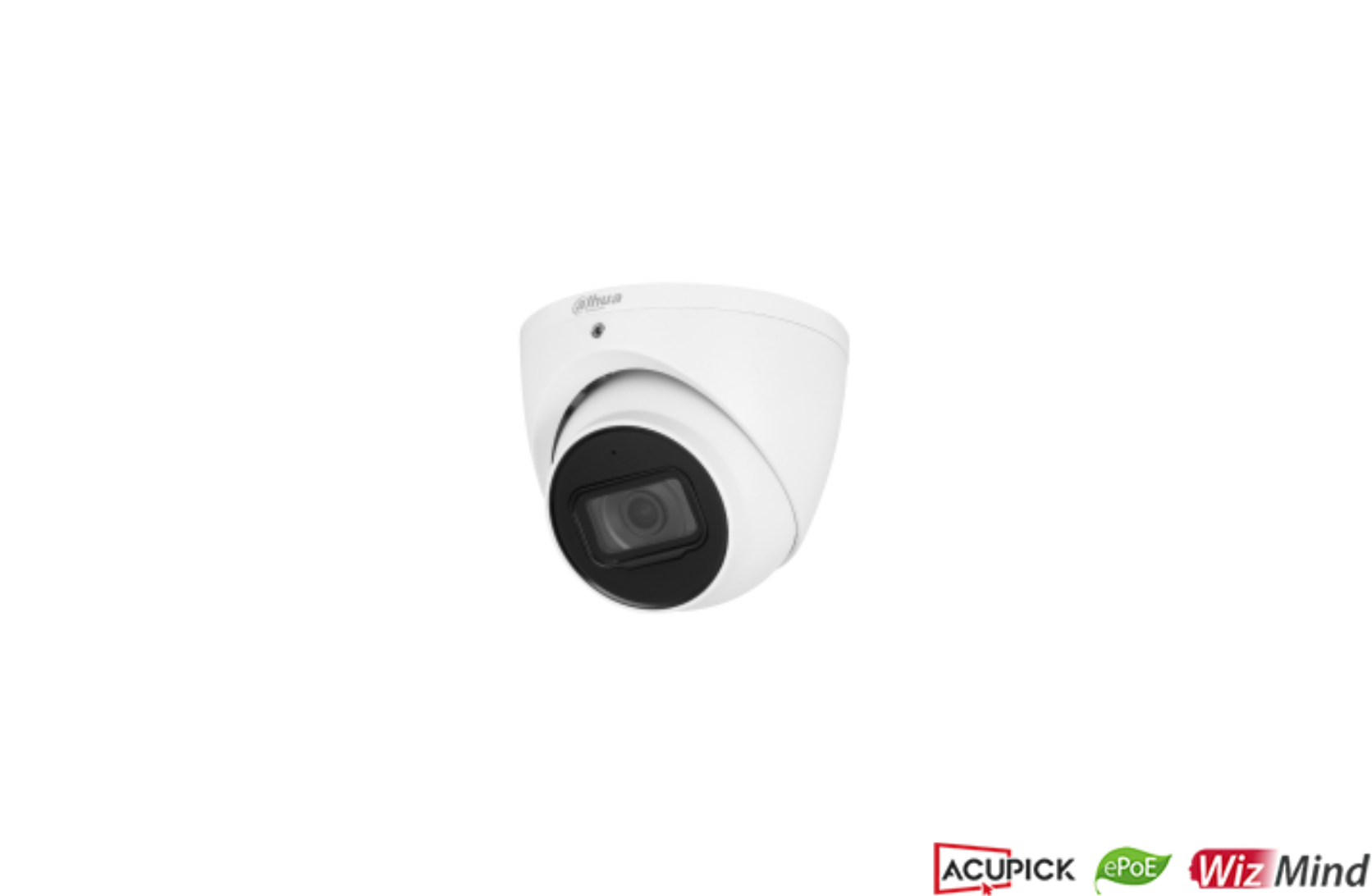

Dahua IPC-HDW5442EMP-ASE-S3 4MP IR Fixed-focal Eyeball WizMind Network Camera

IPC-HDW5442EMP-ASE-S3 4MP IR Fixed-Focal Eyeball WizMind Network Camera

Key Features

• 4MP resolution with a 1/1.8" CMOS image sensor.

• Outputs up to 2688 × 1520 at 25/30 fps.

• Fixed-focal lens options: 2.8 mm, 3.6 mm and 6 mm.

• Built-in IR with up to 50 m illumination distance.

• Supports Smart H.265+, Smart H.264+, AI H.265 and AI H.264.

• Supports 140 dB WDR, 3D NR, HLC, BLC, defog and digital watermarking.

• Deep learning AI supports video metadata, smart sound detection, IVS, face detection, smart object detection, people counting and heat map.

• Supports SMD 3.0.

• Supports AcuPick with compatible back-end devices.

• Supports AI SSA and smart search.

• Built-in microphone.

• Alarm: 1 input and 1 output.

• Audio: 1 input and 1 output.

• Supports Micro SD card storage up to 1 TB.

• Supports 12 VDC, PoE and ePoE power supply.

• Supports dual power backup when power adapter and PoE are both connected.

• IP67 weather protection.

• Datasheet

Camera

• Image Sensor: 1/1.8" CMOS

• Maximum Resolution: 2688 × 1520

• ROM: 4 GB

• RAM: 1 GB

• Scanning System: Progressive

• Electronic Shutter Speed: Auto/manual, 1/3 s to 1/100,000 s

• Signal-to-Noise Ratio: More than 56 dB

• IR Distance: Up to 50 m

• IR LEDs: 2

• Illuminator Control: Auto or manual

Minimum Illumination

• Colour: 0.0007 lux at F1.6

• Black and white: 0.0004 lux at F1.6

• 0 lux with IR on

Angle Adjustment

• Pan: 0° to 360°

• Tilt: 0° to 78°

• Rotation: 0° to 360°

Lens

• Lens Type: Fixed-focal

• Lens Mount: M12

• Focal Length Options: 2.8 mm, 3.6 mm and 6 mm

• Maximum Aperture: F1.6

• Iris Control: Fixed

Field of View

• 2.8 mm: Horizontal 112°, vertical 58°, diagonal 139°

• 3.6 mm: Horizontal 88°, vertical 50°, diagonal 102°

• 6 mm: Horizontal 61°, vertical 35°, diagonal 69°

Close Focus Distance

• 2.8 mm: 1.3 m

• 3.6 mm: 1.5 m

• 6 mm: 3.0 m

DORI Distance for 2.8 mm Lens

• Detect: 61.5 m

• Observe: 24.6 m

• Recognise: 12.3 m

• Identify: 6.2 m

DORI Distance for 3.6 mm Lens

• Detect: 67.6 m

• Observe: 27.0 m

• Recognise: 13.5 m

• Identify: 6.8 m

DORI Distance for 6 mm Lens

• Detect: 96.6 m

• Observe: 38.6 m

• Recognise: 19.3 m

• Identify: 9.7 m

Intelligence

IVS Perimeter Protection

• Intrusion

• Tripwire

• Fast moving

• Loitering detection

• People gathering

• Parking detection

• Supports human, vehicle and animal classification for intrusion, tripwire and fast-moving detection.

• Supports long-distance mode.

• Supports self-learning to help filter false alarms.

Smart Object Detection

• Smart abandoned object

• Smart missing object

SMD

• Supports SMD 3.0

AcuPick

• Uses deep learning algorithms to match people, animals and motor vehicles.

• Works with compatible back-end devices.

• Helps search live and recorded video to quickly locate targets.

AI SSA

• Supported

Face Detection

• Face detection

• Face tracking

• Face snapshot

• Snapshot optimisation

• Optimal face snapshot upload

• Face enhancement

• Face exposure

• Face attribute extraction

• Supports six face attributes and eight expressions.

• Supports face, one-inch photo and custom snapshot options.

• Supports real-time snapshot, quality priority and optimisation snapshot.

• Supports face angle filter and optimisation time setting.

People Counting

• Tripwire people counting

• People counting in area

• Queue management

• Supports up to 4 rules.

• Supports report generation and export by day, week, month and year for tripwire people counting.

• Supports report generation and export by day, week and month for area people counting and queue management.

Heat Map

• Supported

Video Metadata

• Motor vehicle detection

• Non-motor vehicle detection

• Face detection

• Human body detection

• Tracking

• Snapshot and snapshot optimisation

• Optimal face snapshot upload

Motor Vehicle Attributes

• Vehicle type

• Vehicle colour

• Vehicle logo

• Seatbelt

• Smoking

• Phone use

Non-Motor Vehicle Attributes

• Type

• Colour

• Number of people

• Top type and colour

• Hat

Human Body Attributes

• Gender

• Top type and colour

• Bottom type and colour

• Bag

• Hat

• Umbrella

Face Attributes

• Gender

• Age

• Expression

• Glasses

• Face mask

• Beard

Smart Search

• Works with compatible Smart NVRs.

• Supports refined intelligent search.

• Supports event extraction and event video merging.

Smart Sound Detection

• Supported

Video

• Video Compression: H.265, H.264, H.264H, H.264B and MJPEG on sub stream

• Smart Codec: Smart H.265+ and Smart H.264+

• AI Coding: AI H.265 and AI H.264

• Stream Capability: 4 streams

• Bit Rate Control: CBR and VBR

• H.264 Bit Rate: 32 kbps to 16384 kbps

• H.265 Bit Rate: 12 kbps to 11008 kbps

Video Frame Rate

• Main stream: 2688 × 1520 at 1–25/30 fps

• Main stream: 1920 × 1080 at 1–50/60 fps

• Sub stream: D1 at 1–25/30 fps

• Third stream: 1080p at 1–25/30 fps

• Fourth stream: 720p at 1–25/30 fps

Supported Resolutions

• 4MP: 2688 × 1520

• 3.6MP: 2560 × 1440

• 3MP: 2048 × 1536 / 2304 × 1296

• 1080p: 1920 × 1080

• 1.3MP: 1280 × 960

• 720p: 1280 × 720

• D1: 704 × 576 / 704 × 480

• VGA: 640 × 480

• CIF: 352 × 288 / 352 × 240

Image Settings

• Day/Night: Auto ICR, colour and black and white

• BLC: Supported

• HLC: Supported

• WDR: 140 dB

• Scene Self-adaptation: Supported

• White Balance: Auto, natural, street lamp, outdoor, manual and regional custom

• Gain Control: Auto

• Noise Reduction: 3D NR

• Motion Detection: 4 rectangular areas

• Region of Interest: 4 areas

• Smart Illumination: Supported

• Defog: Supported

• Image Rotation: 0°, 90°, 180° and 270°

• Mirror: Supported

• Privacy Masking: 8 areas

• LDC: Supported on 2.8 mm and 3.6 mm versions only

Audio

• Built-in Microphone: Yes

• Audio Input: 1 RCA port

• Audio Output: 1 RCA port

• Audio Compression: G.711a, G.711Mu, PCM, G.726 and G.723

Alarm

Alarm Events

• No SD card

• SD card full

• SD card error

• Network disconnection

• IP conflict

• Illegal access

• Motion detection

• Video tampering

• Tripwire

• Intrusion

• Fast moving

• Abandoned object

• Missing object

• Loitering detection

• People gathering

• Parking detection

• Scene change

• Audio detection

• Voltage detection

• External alarm

• Face detection

• Video metadata

• SMD

• People counting in area

• Stay detection

• People counting

• People number error detection

• Queue people number alarm

• Queue time alarm

• Security exception

Network

• Network Port: RJ45 10/100 Enhanced Base-T

• SDK and API: Supported

• User/Host: 20 users

• Total Bandwidth: 80 Mbps

Network Protocols

• IPv4

• IPv6

• HTTP

• TCP

• UDP

• ARP

• RTP

• RTSP

• RTCP

• RTMP

• SMTP

• FTP

• SFTP

• DHCP

• DNS

• DDNS

• QoS

• UPnP

• NTP

• Multicast

• ICMP

• IGMP

• NFS

• SAMBA

• PPPoE

• SNMP

• P2P

• Auto Register

Interoperability

• ONVIF Profile S

• ONVIF Profile G

• ONVIF Profile T

• ONVIF Profile M

• CGI

Browser Support

• Internet Explorer 9 and later

• Chrome 102 and later

• Firefox 88 and later

Management Software

• SmartPSS Lite

• DSS

• DMSS

Mobile Client

• iOS

• Android

Cybersecurity

• Configuration encryption

• Trusted execution

• Digest

• Security logs

• WSSE

• Account lockout

• Syslog

• Video encryption

• 802.1x

• IP and MAC filtering

• HTTPS

• Trusted upgrade

• Trusted boot

• Firmware encryption

• X.509 certificate generation and import

Storage

• Micro SD Card: Supports up to 1 TB

• Network Storage: FTP, SFTP and NAS

Ports

• Audio Input: 1 RCA port

• Audio Output: 1 RCA port

• Alarm Input: 1 channel, wet contact, 5 mA, 3–5 VDC

• Alarm Output: 1 channel, wet contact, 300 mA, 12 VDC

Power

• Power Supply: 12 VDC, PoE or ePoE

• PoE Standard: IEEE 802.3af

• Dual Power Backup: Supported when power adapter and PoE are both connected

• Basic Power Consumption: 4.3 W with 12 VDC or 5.5 W with PoE

• Maximum Power Consumption: 8.2 W with 12 VDC or 9.7 W with PoE

Environment

• Operating Temperature: –40°C to +60°C

• Storage Temperature: –40°C to +60°C

• Operating Humidity: Up to 95%

• Storage Humidity: 10%–95% RH, non-condensing

Protection

• Weather Protection: IP67

Structure

• Casing Material: Metal inner core, metal cover, plastic decoration ring and metal quick-install mounting plate

• Product Dimensions: 99.1 × Φ121.9 mm

• Net Weight: 500 g

• Gross Weight: 770 g

Certifications

• CE-LVD: EN62368-1

• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

• FCC: 47 CFR FCC Part 15, Subpart B

• UL/CUL: UL62368-1 and CAN/CSA C22.2 No. 62368-1-14
