Description

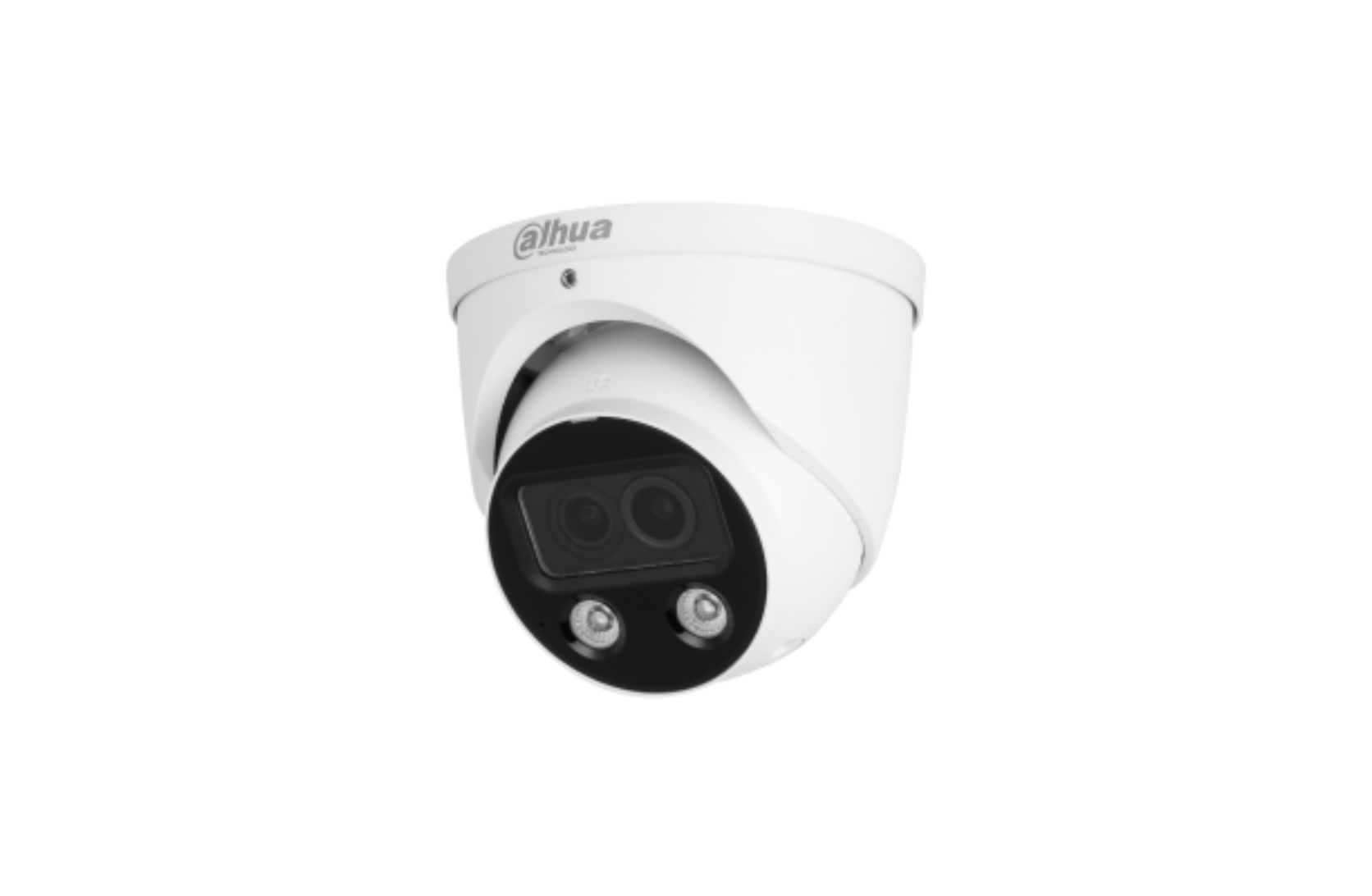

4 MP Dual Lens Fixed-focal Eyeball WizMind Full-color Network Camera
Key Features
• Dual AI sensors with multi-spectral imaging for full-color images in very low light
• Maximum resolution 4 MP (2688 × 1520) @ 25/30 fps
• Built-in IR and warm light illumination up to 50 m
• Smart H.264+/H.265+ and AI coding for optimized storage and bandwidth
• Advanced AI analytics including intrusion, tripwire, loitering and people counting
• Face detection with attributes extraction
• Built-in microphone and speaker with two-way audio
• Supports 256 GB MicroSD card
• Alarm 1 input / 1 output, audio 1 input / 1 output
• Power via 12 VDC or PoE
• IP67 weatherproof metal housing
Camera
• Image sensor: 1/1.8" + 1/1.8" CMOS dual sensor
• Maximum resolution: 2688 × 1520
• ROM: 128 MB
• RAM: 1 GB
• Scanning system: Progressive
• Electronic shutter: 1/3 s – 1/100,000 s
• Minimum illumination: 0.0002 lux @ F1.0
• Signal-to-noise ratio: >56 dB
• Illumination distance: Up to 50 m
• Illuminator type:
• 2 IR LEDs
• 2 warm LEDs
• Illumination control:
• Auto
• Manual
Lens
• Lens type: Fixed focal
• Available focal lengths:
• 2.8 mm
• 3.6 mm
• 6 mm
• Aperture: F1.0
• Field of view:
• 2.8 mm:
• Horizontal 97°
• Vertical 48°
• Diagonal 115°
• 3.6 mm:
• Horizontal 75°
• Vertical 39°
• Diagonal 87°
• 6 mm:
• Horizontal 47°
• Vertical 25°
• Diagonal 56°
• Close focus distance:
• 2.8 mm: 4 m
• 3.6 mm: 5 m
• 6 mm: 6 m
DORI Distance
• 2.8 mm:
• Detect 58.2 m
• Observe 23.3 m
• Recognize 11.6 m
• Identify 5.8 m
• 3.6 mm:
• Detect 70.3 m
• Observe 28.1 m
• Recognize 14.1 m
• Identify 7.0 m
• 6 mm:
• Detect 116.1 m
• Observe 46.5 m
• Recognize 23.2 m
• Identify 11.6 m
Intelligent Functions
• IVS perimeter protection:
• Intrusion detection
• Tripwire detection
• Fast moving detection
• Additional intelligent events:
• Loitering detection
• People gathering
• Parking detection
• Abandoned object detection
• Missing object detection
• Smart Motion Detection: SMD 3.0
Face Detection
• Face tracking
• Snapshot and optimized snapshot
• Face enhancement and exposure
• Face attribute detection:
• Gender
• Age
• Glasses
• Expression
• Mask
• Beard
• Facial expressions supported:
• Angry
• Sad
• Disgusted
• Scared
• Surprised
• Calm
• Happy
• Confused
People Counting
• Enter / leave counting
• Area people counting
• Queue management
• Stay time detection
• Report export:
• Daily
• Monthly
• Yearly
Video
• Video compression:
• H.265
• H.264
• H.264H
• H.264B
• MJPEG
• Smart codec:
• Smart H.265+
• Smart H.264+
• AI coding:
• AI H.265
• AI H.264
• Maximum frame rate:
• 2688 × 1520 @ 25/30 fps
• Stream capability: 3 streams
• Supported resolutions:
• 4 MP
• 1080p
• 1.3 MP
• 720p
• D1
• VGA
• CIF
• Bit rate:
• H.264 32 kbps – 8192 kbps
• H.265 19 kbps – 8192 kbps
• Bit rate control: CBR / VBR
• Day/Night mode: Color / B&W
• WDR: DWDR
• Image enhancement:
• BLC
• HLC
• 3D noise reduction
• Motion detection: 4 areas
• Region of interest: 4 areas
• Image rotation: 0° / 90° / 180° / 270°
• Privacy masking: 4 areas
Audio
• Built-in microphone
• Built-in speaker
• Audio compression:
• PCM
• G.711a
• G.711Mu
• G.726
• G.723
• Supports two-way audio
Alarm
• Alarm input: 1
• Alarm output: 1
• Supported alarm events include:
• Motion detection
• Video tampering
• Intrusion
• Tripwire
• Loitering
• Abandoned object
• People counting
• Audio detection
• Network disconnection
• Illegal access
• Defocus detection
Network
• Ethernet: RJ45 10/100 Mbps
• Supported protocols include:
• IPv4 / IPv6
• HTTP
• TCP / UDP
• RTSP
• SMTP
• FTP
• DHCP
• DNS
• NTP
• Multicast
• DDNS
• ONVIF support:
• Profile S / G / T
• Compatible platforms:
• Milestone
• Genetec
Storage
• MicroSD card: Up to 256 GB
• Network storage:
• FTP
• SFTP
• NAS
Software
• Management software:
• SmartPSS
• DSS
• Mobile app:
• DMSS (iOS / Android)
Ports
• Audio input: 1
• Audio output: 1
• Alarm input: 1
• Alarm output: 1
Power
• Power supply:
• 12 VDC (±30%)
• PoE (802.3af)
• ePoE
• Basic consumption:
• 3.9 W (12 VDC)
• 4.6 W (PoE)
• Maximum consumption:
• 9.3 W (12 VDC)
• 10.5 W (PoE)
Environment
• Operating temperature: -40°C to +60°C
• Storage temperature: -40°C to +60°C
• Operating humidity: ≤95%
Protection
• IP67 weatherproof
Construction
• Housing: Metal
• Dimensions: Ø122 × 110.9 mm
• Net weight: 0.75 kg
• Gross weight: 0.94 kg
