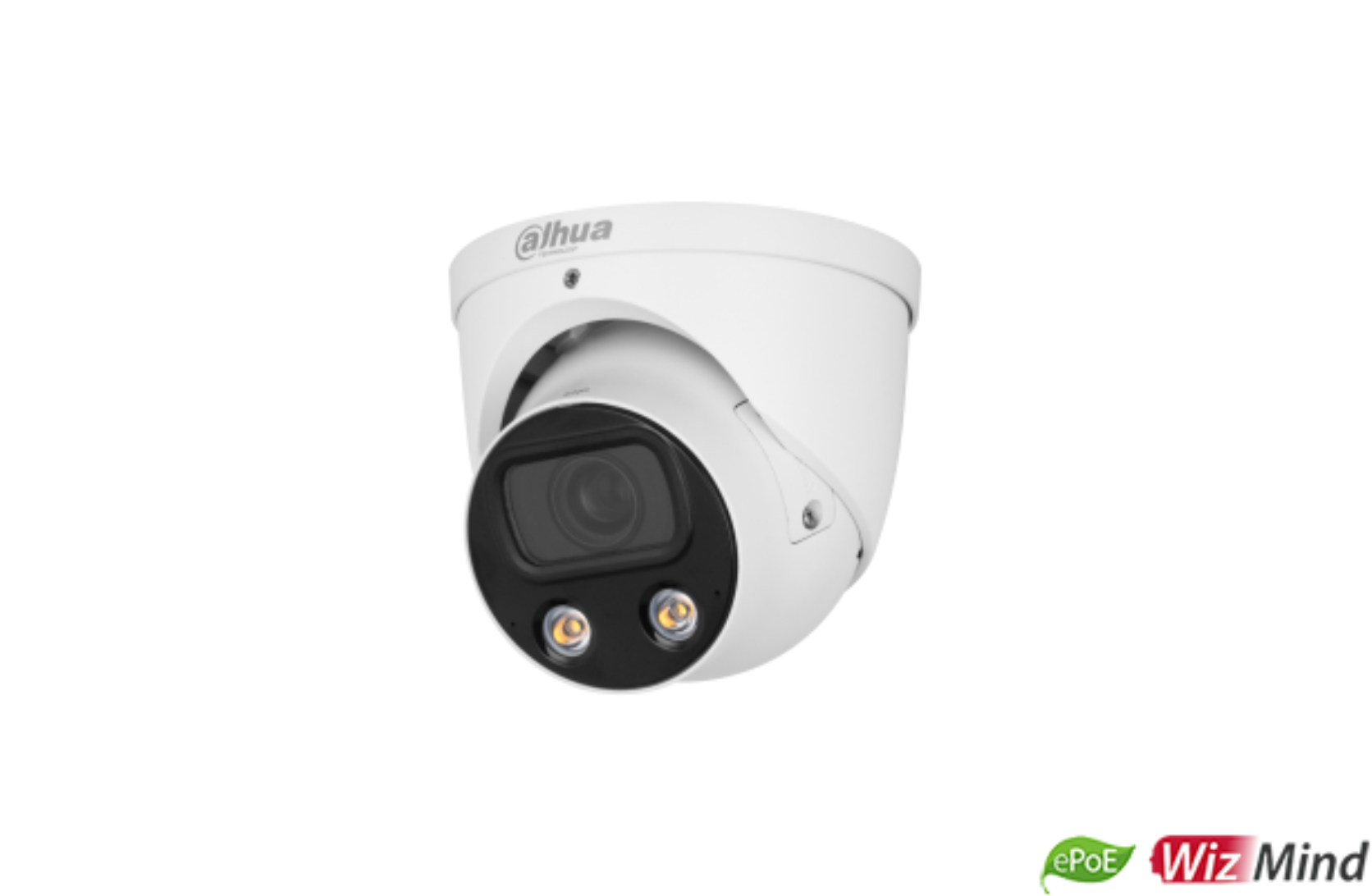

Dahua IPC-HDW5849H-ASE-LED 8MP Full-color Fixed-focal Warm LED Eyeball WizMind Network Camera

IPC-HDW5849H-ASE-LED 8MP Full-Colour Fixed-Focal Warm LED Eyeball WizMind Network Camera

NOTE: Lead time exists - 7 to 12 weeks.

Key Features

• 8MP resolution with a powerful 1/1.2" CMOS image sensor.

• Outputs up to 3840 × 2160 at 25/30 fps.

• Full-colour monitoring for vivid details, even in dark environments.

• F1.0 large aperture for improved low-light performance.

• Built-in warm LED illumination with up to 50 m range.

• Fixed-focal lens options: 2.8 mm and 3.6 mm.

• Supports Smart H.265+ and Smart H.264+ compression.

• Supports 140 dB WDR, 3D NR, HLC, BLC and defog.

• AI functions include perimeter protection, face detection, people counting, heat map and intelligent search.

• Supports SMD 3.0.

• Built-in microphone.

• Alarm: 1 input and 1 output.

• Audio: 1 input and 1 output.

• Supports Micro SD card storage up to 256 GB.

• Supports 12 VDC, PoE and ePoE power supply.

• IP67 weather protection.

Camera

• Image Sensor: 1/1.2" CMOS

• Maximum Resolution: 3840 × 2160

• ROM: 128 MB

• RAM: 1 GB

• Scanning System: Progressive

• Electronic Shutter Speed: Auto/manual, 1/3 s to 1/100,000 s

• Minimum Illumination: 0.0005 lux at F1.0

• Signal-to-Noise Ratio: More than 56 dB

• Illumination Distance: 50 m

• Illuminators: 2 × warm lights

• Illuminator Control: Auto or manual

Pan, Tilt and Rotation

• Pan: 0° to 360°

• Tilt: 0° to 78°

• Rotation: 0° to 360°

Lens

• Lens Type: Fixed-focal

• Mount Type: M22

• Focal Length Options: 2.8 mm and 3.6 mm

• Maximum Aperture: F1.0

• Iris Type: Fixed

Field of View

• 2.8 mm: Horizontal 102°, vertical 53°, diagonal 125°

• 3.6 mm: Horizontal 88°, vertical 48°, diagonal 104°

Close Focus Distance

• 2.8 mm: 5 m

• 3.6 mm: 6 m

DORI Distance for 2.8 mm Lens

• Detect: 95.6 m

• Observe: 38.2 m

• Recognise: 19.1 m

• Identify: 9.6 m

DORI Distance for 3.6 mm Lens

• Detect: 105.9 m

• Observe: 42.4 m

• Recognise: 21.2 m

• Identify: 10.6 m

Intelligence

Smart Event

• Abandoned object

• Missing object

IVS Perimeter Protection

• Tripwire

• Intrusion

• Fast moving

• Loitering detection

• People gathering

• Parking detection

• Tripwire, intrusion and fast-moving detection support human and vehicle classification.

Face Detection

• Face detection

• Face tracking

• Face snapshot

• Snapshot optimisation

• Optimal face snapshot upload

• Face enhancement

• Face exposure

• Face attribute extraction

• Supports six face attributes:

  • Gender

  • Age

  • Glasses

  • Expression

  • Mask

  • Beard

• Supports eight expressions:

  • Angry

  • Sad

  • Disgusted

  • Scared

  • Surprised

  • Calm

  • Happy

  • Confused

• Supports real-time snapshot, quality priority and optimisation snapshot.

• Supports face angle filter and optimisation time setting.

People Counting

• Counts people entering, leaving and passing.

• Supports yearly, monthly, weekly and daily reports.

• Supports people counting in area.

• Supports up to 4 area-counting rules.

• Supports stay-time alarm linkage.

• Supports queue management with up to 4 rules.

Heat Map

• Supported

Intelligent Search

• Works with compatible Smart NVRs.

• Supports refined intelligent search.

• Supports event extraction and event video merging.

Video

• Video Compression: H.265, H.264, H.264H, H.264B and MJPEG on sub stream

• Smart Codec: Smart H.265+ and Smart H.264+

• Stream Capability: 3 streams

• Bit Rate Control: CBR and VBR

• H.264 Bit Rate: 3 kbps to 16384 kbps

• H.265 Bit Rate: 3 kbps to 16384 kbps

Video Frame Rate

• Main stream: 3840 × 2160 at 1–25/30 fps

• Sub stream: D1 at 1–25/30 fps

• Third stream: 1080p at 1–25/30 fps

Supported Resolutions

• 8MP: 3840 × 2160

• 6MP: 3072 × 2048

• 5MP: 3072 × 1728 / 2592 × 1944

• 4MP: 2688 × 1520

• 3MP: 2048 × 1536 / 2304 × 1296

• 1080p: 1920 × 1080

• 1.3MP: 1280 × 960

• 720p: 1280 × 720

• D1: 704 × 576 / 704 × 480

• VGA: 640 × 480

• CIF: 352 × 288 / 352 × 240

Image Settings

• Day/Night: Colour or black and white

• BLC: Supported

• HLC: Supported

• WDR: 140 dB

• Defog: Supported

• White Balance: Auto, natural, street lamp, outdoor, manual and regional custom

• Gain Control: Auto or manual

• Noise Reduction: 3D NR

• Motion Detection: 4 rectangular areas

• Region of Interest: 4 areas

• Image Rotation: 0°, 90°, 180° and 270°

• Mirror: Supported

• Privacy Masking: 4 areas

Audio

• Built-in Microphone: Yes

• Audio Input: 1 RCA port

• Audio Output: 1 RCA port

• Audio Compression: PCM, G.711a, G.711Mu, G.726 and G.723

Alarm

Alarm Events

• No SD card

• SD card full

• SD card error

• Network disconnection

• IP conflict

• Illegal access

• Motion detection

• Video tampering

• Defocus detection

• Scene change

• Intrusion

• Tripwire

• Abandoned object

• Missing object

• Fast moving

• Parking detection

• Loitering detection

• People gathering

• Input abnormal detection

• Intensity change detection

• People counting

• Face detection

• People counting in area

• Stay alarm

• People number exception detection

• Queue management

Network

• Network Port: RJ45 10/100 Base-T

• SDK and API: Supported

• User/Host: 20 users

• Total Bandwidth: 80 Mbps

Network Protocols

• IPv4

• IPv6

• HTTP

• HTTPS

• TCP

• UDP

• ARP

• RTP

• RTSP

• RTCP

• RTMP

• SMTP

• FTP

• SFTP

• DHCP

• DNS

• DDNS

• QoS

• UPnP

• NTP

• Multicast

• ICMP

• IGMP

• NFS

• PPPoE

• 802.1x

• SNMP

Cybersecurity

• Video encryption

• Configuration encryption

• Digest

• WSSE

• Account lockout

• Security logs

• X.509 certificate generation and import

• HTTPS

• Trusted boot

• Trusted execution

• Trusted upgrade

Interoperability

• ONVIF Profile S

• ONVIF Profile G

• ONVIF Profile T

• CGI

• Milestone

• P2P

Browser Support

• Internet Explorer 9 and later

• Chrome

• Firefox

Management Software

• SmartPSS

• DSS

• DMSS

Mobile Client

• iOS

• Android

Storage

• Micro SD Card: Supports up to 256 GB

• Network Storage: FTP, SFTP and NAS

Ports

• Audio Input: 1 RCA port

• Audio Output: 1 RCA port

• Alarm Input: 1 channel, 5 mA, 3–5 VDC

• Alarm Output: 1 channel, 300 mA, 12 VDC

Power

• Power Supply: 12 VDC ±30%, PoE or ePoE

• PoE Standard: IEEE 802.3af

• Basic Power Consumption: 3.6 W with 12 VDC or 5 W with PoE

• Maximum Power Consumption: 7.9 W with 12 VDC or 9.6 W with PoE

Environment

• Operating Temperature: –40°C to +60°C

• Storage Temperature: –40°C to +60°C

• Operating Humidity: Less than 95% RH

Protection

• Weather Protection: IP67

Structure

• Casing: Metal

• Dimensions: Φ122 × 119.7 mm

• Net Weight: 0.74 kg

• Gross Weight: 0.96 kg

Certifications

• CE-LVD: EN62368-1

• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

• FCC: 47 CFR FCC Part 15, Subpart B

• UL/CUL: UL62368-1 and CAN/CSA C22.2 No. 62368-1-14
