Description

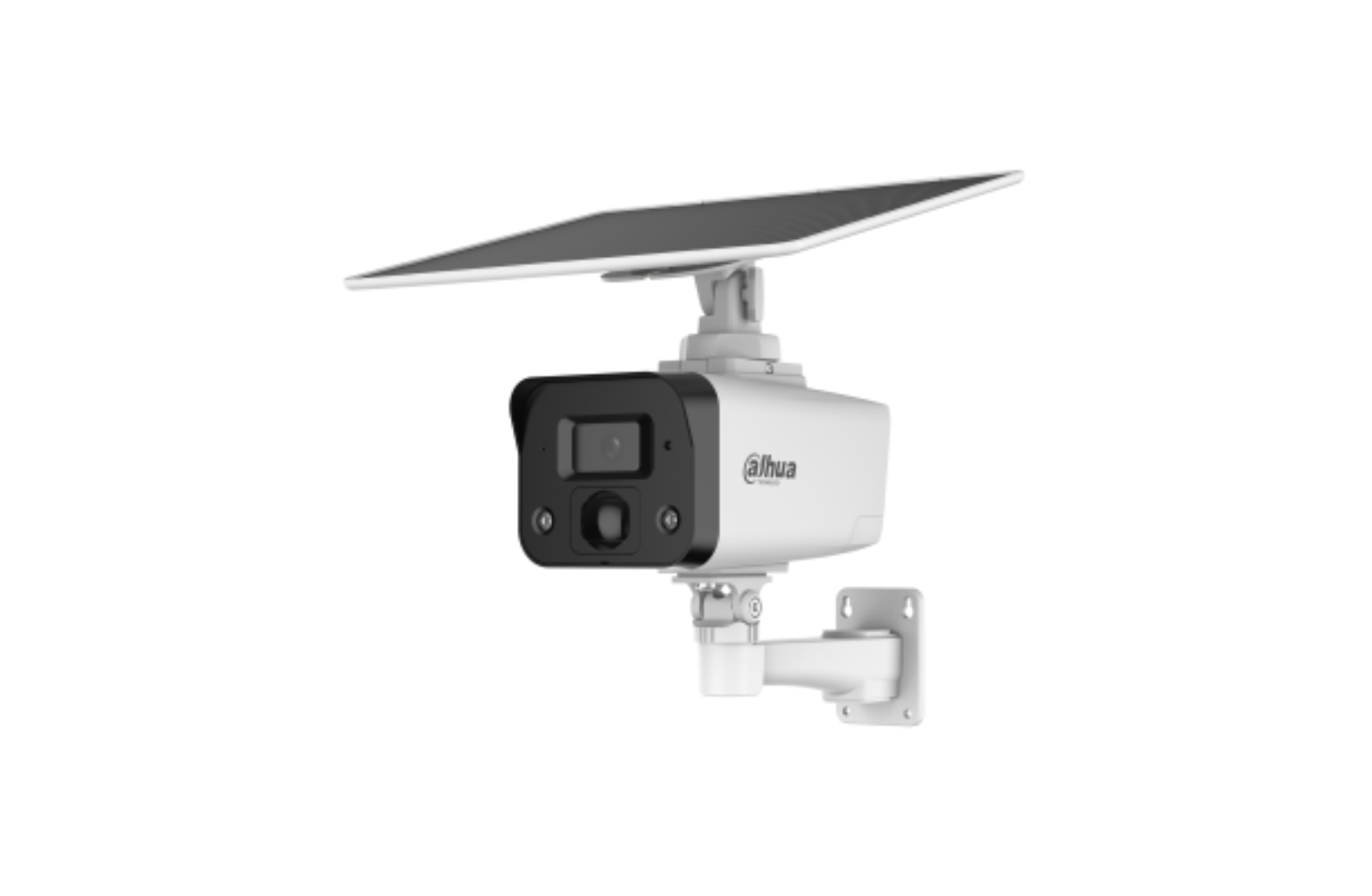

4MP Smart Dual Light Fixed-focal Bullet 4G Solar Power Network Camera
Key Features
• 4 MP 1/3" CMOS image sensor
• Maximum resolution 2560 × 1440 @ 15 fps
• H.265 compression for efficient storage and bandwidth
• Built-in IR and warm light, IR distance up to 30 m, warm light up to 20 m
• Sound and light alarm linkage when alarm is triggered
• Built-in 4G module for mobile network connectivity (no wired network required)
• Built-in PIR sensor for human detection based on body temperature
• AOV mode provides 24/7 surveillance with ultra-low power consumption
• Supports Micro SD card up to 512 GB
• Built-in microphone and speaker, supports two-way audio
• Adjustable solar panel with integrated or detachable design
• Built-in 64Wh lithium iron phosphate battery
• MAX version uses wide-temperature battery for extreme environments
• Supports 12 VDC and Type-C power input
• IP67 weatherproof
• SMD smart motion detection
Camera
• Image sensor: 1/3" CMOS
• Maximum resolution: 2560 × 1440
• ROM: 128 MB
• RAM: 128 MB
• Scanning system: Progressive
• Electronic shutter: Auto / Manual 1/3 s – 1/100,000 s
• Minimum illumination:
• 0.01 Lux @ F1.6 (Color)
• 0.001 Lux @ F1.6 (B/W)
• 0 Lux with illuminator
• S/N ratio: >40 dB
Illumination
• IR distance: Up to 30 m
• Warm light distance: Up to 20 m
• Illuminator control: Auto / Manual
• Illuminators: 1 IR LED + 1 warm light
Angle Adjustment
• Pan: 0° to 360°
• Tilt: –60° to 0°
• Rotation: 0° to 360°
Lens
• Lens type: Fixed focal
• Lens mount: M12
• Focal length: 3.6 mm
• Aperture: F1.6
• Field of view:
• Horizontal: 78.4°
• Vertical: 42.4°
• Diagonal: 92.4°
• Close focus distance: 1.5 m
DORI Distance
• Detect: 78.0 m
• Observe: 31.2 m
• Recognize: 15.6 m
• Identify: 7.8 m
Intelligence
• SMD (Smart Motion Detection)
Video
• Compression: H.265
• Main stream:
• 2560 × 1440 @ 1–15 fps
• Sub stream:
• 640 × 360 @ 1–15 fps
• Streaming capability: 2 streams
• Supported resolutions:
• 4 MP (2560 × 1440)
• 3 MP (2048 × 1536)
• 1080p (1920 × 1080)
• 1.3 MP (1280 × 960)
• 720p (1280 × 720)
• D1
• VGA
• CIF
• Bit rate: 32 kbps – 4096 kbps
Image Features
• Day/Night: Auto / Color / B/W
• BLC supported
• HLC supported
• WDR: DWDR
• White balance: Auto
• Gain control: Auto
• Noise reduction: 3D NR
• Motion detection: 4 areas
• Smart dual light supported
• Privacy masking: 4 areas
Audio
• Built-in microphone
• Built-in speaker
• Audio compression: G.711a
Alarm
• Alarm events include:
• SD card error
• SD card full
• Motion detection
• PIR alarm
• Low battery alarm
Network
• Network port: RJ-45 (10/100 Base-T)
• Interoperability: P2P
• 4G carrier system:
EAU / EUR Version
• FDD-LTE bands: B1 / B3 / B5 / B7 / B8 / B20 / B28
• Regions: Europe, Middle East, Africa
LA Version
• FDD-LTE bands: B2 / B3 / B4 / B5 / B7 / B8 / B28 / B66
• Regions: Latin America
Storage
• Micro SD card up to 512 GB
Software
• Management software: DMSS, DSS Pro
• Mobile client: iOS / Android
Ports
• 1 × Type-C USB port
Power
• Power supply: 12 VDC
• Power consumption modes:
• Ultra power saving: 0.036 W
• Power saving: 0.047 W
• AOV mode: 0.26 W
• Performance mode: 1.33 W
Environment
• Operating temperature: –30 °C to +60 °C
• Operating humidity: ≤95% RH
• Storage temperature: –30 °C to +60 °C
• Storage humidity: ≤95% RH
Protection
• IP67 weatherproof
Structure
• Casing: Plastic
• Product dimensions:
256 mm × 290 mm × 197 mm
• Net weight: 1357 g
• Gross weight: 2869 g
Battery
• Type: Lithium iron phosphate
• Capacity: 64 Wh
• Voltage: 6.4 V
• Cycle life: More than 1,000 cycles
• Battery operating temperature:
• Charging: –30 °C to +60 °C
• Discharging: –40 °C to +60 °C
• Battery weight: 550 g
• Battery life (typical use):
• Ultra power saving mode: 76 days
• Power saving mode: 56 days
• AOV mode: 10 days
• Performance mode (continuous recording): 2 days
Solar Panel
• Operating temperature: –40 °C to +60 °C
• Dimensions: 285 mm × 235 mm × 2.5 mm
• Maximum power: 10.5 W
• Cell type: Monocrystalline silicon
Certifications
• CE-LVD: EN62368-1
• CE-EMC: 2014/30/EU
• CE-RED: 2014/53/EU
