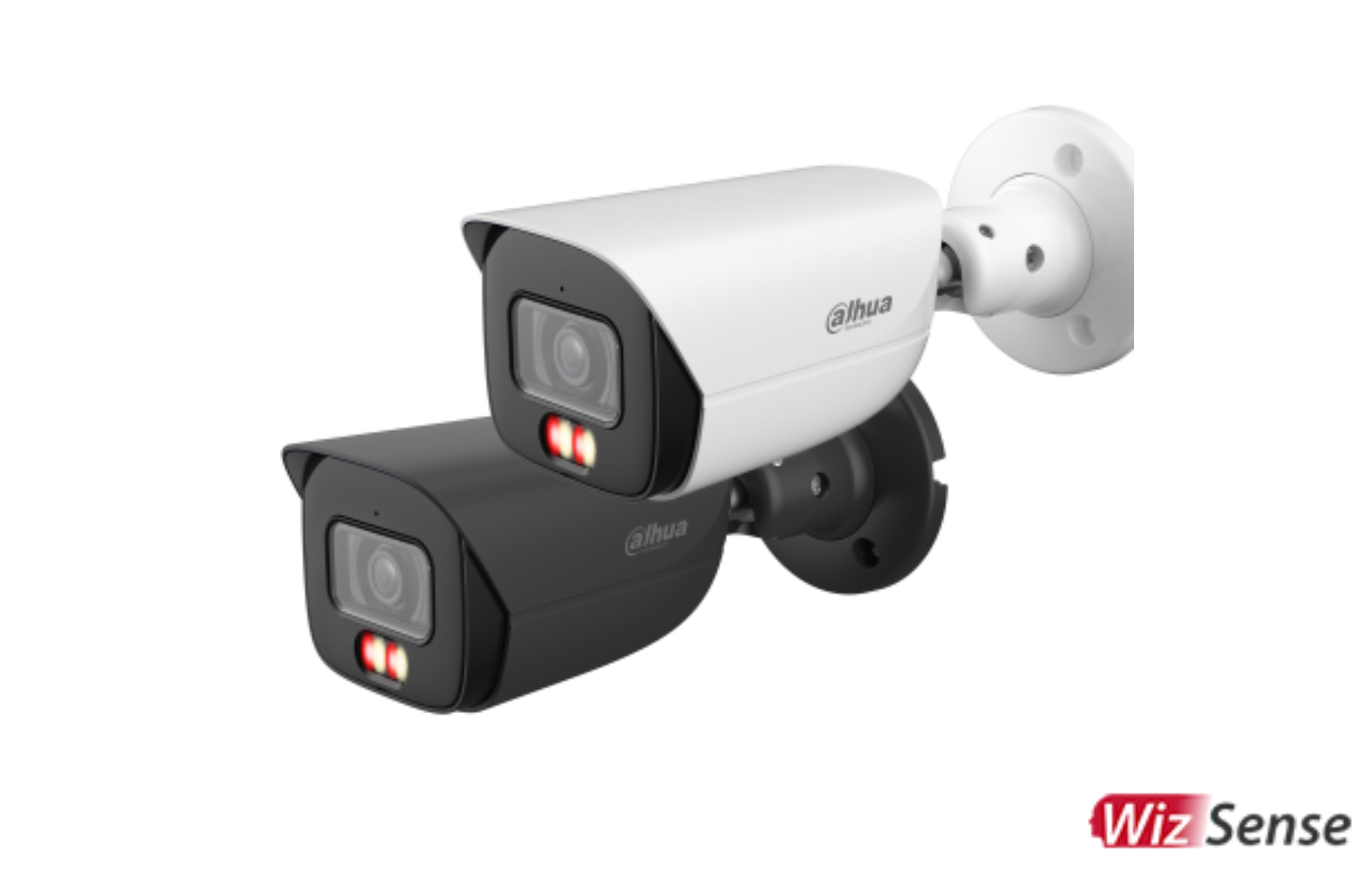

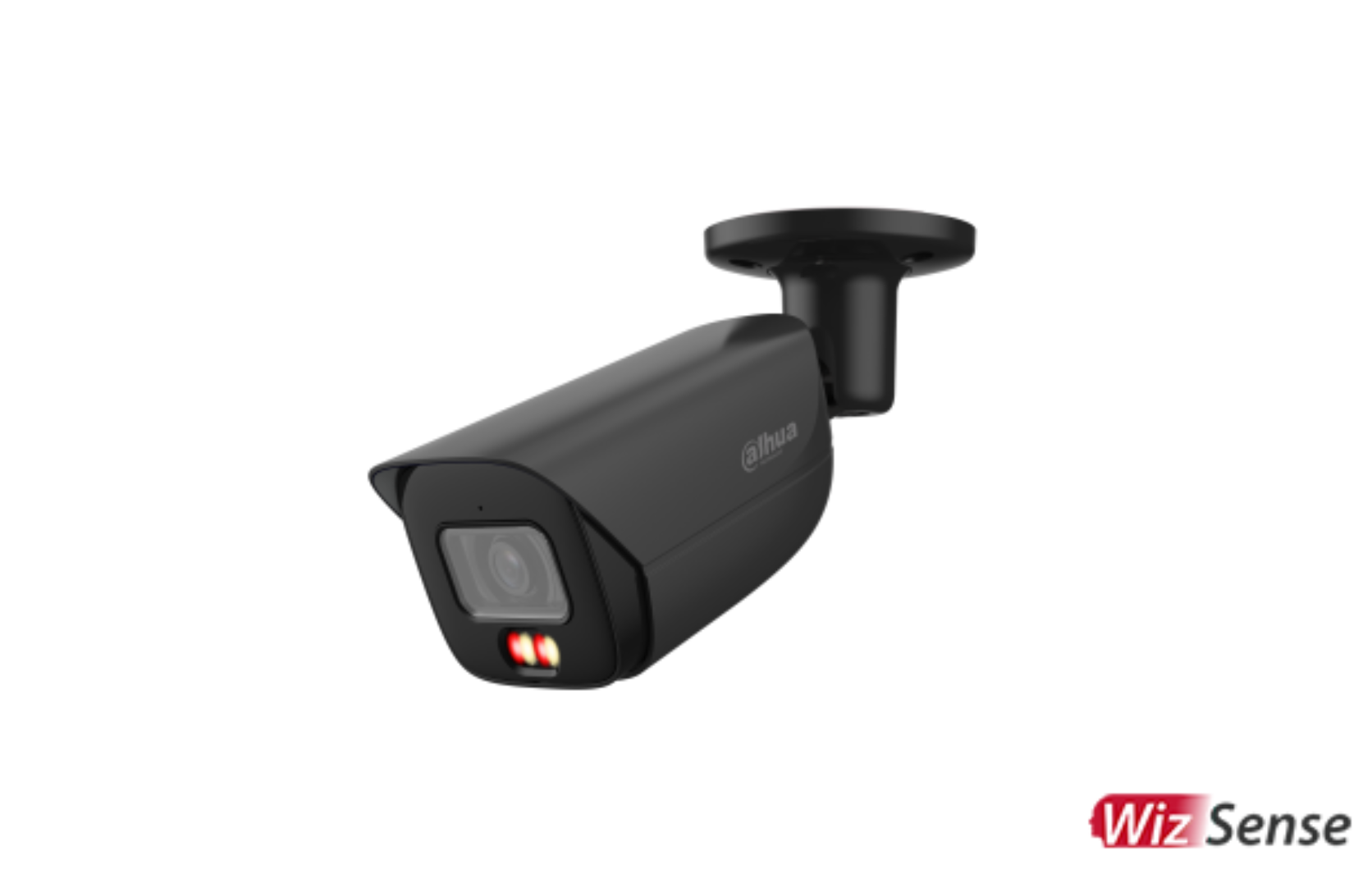

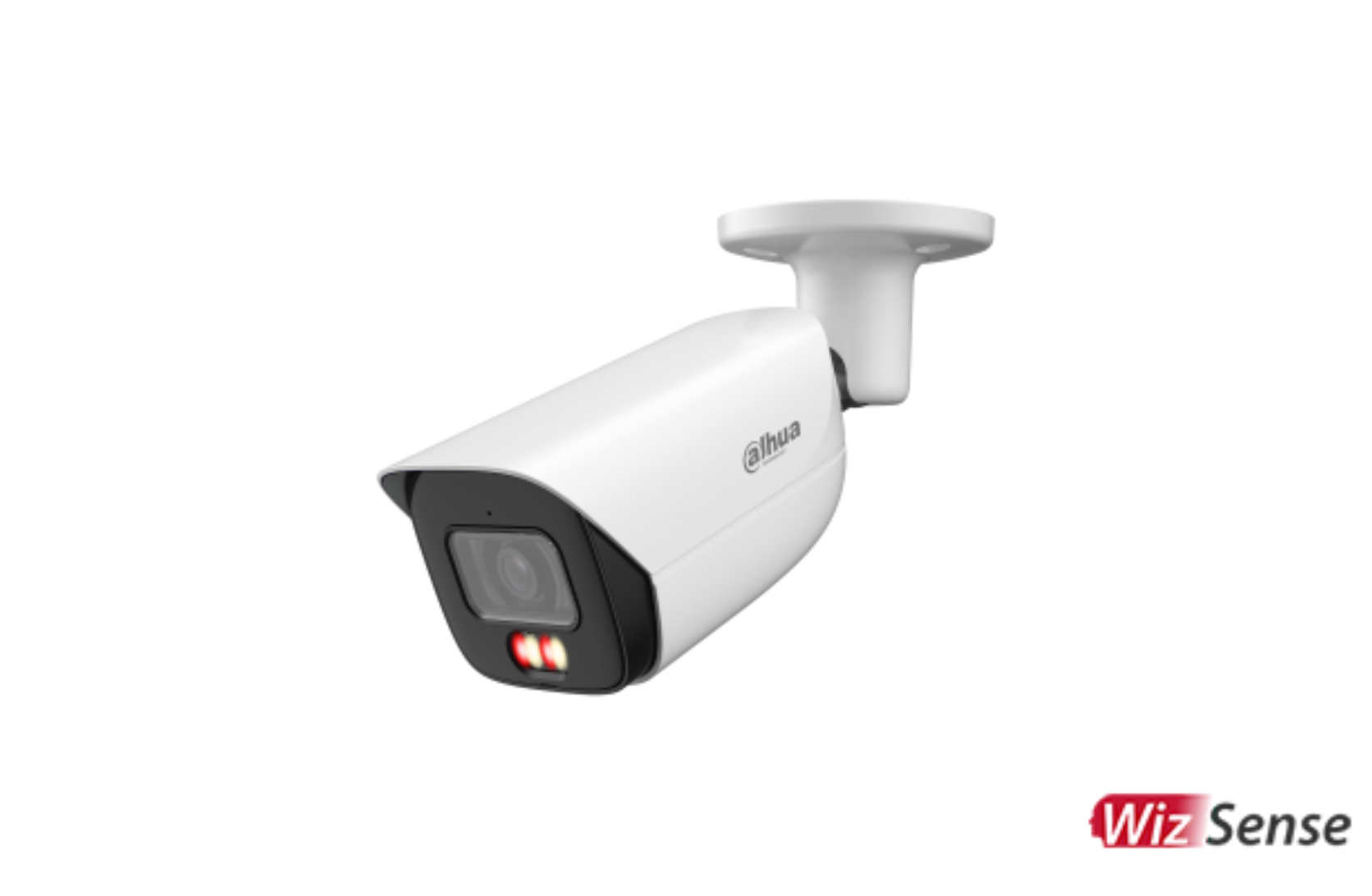

Dahua DH-IPC-HFW3667E-AS-IL-ANZ 6MP Smart Dual Light Fixed-focal Bullet WizSense Network Camera

Dahua DH-IPC-HFW3667E-AS-IL-ANZ 6MP Smart Dual Light Fixed-Focal Bullet WizSense Network Camera

Key Features

• 6MP resolution with a 1/2.7" CMOS image sensor.

• Outputs up to 3288 × 1850 at 25/30 fps.

• Fixed-focal lens options: 2.8 mm and 3.6 mm.

• Built-in Smart Dual Light with IR and warm light.

• IR illumination distance up to 30 m.

• Warm light illumination distance up to 30 m.

• Supports Smart H.265+, Smart H.264+, AI H.265 and AI H.264.

• Supports 120 dB WDR, 3D NR, HLC, BLC, defog and digital watermarking.

• Supports intrusion and tripwire detection with human and vehicle classification.

• Supports SMD 4.0.

• Supports AcuPick with compatible back-end devices.

• Supports AI SSA for automatic image optimisation.

• Supports smart search with compatible Smart NVRs.

• Built-in microphone.

• Alarm: 1 input and 1 output.

• Audio: 1 input and 1 output.

• Supports Micro SD card storage up to 512 GB.

• Supports 12 VDC or PoE power supply.

• Supports dual power backup when power adapter and PoE are both connected.

• IP67 weather protection.

• Datasheet

Camera

• Image Sensor: 1/2.7" CMOS

• Maximum Resolution: 3288 × 1850

• ROM: 256 MB

• RAM: 1 GB

• Scanning System: Progressive

• Electronic Shutter Speed: Auto/manual, 1/3 s to 1/100,000 s

• Signal-to-Noise Ratio: More than 56 dB

Minimum Illumination

• Colour: 0.005 lux at F1.4

• Black and white: 0.0005 lux at F1.4

• 0 lux with illuminator on

Illumination Distance

• IR: Up to 30 m

• Warm light: Up to 30 m

Illuminators

• 2 × multi-core IR and warm lights

Illuminator Control

• Auto

• Manual

Angle Adjustment

• Pan: 0° to 360°

• Tilt: 0° to 90°

• Rotation: 0° to 360°

Lens

• Lens Type: Fixed-focal

• Lens Mount: M12

• Focal Length Options: 2.8 mm and 3.6 mm

• Maximum Aperture: F1.4

• Iris Control: Fixed

Field of View

• 2.8 mm: Horizontal 110°, vertical 58°, diagonal 132°

• 3.6 mm: Horizontal 86°, vertical 49°, diagonal 100°

Close Focus Distance

• 2.8 mm: 1.4 m

• 3.6 mm: 1.9 m

DORI Distance for 2.8 mm Lens

• Detect: 84.8 m

• Observe: 33.9 m

• Recognise: 17.0 m

• Identify: 8.5 m

DORI Distance for 3.6 mm Lens

• Detect: 98.7 m

• Observe: 39.5 m

• Recognise: 19.7 m

• Identify: 9.9 m

Intelligence

IVS Perimeter Protection

• Intrusion

• Tripwire

• Supports human and vehicle classification.

• Supports accurate detection of people and vehicles.

SMD

• Supports SMD 4.0

AcuPick

• Uses deep learning algorithms to match people and motor vehicles.

• Works with compatible back-end devices.

• Helps search live and recorded video to quickly locate targets.

AI SSA

• Uses deep learning algorithms to automatically adjust image parameters.

• Helps optimise the image for different scene conditions.

Smart Search

• Works with compatible Smart NVRs.

• Supports refined intelligent search.

• Supports event extraction and event video merging.

Video

• Video Compression: H.265, H.264, H.264H, H.264B and MJPEG on sub stream

• Smart Codec: Smart H.265+ and Smart H.264+

• AI Coding: AI H.265 and AI H.264

• Stream Capability: 3 streams

• Bit Rate Control: VBR, CBR and ABR

• Video Bit Rate: 3 kbps to 16384 kbps for H.264 and H.265

Video Frame Rate

• Main stream: 3288 × 1850 at 1–25/30 fps

• Sub stream: 1920 × 1080 at 1–25/30 fps

• Third stream: 1920 × 1080 at 1–25/30 fps

Supported Resolutions

• 6MP: 3288 × 1850 / 3200 × 1800

• 5MP: 2960 × 1688 / 2880 × 1620

• 4MP: 2688 × 1520 / 2560 × 1440

• 3MP: 2304 × 1296

• 1080p: 1920 × 1080

• 720p: 1280 × 720

• D1: 704 × 576 / 704 × 480

• VGA: 640 × 480

• CIF: 352 × 288 / 352 × 240

Image Settings

• Day/Night: Auto ICR, colour and black and white

• BLC: Supported

• HLC: Supported

• WDR: 120 dB

• Scene Self-adaptation: Supported

• White Balance: Auto, natural, street lamp, outdoor, manual and regional custom

• Gain Control: Auto and manual

• Noise Reduction: 3D NR

• Motion Detection: 4 rectangular areas

• Region of Interest: 4 areas

• Smart Illumination: Supported

• Smart Dual Light: Supported

• Defog: Supported

• Image Rotation: 0°, 90°, 180° and 270°

• Mirror: Supported

• Privacy Masking: 8 areas

• LDC: Supported

Audio

• Built-in Microphone: Yes

• Audio Input: 1 RCA port

• Audio Output: 1 RCA port

• Audio Compression: PCM, G.711a, G.711Mu, G.726 and G.723

Alarm

Alarm Events

• No SD card

• SD card full

• SD card error

• Network disconnection

• IP conflict

• Illegal access

• Motion detection

• Video tampering

• Tripwire

• Intrusion

• Scene change

• Audio detection

• Voltage detection

• External alarm

• SMD

• Security exception

Network

• Network Port: RJ45 10/100 Base-T

• SDK and API: Supported

• User/Host: 20 users

• Total Bandwidth: 64 Mbps

Network Protocols

• IPv4

• IPv6

• HTTP

• TCP

• UDP

• ARP

• RTP

• RTSP

• RTCP

• RTMP

• SMTP

• FTP

• SFTP

• DHCP

• DNS

• DDNS

• QoS

• UPnP

• NTP

• Multicast

• ICMP

• IGMP

• NFS

• SAMBA

• PPPoE

• SNMP

• P2P

Interoperability

• ONVIF Profile S

• ONVIF Profile G

• ONVIF Profile T

• ONVIF Profile M

• CGI

Browser Support

• Internet Explorer 11

• Chrome

• Firefox

Management Software

• SmartPSS Lite

• DSS

• DMSS

• DoLynk Care

Mobile Client

• iOS

• Android

Security

• Digest

• WSSE

• Account lockout

• Security logs

• IP and MAC filtering

• X.509 certificate generation and import

• Syslog

• HTTPS

• 802.1x

• Trusted boot

• Trusted execution

• Trusted upgrade

• Session security

• Security warning

Storage

• Micro SD Card: Supports up to 512 GB

• Network Storage: FTP, SFTP and NAS

Ports

• Audio Input: 1 RCA port

• Audio Output: 1 RCA port

• Alarm Input: 1 channel, wet contact, 5 mA, 3–5 VDC

• Alarm Output: 1 channel, wet contact, 300 mA, 12 VDC

Power

• Power Supply: 12 VDC or PoE

• PoE Standard: IEEE 802.3af

• Dual Power Backup: Supported when power adapter and PoE are both connected

• Basic Power Consumption: 3.7 W with 12 VDC or 5.4 W with PoE

• Maximum Power Consumption: 8 W with 12 VDC or 10 W with PoE

Environment

• Operating Temperature: –40°C to +60°C

• Storage Temperature: –40°C to +60°C

• Operating Humidity: Up to 95% RH, non-condensing

• Storage Humidity: Up to 95% RH, non-condensing

Protection

• Weather Protection: IP67

Structure

• Casing Material: Metal

• Product Dimensions: 192.7 × 70.5 × 66.4 mm

• Net Weight: 610 g

• Gross Weight: 770 g

Certifications

• CE-LVD: EN62368-1

• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
