Description

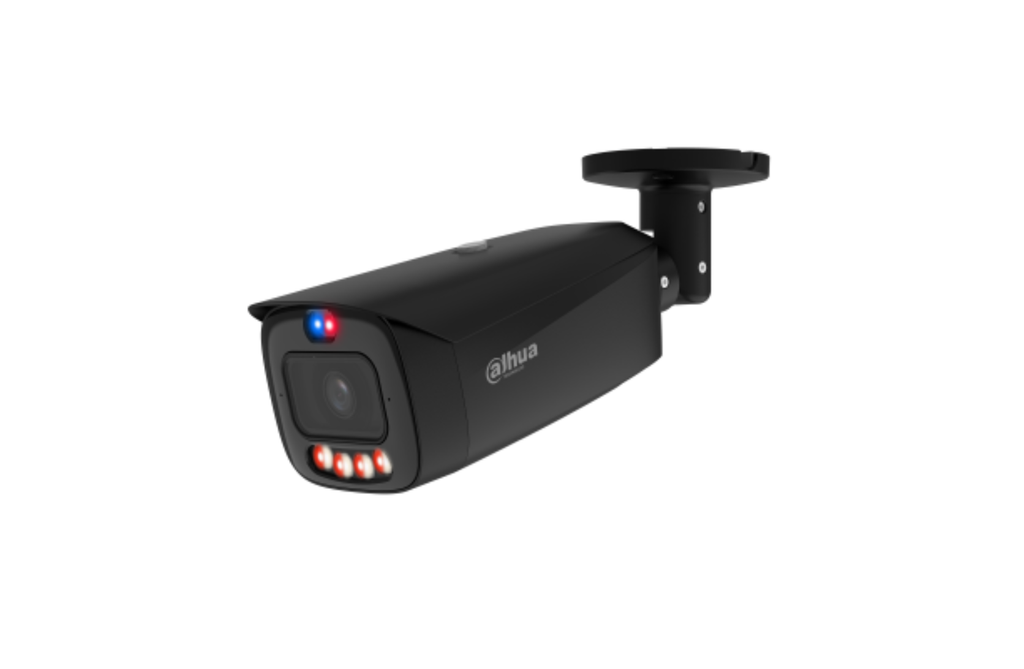

8MP WizColor TiOC PRO Fixed-focal Bullet WizSense Network Camera
Key Features
• 8 MP 1/1.8" CMOS image sensor
• Maximum resolution 3840 × 2160 @ 25/30 fps
• H.265 compression for efficient storage and bandwidth
• Built-in multi-core IR and warm light, illumination distance up to 50 m
• Supports ROI, Smart H.264+ / Smart H.265+, AI H.264 / H.265
• Image processing includes WDR, 3D NR, HLC, BLC, digital watermarking
• Intelligent monitoring: intrusion, tripwire, stay detection, loitering detection, face detection (full image)
• Built-in dual microphones and speaker, supports two-way talk
• Sound and light alarm with red and blue warning lights
• Supports Micro SD card up to 512 GB
• Supports 1 alarm input, 1 alarm output, 1 audio input, 1 audio output
• Supports 12 VDC / PoE+ power supply
• IP67 weatherproof
• SMD 4.0
• Supports AI SSA
• Supports one-tap arming and disarming
Camera
• Image sensor: 1/1.8" CMOS
• Maximum resolution: 3840 × 2160
• ROM: 256 MB
• RAM: 1 GB
• Scanning system: Progressive
• Electronic shutter speed: Auto / Manual 1/3 s – 1/100,000 s
• Minimum illumination:
• 0.0004 Lux @ F1.0 (Color)
• 0.0002 Lux @ F1.0 (B/W)
• 0 Lux with illuminator
• S/N ratio: >56 dB
Illumination
• IR distance: Up to 50 m
• Warm light distance: Up to 50 m
• Illuminator control: Auto / Manual
• Illuminators: 4 multi-core lights (IR + warm light)
Angle Adjustment
• Pan: 0° to 360°
• Tilt: 0° to 90°
• Rotation: 0° to 360°
Lens
• Lens type: Fixed focal
• Lens mount: M16
• Focal length options: 2.8 mm / 3.6 mm
• Aperture: F1.0
• Field of view:
• 2.8 mm: H 109°, V 59°, D 131°
• 3.6 mm: H 93°, V 50°, D 111°
• Iris control: Fixed
• Close focus distance:
• 2.8 mm: 3.2 m
• 3.6 mm: 4.4 m
DORI Distance
2.8 mm
• Detect: 82.0 m
• Observe: 32.8 m
• Recognize: 16.4 m
• Identify: 8.2 m
3.6 mm
• Detect: 100.0 m
• Observe: 40.2 m
• Recognize: 20.0 m
• Identify: 10.0 m
Intelligence
• IVS perimeter protection:
• Intrusion
• Tripwire
• Stay detection
• Loitering detection
• Supports human and vehicle classification
• Face detection (full image) supports:
• Face snapshot
• Snapshot optimisation
• Optimal face snapshot upload
• Face enhancement
• Face angle filter
• Snapshot strategies (real-time / quality priority / optimisation)
• SMD 4.0
• Smart search supported with Smart NVR
• AcuPick supported with compatible back-end devices
• AI SSA automatically adjusts image parameters
Video
• Compression: H.265 / H.264 / H.264H / H.264B / MJPEG (sub stream)
• AI coding: AI H.265 / AI H.264
• Main stream: 3840 × 2160 @ 1–25/30 fps
• Sub stream: 1920 × 1080 @ 1–25/30 fps
• Third stream: 1920 × 1080 @ 1–25/30 fps
• Streaming capability: 3 streams
• Supported resolutions:
• 8 MP (3840 × 2160)
• 6 MP (3200 × 1800)
• 5 MP (3072 × 1728)
• 4 MP (2688 × 1520 / 2560 × 1440)
• 3 MP (2304 × 1296)
• 1080p
• 720p
• D1
• VGA
• CIF
• Bit rate control: VBR / CBR / ABR
• Video bit rate:
• H.264: 3 kbps – 16384 kbps
• H.265: 3 kbps – 16384 kbps
Image Features
• Day/Night: Auto / Color / B/W
• BLC supported
• HLC supported
• WDR: 120 dB
• White balance modes:
• Auto
• Natural
• Street lamp
• Outdoor
• Manual
• Regional custom
• Gain control: Auto / Manual
• Noise reduction: 3D NR
• Motion detection: 4 configurable areas
• Region of interest: 4 areas
• Smart illumination supported
• Smart dual light supported
• Defog supported
• Image rotation: 0° / 90° / 180° / 270°
• Mirror supported
• Privacy masking: 8 areas
• Lens distortion correction supported
Audio
• Built-in dual microphones
• Built-in speaker
• Speaker power: 2 W
• Maximum sound level: 110 dB at 10 cm
• Audio compression:
• PCM
• G.711a
• G.711Mu
• G.726
• G.723
Alarm
• Alarm input: 1 channel
• Alarm output: 1 channel
• Alarm events include:
• No SD card
• SD card full
• SD card error
• Network disconnection
• IP conflict
• Illegal access
• Motion detection
• Video tampering
• Intrusion
• Tripwire
• Stay detection
• Loitering detection
• Face detection
• Scene change
• Audio detection
• Voltage detection
• SMD
• Security exception
Network
• Network port: RJ-45 (10/100 Base-T)
• Supported protocols include:
• IPv4 / IPv6
• HTTP / TCP / UDP
• ARP / RTP / RTSP / RTCP / RTMP
• SMTP / FTP / SFTP
• DHCP / DNS / DDNS
• QoS / UPnP / NTP
• Multicast / ICMP / IGMP
• NFS / SAMBA / PPPoE / SNMP
• P2P / Bonjour / Auto Registration
• Interoperability: ONVIF Profile S / G / T / M, CGI
• Users: 20
• Total bandwidth: 64 Mbps
Storage
• Supports Micro SD card up to 512 GB
• Supports FTP / SFTP / NAS
Software
• Browser support: IE11, Chrome, Firefox
• Management software:
• SmartPSS Lite
• DSS
• DMSS
• DoLynk Care
• Mobile client: iOS / Android
Security
• Digest authentication
• WSSE authentication
• Account lockout
• Security logs
• IP/MAC filtering
• X.509 certificate support
• Syslog
• HTTPS
• 802.1x authentication
• Trusted boot / trusted execution / trusted upgrade
Ports
• Audio input: 1 channel (RCA)
• Audio output: 1 channel (RCA)
• Alarm input: 1 channel (wet contact)
• Alarm output: 1 channel (wet contact)
Power
• Power supply: 12 VDC / PoE+ (802.3at)
• Dual power backup supported
• Power consumption:
• Basic: 4.3 W (12 VDC) / 6.2 W (PoE)
• Maximum: 11.8 W (12 VDC) / 15.1 W (PoE)
Environment
• Operating temperature: –40 °C to +60 °C
• Operating humidity: ≤95% RH
• Storage temperature: –40 °C to +60 °C
• Storage humidity: ≤95% RH
Protection
• IP67 weatherproof
Structure
• Casing material: Metal + plastic
• Dimensions:
288.4 mm × 94.4 mm × 84.7 mm
• Net weight: 1.0 kg
• Gross weight: 1.3 kg
Certifications
• CE-LVD: EN 62368-1
• CE-EMC: 2014/30/EU
