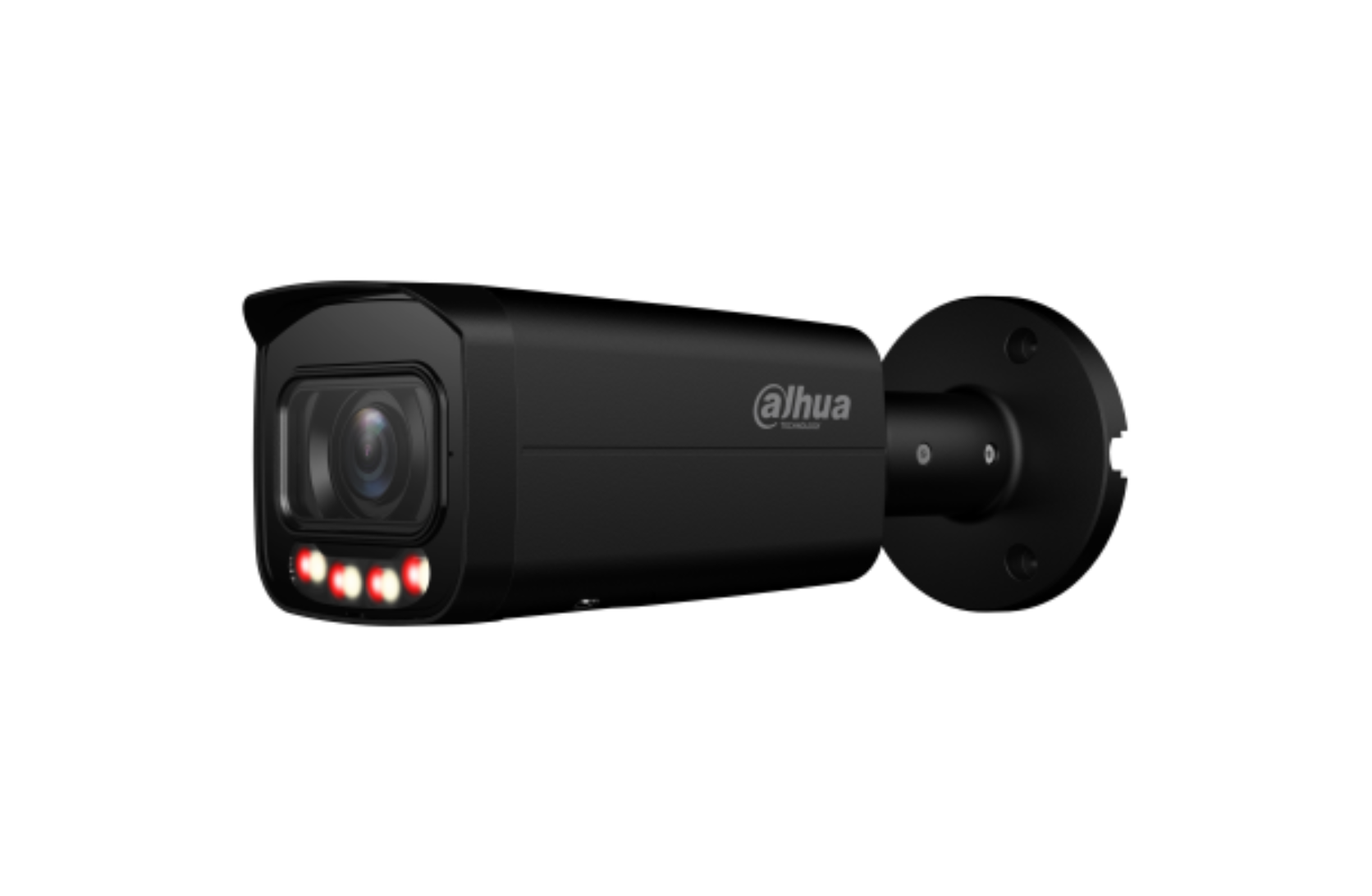

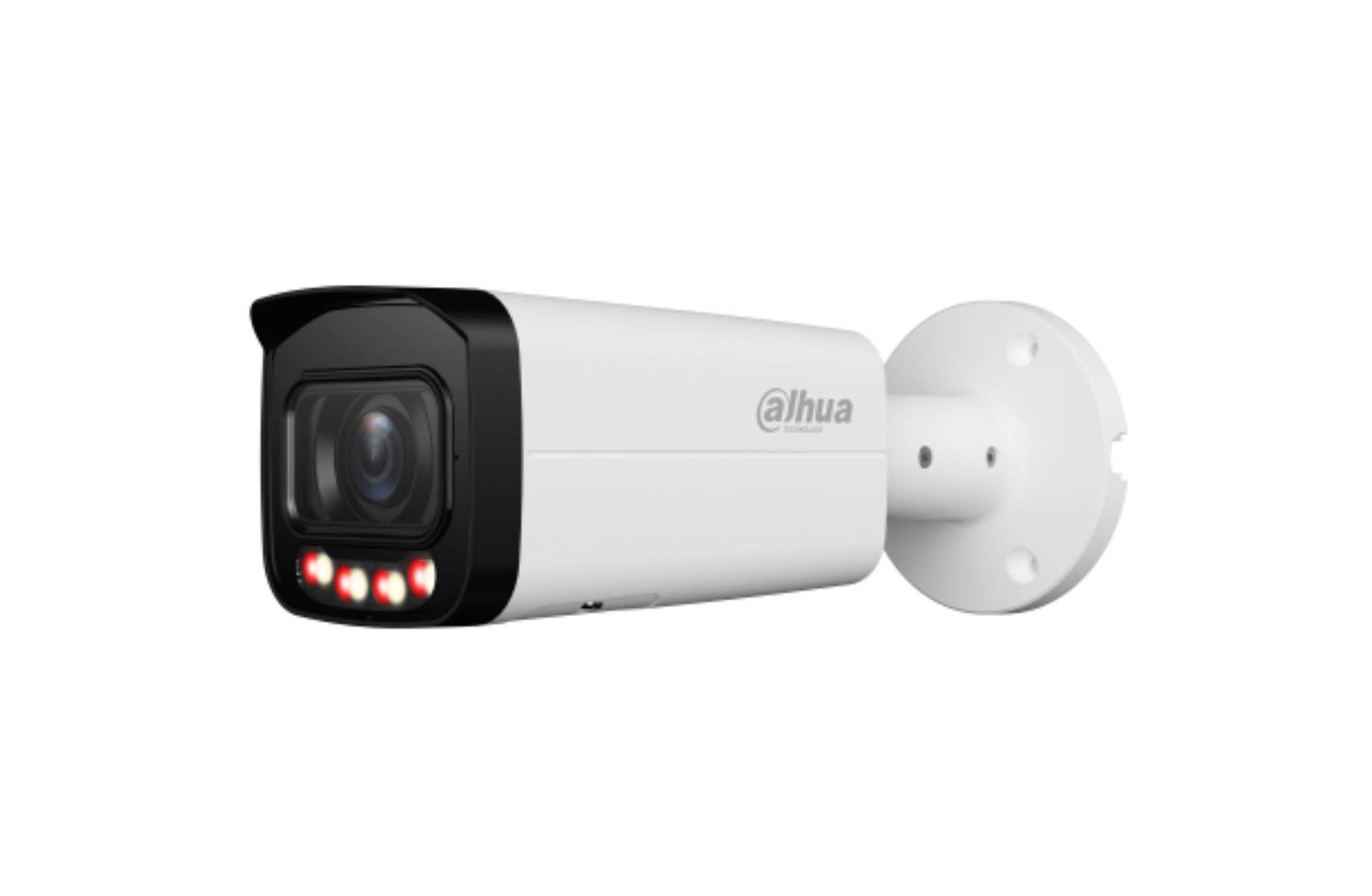

Dahua IPC-HFW3867T-ZAS-IL-ANZ 8MP Smart Dual Light Vari-focal Bullet WizSense Network Camera

8MP Smart Dual Light Motorised Vari-focal Bullet WizSense Network Camera

Key Features

• 8 MP 1/2.7" CMOS image sensor with excellent low-light performance.
• Maximum resolution of 3840 × 2160 at 25/30fps.
• H.265 codec with high compression and ultra-low bit rate.
• Smart Dual Light technology with up to 60 m IR and 60 m warm light range.
• Supports Smart H.264+/H.265+ and AI H.264/H.265 coding.
• WDR, 3D NR, HLC, BLC and digital watermarking for improved image quality.
• Intelligent perimeter protection with Intrusion Detection and Tripwire.
• Human and vehicle classification for accurate detection.
• Supports motion detection, video tampering, scene change and audio detection.
• Built-in microphone.
• 1 alarm input and 1 alarm output.
• 1 audio input and 1 audio output.
• Supports Micro SD cards up to 512 GB.
• Supports 12 VDC and PoE (802.3af).
• IP67 weatherproof metal housing.
• Supports SMD 4.0 and AI SSA image optimisation.
• Datasheet

Camera

• Image Sensor: 1/2.7" CMOS.
• Max Resolution: 3840 × 2160.
• ROM: 256 MB.
• RAM: 1 GB.
• Progressive scanning system.
• Electronic shutter speed: Auto/Manual, 1/3 s to 1/100,000 s.
• Minimum illumination:
  • Colour: 0.007 lux @ F1.4.
  • B/W: 0.0007 lux @ F1.4.
  • 0 lux with illuminator enabled.
• S/N Ratio: >56 dB.
• IR illumination distance up to 60 m.
• Warm light distance up to 60 m.
• Auto or manual illuminator control.
• 4 multi-core illuminators (IR + warm light).
• Angle adjustment:
  • Pan: 0°–360°.
  • Tilt: 0°–90°.
  • Rotation: 0°–360°.

Lens

• Motorised vari-focal lens.
• Lens mount: φ14.
• Focal length: 2.7 mm–13.5 mm.
• Maximum aperture: F1.4.
• Field of view:
  • Horizontal: 114°–32°.
  • Vertical: 58°–17°.
  • Diagonal: 138°–36°.
• Fixed iris control.
• Close focus distance: 0.1 m.

DORI Distance

Wide Position

• Detect: 85.3 m.
• Observe: 34.0 m.
• Recognise: 17.1 m.
• Identify: 8.5 m.

Tele Position

• Detect: 280.0 m.
• Observe: 112.0 m.
• Recognise: 56.0 m.
• Identify: 28.0 m.

Intelligence

• Tripwire and Intrusion Detection with human and vehicle classification.
• SMD 4.0.
• AcuPick target search.
• AI SSA image optimisation.
• Smart Search when paired with Smart NVR.

Video

• Compression formats:
  • H.265.
  • H.264.
  • H.264H.
  • H.264B.
  • MJPEG (sub stream only).
• Smart H.265+ and Smart H.264+.
• AI H.265 and AI H.264 coding.
• Triple stream support.
• Main Stream: 3840 × 2160 at up to 25/30fps.
• Sub Stream: 1920 × 1080 at up to 25/30fps.
• Third Stream: 1920 × 1080 at up to 25/30fps.
• Bit rate control: VBR, CBR and ABR.
• Video bit rate: 3 kbps–16384 kbps.
• 120 dB WDR.
• 3D noise reduction.
• Electronic Image Stabilisation (EIS).
• ROI with four areas.
• Smart illumination and Smart Dual Light.
• Defog function.
• AFSA support.
• Image rotation: 0°, 90°, 180° and 270°.
• Mirror mode.
• Privacy masking with eight areas.

Audio

• Built-in microphone.
• Audio compression:
  • G.711a.
  • G.711Mu.
  • PCM.
  • G.726.
  • G.723.
• 1 audio input (RCA).
• 1 audio output (RCA).

Alarm Functions

• Motion detection.
• Video tampering.
• Scene changing.
• Audio detection.
• Intrusion detection.
• Tripwire.
• SMD events.
• Defocus detection.
• Voltage detection.
• External alarm support.
• Network disconnection.
• Illegal access detection.
• IP conflict detection.
• SD card status monitoring.

Network

• RJ-45 10/100 Base-T network port.
• ONVIF Profile S, G, T and M support.
• Supports up to 20 users.
• Total bandwidth: 64 Mbps.
• Compatible with SmartPSS Lite, DSS and DMSS.
• Mobile support for iOS and Android.
• Supports Micro SD cards up to 512 GB, NAS, FTP and SFTP storage.

Cyber Security

• Video encryption.
• Firmware encryption.
• Configuration encryption.
• HTTPS support.
• Account lockout.
• IP/MAC filtering.
• X.509 certificates.
• Trusted boot.
• Trusted execution.
• Trusted upgrade.

Power

• Power supply: 12 VDC or PoE (802.3af).
• Dual power backup supported.
• Basic power consumption:
  • 3.8 W (12 VDC).
  • 5.3 W (PoE).
• Maximum power consumption:
  • 9.9 W (12 VDC).
  • 12.5 W (PoE).

Environment

• Operating temperature: -30°C to +60°C.
• Storage temperature: -40°C to +60°C.
• Operating humidity: ≤95% RH.
• Storage humidity: ≤95% RH.
• IP67 weatherproof protection.

Physical Specifications

• Metal housing.
• Dimensions: 238.5 × 90.7 × 90.7 mm.
• Net weight: 835 g.
• Gross weight: 1090 g.

Certifications

• CE-LVD: EN62368-1.
• CE-EMC: 2014/30/EU Electromagnetic Compatibility Directive.
