Dahua IPC-HFW71242H-Z-X 12MP IR Bullet WizMind Network Camera. NOTE: Lead time exists - 6 to 10 weeks.

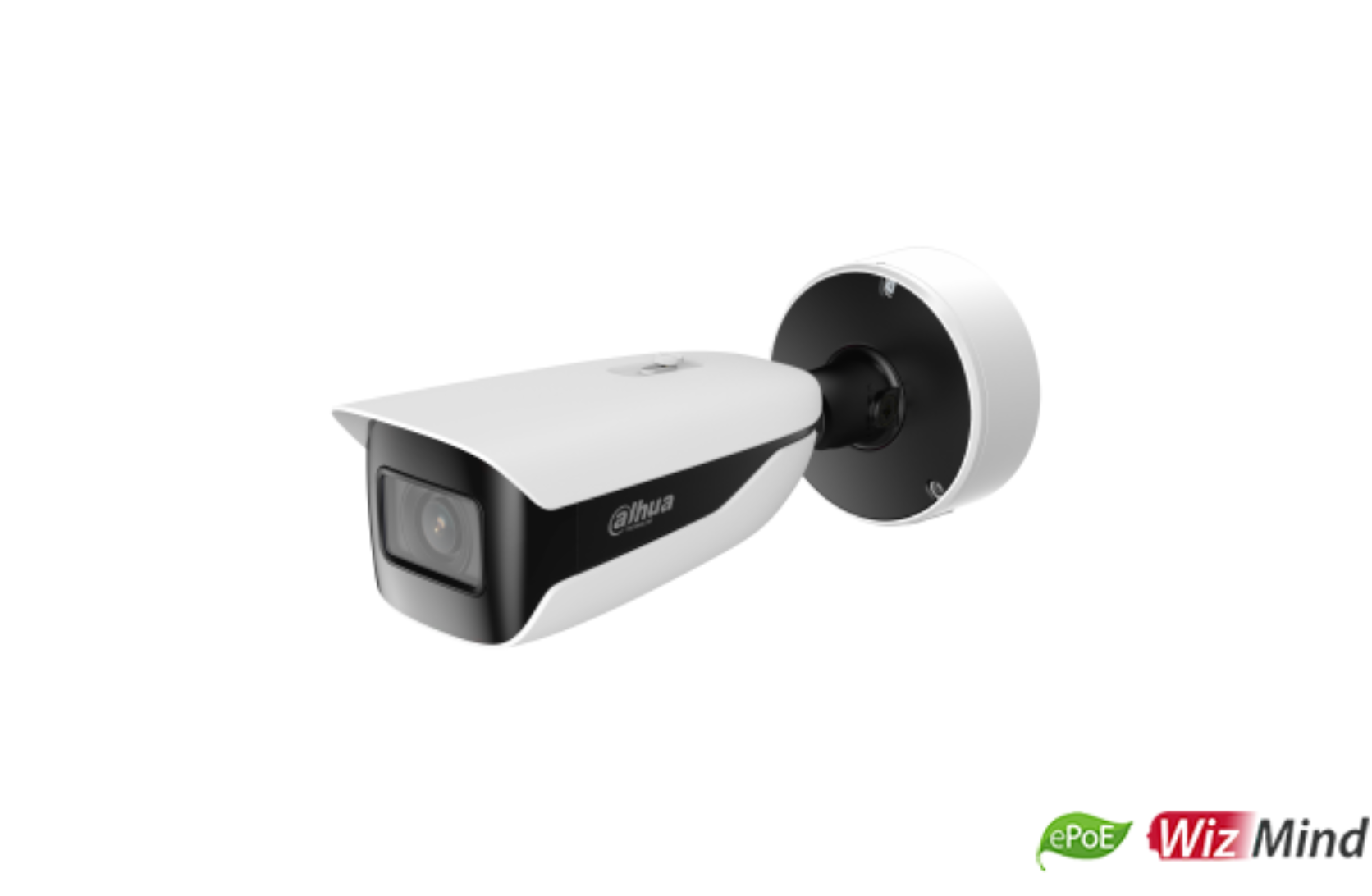

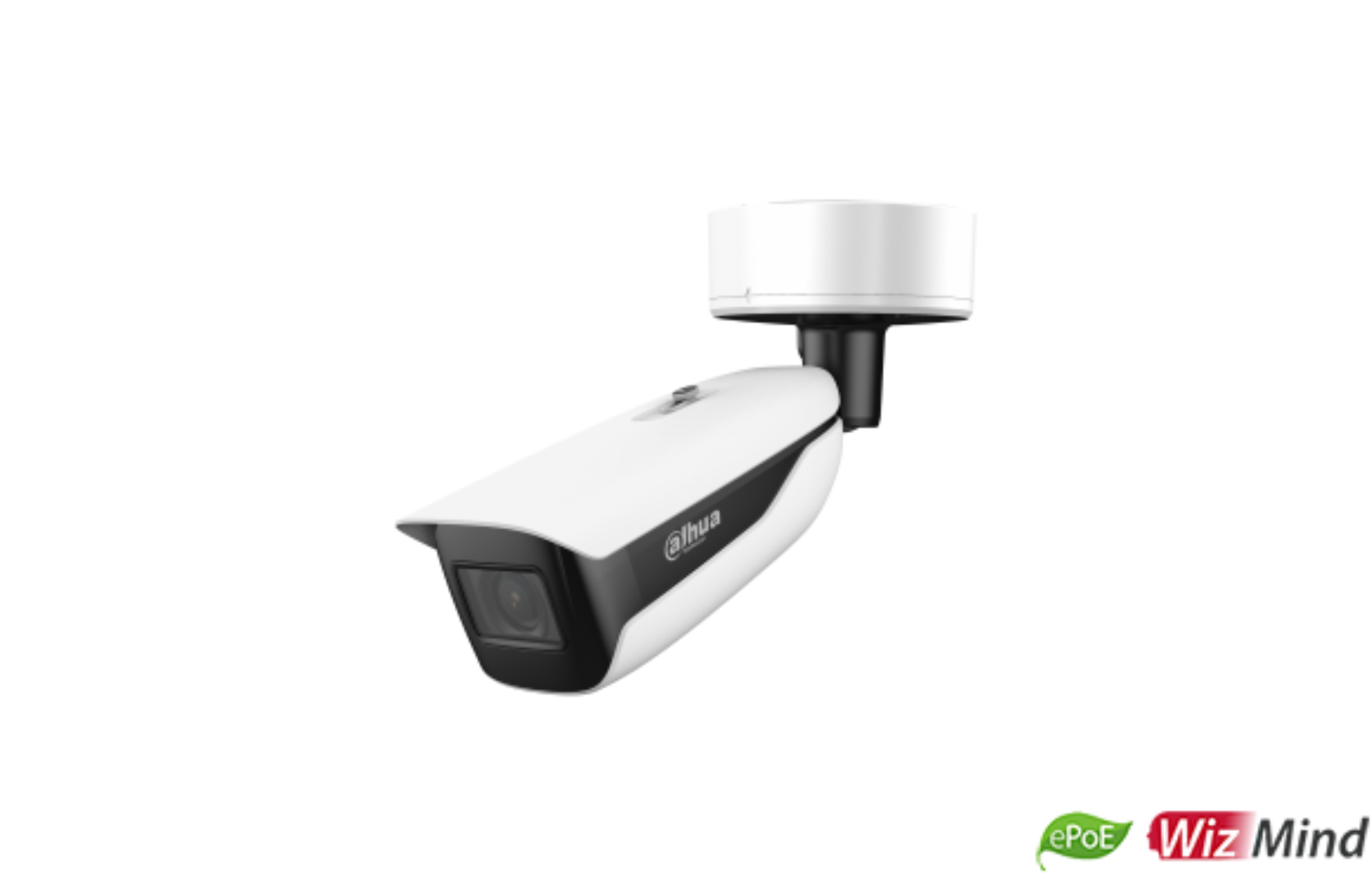

IPC-HFW71242H-Z-X 12MP IR Bullet WizMind Network Camera

Key Features

• 12MP resolution with a 1/1.7" CMOS image sensor.

• Outputs up to 4000 × 3000 at 25/30 fps.

• Motorised vari-focal 2.7 mm–12 mm lens.

• Built-in IR with up to 60 m illumination distance.

• Supports Smart H.265+ and Smart H.264+ compression.

• Supports up to two intelligent functions at the same time.

• Supports face recognition, face detection, IVS, people counting, video metadata, PPE detection, parking space management and ANPR.

• Supports AcuPick with compatible back-end devices.

• Supports EPTZ and smart search.

• Supports Micro SD card storage up to 1 TB.

• Alarm: 3 inputs and 2 outputs.

• Audio: 1 input and 1 output.

• Includes RS-485 and BNC analogue output.

• Supports 12 VDC, 24 VAC, PoE+ and ePoE power supply.

• Includes 12 VDC power output for external devices.

• IP67 weather protection and IK10 vandal resistance.

• Optional anti-corrosion coating available.

• Datasheet

Camera

• Image Sensor: 1/1.7" CMOS

• Maximum Resolution: 4000 × 3000

• ROM: 8 GB

• RAM: 4 GB

• Scanning System: Progressive

• Electronic Shutter Speed: Auto/manual, 1/3 s to 1/100,000 s

• Signal-to-Noise Ratio: More than 56 dB

• IR Distance: Up to 60 m

• IR LEDs: 4

• Illuminator Control: Auto

Minimum Illumination

• Colour: 0.0009 lux at F1.6

• Black and white: 0.0005 lux at F1.6

• 0 lux with IR on

Angle Adjustment

• Pan: 0° to 360°

• Tilt: 0° to 90°

• Rotation: 0° to 360°

Lens

• Lens Type: Motorised vari-focal

• Lens Mount: φ14

• Focal Length: 2.7 mm–12 mm

• Maximum Aperture: F1.6

• Iris Control: Auto

• Iris Type: P-Iris

• Close Focus Distance: 1.8 m

Field of View

• Horizontal: 106°–45°

• Vertical: 77°–34°

• Diagonal: 140°–56°

DORI Distance at Wide Angle

• Detect: 87.6 m

• Observe: 35 m

• Recognise: 17.5 m

• Identify: 8.8 m

DORI Distance at Telephoto

• Detect: 186.6 m

• Observe: 74.6 m

• Recognise: 37.3 m

• Identify: 18.7 m

Smart Event

IVS

• Abandoned object

• Missing object

Intelligence

EPTZ

• Supported

IVS Perimeter Protection

• Intrusion

• Tripwire

• Fast moving

• Loitering detection

• People gathering

• Parking detection

• Supports human, vehicle and animal classification for intrusion, tripwire and fast-moving detection.

• Supports long-distance mode.

• Supports self-learning to help filter false alarms.

Face Detection

• Face detection

• Face tracking

• Face snapshot

• Snapshot optimisation

• Optimal face snapshot upload

• Face enhancement

• Face exposure

• Face attribute extraction

• Supports six face attributes and eight expressions.

• Supports face or one-inch photo snapshot options.

• Supports real-time snapshot, quality priority and optimisation snapshot.

• Supports face angle filter and optimisation time setting.

Face Recognition

• Supports general mode and counting mode.

• Supports face detection, snapshots, snapshot optimisation and face enhancement.

• Supports face comparison with databases of up to 200,000 face images.

• Supports up to 5 face database groups.

• Supports adding people individually or in batches.

• Supports face similarity settings.

Face Recognition General Mode

• Face detection

• Snapshot

• Snapshot optimisation

• Optimal face snapshot upload

• Face enhancement

• Face exposure

• Face attribute extraction

• Recognition priority

• Optimisation snapshot

• Face angle filter

• Optimisation time setting

Face Recognition Counting Mode

• Advanced customer counting

• Filters selected faces from the database

• Exports reports before and after removing duplicate faces

People Counting

• Tripwire people counting

• People counting in area

• Queue management

• Supports report generation and export by day, week, month and year.

• Supports up to 4 rules for people counting and queue management.

Heat Map

• Supported

PPE Detection

• Detects PPE compliance based on configured attributes.

• Supports helmets, hats, uniforms, masks, gloves, shoe covers, shoes, safety vests and seatbelts.

• Can trigger alarms when detected targets match or do not match configured attributes.

• Supports self-learning for different colours and styles of workwear.

ANPR

• Supports licence plate recognition, tracking, priority and snapshots.

• Detects licence plate, vehicle type and vehicle colour.

• Supports additional attributes such as seatbelt, smoking and phone use.

• Supports up to 10,000 blocklist records and 10,000 allowlist records.

• Recognises vehicle plates at speeds up to 60 km/h.

Parking Space Management

• Supports outdoor and planned parking lot management.

• Supports parking spaces across multiple areas.

• Displays total and available parking spaces.

• Can trigger alarms based on a predefined number of vehicles.

Video Metadata

• Motor vehicle detection

• Non-motor vehicle detection

• Face detection

• Human body detection

• Snapshot and snapshot optimisation

• Optimal face snapshot upload

• Generates flow statistics for people, motor vehicles and non-motor vehicles based on direction.

• Supports report export.

Motor Vehicle Attributes

• Licence plate

• Vehicle type

• Vehicle colour

• Vehicle logo

• Seatbelt

• Smoking

• Phone use

Non-Motor Vehicle Attributes

• Type

• Vehicle colour

• Number of people

• Top type and colour

• Hat

Human Body Attributes

• Top type and colour

• Bottom type and colour

• Bag

• Hat

• Gender

• Umbrella

Smart Search

• Works with compatible Smart NVRs.

• Supports refined intelligent search.

• Supports event extraction and event video merging.

AcuPick

• Uses deep learning algorithms to match people, animals and motor vehicles.

• Works with compatible back-end devices.

• Helps search live and recorded video to quickly locate targets.

Video

• Video Compression: H.265, H.264, H.264H, H.264B and MJPEG on sub stream

• Smart Codec: Smart H.265+ and Smart H.264+

• Stream Capability: 5 streams

• Bit Rate Control: CBR and VBR

• H.264 Bit Rate: 32 kbps to 16384 kbps

• H.265 Bit Rate: 32 kbps to 12288 kbps

Video Frame Rate

• Main stream: 4000 × 3000 at 1–25/30 fps

• Sub stream: 1920 × 1080 at 1–25/30 fps

• Third stream: 1920 × 1080 at 1–25/30 fps

• Fourth stream: 1920 × 1080 at 1–25/30 fps

• Fifth stream: 704 × 576 at 1–25 fps or 704 × 480 at 1–30 fps

Supported Resolutions

• 12MP: 4000 × 3000

• 8MP: 3840 × 2160

• 6MP: 3072 × 2048

• 5MP: 3072 × 1728 / 2592 × 1944

• 4MP: 2688 × 1520

• 3MP: 2048 × 1536 / 2304 × 1296

• 1080p: 1920 × 1080

• 1.3MP: 1280 × 960

• 720p: 1280 × 720

• D1: 704 × 576 / 704 × 480

• CIF: 352 × 288 / 352 × 240

Image Settings

• Day/Night: Auto ICR, colour and black and white

• BLC: Supported

• HLC: Supported

• WDR: DWDR

• Scene Self-adaptation: Supported

• White Balance: Auto, natural, street lamp, outdoor, manual and regional custom

• Gain Control: Auto

• Noise Reduction: 3D NR

• Motion Detection: 4 rectangular areas

• Region of Interest: 4 areas

• Electronic Image Stabilisation: Supported

• Smart Illumination: Supported

• Defog: Supported

• Image Rotation: 0°, 90°, 180° and 270°

• Mirror: Supported

• Privacy Masking: 8 areas

• LDC: Supported

Audio

• Audio Input: 1 RCA port

• Audio Output: 1 RCA port

• Audio Compression: G.711a, G.711Mu, PCM, G.726 and G.723

Alarm

Alarm Events

• No SD card

• SD card full

• SD card error

• Network disconnection

• IP conflict

• Illegal access

• Motion detection

• Video tampering

• Tripwire

• Intrusion

• Fast moving

• Abandoned object

• Missing object

• Loitering detection

• People gathering

• Parking detection

• Parking space management

• Scene change

• Audio detection

• Defocus detection

• External alarm

• Face detection

• Face recognition

• Video metadata

• ANPR

• People counting in area

• Stay alarm

• People counting

• People number error detection

• People stay detection

• Security exception

Network

• Network Port: RJ45 10/100/1000 Base-T

• SDK and API: Supported

• User/Host: 20 users

• Total Bandwidth: 340 Mbps

Network Protocols

• IPv4

• IPv6

• HTTP

• TCP

• UDP

• ARP

• RTP

• RTSP

• RTCP

• RTMP

• SMTP

• FTP

• SFTP

• DHCP

• DNS

• DDNS

• QoS

• UPnP

• NTP

• Multicast

• ICMP

• IGMP

• NFS

• SAMBA

• PPPoE

• SNMP

• P2P

• Auto Register

Interoperability

• ONVIF Profile S

• ONVIF Profile G

• ONVIF Profile T

• ONVIF Profile M

• CGI

Browser Support

• Internet Explorer 11 and later

• Chrome 88.0.4324.190 and later

• Firefox 47.0.2 and later

Management Software

• SmartPSS Lite

• DSS

• DMSS

Mobile Client

• iOS

• Android

Security

• Digest

• WSSE

• Account lockout

• Security logs

• IP and MAC filtering

• X.509 certificate generation and import

• Syslog

• HTTPS

• 802.1x

• Trusted boot

• Trusted execution

• Trusted upgrade

Storage

• Micro SD Card: Supports up to 1 TB

• Network Storage: FTP, SFTP and NAS

Ports

• RS-485: 1 port, 1200 bps to 115200 bps

• Audio Input: 1 RCA port

• Audio Output: 1 RCA port

• Alarm Inputs: 3 channels, wet contact, 5 mA, 3–5 VDC

• Alarm Outputs: 2 channels, dry contact, 1000 mA 30 VDC / 500 mA 50 VAC

• Analogue Output: 1 BNC CVBS output

• Power Output: 12 VDC output, 165 mA maximum current, 700 mA peak current

Power

• Power Supply: 12 VDC, 24 VAC, PoE+ or ePoE

• PoE Standard: IEEE 802.3at

Power Consumption

• Basic: 7.3 W with 12 VDC, 10.2 W with 24 VAC or 10.6 W with PoE

• Maximum: 18.2 W with 12 VDC, 24.2 W with 24 VAC or 24.3 W with PoE

• Heating: 3 W with 12 VDC, 4.6 W with 24 VAC or 5.47 W with PoE

Environment

• Operating Temperature: –40°C to +65°C

• Storage Temperature: –40°C to +65°C

• Operating Humidity: Up to 95%

• Storage Humidity: 10%–95%

Protection

• Weather Protection: IP67

• Vandal Resistance: IK10

• Anti-Corrosion Protection: Optional

Anti-Corrosion Level

• Moderate protection on ATC model only.

• Suitable for standard corrosion resistance requirements.

• Designed for coastal areas from 2 km and above and locations prone to acid rain exposure.

Structure

• Casing Material: Metal and plastic

• Product Dimensions: 345.6 × 134.2 × 135.1 mm

• Net Weight: 1.65 kg

Certifications

• CE-LVD: EN62368-1

• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

• FCC: 47 CFR FCC Part 15, Subpart B

• UL/CUL: UL62368-1 and CAN/CSA C22.2 No. 62368-1-14

• UL 50E NEMA Type 4X: Optional
