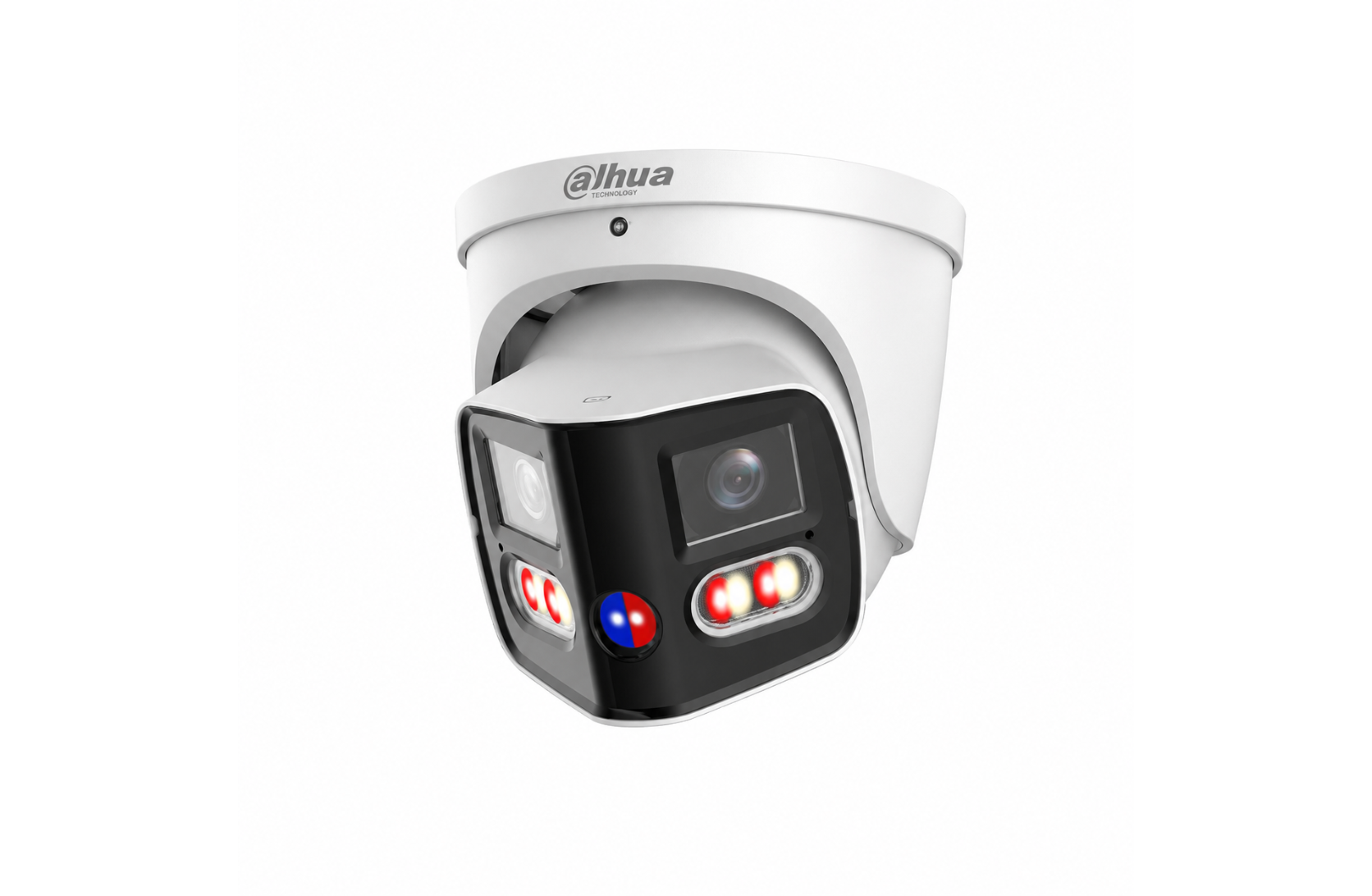

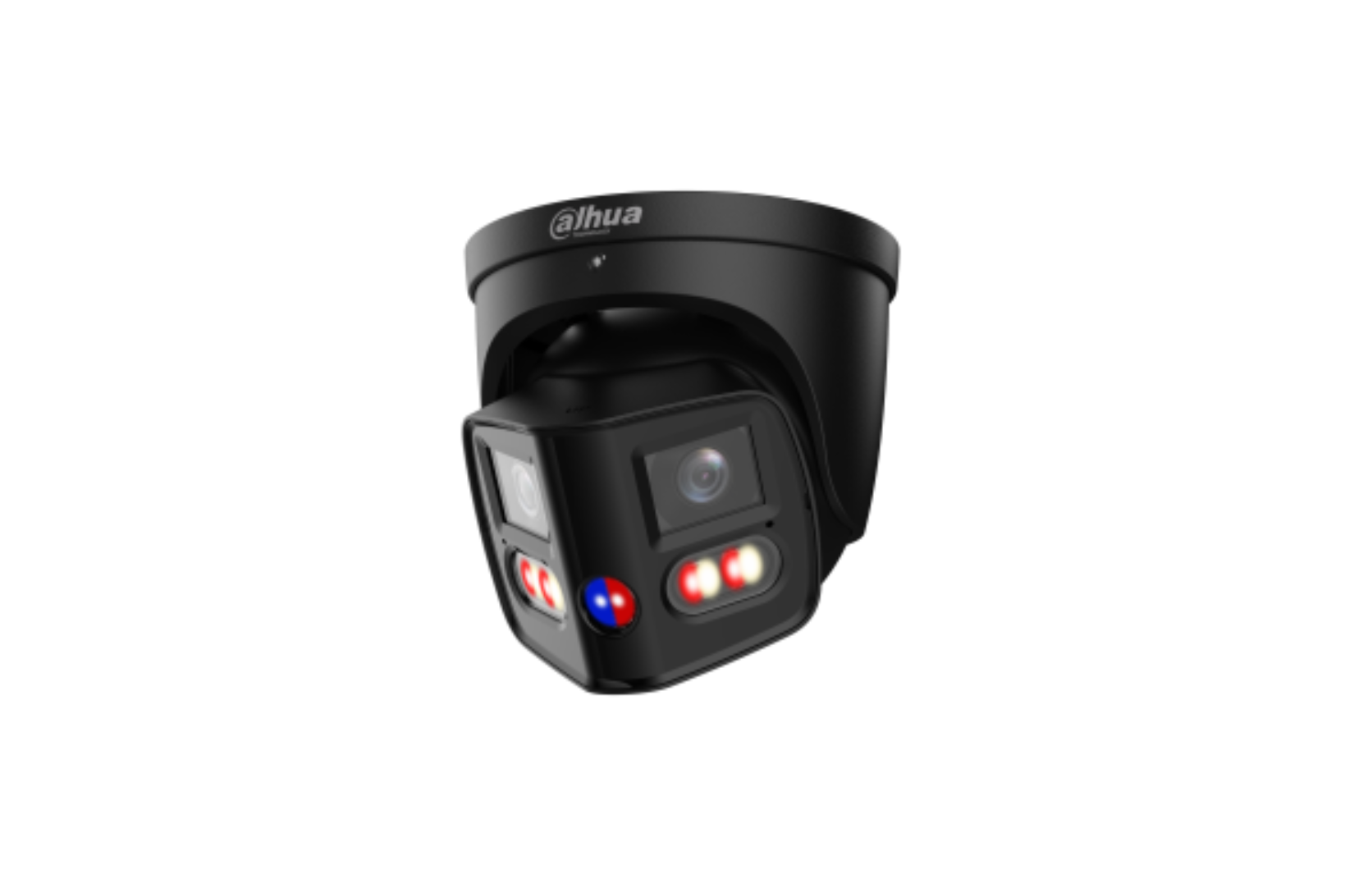

Dahua IPC-PDW31259-A180-AS-PV 2x6MP TiOC Duo Splicing Fixed-focal Eyeball WizSense Network Camera

2 × 6MP TiOC Duo Splicing Fixed-Focal Eyeball WizSense Network Camera

Key Points

• High-quality imaging with 12MP resolution
• 180° panoramic image using pixel-level splicing fusion
• Smart Dual Light with built-in IR and warm LED illumination
• Supports 3 illumination modes
• Red and blue warning lights with audible alarms for active deterrence
• Xinghan Vision Models for enhanced target detection and imaging
• AcuPick for fast and precise human and vehicle searches
• Electronic enlargement and tracking of intelligent alarm targets
• SMD 4.0 smart motion detection
• Built-in dual microphones and dual speakers
• IP67 weather-resistant protection
• Supports PoE+ (802.3at) and 12 VDC power
• MicroSD storage support up to 512 GB
• Datasheet

---

Camera

• Image Sensor: 1/2.5" CMOS
• Maximum Resolution: 5000 × 2500
• ROM: 256 MB
• RAM: 2 GB
• Scanning System: Progressive
• Electronic Shutter Speed: Auto/Manual, 1/3 s–1/100,000 s
• Minimum Illumination:
  • 0.0008 lux @ F1.0 (Colour, 30 IRE)
  • 0.0003 lux @ F1.0 (B/W, 30 IRE)
  • 0 lux with illuminator on
• S/N Ratio: >56 dB
• Illumination Distance:
  • IR: Up to 30 m
  • Warm Light: Up to 30 m
• Illuminator Control: Auto / Manual
• Illuminators: 4 × multi-core IR + warm lights
• Angle Adjustment:
  • Pan: 0°–355°
  • Tilt: 0°–77°
  • Rotation: 0°–355°

---

Lens

• Lens Type: Fixed-focal
• Lens Mount: M12
• Focal Length: 2.8 mm
• Maximum Aperture: F1.0
• Field of View:
  • Horizontal: 180°
  • Vertical: 78°
• Iris Control: Fixed
• Close Focus Distance: 1.4 m

DORI Distance – 2.8 mm

• Detect: 59.6 m
• Observe: 23.8 m
• Recognise: 11.9 m
• Identify: 6.0 m

DORI (Detect, Observe, Recognise, Identify) is based on EN 62676-4 and defines the ability to distinguish persons or objects within the camera's field of view. These distances do not represent intelligent analytics detection distances.

---

Intelligence

• IVS / Perimeter Protection:
  • Intrusion detection
  • Tripwire
  • Stay detection
  • Loitering detection
  • Human and vehicle classification with accurate target detection
• SMD: SMD 4.0
• AcuPick:
  • Uses deep-learning algorithms
  • Works with compatible back-end devices
  • Accurately matches people, animals and motor vehicles
  • Searches live and recorded video to quickly locate targets
• Face Detection:
  • Face detection and snapshots
  • Snapshot optimisation
  • Optimal face snapshot upload
  • Face exposure
  • Face or one-inch photo snapshot options
  • Real-time, quality-priority and optimised snapshot strategies
  • Face-angle filtering
  • Optimisation duration settings
• Smart Search: Works with compatible Smart NVRs for refined intelligent searches, event extraction and event-video merging

---

Video

• Video Compression: H.265 / H.264 / H.264H / H.264B / MJPEG
• AI Coding: AI H.264 / AI H.265
• Supports Smart H.264+ and Smart H.265+
• Streaming Capability: 3 streams

Frame Rate

• Main Stream: 5000 × 2500 @ 1–20 fps
• Sub Stream: 1200 × 536 @ 1–20 fps
• Third Stream: 1920 × 860 @ 1–20 fps

Maximum frame rates may vary when multiple streams are enabled due to total encoding capacity.

Supported Resolutions

• 12MP – 5000 × 2500
• 1920 × 860
• 1200 × 536
• 960 × 432
• D1 – 704 × 576 / 704 × 480

Video Settings

• Bit Rate Control: VBR / CBR / ABR
• H.264 Bit Rate: 6 kbps–32,768 kbps
• H.265 Bit Rate: 6 kbps–32,768 kbps
• Day/Night: Auto ICR / Colour / B&W
• BLC: Yes
• HLC: Yes
• WDR: 120 dB
• Scene Self-Adaptation (SSA): Yes
• White Balance: Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
• Gain Control: Auto / Manual
• Noise Reduction: 3D NR
• Motion Detection: On/Off, 4 rectangular areas
• Region of Interest: 4 areas
• Smart Illumination: Yes
• Smart Dual Light: Yes
• Defog: Yes
• Privacy Masking: 8 areas

---

Audio

• Built-in Microphones: Dual microphones
• Built-in Speakers: Dual speakers
• Speaker Maximum Power Consumption: 2 W
• Maximum Sound Level: 110 dB at 10 cm
• Audio Compression: PCM / G.711a / G.711Mu / G.726 / G.723

---

Alarm

Supports alarm events including:

• No SD card
• SD card full
• SD card error
• Network disconnection
• IP conflict
• Illegal access
• Motion detection
• Video tampering
• Tripwire
• Intrusion
• Loitering detection
• Stay detection
• Full-image face detection
• Scene changing
• Audio detection
• Voltage detection
• Defocus detection
• SMD
• Security exception

---

Active Deterrence

Light Warning

• Red and blue warning lights
• Flash or solid illumination
• Duration: 5–30 seconds
• Flash Frequency: High / Medium / Low

Sound Warning

• 11 built-in sound alarms
• Supports importing custom alarm sounds
• Volume: 0–100
• Playback: 1–10 times

---

Network

• Network Port: RJ-45, 10/100/1000 Base-T
• SDK & API: Supported
• Network Protocols:
  • IPv4 / IPv6
  • HTTP
  • TCP / UDP
  • ARP
  • RTP / RTSP / RTCP / RTMP
  • SMTP
  • FTP / SFTP
  • DHCP
  • DNS / DDNS
  • QoS
  • UPnP
  • NTP
  • Multicast
  • ICMP / IGMP
  • NFS
  • SAMBA
  • PPPoE
  • SNMP
  • P2P
  • Bonjour
  • Auto Registration
• ONVIF: Profile S / G / T / M
• CGI: Supported
• Users/Hosts: Up to 20
• Total Bandwidth: 64 Mbps

Storage

• FTP
• SFTP
• NAS
• MicroSD card up to 512 GB

Browser Support

• Chrome
• Firefox
• Internet Explorer

Management Software

• SmartPSS Lite
• DSS
• DMSS
• DoLynk Care

Mobile Client

• iOS
• Android

Security

• Digest authentication
• WSSE
• Account lockout
• Security logs
• IP/MAC filtering
• X.509 certificate generation and importing
• Syslog
• HTTPS
• 802.1X
• Trusted Boot
• Trusted Execution
• Trusted Upgrade
• Session security
• Security warnings

---

Ports

• Audio Input: 1 × RCA
• Audio Output: 1 × RCA
• Alarm Input: 1 channel
  • Wet contact: Maximum 5 mA, 3–5 VDC
  • Dry contact supported
• Alarm Output: 1 channel dry contact
  • Maximum 1,000 mA @ 30 VDC
  • Maximum 500 mA @ 50 VAC

---

Power

• Power Supply: 12 VDC ±30%
• PoE: PoE+ (802.3at)

Dual Power Backup

When the power adapter and PoE are connected simultaneously, disconnecting either power source allows the camera to continue operating without restarting.

Power Consumption

• Basic:
  • 4.9 W @ 12 VDC
  • 6.8 W @ PoE
• Maximum:
  • 13.3 W @ 12 VDC
  • 16.1 W @ PoE

Maximum consumption measured with H.265, WDR, warm light, sound/light active deterrence and intelligent functions enabled.

---

Environment

• Operating Temperature: –40°C to +60°C
• Operating Humidity: ≤95% RH, non-condensing
• Storage Temperature: –40°C to +60°C
• Storage Humidity: ≤95% RH, non-condensing
• Weather Protection: IP67
• Anti-Corrosion Level: Basic protection

---

Certification

• CE-LVD: EN 62368-1
• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

---

Structure

• Casing Material: Metal
• Dimensions: 135.2 mm × Φ122.0 mm
• Net Weight: 0.99 kg
• Gross Weight: 1.15 kg
