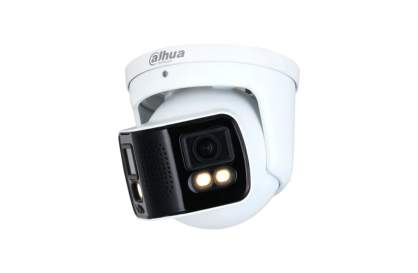

Dahua IPC-PDW5849-A180-E2-ASTE 2×4MP Full-color Duo Splicing WizMind Network Camera

2×4MP Full-color Duo Splicing WizMind Network Camera

• Outputs 180° wide-angle splicing image

• Max. resolution: 8 MP (4096 × 1800) @25 fps

• H.265 codec for high compression and ultra-low bit rate

• Built-in warm light with max. illumination distance of 40 m

• Supports ROI, Smart H.264+/H.265+, AI H.264/H.265 for efficient bandwidth and storage usage

• WDR, 3D NR, HLC, BLC, and digital watermarking for varied monitoring scenarios

• Alarm: 1 input, 1 output

• Audio: 1 input, 1 output

• Built-in microphone and speaker, supports two-way talk

• Supports max. 512 GB Micro SD card

• 12 VDC / PoE power supply for easy installation

• IP67 weatherproof rating

• EPTZ: Enlarges and tracks targets triggered by intelligent alarms

• Features SMD 3.0

• Datasheet



Camera

• Image Sensor: Dual 1/1.8" CMOS

• Max. Resolution: 4096 (H) × 1800 (V)

• ROM: 128 MB

• RAM: 1 GB

• Scanning System: Progressive

• Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s

• Minimum Illumination:

  • 0.0005 lux@F1.0 (Color, 30 IRE)

  • 0.0002 lux@F1.0 (B/W, 30 IRE)

  • 0 lux (Illuminator on)

• S/N Ratio: >56 dB

• Illumination Distance: 40 m (131.23 ft)

• Illuminator On/Off Control: Auto

• Illuminator Number: 4 (Warm light)

• Pan Range: 0°–360°

• Tilt Range: 4°–90°

• Rotation Range: 0°–360°

Lens

• Lens Type: Fixed-focal

• Lens Mount: M16

• Focal Length: 3.6 mm

• Field of View: H: 180°±10°, V: 48°

• Max. Aperture: F1.0

• Iris Control: Fixed

• Close Focus Distance: 3.6 m (11.81 ft)

DORI Distance (3.6 mm Lens)

• Detect: 70.3 m (230.64 ft)

• Observe: 28.1 m (92.19 ft)

• Recognize: 14.1 m (46.26 ft)

• Identify: 7.0 m (22.97 ft)

Intelligence

• IVS: Intrusion, tripwire, fast moving (with human/vehicle classification), loitering, people gathering, parking detection

• Heat Map: Supported

• Smart Object Detection: Abandoned and missing object detection

• People Counting:

  • Enter, leave, pass count with yearly/monthly/daily reports

  • Area count with 4 rules, support people/stay time count + alarm

  • Queue management with 4 rules, count people/stay time + alarm

Video

• Compression: H.265, H.264, H.264H, H.264B, MJPEG (sub stream only)

• Smart Codec: Smart H.265+, Smart H.264+

• AI Codec: AI H.265, AI H.264

• Frame Rate (WDR Off):

  • Main: 4096 × 1800 @ 1–25 fps

  • Sub: 1024 × 452 @ 1–25 fps

  • Third: 1920 × 832 @ 1–25 fps

• Frame Rate (WDR On):

  • Main: 4096 × 1800 @ 1–20 fps

  • Sub: 1024 × 452 @ 1–20 fps

  • Third: 1920 × 832 @ 1–20 fps

• Stream Capability: 3 streams

• Resolution Options:

  • 8M (4096 × 1800)

  • 6.5M (3840 × 1680)

  • 4M (3840 × 1080 / 2880 × 1264)

  • 1.6M (1920 × 832)

  • 0.7M (1280 × 560)

  • 0.5M (1024 × 452)

• Bit Rate Control: CBR/VBR

• Bit Rate:

  • H.264: 9 kbps–8192 kbps

  • H.265: 9 kbps–8192 kbps

• Day/Night: Color/B/W

• BLC, HLC: Supported

• WDR: 140 dB

• SSA: Scene Self-adaptation supported

• White Balance: Auto, natural, street lamp, outdoor, manual, regional custom

• Gain Control: Auto

• Noise Reduction: 3D NR

• Motion Detection: ON/OFF (4 rectangular areas)

• Region of Interest: 4 configurable areas

• Privacy Masking: 4 configurable areas

• Defog: Supported

Audio

• Built-in Microphone: Yes

• Audio Compression: G.711a, G.711Mu, PCM, G.726, G.723

Alarm

• Alarm Events:

  • SD card error/full/missing

  • Network disconnection, IP conflict, illegal access

  • Motion detection, video tampering

  • IVS triggers (tripwire, intrusion, fast moving, etc.)

  • Loitering, people gathering, parking detection

  • Scene change, audio detection, voltage detection

  • External alarm, SMD, people counting/stay/queue exceptions

Network

• Network Port: RJ-45 (10/100 Base-T)

• SDK/API: Supported

• Cyber Security:

  • Video/configuration/firmware encryption

  • WSSE, account lockout, logs, IP/MAC filtering

  • HTTPS, 802.1x, X.509 certs, syslog

  • Trusted boot/execution/upgrade

• Protocols: IPv4/IPv6, HTTP, TCP, UDP, RTP, RTSP, FTP, SFTP, SMTP, DHCP, DNS, DDNS, NTP, QoS, UPnP, SNMP, Bonjour, and more

• Interoperability: ONVIF (Profiles S, G, T), CGI, Milestone

• User Access: 20 users (max. 80 Mbps total bandwidth)

• Storage: FTP, SFTP, Micro SD (max. 512 GB), NAS

• Browser Compatibility: IE11+, Chrome, Firefox

• Software: Smart PSS, DSS, DMSS

• Mobile App: iOS, Android

Certifications

• CE-LVD: EN62368-1

• CE-EMC: 2014/30/EU

• FCC: Part 15, Subpart B

• UL/CUL: UL60950-1, CAN/CSA C22.2 No.60950-1-07

Ports

• Audio Input: 1 channel (RCA)

• Audio Output: 1 channel (RCA)

• Alarm Input: 1 input (5 mA 3–5 VDC)

• Alarm Output: 1 output (300 mA @ 12 VDC)

Power

• Power Supply: 12 VDC (±30%), PoE+ (802.3at), ePoE

• Power Consumption:

  • Basic: 4.8 W (12 VDC), 5.5 W (PoE)

  • Max (WDR + AI + Light + Speaker): 10.5 W (12 VDC), 11.8 W (PoE)

Environment

• Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F)

• Operating Humidity: ≤95%

• Storage Temperature: –40 °C to +60 °C

Protection

• Ingress Protection: IP67

Structure

• Casing: Metal

• Dimensions: Φ122 mm × 131.9 mm (Φ4.80" × 5.19")

• Net Weight: 990 g (2.18 lb)

• Gross Weight: 1150 g (2.54 lb)
