Description

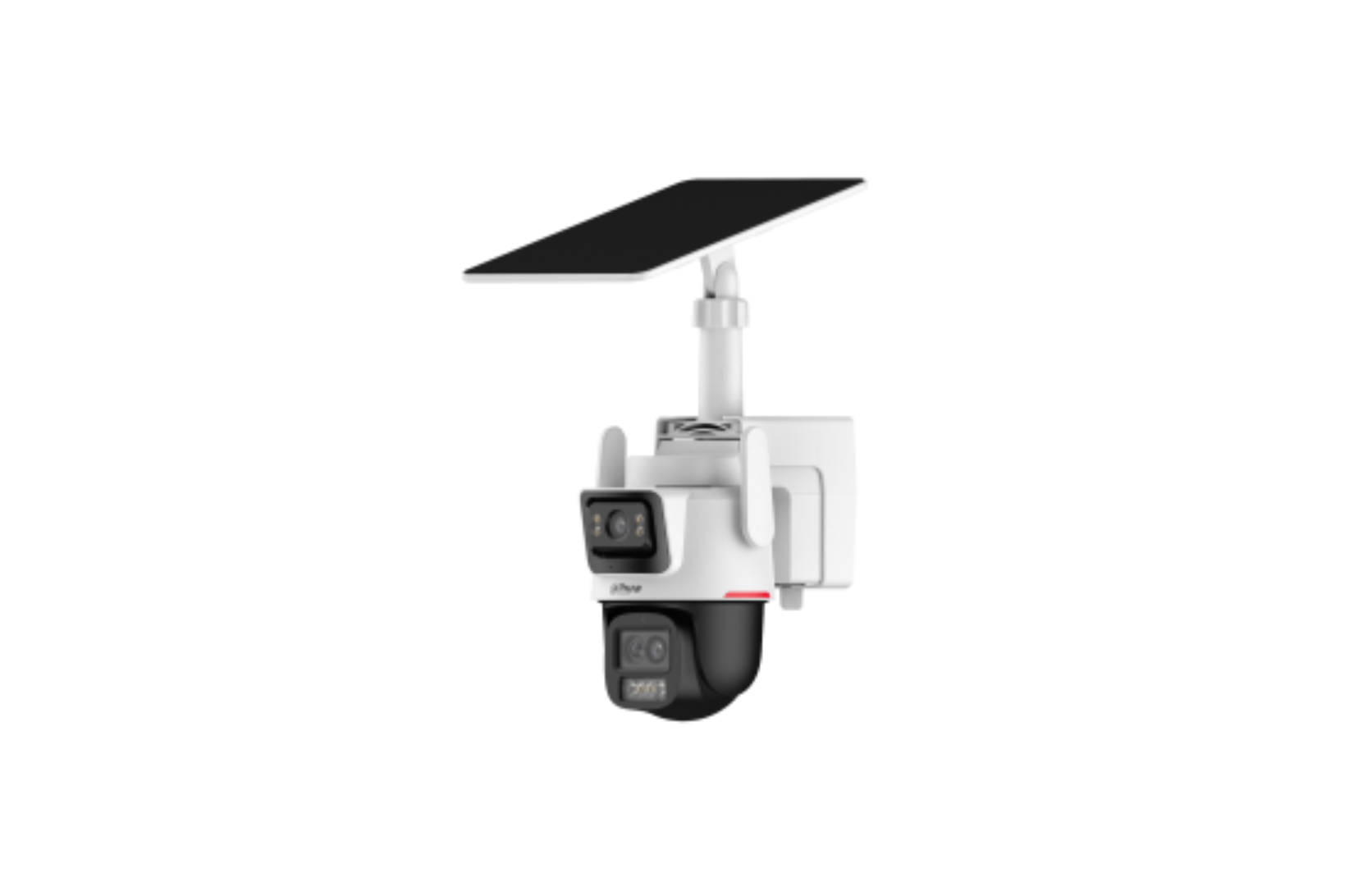

3+3MP WizColor Hybrid-Zoom PT 4G Solar Power Network Camera
Key Features
-
AOV mode enables 24/7 recording with ultra-low power consumption
-
4G connectivity for remote and off-grid installations
-
Built-in battery with solar charging for uninterrupted operation
-
WizColor technology delivers bright, full-colour imaging in low-light environments
-
Coordinated fixed-lens and PT-lens monitoring provides comprehensive security coverage
-
Human and vehicle detection
-
SMD 3.0
-
Smart Tracking with Auto Tracking Lite and Linkage Tracking
-
White-light and audible active deterrence
-
Supports MicroSD cards up to 512 GB
-
IP66 weather-resistant design
- Datasheet
Camera
Image Sensor
-
Fixed Lens: 1/2.8" CMOS
-
PT Lens: 1/2.8" CMOS
Effective Pixels
-
Fixed Lens: 3 MP
-
PT Lens: 3 MP
Maximum Resolution
-
Fixed Lens: 2304 × 1296
-
PT Lens: 2304 × 1296
ROM: 256 MB
RAM: 256 MB
Scanning System: Progressive
Minimum Illumination
-
Fixed Lens:
-
0.0005 lux at F1.0, colour, 30 IRE
-
0 lux with illuminator on
-
-
PT Lens:
-
0.0005 lux at F1.0, colour, 30 IRE
-
0 lux with illuminator on
-
Illumination Distance
-
Fixed Lens: Up to 30 m warm light
-
PT Lens: Up to 50 m warm light
Illuminator Control
-
Fixed Lens: Manual, Auto or Off
-
PT Lens: Manual, Auto or Off
Illuminators
-
Fixed Lens: 4 × warm lights
-
PT Lens: 4 × warm lights
Lens
Focal Length
-
Fixed Lens: 2.8 mm
-
PT Lens: 3.6 mm to 8.4 mm
Maximum Aperture
-
Fixed Lens: F1.0
-
PT Lens:
-
3.6 mm: F1.0
-
8.4 mm: F1.0
-
Field of View
-
Fixed Lens:
-
Horizontal: 93.5°
-
Vertical: 51.9°
-
Diagonal: 110.1°
-
-
PT Lens at 3.6 mm:
-
Horizontal: 81.5°
-
Vertical: 44.3°
-
Diagonal: 96.3°
-
-
PT Lens at 8.4 mm:
-
Horizontal: 15.1°
-
Vertical: 8.4°
-
Diagonal: 17.8°
-
Close-Focus Distance
-
Fixed Lens: 1.1 m
-
PT Lens:
-
3.6 mm: 1.7 m
-
8.4 mm: 6 m
-
DORI Distance
2.8 mm Lens
-
Detect: 40 m
-
Observe: 15.8 m
-
Recognise: 8 m
-
Identify: 4 m
3.6 mm Lens
-
Detect: 51.43 m
-
Observe: 20.31 m
-
Recognise: 10.29 m
-
Identify: 5.14 m
8.4 mm Lens
-
Detect: 120 m
-
Observe: 47.4 m
-
Recognise: 24 m
-
Identify: 12 m
DORI—Detect, Observe, Recognise and Identify—is based on the EN 62676-4 standard and defines the ability of a viewer to distinguish people or objects within the monitored area. These distances do not represent intelligent-function detection ranges.
Pan and Tilt
Movement Range
-
Fixed Lens:
-
Pan: 0° to 210°, manually adjustable
-
Tilt: –7° to +20°, manually adjustable
-
-
PT Lens:
-
Pan: 0° to 350°, motorised
-
Tilt: 0° to +90°, motorised
-
Manual Control Speed
-
Pan: 40°/s
-
Tilt: 40°/s
Preset Speed
-
Pan: 40°/s
-
Tilt: 40°/s
Presets: 50
Tours: 8, with up to 32 presets per tour
Power-Off Memory: Supported
Intelligent Functions
Human Detection: Supported
Vehicle Detection: Supported
SMD: SMD 3.0
Smart Tracking
-
Auto Tracking Lite
-
Linkage Tracking
Active Deterrence
Light Warning: White-light warning
Sound Warning
-
Includes three alarm sounds
-
Volume adjustable from 1 to 100
-
Playback count adjustable from 1 to 10
Video
Video Compression: Smart H.265+
Streaming Capability: 1 stream
Supported Resolutions
-
Fixed Lens:
-
3 MP: 2304 × 1296
-
1080p: 1920 × 1080
-
720p: 1280 × 720
-
640 × 360
-
-
PT Lens:
-
3 MP: 2304 × 1296
-
1080p: 1920 × 1080
-
720p: 1280 × 720
-
640 × 360
-
Frame Rate
-
Fixed Lens main stream: Up to 15 fps at all supported resolutions
-
PT Lens main stream: Up to 15 fps at all supported resolutions
Bitrate Control: VBR
Video Bitrate: H.265: 54 Kbps to 1280 Kbps
Wide Dynamic Range
-
Fixed Lens: DWDR
-
PT Lens: DWDR
White Balance: Auto
Gain Control: Auto
Noise Reduction: 3D NR
Motion Detection: Supported
Image Rotation: 180°
Signal-to-Noise Ratio: ≥55 dB
Audio
Built-In Microphone: Yes
Built-In Speaker: Yes
Audio Input: 1 channel, built-in microphone
Audio Output: 1 channel, built-in speaker
Network and 4G
Carrier Network: 4G
Wireless Frequency Bands – EAU/EUR
-
LTE-FDD: B1, B3, B5, B7, B8, B20 and B28
-
LTE-TDD: B38, B40 and B41
Wireless Frequency Bands – LA
-
LTE-FDD: B2, B3, B4, B5, B7, B8, B28 and B66
-
LTE-TDD: B38, B40 and B41
Maximum Transmission Power
-
4G Power Class 3: 23 dBm ± 2.7 dB
Management Software: DMSS
Mobile Compatibility: Android and iOS
Storage
Local Storage: MicroSD card up to 512 GB
Alarm Functions
Alarm Linkage
-
Warning light
-
Audible warning
Alarm Events
-
Motion detection
-
Human detection
-
Vehicle detection
Power
Power Supply
-
Built-in 65 Wh lithium battery
-
Supplied with an 8 W solar panel
-
USB Type-C charging with QC 2.0 support
Power Consumption
-
Super Power-Saving Mode: 40 mW with 4G keep-alive
-
AOV Mode: 170 mW with one frame every two seconds, MicroSD recording and 4G keep-alive
-
Performance Mode 1: 2.4 W with 4G streaming, MicroSD recording, stationary PTZ and illuminator off
-
Performance Mode 2: 3.7 W with 4G streaming, MicroSD recording, stationary PTZ and illuminator on
-
Maximum Power Consumption: 8 W with 4G streaming, MicroSD recording, PTZ movement, illuminator and speaker operating
Power Adapter: Optional
Battery Capacity: 65 Wh
Environmental
Device Operating Temperature
-
–20°C to +60°C
Battery Charging Temperature
-
–10°C to +50°C
-
The solar panel heats the battery first, with charging beginning once the battery reaches 0°C
Battery Discharging Temperature
-
–20°C to +60°C
Operating Humidity: ≤95%
Protection
-
IP66 weather resistance
-
TVS 2000 V lightning protection
-
Surge protection
-
Voltage-transient protection
Construction
Dimensions: 223.2 × 130 × 215 mm
Net Weight: 1.8 kg
Gross Weight: 2.5 kg
Certification
CE Compliance
-
EN 55032
-
EN 55035
-
EN 50130-4
-
EN 61000-3
-
EN 62368-1
-
EN 301489
Remarks
The positioning accuracy of PTZ presets may vary between product series. For applications requiring highly precise preset positioning, consult the manufacturer or local sales representative when selecting the model.
