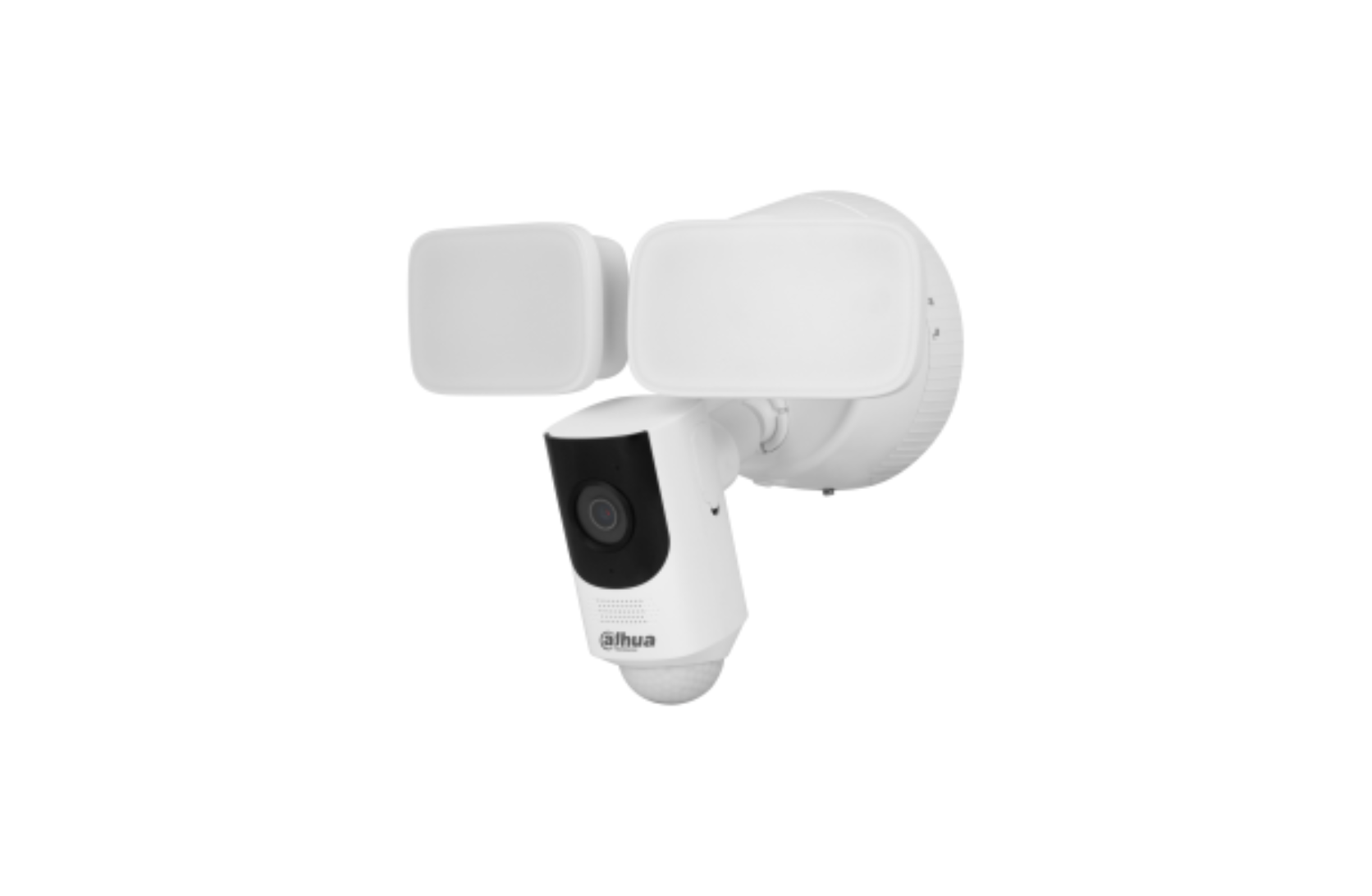

Dahua IPC-WL46A 4MP Fixed-focal Floodlight Network Camera

IPC-WL46A 4MP Fixed-Focal Floodlight Network Camera

Key Features

• 4MP resolution with a 1/3" CMOS image sensor.

• Outputs up to 2560 × 1440 resolution at 25/30 fps.

• 2.8 mm fixed lens with wide 98° horizontal field of view.

• Built-in dual floodlights with warm and cool colour temperature options.

• Floodlight brightness from 1500 to 2400 lm.

• Supports four floodlight modes:

  • Motion activation

  • Manual

  • Schedule

  • PIR activation

• Built-in microphone and speaker for two-way audio.

• Built-in 110 dB siren for active alarm warning.

• Detects humans, vehicles and animals to reduce false alarms.

• Supports Smart H.265+ and Smart H.264+ compression.

• Dual-band Wi-Fi support with 2.4 GHz and 5 GHz options.

• Supports Micro SD card storage up to 256 GB.

• Supports NVR, FTP, SFTP and NAS storage.

• 100–240 VAC power supply for easy installation.

• IP65 weather protection.

• Datasheet

Camera

• Image Sensor: 1/3" CMOS

• Maximum Resolution: 2560 × 1440

• ROM: 128 MB

• RAM: 512 MB

• Scanning System: Progressive

• Electronic Shutter Speed: Auto/manual, 1/3 s to 1/100,000 s

• Signal-to-Noise Ratio: More than 56 dB

Minimum Illumination

• 0.005 lux at F1.6, colour, 30 IRE

• 0.0005 lux at F1.6, black and white, 30 IRE

• 0 lux with illuminator on

Illumination Distance

• IR distance: 10 m

• Floodlight distance: 30 m

Illuminator Control

• Auto

• Manual

Illuminators

• 1 × IR LED

• 2 × floodlights

• Floodlight colour can switch between warm and cool.

Floodlight Brightness

• 1500–2400 lm

Floodlight Colour Temperature

• Warm: 3000K ± 200K

• Cool: 6000K ± 300K

Floodlight Modes

• Motion activation

• Manual

• Schedule

• PIR activation

Camera Adjustment

• Pan: –85° to +85°

• Tilt: –90° to +45°

• Rotation: 0° to +360°

Floodlight Adjustment

• Tilt: –90° to +90°

• Rotation: –145° to +145°

PIR Sensor

• PIR detection distance: 10 m

• PIR detection range: 270°

• Recommended installation reference: 3 m height at a 30° angle from horizontal

Lens

• Lens Type: Fixed-focal

• Lens Mount: M12

• Focal Length: 2.8 mm

• Maximum Aperture: F1.6

• Iris Control: Fixed

• Close Focus Distance: 1.0 m

Field of View

• Horizontal: 98°

• Vertical: 55°

• Diagonal: 115°

DORI Distance

• Detect: 61.2 m

• Observe: 24.5 m

• Recognise: 12.2 m

• Identify: 6.1 m

Video

• Video Compression: H.264B, H.264, H.264H, H.265 and MJPEG

• Smart Codec: Smart H.265+ and Smart H.264+

• Stream Capability: 3 streams

• Bit Rate Control: CBR/VBR

• Video Bit Rate: 32 kbps to 8192 kbps for H.264 and H.265

Main Stream

• 2560 × 1440 at 1–25 fps

• 2560 × 1440 at 1–30 fps

Sub Stream 1

• 704 × 576 at 1–25 fps

• 704 × 480 at 1–30 fps

Sub Stream 2

• 640 × 480 at 1–25 fps

• 640 × 480 at 1–30 fps

Supported Resolutions

• 4MP: 2560 × 1440

• 3MP: 2304 × 1296

• 1080p: 1920 × 1080

• 1.3MP: 1280 × 960

• 1MP: 1280 × 720

• D1: 704 × 576 / 704 × 480

• VGA: 640 × 480

• CIF: 352 × 288 / 352 × 240

Image Settings

• Day/Night: Auto ICR, colour, black and white

• BLC: Supported

• HLC: Supported

• WDR: DWDR

• White balance: Auto, natural, street lamp, outdoor, manual and regional custom

• Gain control: Auto

• Noise reduction: 3D NR

• Motion detection: 4 rectangular areas

• Region of Interest: 4 areas

• Smart illumination: Supported

• Image rotation: 0°/180°

• Mirror: Supported

• Privacy masking: Supported

Audio

• Built-in Microphone: Yes

• Built-in Speaker: Yes

• Audio Compression: G.711a, G.711Mu, G.726 and PCM

• Two-Way Audio: Supported

Alarm

Alarm Events

• No SD card

• SD card full

• SD card error

• Network disconnection

• IP conflict

• Illegal access

• Security exception

• Motion detection

• Video tampering

• Scene change

• SMD for human, animal and vehicle

• Audio detection

• Intensity change

Active Deterrence

• Built-in 110 dB siren

• Built-in dual floodlights

Network

• Wi-Fi: Dual-band 2.4 GHz and 5 GHz

• Wi-Fi Standard: IEEE 802.11a/b/g/n/ac

• Wi-Fi Frequency: 2.4–2.4835 GHz and 5.18–5.85 GHz

• User/Host: 6 users

• Total Bandwidth: 36 Mbps

• SDK and API: Supported

Network Protocols

• IPv4

• IPv6

• ARP and Ping

• TCP

• UDP

• HTTP

• RTSP

• HTTPS

• DDNS

• Email

• SNMP

• Multicast

• Auto-registration

• Wireless QoS

• Wi-Fi setting

• Hotspot scanning

• 802.1x

• UPnP status

• Bonjour

• UPnP

• Device discovery

Cybersecurity

• Video encryption

• Configuration encryption

• Digest

• WSSE

• Account lockout

• Security logs

• X.509 certificate generation and import

• HTTPS

• Trusted boot

• Trusted execution

• Trusted upgrade

Interoperability

• ONVIF

• CGI

• P2P

• RTMP

Browser Support

• Internet Explorer

• Chrome

• Firefox

Management Software

• DMSS

Mobile Client

• iOS

• Android

Storage

• Micro SD Card: Supports up to 256 GB

• Network Storage: FTP, SFTP and NAS

• NVR Storage: Supported

Power

• Power Supply: 100–240 VAC

• Basic Power Consumption: 5.2 W

• Maximum Power Consumption: 48.3 W with illuminator and camera active

Environment

• Operating Temperature: –20°C to +50°C

• Storage Temperature: –20°C to +50°C

• Operating Humidity: Up to 95%

Protection

• Weather Protection: IP65

Structure

• Casing: Metal and plastic

• Product Dimensions: 270.7 × 217.2 × 195.6 mm

• Net Weight: 1.40 kg

• Gross Weight: 1.88 kg

Certifications

• CE-LVD: EN62368-1

• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

• CE-RED: Radio Equipment Directive 2014/53/EU

• FCC: 47 CFR FCC Part 15, Subpart B

• FCC ID: FCC Part 15C
