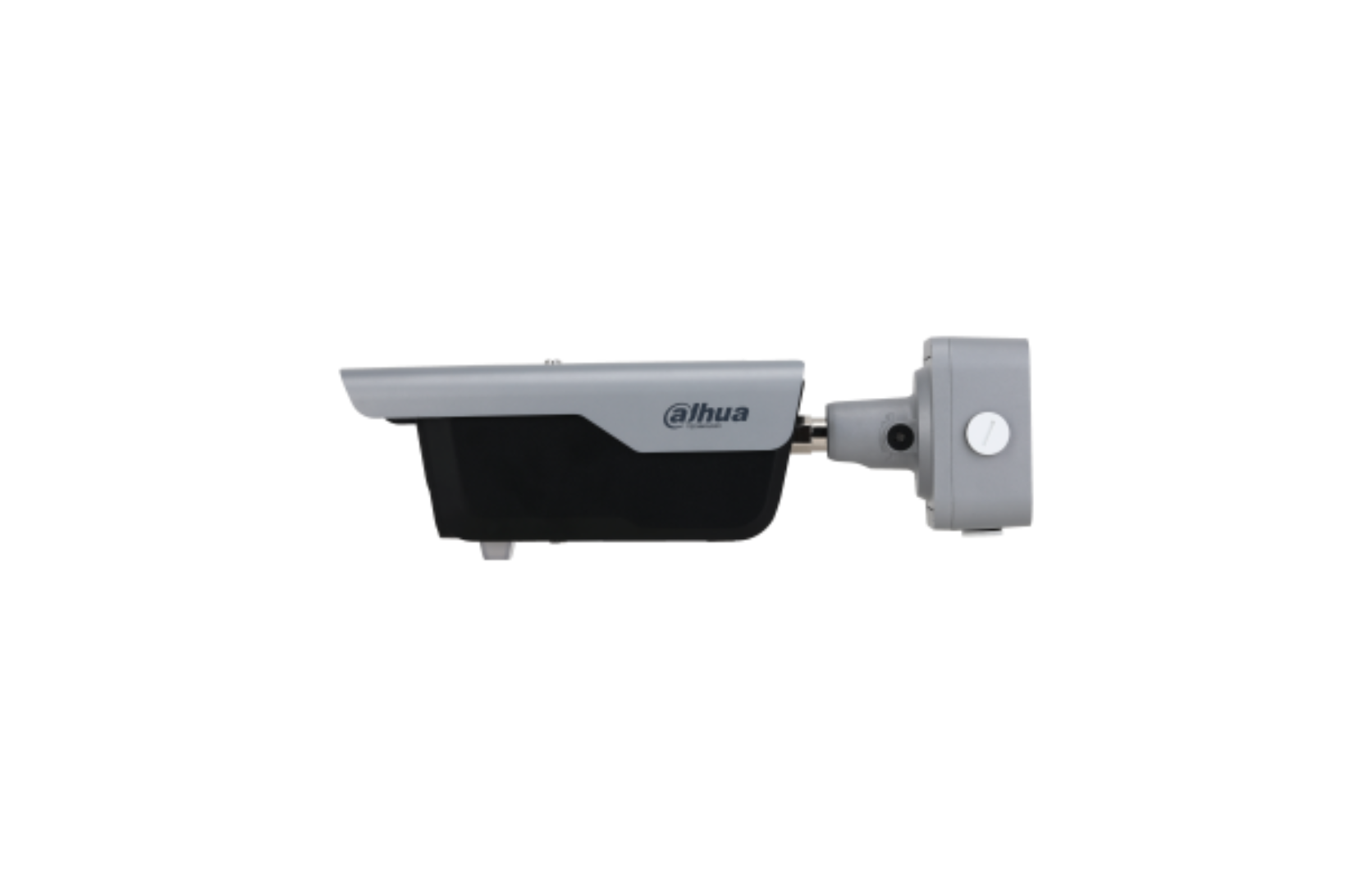

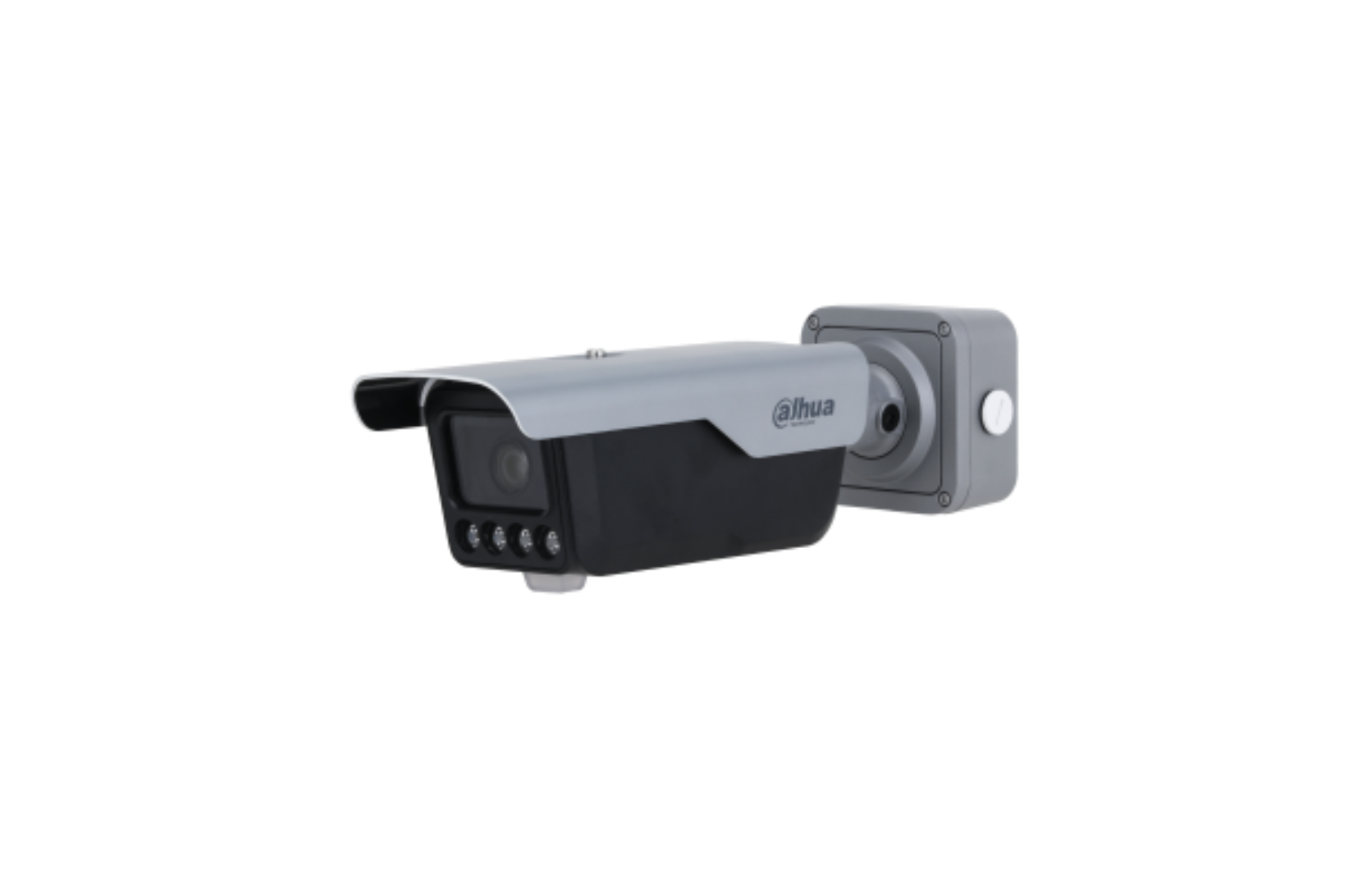

Dahua ITC413-PW4D-IZ3 4MP Motorised vari-focal 8mm - 32mm ANPR Bullet Camera

DHI-ITC413-PW4D-IZ3 4MP Motorised vari-focal 8mm - 32mm ANPR Bullet Camera

Key Features

• 4MP resolution with a 1/1.8" CMOS image sensor.

• Supports ANPR with vehicle plate recognition.

• Maximum detection speed up to 120 km/h.

• Motorised vari-focal 8 mm–32 mm lens.

• Long-range ANPR capture distance from 8 m to 30 m.

• Detected lane width from 6 m to 8 m.

• IR illumination for ANPR up to 30 m.

• Video monitoring illumination up to 60 m.

• Supports intelligent deep learning algorithms.

• Recognises vehicle type, vehicle brand, vehicle colour, licence plate and vehicles without plates.

• Supports intrusion and loitering detection.

• Supports sound and light alarm with blue and red indicator.

• Supports custom audio broadcasting.

• Built-in microphone and built-in 2 W speaker.

• Built-in signal port, data port, communication port and remote controller support.

• Suitable for controlling external devices such as entry and exit barriers.

• Supports allowlist and blocklist up to 110,000 each.

• Supports 140 dB WDR, HLC, BLC and 3D noise reduction.

• Supports remote control through 433 MHz and 868 MHz communication bands.

• Alarm: 2 inputs and 2 outputs.

• Audio: 1 output.

• Includes RS-485 and Wiegand interface.

• Supports 12 VDC and PoE power supply.

• All-in-one structure with junction box and bracket.

• IP67 weather protection and IK10 vandal resistance.

• Datasheet

Camera

• Image Sensor: 1/1.8" CMOS

• Image Resolution: 2688 × 1520

• Electronic Shutter Speed: Auto/manual, 1/25 s to 1/100,000 s

• Maximum Detection Speed: 120 km/h

• ROM: 4 GB

• RAM: 1 GB

• Signal-to-Noise Ratio: More than 56 dB

• Scanning System: Progressive scanning

Minimum Illumination

• Colour: 0.001 lux at F1.6, 30 IRE

• Black and white: 0.0002 lux at F1.6, 30 IRE

• 0 lux with illuminator on

Lens

• Lens Type: Motorised vari-focal

• Focal Length: 8 mm–32 mm

• Maximum Aperture: F1.6

• Iris Control: P-Iris

• Focus Control: Auto, area focus and manual

• Number of Lenses: 1

Field of View

• Horizontal: 39.9° wide to 15.1° tele

• Vertical: 21.8° wide to 8.5° tele

• Diagonal: 46.6° wide to 17.4° tele

DORI Distance

Wide Angle

• Detect: 160.0 m

• Observe: 64.0 m

• Recognise: 32.0 m

• Identify: 16.0 m

Telephoto

• Detect: 406.9 m

• Observe: 162.8 m

• Recognise: 81.4 m

• Identify: 40.7 m

Illuminator

• Illuminator Number: 4

• Illuminator Type: IR, 850 nm

• Illuminator Control: Auto or manual

• Infrared Wavelength: 850 nm

• ANPR Illumination Distance: 30 m

• Video Monitoring Illumination Distance: 60 m

• Smart Illumination: Automatically adjusts light intensity based on the environment to reveal moving target details.

Video

• Video Compression: H.264H, H.264B, H.264M, H.265 and MJPEG

• Bit Rate Control: CBR and VBR

• Scene Self-adaptation: Supported

• Gain Control: Manual or auto

• Noise Reduction: 3D NR

• Region of Interest: 3 areas

• Image Tampering Prevention: Supports video and image watermarking with verification.

Main Stream Resolution

• 4MP: 2688 × 1520

• 1080p: 1920 × 1080

• 720p: 1280 × 720

Sub Stream Resolution

• 720p: 1280 × 720

• 960H: 960 × 576 / 960 × 480

• D1: 704 × 576 / 704 × 480

• CIF: 352 × 288 / 352 × 240

PAL Frame Rate

• Main stream: 2688 × 1520 at 25 fps

• Main stream: 1920 × 1080 at 25 fps

• Main stream: 1280 × 720 at 25 fps

• Sub stream: 1280 × 720 at 25 fps

• Sub stream: 960 × 576 at 25 fps

• Sub stream: 704 × 576 at 25 fps

• Sub stream: 352 × 288 at 25 fps

NTSC Frame Rate

• Main stream: 2688 × 1520 at 30 fps

• Main stream: 1920 × 1080 at 30 fps

• Main stream: 1280 × 720 at 30 fps

• Sub stream: 1280 × 720 at 30 fps

• Sub stream: 960 × 480 at 30 fps

• Sub stream: 704 × 408 at 30 fps

• Sub stream: 352 × 240 at 30 fps

Video Bit Rate

• H.264B: 2,179 kbps to 13,074 kbps

• H.264M: 2,179 kbps to 13,074 kbps

• H.264H: 2,179 kbps to 13,074 kbps

• H.265: 2,179 kbps to 13,074 kbps

• MJPEG: 6,537 kbps to 39,223 kbps


• Image Encoding Format: JPEG

• Image Settings: Brightness, contrast, saturation, gamma, sharpness, gain and white balance

• Day/Night: IR filter with colour, black and white and auto modes

• WDR: 140 dB

• HLC: Supported

• BLC: Supported

• Digital Detail Enhancement: Supported

• OSD Overlay: Supports time, address, lane number, direction, plate number, plate colour, vehicle colour and vehicle type.

White Balance

• Auto

• Regional custom

• Manual

• Outdoor

• Natural

• Street lamp

Function

• Storage: Built-in TF card port

• Supported TF Cards: Kingston, Dahua and SanDisk 16 GB, 32 GB, 128 GB and 256 GB

• Allowlist Capacity: 110,000

• Blocklist Capacity: 110,000

• Automatic Network Replenishment: Platform and FTP

• Capture Distance: 8 m–30 m

• Detected Width: 6 m–8 m

IVS

• Intrusion detection

• Loitering detection

• Up to 4 areas can be set

Basic Events

• Defocus

• No storage card

• Storage card no space

• Storage card error

• Network disconnection

• IP conflict

• Illegal access

Sound and Light Alarm

• Blue and red indicator

• Supports custom audio broadcasting

Alarm Linkage

• Upload to FTP

• Upload to memory card

• Notify monitoring centre

• Send email

• Trigger alarm output

• Snapshot

• Active deterrence

Intelligence

AI Recognition

• Vehicle type

• Vehicle brand

• Vehicle colour

• Vehicle plate

• Vehicles without plates

Video Metadata

• Intelligent frame display

• Plate path display

• Vehicle path display

Vehicle Brand Recognition

• Recognises 147 vehicle logos

Vehicle Colour Recognition

• Grey

• Black

• White

• Silver

• Blue

• Green

• Purple

• Red

• Orange

• Pink

• Brown

• Yellow

Vehicle Type Recognition

• Large bus

• Heavy truck

• Medium truck

• Sedan

• Van

• Light truck

• Medium bus

• SUV

• MPV

• Pickup

Country and Region Support for ANPR

• Baseline support: 10 options and 85 countries

• General: Universal characters

• GCC: U.A.E., Saudi Arabia, Morocco, Oman, Iraq, Egypt, Jordan, Qatar, Kuwait, Bahrain and Lebanon

• South Africa region: South Africa, Tanzania, Mozambique, Zambia, Uganda, Equatorial Guinea, Mauritius and Kenya

• South Asia region: India and Maldives

• Europe: Netherlands, France, Germany, Britain, Italy, Poland, Belgium, Bulgaria, Serbia, Slovakia, Spain, Denmark, Turkey, Israel, Czech Republic, Bosnia and Herzegovina, Switzerland, Austria, Hungary, Romania, Lithuania, Latvia, Sweden, Estonia, Portugal, Greece, Slovenia, Luxembourg, Palestine, Lebanon, Ireland, Finland, Norway, Croatia and North Macedonia

• South American economies: Uruguay, Paraguay, Brazil, Argentina, Chile, Colombia, Peru, Ecuador, Guyana and Bolivia

• Mexico and other countries: Mexico, Costa Rica, Curacao and Guatemala

• Eurasian collection: Russia, Ukraine, Kazakhstan, Kyrgyzstan, Uzbekistan, Tajikistan, Moldova, Georgia, Azerbaijan and Turkmenistan

• North America: United States and Canada

• North Africa region: Tunisia, Morocco, Algeria and Libya

• Baseline algorithm supported countries: Republic of Korea, Indonesia, Singapore, Cambodia, Australia, Thailand, Nigeria, Pakistan, Viet Nam, Mongolia, Bangladesh, Myanmar, Philippines, Laos, Iraq, Japan, Maldives and Nepal

Recognition Performance

• Vehicle capture rate: ≥99% under recommended installation and lighting conditions

• Plate recognition rate: ≥96% for positive and departing vehicles under recommended installation and lighting conditions

• European plate recognition rate: ≥98% under recommended installation and lighting conditions

Network

• Network Port: RJ45 10/100 Mbps Ethernet

• API: Supported

• SDK: Supported

• Interoperability: ONVIF Profile S, Profile T, Profile M, CGI, ITSAPI and P2P

• Management Software: DSS Pro, DSS Express, Cybercity, SmartPSS and DMSS

• Security: Username and password, MAC address, HTTPS, IEEE 802.1x and network access control

Network Protocols

• HTTP

• HTTPS

• 802.1x

• TCP

• ARP

• RTSP

• RTP

• UDP

• RTCP

• SMTP

• FTP

• DHCP

• DNS

• IPv4/IPv6

• NTP

• SFTP

• DDNS

• SNMP

• PPPoE

Browser Support

• Plug-in: Internet Explorer 9, 10 and 11

• Plug-in: Chrome 52 and earlier

• Plug-in: Firefox 42 and earlier

• No plug-in: Chrome 92 and later

Audio

• Audio Port: Supported

• Built-in Microphone: Yes

• Microphone Pickup Distance: 3 m

• Sampling Rate: 48 kHz

• Built-in Speaker: Yes, 2 W

Ports

• Audio Output: 1 RCA port

• Network Port: RJ45 10/100 Mbps Ethernet

• Alarm Inputs: 2, optocoupler input, wet node on-off value 5 V

• Alarm Outputs: 2 relay outputs, 2 A 30 VDC / 0.5 A 125 VAC

• RS-485: 2, half duplex, transparent, DHRS and push data through serial port

• Reset Button: Yes

• Wiegand: 1 channel, SHA-1 26 bit

Performance

• Maximum Number of Passed Vehicles: 10,000

• Maximum Number of Connections: 10

Wireless

• Sub 1G Modulation Type: FSK

• Sub 1G Frequency Range: 433.82–434.02 MHz and 868.2–868.4 MHz

• Sub 1G Power Transmission: 433.82–434.02 MHz at 10 dBm and 868.2–868.4 MHz at 10 dBm

General

• Remote Control: Supported

• Communication Band: 433 MHz and 868 MHz

• Remote Control Distance: 15 m in an open, undisturbed environment

• Power Supply: 12 VDC, 2 A or PoE 802.3at Type 2 Class 4

• PoE Input: 44 V to 57 V, 0.455 A to 0.351 A

• Maximum Power: 20 W

• No Lighting Power Consumption: Less than 6 W

• Lighting Power Consumption: Less than 12 W

• Speaker and Warning Light Power Consumption: Less than 17 W

• Protection: IK10 and IP67

• Material: Aluminium alloy body and plastic

• Product Dimensions: 395.0 × 120.8 × 127.8 mm

• Packaging Dimensions: 447.0 × 240.0 × 233.0 mm

• Net Weight: 2.3 kg

• Gross Weight: 3.2 kg

• Storage Temperature: –40°C to +70°C

• Operating Temperature: –30°C to +65°C

• Storage Humidity: Up to 95% RH, non-condensing

• Operating Humidity: 10%–90% RH, non-condensing

Certifications

• Certifications: CE-EMC, CE-LVD, CE-RED and FCC
