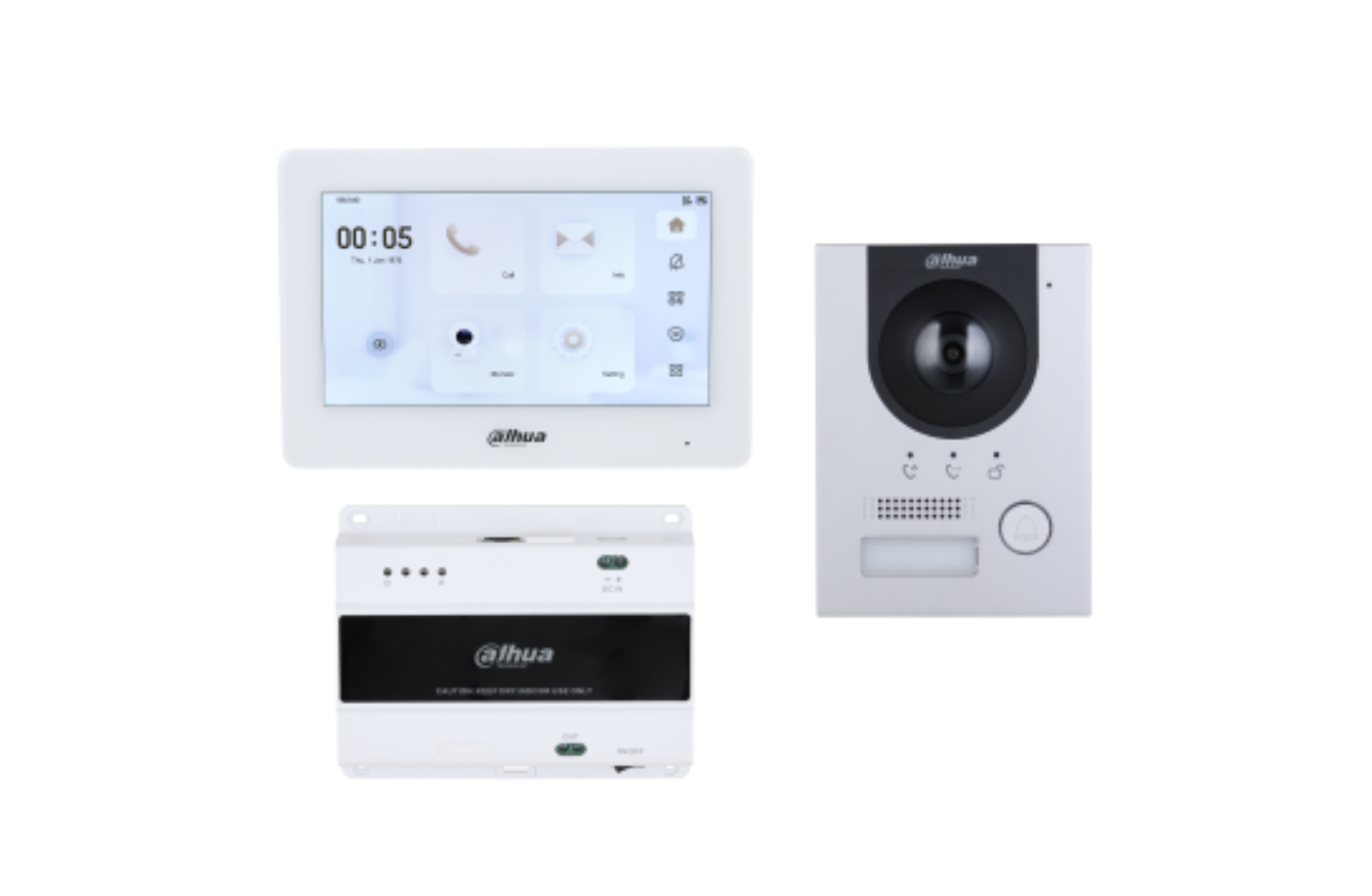

Description
Key Features
- 2-wire video intercom system
- 2MP HD metal villa door station
- 7-inch capacitive touchscreen indoor monitor
- App management support
- Remote unlock support
- Two-way audio communication
- Ultra-wide angle camera
- 120 dB WDR support
- IR night vision support
- Leave video message support
- MicroSD support up to 256 GB
- IP65 and IK07 rated door station
- Digital 2-wire communication
- Includes 2-wire networking switch
- Datasheet
Door Station – DHI-VTO2202F-P-S2
Camera
Image Sensor: 1/2.9" 2MP CMOS
Field of View: H: 168.6°, V: 87.1°, D: 176.7°
WDR: 120 dB
Noise Reduction: 3D NR
Light Compensation: Auto IR
Day/Night Mode: Auto (ICR) / Color / B&W
Video
Video Compression: H.265, H.264
Main Stream Resolution: 720p, WVGA, D1, CIF
Sub Stream Resolution: 1080p, WVGA, D1, QVGA, CIF
Frame Rate: 25 fps
Video Bit Rate: 256 kbps–8 Mbps
Audio
Audio Compression: G.711a, G.711u, PCM
Audio Input: 1 channel
Audio Output: Built-in speaker
Audio Mode: Two-way audio
Audio Enhancement: Echo suppression, digital noise reduction
Audio Bit Rate: 16 kHz, 16 bit
Functions
Communication Mode: Digital 2-wire
Unlock Mode: Remote Unlock
Leave Video Messages: Supported
Storage: MicroSD card up to 256 GB
Web Configuration: Supported
Ports
RS-485: 1
Alarm Output: 1
Power Output: 12 V / 600 mA
Exit Button: 1
Door Status Detection: 1
Lock Control: 1
Network Port: 1 × RJ-45 10/100 Mbps Ethernet
Alarm
Tamper Alarm: Supported
General
Casing Material: Aluminum
Power Supply: Dahua 2-wire switch / 48 VDC / PoE (802.3af/at)
Installation: Surface Mount
Protection Rating: IP65, IK07
Operating Temperature: –30 °C to +60 °C
Power Consumption: ≤4 W standby / ≤5 W working
Dimensions: 130 × 96 × 28.5 mm
Color: Silver
Indoor Monitor – DHI-VTH5422HW
Display
Screen Type: Capacitive Touchscreen
Display Size: 7-inch TFT
Resolution: 1024 × 600
Audio
Audio Compression: G.711a, G.711u, PCM
Audio Input: 1
Audio Output: Built-in speaker
Audio Mode: Two-way audio
Audio Enhancement: Echo suppression
Audio Bit Rate: 16 kHz, 16 bit
Functions
Communication Mode: Digital 2-wire
Information Release: Supported
Leave Video Messages: Supported
DND Mode: Supported
Number of Extensions: Villa: 4 / Apartment: 3
Storage: MicroSD card up to 64 GB
Ports
RS-485: 1
Alarm Input: 6
Alarm Output: 1
Power Output: 12 V / 100 mA
Door Bell Support: Yes
Network Port: 2-wire port and 10/100 Mbps Ethernet port
General
Casing Material: PC + ABS
Power Supply: 2-wire switch / Standard PoE
Installation: Surface Mount
Operating Temperature: –10 °C to +55 °C
Power Consumption: ≤2 W standby / ≤6 W working
Dimensions: 189 × 130 × 26.9 mm
Included 2-Wire Networking Switch – DHI-VTNS2003B-2
Functions
Communication Mode: Digital 2-wire
Ports
2-wire Cascade Ports: 2
RJ-45 Ports: 2 × 10/100 Mbps self-adaptive
2-wire Device Port: 1
General
Casing Material: PC + ABS
Power Supply: 48 VDC, 1–5A
Installation: Guide Rail Mount
Operating Temperature: –10 °C to +55 °C
Power Consumption: ≤15 W self-working / ≤48 W output
Dimensions: 131 × 103 × 40 mm
