Description
Key Features
- Complete IP video intercom kit
- Includes VTO door station, VTH indoor monitor, and PoE switch
- 7-inch capacitive touchscreen indoor monitor
- 2MP wide-angle door station camera
- Full digital SIP communication
- Mobile app management and remote unlock
- Two-way audio with echo cancellation
- PoE support for simplified installation
- ONVIF compatible
- Supports video message recording
- SD card storage support
- IP65 and IK08 rated outdoor station
- Datasheet

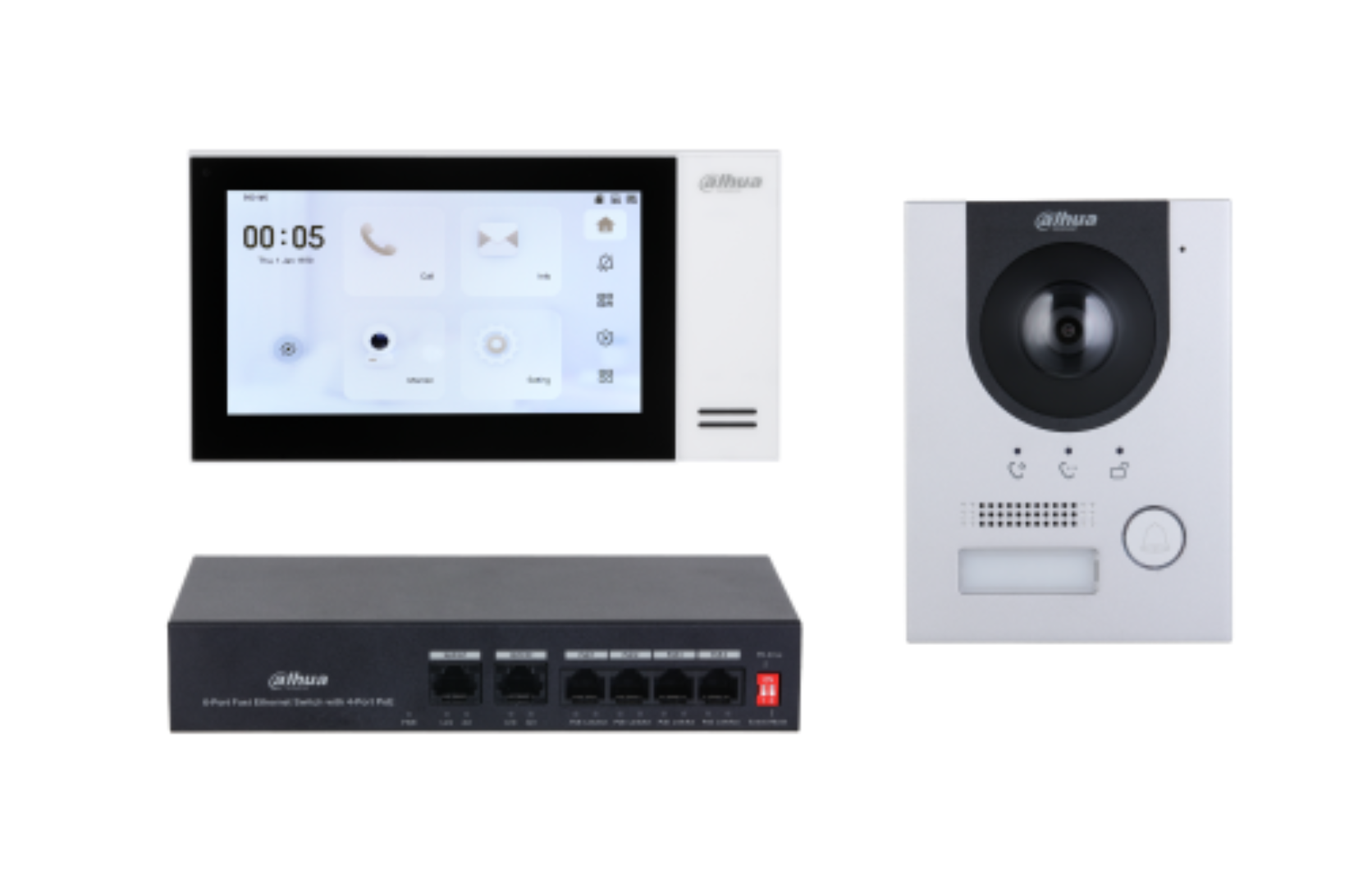

Kit Includes
- 1 × DHI-VTO2201F-P IP Villa Door Station
- 1 × DHI-VTH2421FW-P 7" Indoor Monitor
- 1 × DH-PFS3006-4ET-36 4-Port PoE Switch
Door Station (VTO)
Camera
Image Sensor: 1/2.9" 2MP CMOS
Field of View: H: 168.6°, V: 87.1°, D: 176.7°
WDR: 120 dB
Noise Reduction: 3D NR
Day/Night Mode: Auto(ICR) / Color / B&W
Video
Video Compression: H.265, H.264
Main Stream Resolution: 720p, WVGA, D1, CIF
Sub Stream Resolution: 1080p, WVGA, D1, QVGA, CIF
Frame Rate: 25fps
Bit Rate: 256 kbps to 8 Mbps
Light Compensation: Auto IR
Audio
Audio Compression: G.711a, G.711u, PCM
Audio Input: 1 channel
Audio Output: Built-in speaker
Audio Mode: Two-way audio
Audio Enhancement: Echo suppression and digital noise reduction
Functions
Communication Mode: Full digital
Unlock Mode: Remote unlock
Leave Video Messages: Supported
Storage: MicroSD card support up to 256GB
Web Configuration: Supported
Interfaces
RS-485: 1
Alarm Output: 1
Power Output: 12V DC, 600mA
Exit Button Input: 1
Door Status Detection: 1
Lock Control: 1
Network Port: 1 × RJ45 10/100Mbps
Build & Protection
Casing Material: Aluminum
Protection Rating: IP65, IK08
Tamper Alarm: Supported
Installation: Surface mount
Power
Power Supply: 48V DC or PoE (802.3af/at)
Power Consumption: ≤5W standby, ≤7W working
Operating Conditions
Operating Temperature: -40°C to +60°C
Operating Humidity: 10%–95% RH
Indoor Monitor (VTH)
Display
Screen Type: Capacitive touchscreen
Display Size: 7" TFT
Resolution: 1024 × 600
Audio
Audio Compression: G.711a, G.711u, PCM
Audio Input: Built-in omnidirectional microphone
Audio Output: Built-in 1.5W speaker
Audio Mode: Two-way audio
Audio Enhancement: Echo suppression and digital noise reduction
Functions
Communication Mode: Full digital
Leave Video Messages: Supported
DND Mode: Supported
Information Release: Supported
Extensions Supported: Up to 9
Storage: Embedded 8GB storage
Interfaces
Alarm Input: 6 channel
Alarm Output: 1 channel
Network Port: 1 × RJ45
General
Power Supply: 12V DC or PoE
Installation: Surface mount
Casing Material: PC + ABS
Power Consumption: ≤4W standby, ≤6W working
Operating Conditions
Operating Temperature: -10°C to +55°C
Operating Humidity: 10%–95% RH
Included PoE Switch
Ports
4 × PoE 10/100Mbps ports
2 × Uplink 10/100Mbps ports
Power
Built-in power supply: 100–240VAC
Power Consumption: 0.5W idle, 36W full load
Operating Conditions
Operating Temperature: -10°C to +55°C
Operating Humidity: 10%–90% RH
Ideal Applications
- Homes and villas
- Apartments
- Offices
- Small commercial properties
- Remote visitor management
- Gate and door access control systems
