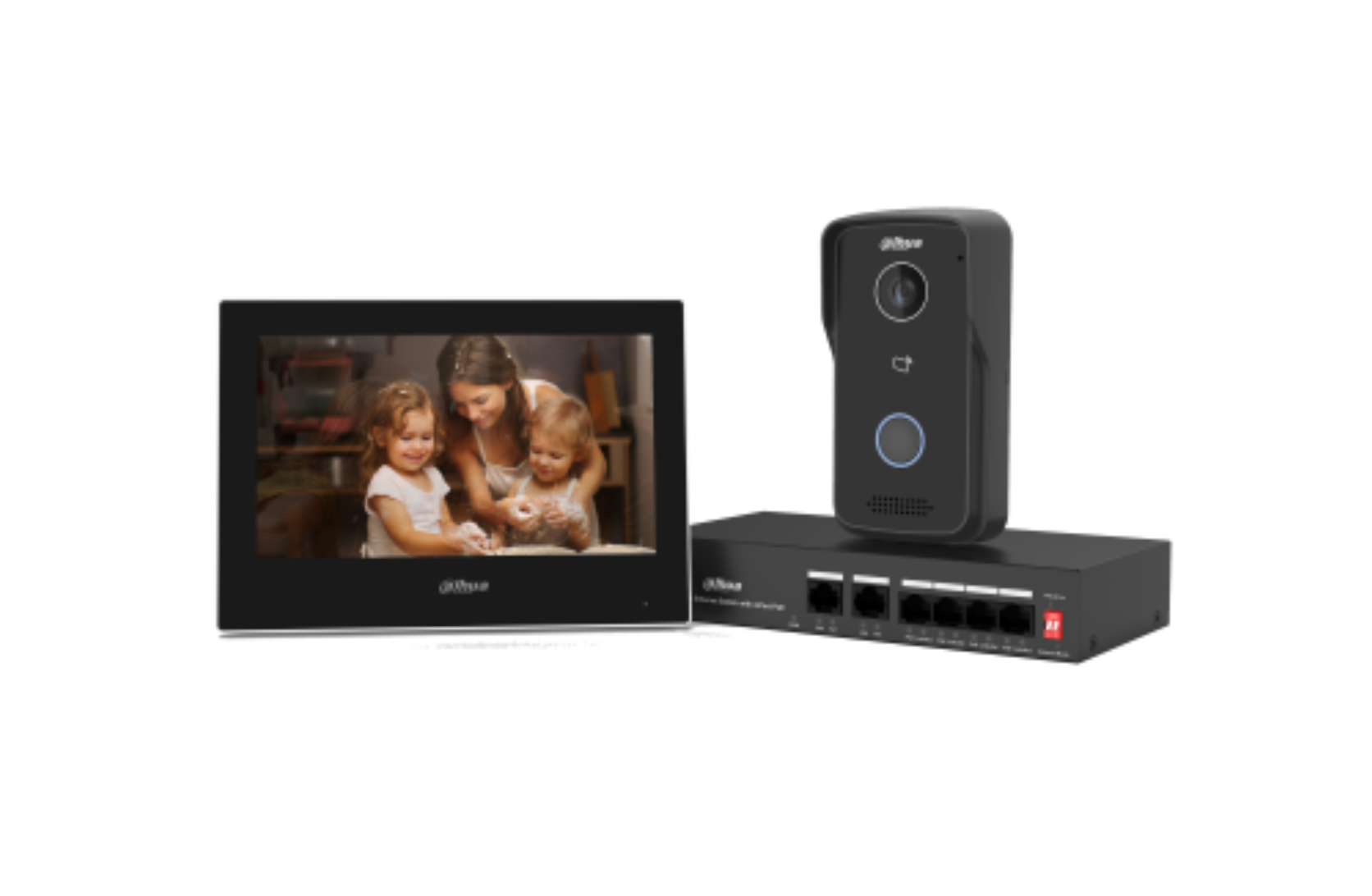

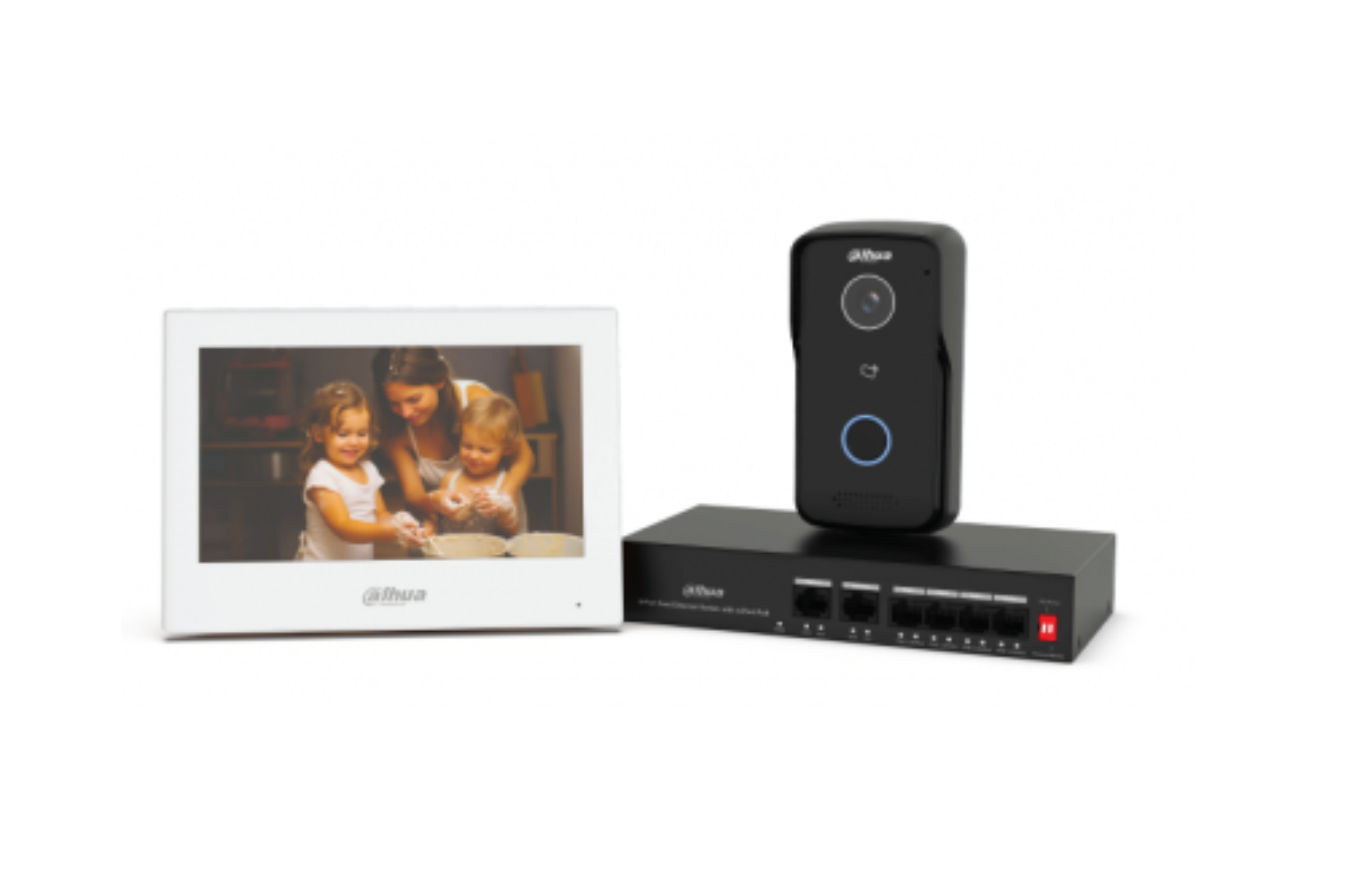

Key Features
- 2MP HD villa door station
- 7-inch capacitive touchscreen indoor monitor
- Wi-Fi connection support
- App management and remote unlock
- Card unlock support
- Two-way audio communication
- IR night vision support
- Supports up to 10,000 cards
- Full digital IP intercom system
- Alarm integration support
- Leave video message support
- Standard PoE support
- IP65 weather-rated door station
- Includes 4-port PoE switch
- Datasheet
Door Station – DHI-VTO2111D-P-S3
Camera
Image Sensor: 1/2.8" 2MP CMOS
Field of View: H: 107°, V: 60°, D: 122°
Noise Reduction: 3D NR
Light Compensation: Auto IR
Day/Night Mode: Auto (ICR) / Color / B&W
Video
Video Compression: H.264, H.265
Main Stream Resolution: 720p, WVGA, D1, CIF
Sub Stream Resolution: 1080p, WVGA, D1, QVGA, CIF
Frame Rate: PAL 25 fps / NTSC 30 fps
Video Bit Rate: 256 Kbps–8 Mbps
Audio
Audio Compression: G.711a, G.711u, PCM
Audio Input: 1
Audio Output: Built-in speaker
Audio Mode: Two-way audio
Audio Enhancement: Echo suppression, digital noise reduction
Audio Bit Rate: 16 KHz, 16 bit
Functions
Communication Mode: Full digital
Unlock Modes: Card, App, Indoor Monitor
Card Type: IC Card
Leave Video Messages: Supported
Web Configuration: Supported
Capacity
Card Capacity: 10,000 cards
Card Reading Distance: 0–4.5 cm
Local Card Issuing: Supported
Ports
RS-485: 1
Power Output: 12 V / 200 mA
Exit Button: 1
Door Status Detection: 1
Lock Control: 1
Network Port: 1 × 10/100 Mbps Ethernet
Alarm
Tamper Alarm: Supported
General
Casing Material: PC + Acrylic
Power Supply: 12 VDC 1A / Standard PoE
Installation: Surface Mount
Protection Rating: IP65, IK04
Operating Temperature: –30 °C to +60 °C
Power Consumption: ≤1 W standby / ≤5 W working
Dimensions: 135.1 × 70.6 × 34.6 mm
Indoor Monitor – DHI-VTH2621G-P
Display
Screen Type: Capacitive Touchscreen
Display Size: 7-inch TFT
Resolution: 1024 × 600
Audio
Audio Compression: G.711a, G.711u, PCM
Audio Input: 1
Audio Output: Built-in speaker
Audio Mode: Two-way voice talk
Audio Enhancement: Echo suppression
Audio Bit Rate: 16 KHz, 16 bit
Functions
Communication Mode: Full digital
Information Release: Supported
Leave Video Messages: Supported
DND Mode: Supported
Number of Extensions: Villa: 9 / Apartment: 4
Wi-Fi: Supported
Storage
Micro SD Card Support: Up to 64 GB
Ports
Alarm Input: 6
Alarm Output: 1
Network Port: 1 × 10/100 Mbps Ethernet
General
Casing Material: PC + ABS
Power Supply: 12 VDC 1A / Standard PoE
Installation: Surface Mount
Operating Temperature: –10 °C to +55 °C
Power Consumption: ≤2 W standby / ≤6 W working
Dimensions: 189.6 × 134.6 × 26 mm
Included PoE Switch – DH-PFS3006-4ET-36
Network
PoE Ports: 4 × 10/100 Mbps PoE ports
Uplink Ports: 2 × 10/100 Mbps uplink ports
General
Certifications: CE, FCC
Dimensions: 194 × 108.1 × 35 mm
