Description
Key Features

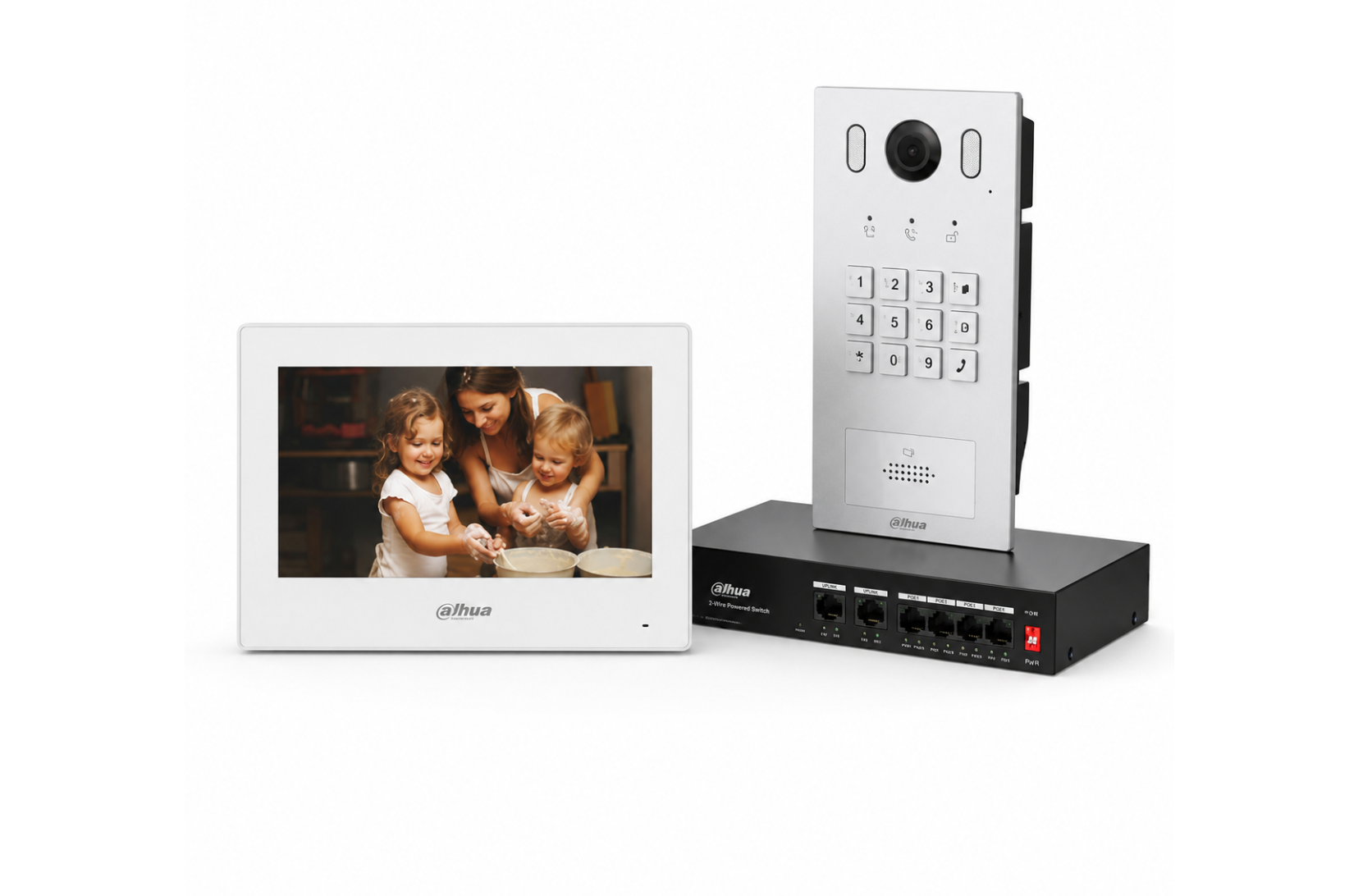

- 2MP HD metal villa door station
- Built-in keypad and card unlock support
- 7-inch capacitive touchscreen indoor monitor
- Wi-Fi indoor monitor support
- Remote unlock via mobile app
- Password, card and remote unlock
- Two-way audio communication
- 120 dB WDR support
- Mifare card support
- Supports up to 10,000 cards
- MicroSD support up to 256 GB
- IP65 and IK08 rated door station
- Standard PoE support
- Includes 4-port PoE switch
- Datasheet
Door Station – DHI-VTO3222E-P
Camera
Image Sensor: 1/2.9" 2MP CMOS
Field of View: H: 140°, V: 80°, D: 160°
WDR: 120 dB
Noise Reduction: 3D NR
Light Compensation: Auto white light
Day/Night Mode: Color / B&W
Video
Video Compression: H.264, H.265
Main Stream Resolution: 720p, WVGA, D1, CIF
Sub Stream Resolution: 1080p, WVGA, D1, QVGA, CIF
Frame Rate: 25 fps
Audio
Audio Compression: G.711a, G.711u, PCM
Audio Input: 1
Audio Output: Built-in speaker
Audio Mode: Two-way audio
Audio Enhancement: Echo suppression, digital noise reduction
Audio Bit Rate: 16 KHz, 16 bit
Functions
Communication Mode: Digital 2-wire
Unlock Modes: Card, Password, Remote Unlock
Card Type: Mifare Card
Auto Snapshot: Supported
Leave Video Messages: Supported
Storage: MicroSD card up to 256 GB
Web Configuration: Supported
Capacity
Card Capacity: 10,000 cards
Card Reading Distance: 0–3 cm
Ports
RS-485: 1
Wiegand: 1
Alarm Input: 1
Alarm Output: 1
Power Output: 12 V / 600 mA
Door Bell: 1
Exit Button: 1
Lock Control: 1
Network Port: 1 × RJ-45 10/100 Mbps Ethernet
Alarm
Tamper Alarm: Supported
General
Casing Material: Aluminum Alloy
Power Supply: 48 VDC / PoE (802.3af/at)
Installation: Surface Mount
Protection Rating: IP65, IK08
Operating Temperature: –40 °C to +60 °C
Power Consumption: ≤5 W standby / ≤7 W working
Dimensions: 200 × 98 × 35.4 mm
Color: Silver
Indoor Monitor – DHI-VTH2621GW-WP White
Display
Screen Type: Capacitive Touchscreen
Display Size: 7-inch TFT
Resolution: 1024 × 600
Audio
Audio Compression: G.711a, G.711u, PCM
Audio Input: 1
Audio Output: Built-in speaker
Audio Mode: Two-way audio
Audio Enhancement: Echo suppression
Audio Bit Rate: 16 KHz, 16 bit
Functions
Communication Mode: Full digital
Information Release: Supported
Leave Video Messages: Supported
Wi-Fi: Supported
Wireless Standard: IEEE 802.11b/g/n
Wireless Frequency: 2.4 GHz
Wireless Security: WPA/WPA2, WPA-PSK/WPA2-PSK
DND Mode: Supported
Number of Extensions: Villa: 9 / Apartment: 4
Ports
Alarm Input: 6
Alarm Output: 1
Door Bell Support: Yes
Network Port: 1 × RJ-45 10/100 Mbps Ethernet
General
Casing Material: PC + ABS
Power Supply: 12 VDC 1A / Standard PoE
Installation: Surface Mount
Operating Temperature: –10 °C to +55 °C
Power Consumption: ≤2 W standby / ≤6 W working
Dimensions: 189.6 × 134.6 × 26 mm
Color: White
Included PoE Switch – DH-PFS3006-4ET-36
Network
PoE Ports: 4 × 10/100 Mbps PoE ports
Uplink Ports: 2 × 10/100 Mbps uplink ports
General
Power Supply: Built-in 100–240 VAC
Certifications: CE, FCC
Operating Temperature: –10 °C to +55 °C
Power Consumption: 0.5 W idle / 36 W full load
Dimensions: 194 × 108.1 × 35 mm
