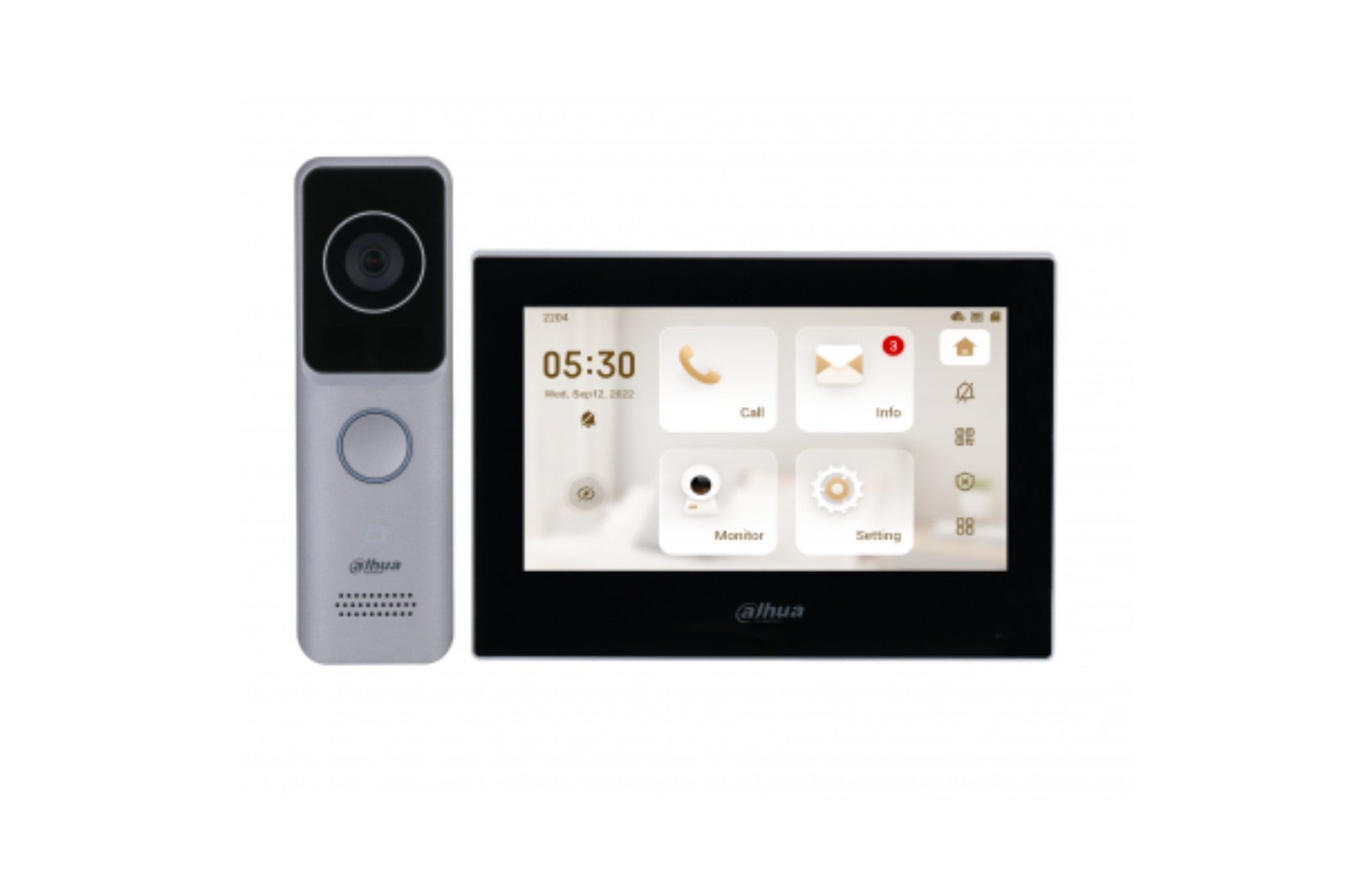

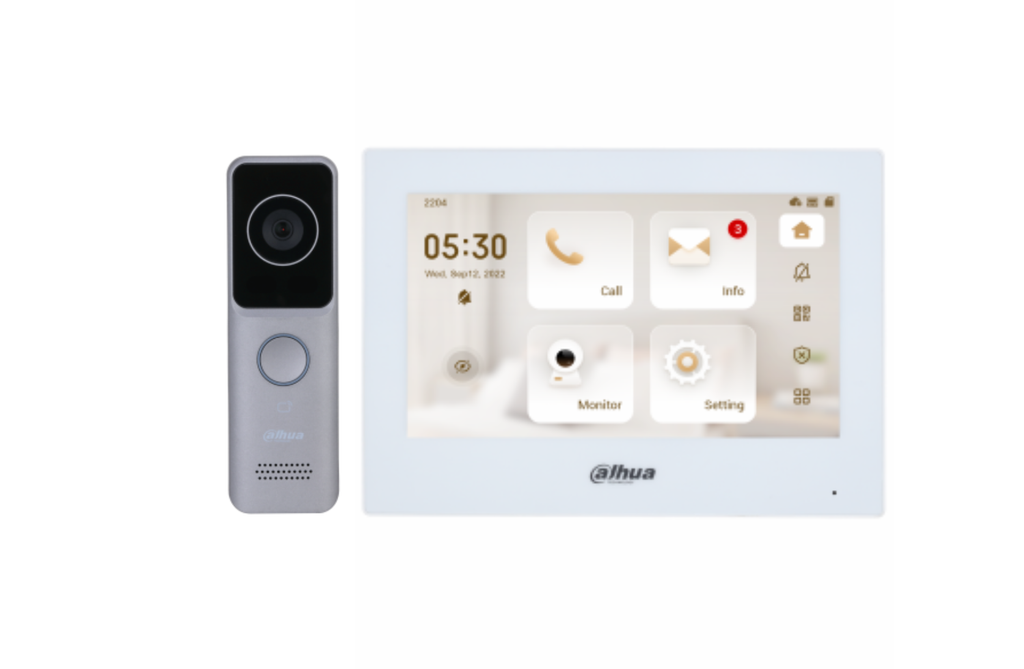

Key Features
- 7-inch capacitive touchscreen indoor monitor
- 2MP HD villa door station camera
- Wi-Fi connectivity for indoor monitor and door station
- App management and remote unlocking
- Unlock via card, app or indoor monitor
- Two-way audio communication
- 120 dB WDR for clear imaging
- Auto IR night vision support
- MicroSD card support up to 256 GB
- IP65 weather-rated door station
- Standard PoE support
- Surface mount installation
- Datasheet
Door Station – DHI-VTO2311R-WP
Camera
Image Sensor: 1/2.8" 2MP CMOS
Field of View: H: 110°, V: 62°, D: 133°
WDR: 120 dB
Noise Reduction: 2D NR, 3D NR
Light Compensation: Auto IR
Day/Night Mode: Auto (ICR) / Color / B&W
Video
Video Compression: H.264, H.265
Main Stream Resolution: 720p, WVGA, D1, CIF
Sub Stream Resolution: 1080p, WVGA, D1, QVGA, CIF
Frame Rate: PAL 25 fps / NTSC 30 fps
Video Bit Rate: 768 kbps–8 Mbps
Audio
Audio Compression: G.711a, G.711u, PCM
Audio Input: 1
Audio Output: Built-in speaker
Audio Mode: Two-way audio
Audio Enhancement: Echo suppression, digital noise reduction
Functions
Unlock Modes: Card, App, Indoor Monitor
Card Type: IC Card
Auto Snapshot: Yes
Leave Video Messages: Yes
Web Configuration: Yes
Wi-Fi: Yes
Wireless Standard: IEEE 802.11b/g/n
Wireless Frequency: 2.4 GHz
Storage: MicroSD card up to 256 GB
Capacity
Card Capacity: 3000 cards
Card Reading Distance: 0–3 cm
Local Card Issuing: Supported
Ports
Exit Button: 1
Door Status Detection: 1
Lock Control: 1
Network Port: 1 × RJ-45 10/100 Mbps Ethernet
General
Casing Material: PC + ABS
Power Supply: 12–33 VDC, 1 A / Standard PoE
Installation: Surface Mount
Protection Rating: IP65
Operating Temperature: –40 °C to +60 °C
Power Consumption: ≤3.5 W standby / ≤6 W working
Dimensions: 160 × 50 × 30 mm
Indoor Monitor – DHI-VTH2621G-WP
Display
Screen Type: Capacitive touchscreen
Display Size: 7-inch TFT
Resolution: 1024 × 600
Audio
Audio Compression: G.711a, G.711u, PCM
Audio Input: 1
Audio Output: Built-in speaker
Audio Mode: Two-way audio
Audio Enhancement: Echo suppression
Functions
Communication Mode: Full digital
Information Release: Supported
DND Mode: Supported
Number of Extensions: Villa: 9 / Apartment: 4
Wi-Fi: Yes
Wireless Standard: IEEE 802.11b/g/n
Wireless Frequency: 2.4 GHz
Wireless Security: WPA/WPA2, WPA-PSK/WPA2-PSK
Ports
Alarm Input: 6
Alarm Output: 1
Power Output: 1 × 12 V/200 mA
Doorbell Support: Yes
Network Port: 1 × RJ-45 10/100 Mbps Ethernet
General
Power Supply: 12 VDC 1A / Standard PoE
Installation: Surface Mount
Operating Temperature: –10 °C to +55 °C
Power Consumption: ≤2 W standby / ≤6 W working
Dimensions: 189.6 × 134.6 × 26 mm
