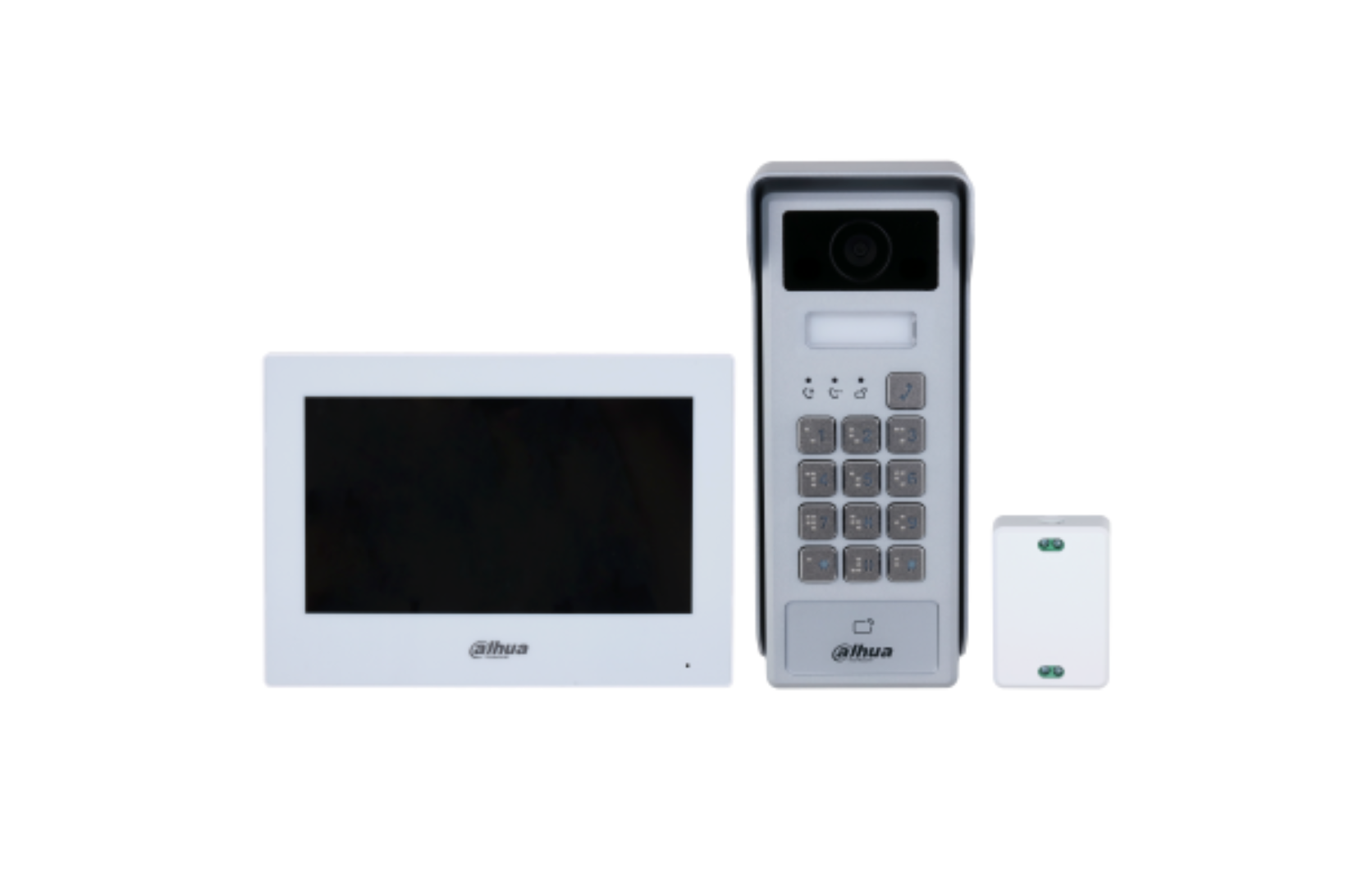

Key Features
- 2-wire video intercom system
- 2MP HDR metal villa door station
- Built-in keypad and IC card unlock
- 7-inch capacitive touchscreen indoor monitor
- Wi-Fi indoor monitor support
- Remote unlock via app
- Password and card unlock support
- Two-way audio communication
- IR night vision support
- Leave video message support
- MicroSD support up to 64 GB
- IP65 and IK08 rated door station
- App management support
- Includes 2-wire controller
- Datasheet
Door Station – DHI-VTO2023S
Camera
Image Sensor: 1/2.8" 2MP CMOS HDR Camera
Field of View: H: 84°, V: 43°, D: 99°
WDR: DWDR
Noise Reduction: 3D NR
Light Compensation: Auto IR
Day/Night Mode: Auto (ICR) / Color / B&W
Video
Video Resolution: PAL 960 × 576 / NTSC 960 × 480
Frame Rate: PAL 25 fps / NTSC 30 fps
Audio
Audio Input: 1 channel
Audio Output: Built-in speaker
Audio Mode: Two-way audio (half-duplex)
Functions
Unlock Modes: IC Card, Password, Remote Unlock
Card Type: IC Card
Leave Video Messages: Supported
Local Card Issuing: Supported
Personal Password Unlock: Supported
Capacity
Card Capacity: 100 cards
Card Reading Distance: 0–2 cm
Ports
RS-485: 1
Alarm Output: 1
Power Output: 12 V / 500 mA
Exit Button: 1
Door Status Detection: 1
Lock Control: 1
Alarm
Tamper Alarm: Supported
General
Casing Material: Aluminum Alloy
Power Supply: 2-wire Controller
Installation: Surface Mount
Protection Rating: IP65, IK08
Operating Temperature: –40 °C to +60 °C
Power Consumption: ≤2 W standby / ≤12 W working
Dimensions: 205.8 × 85.3 × 46.5 mm
Color: Silvery White
Indoor Monitor – DHI-VTH2123GW-W-S2
Display
Screen Type: Capacitive Touchscreen
Display Size: 7-inch TFT
Resolution: 1024 × 600
Audio
Audio Compression: G.711a, G.711u, PCM
Audio Input: 1 channel
Audio Output: Built-in speaker
Audio Mode: Two-way audio with VTO (half-duplex), app (full-duplex)
Audio Enhancement: Echo suppression, digital noise reduction
Audio Bit Rate: 16 KHz, 16 Bit
Functions
Leave Video Messages: Supported
DND Mode: Supported
Number of Extensions: 4
Wi-Fi: Supported
Wireless Standard: IEEE 802.11b/g/n
Wireless Frequency: 2.4 GHz
Storage
Micro SD Card Support: Up to 64 GB
Ports
RS-485: 1
Alarm Input: 6
Alarm Output: 1
Power Output: 12 V / 200 mA
Door Bell Support: Yes
General
Casing Material: PC + ABS
Power Supply: 2-wire Controller
Installation: Surface Mount
Operating Temperature: –10 °C to +55 °C
Power Consumption: ≤4 W standby / ≤10 W working
Dimensions: 134.6 × 189.6 × 24 mm
Color: White
Included 2-Wire Controller – VTNC1003C-D
Performance
Power Output: 48 V / 0.9 A
Casing Material: PC + ABS
General
Power Supply: 48 VDC
Installation: Standard Controller Module
Operating Temperature: –10 °C to +55 °C
Power Consumption: 3.5 W
Dimensions: 74.86 × 46.72 × 28.7 mm
Color: White
