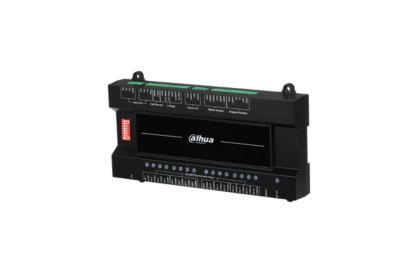

Dahua Lift Controller DHI-VTM416

Lift Controller

• Connects up to 1 Wiegand reader and 2 RS485 readers

• Supports up to 8 cascading units, allowing control for up to 128 floors

• Alarm inputs/outputs: 6 in, 2 out

• Stores up to 30,000 alarm and log records

• Supports up to 60 call lift modules

• All floor permissions are automatically released when a fire alarm is triggered

• Allows remote control via web client

• Datasheet


Technical Specification – Model: VTM416

System

• Main Processor: ARM Cortex M4 @ 180 MHz

• Communication Type: TCP/IP, RS485, Wiegand

Indicators

• Power Indicator: 1

• Communication Indicator: 1

• Relay Indicator: 16

Interface

• Alarm Inputs: 6 (Alarm_in_1 reserved for fire alarm)

• Alarm Outputs: 2

• RS485 Ports: 4

  • RS485 1 & 2: For card reader or call lift module

  • RS485 3: For cascading with slave lift controller

  • RS485 4: For call lift module

• Wiegand Interface: 1

• Relay Outputs: 16

General

• Installation: Fixed to wall using U-shaped guide rail

• Power Supply: DC 12V or PoE (802.3af)

• Working Temperature: –20°C to +55°C

• Relative Humidity: 10% to 90% RH

• Dimensions: 210 mm × 116 mm × 29 mm

• Weight: 1.0 kg
