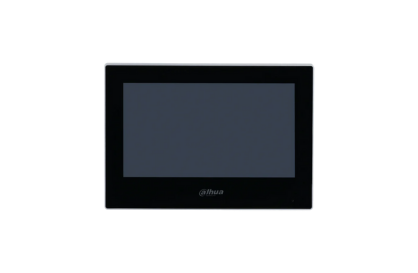

Dahua VTH2621G(W)-WP IP & Wi-Fi Indoor Monitor

Key Features

• 7-inch capacitive touchscreen
• 1024 × 600 screen resolution
• Supports Wi-Fi connectivity
• Standard PoE support
• Two-way audio communication
• 6-channel alarm input
• 1-channel alarm output
• Supports doorbell input
• MicroSD card support up to 64 GB

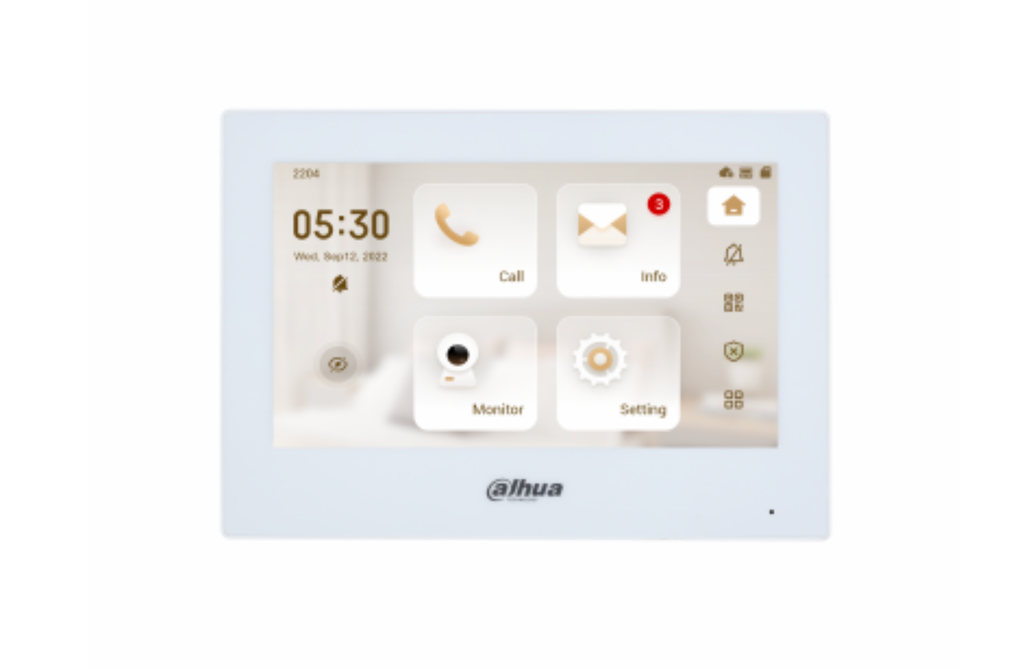

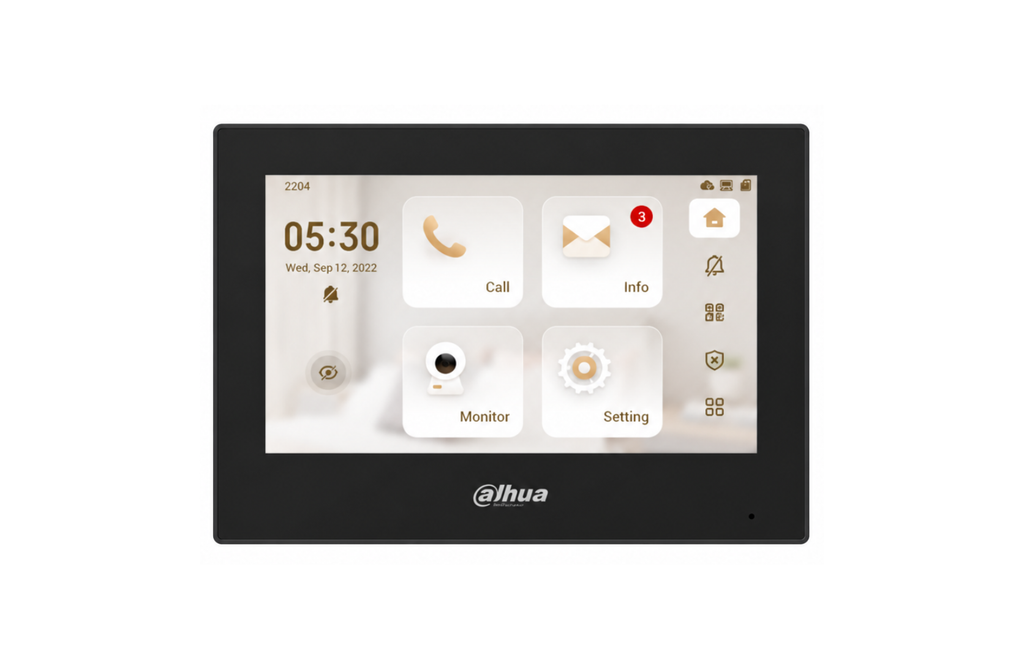

• Available in black or white
• Surface-mount installation
• Datasheet

System

• Main Processor: Embedded processor
• CPU: Dual-core 1.2 GHz
• Operating System: Embedded Linux
• ROM: 128 MB
• RAM: 128 MB
• Interoperability: ONVIF, SDK
• Network Protocols: RTSP, RTP, SIP, DNS, SSH

Display

• Screen Type: Capacitive touchscreen
• Display: 7-inch TFT
• Screen Resolution: 1024 × 600

Audio

• Audio Compression: G.711a, G.711u, PCM
• Audio Input: 1
• Audio Output: Built-in speaker
• Audio Mode: Two-way audio
• Audio Enhancement: Echo suppression
• Audio Bit Rate: 116 bit

Intercom Functions

• Communication Mode: Full digital
• Information Release: Receives and displays text information issued by the management centre
• DND Mode: Supports configurable Do Not Disturb periods
• Villa Extensions: Up to 9
• Apartment Extensions: Up to 4
• Wi-Fi Intercom Capacity: 1 main monitor and 2 extension monitors

Wi-Fi

• Wi-Fi Support: Yes
• Wireless Standards: IEEE 802.11b/g/n
• Wireless Frequency: 2.412–2.472 GHz
• Wireless Security: WPA/WPA2, WPA-PSK/WPA2-PSK

Ports and Storage

• Alarm Inputs: 6 channels
• Alarm Output: 1 channel
• Doorbell Input: Yes, using any alarm input port
• Network Port: 1 × 10/100 Mbps Ethernet port
• Storage: MicroSD card up to 64 GB, reserved for software

Power

• Power Supply: 12 VDC, 1 A
• PoE: Standard PoE, 36–57 VDC, 0.35 A
• Power Consumption:
  • Standby: ≤ 2 W
  • Operating: ≤ 6 W

Build and Installation

• Casing Material: PC + ABS
• Colour: Black or white
• Installation: Surface mount
• Dimensions: 189.6 × 134.6 × 26 mm
• Net Weight: 0.34 kg
• Gross Weight: 0.58 kg

Environmental

• Operating Temperature: –10°C to +55°C
• Operating Humidity: 10%–95% RH, non-condensing
• Operating Altitude: Below 3,000 m

Certifications

• CE
• FCC
