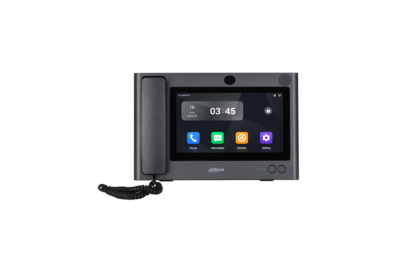

Dahua Master Station DHI-VTS5A40B

Master Station

• Highly convenient 10-inch glass touch screen with 1024 (H) × 600 (V) resolution; supports speakerphone and handsets.

• Supports desk mount installation with adjustable bracket from 0° to 45°.

• Offers HDMI output with resolution up to 1024 (H) × 600 (V).

• Designed for residential and industrial intercom applications.

• Buildings intercom feature: Doors can be remotely unlocked during monitoring and intercom use.

• Supports two-way talk between indoor monitors and door stations.

• Can monitor 4 channels of door stations and IPCs simultaneously.

• Records videos, takes snapshots, and stores data on SD cards during monitoring and intercom use.

• Industry intercom feature: Supports connection of up to 300 IP VTAs to the master station.

• Supports two-way talk with emergency phone terminals and emergency phone terminal stations.

• Records videos, takes snapshots, and stores data on SD cards during monitoring and intercom use with emergency phone terminals and stations.

• Provides two-way talk between stations.

• Datasheet



System

• Main Processor: Embedded Processor

• Operating System: Android 11

• Button Type: Mechanical

• Interoperability: ONVIF; CGI; SDK; SIP

• Network Protocol: IPv4; RTSP; UDP; FTP; RTP; TCP

Basic

• Screen Type: Capacitive Touchscreen

• Display Screen: 10" TFT display

• Screen Resolution: 1024 × 600

• Video Compression: H.264; H.265

• Video Resolution: 720p

• Video Frame Rate: 25 fps

• Video Bit Rate: 2 Mbps

• Audio Compression: G.711a; G.711u; PCM

• Audio Input: 2 Channels

• Audio Output: Built-in speaker; handset speaker

• Audio Mode: Two-way audio

• Audio Enhancement: Echo suppression/digital noise reduction

• Audio Bit Rate: 16 kHz, 16 Bit

Function

• Communication Mode: Full digital

• Multi-Window Display: Supports splitting to 4 windows and monitoring 4-ch 720p videos

• Storage: Micro SD, max 512 GB

• Web Configuration: Yes

• Auto Registration: Yes

• Access Device:

  • Building mode: Up to 32 VTSs, up to 32 IPCs

  • Industry mode: Up to 300 VTAs (added through IP), up to 32 IPCs

Performance

• Casing Material: PC + ABS

Port

• RS-485: 1

• HDMI: 1

• USB: 1 × USB 2.0 port, 1 × USB 3.0 port

• Power Output: 1 channel, 12 V/200 mA

• Network Port: 1 × RJ-45 100 Mbps/1000 Mbps self-adaptive

General

• Appearance Color: Titanium gray

• Power Supply: 12 VDC, 4A

• Power Adapter: Included

• Installation: Desk Mount

• Certifications: CE; FCC

• Accessory: Power adapter; power cord; handset cord

• Product Dimensions: 345.00 mm × 224.60 mm × 64.42 mm (13.58" × 8.84" × 2.54")

• Operating Temperature: –10 °C to +55 °C (14 °F to +131 °F)

• Operating Humidity: 5%–90% (RH) (Non-condensing)

• Operating Altitude: 0 m–1300 m (0 ft–4265.09 ft)

• Power Consumption: ≤ 5 W (standby), ≤ 10 W (working)

• Gross Weight: 2.5 kg (5.51 lb)

• Storage Temperature: 0 °C to +40 °C (+32 °F to +104 °F)

• Storage Humidity: 30% to 75% (RH)
