Description

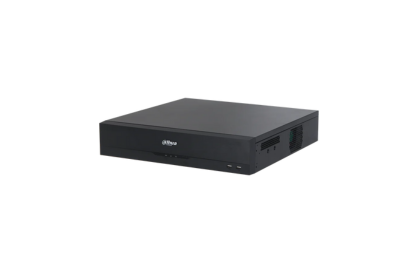

64 Channels 2U 8HDD WizSense Network Video Recorder
-
Supports Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding formats
-
32-channel 1080p self-adaptive decoding capability
-
Supports RAID 0, 1, 5, 6, 10 configurations
-
Maximum 384 Mbps incoming, recording, and outgoing bandwidth
-
AI by recorder: 2-channel face detection and recognition, 4-channel perimeter protection, 8-channel SMD Plus
-
AI by camera: Face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, and people counting
-
Security baseline version 2.3
- Datasheet
System
-
Main Processor: Industrial-grade processor
-
Operating System: Embedded Linux
-
Operating Interface: Web, Local GUI
AI
-
AI by Recorder: Face detection; face recognition; perimeter protection; SMD Plus
-
AI by Camera: Face detection; face recognition; video metadata (human, motor vehicles, non-motor vehicles); perimeter protection; SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map
Perimeter Protection
-
AI by Recorder Performance: 4 channels, 10 IVS rules per channel
-
AI by Camera Performance: 16 channels
Face Detection
-
Attributes: Gender; age group; glasses; expressions; face mask; beard
-
Performance by Recorder: 2 channels (up to 12 face images/s per channel)
-
Performance by Camera: 16 channels
Face Recognition
-
Database Capacity: Up to 20 face databases with 20,000 images (2.5 GB total). Each image can include name, gender, birthday, address, credential type, credential number, countries & regions, and state
-
Performance by Recorder:
-
16-channel FD (camera) + FR (recorder), image stream: 16 face images/s
-
2-channel FD + FR (recorder), video stream: 12 face images/s
-
-
Performance by Camera: 16 channels
SMD Plus
-
By Recorder: 8 channels; secondary filtering for human and motor vehicle; reduces false alarms caused by leaves, rain, lighting changes
-
By Camera: 16 channels
Video Metadata
-
Performance by Camera: 8 channels
-
Human Attributes: Top color, top type, bottom color, bottom type, hat, bag, age, gender, umbrella
-
Motor Vehicle Attributes: License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, registration location
-
Non-motor Vehicle Attributes: Vehicle model, vehicle color, number of persons, helmet
Vehicle License Plate Comparison
-
ANPR by Camera: 8 channels
-
License Plate Database: Up to 20,000 plate numbers; supports blocklist and allowlist
Audio and Video
-
Access Channels: 64
-
Network Bandwidth:
-
AI disabled: 384 Mbps incoming, recording, and outgoing
-
AI enabled: 200 Mbps incoming, recording, and outgoing
-
-
Resolution: 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1; CIF; QCIF
-
Decoding Capability:
-
AI disabled: 2-ch 32 MP@20 fps; 2-ch 24 MP@20 fps; 4-ch 16 MP@30 fps; 5-ch 12 MP@30 fps; 8-ch 8 MP@30 fps; 12-ch 5 MP@30 fps; 16-ch 4 MP@30 fps; 32-ch 1080p@30 fps
-
AI enabled: 1-ch 32 MP@20 fps; 1-ch 24 MP@20 fps; 2-ch 16 MP@30 fps; 4-ch 12 MP@30 fps; 4-ch 8 MP@30 fps; 8-ch 5 MP@30 fps; 12-ch 4 MP@30 fps; 24-ch 1080p@30 fps
-
-
Video Output:
-
2-channel VGA, 2-channel HDMI
-
Heterogeneous video source output for HDMI1 and HDMI2
-
Simultaneous video source output for VGA1 & HDMI1 and VGA2 & HDMI2
-
Supports 4K display
-
-
Multi-screen Display:
-
Main screen: 1/4/8/9/16/25/36/64
-
Sub screen: 1/4/8/9/16
-
-
Third-party Camera Access: ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung
-
Compression Standard:
-
Video: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
-
Audio: G.711a, G.711u, PCM, G726
-
Network
-
Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, SNMP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, PPPoE, FTP, DDNS, Alarm Server, IP Search (Dahua compatible), Multicast, P2P, Auto Registration
-
Mobile Access: iOS, Android
-
Interoperability: ONVIF 21.12 (Profiles T, S, G), CGI, SDK
-
Browser Support: Chrome, IE 9 or later, Firefox
-
Network Mode: Multi-address mode, load balance, fault tolerance, network port binding
Recording Playback
-
Multi-channel Playback: Up to 16 channels
-
Record Modes: General, motion detection, intelligent, alarm, POS
-
Backup Methods: USB device, network
-
Playback Modes: Instant, general, event, tag, smart (face and motion detection)
Storage
-
Disk Group: Yes
-
RAID: 0, 1, 5, 6, 10
Alarm
-
General Alarm: Motion detection, privacy masking, local alarm
-
Anomaly Alarm: Camera offline, storage error, disk full, IP conflict, MAC conflict, login lock, fan abnormality, cybersecurity exception
-
Intelligent Alarm: Face detection, perimeter protection, face recognition, video metadata, SMD Plus, stereo analysis, crowd distribution, people counting, ANPR, vehicle density, heat map
-
Alarm Linkage: Record, panoramic snapshot, local alarm output, IPC external alarm, access controller, audio, buzzer, log, preset, email
Ports
-
Audio Input: 1-channel RCA
-
Audio Output: 2-channel RCA
-
Alarm Input: 16 channels
-
Alarm Output: 8 channels (1 channel 12 V, 1 A output)
-
HDD Interface: 8 SATA ports, up to 16 TB each (max capacity varies with environment)
-
eSATA: 1
-
RS-232: 1
-
RS-485: 2 (1 half-duplex, 1 full-duplex)
-
USB: 4 (2 front USB 2.0, 2 rear USB 3.0)
-
HDMI: 2
-
VGA: 2
-
Network Port: 2 (10/100/1000 Mbps Ethernet RJ-45)
General
-
Power Supply: 100–240 VAC, 50-60 Hz
-
Power Consumption: ≤ 13 W (without HDD)
-
Net Weight: 6.4 kg (14.11 lb)
-
Gross Weight: 9.01 kg (19.86 lb)
-
Product Dimensions: 439.9 mm × 457.9 mm × 89.0 mm (17.32" × 18.03" × 3.50") (W × D × H)
-
Packaging Dimensions: 570.0 mm × 570.0 mm × 226.0 mm (22.44" × 22.44" × 8.90") (W × D × H)
-
Operating Temperature: –10 °C to +55 °C (14 °F to +131 °F)
-
Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
-
Operating Humidity: 10%–93% RH
-
Installation: Rack or desktop
Certifications
-
FCC: 47 CFR FCC Part15, SubpartB, Class A
-
CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014
-
CE-LVD: EN 62368-1:2014
