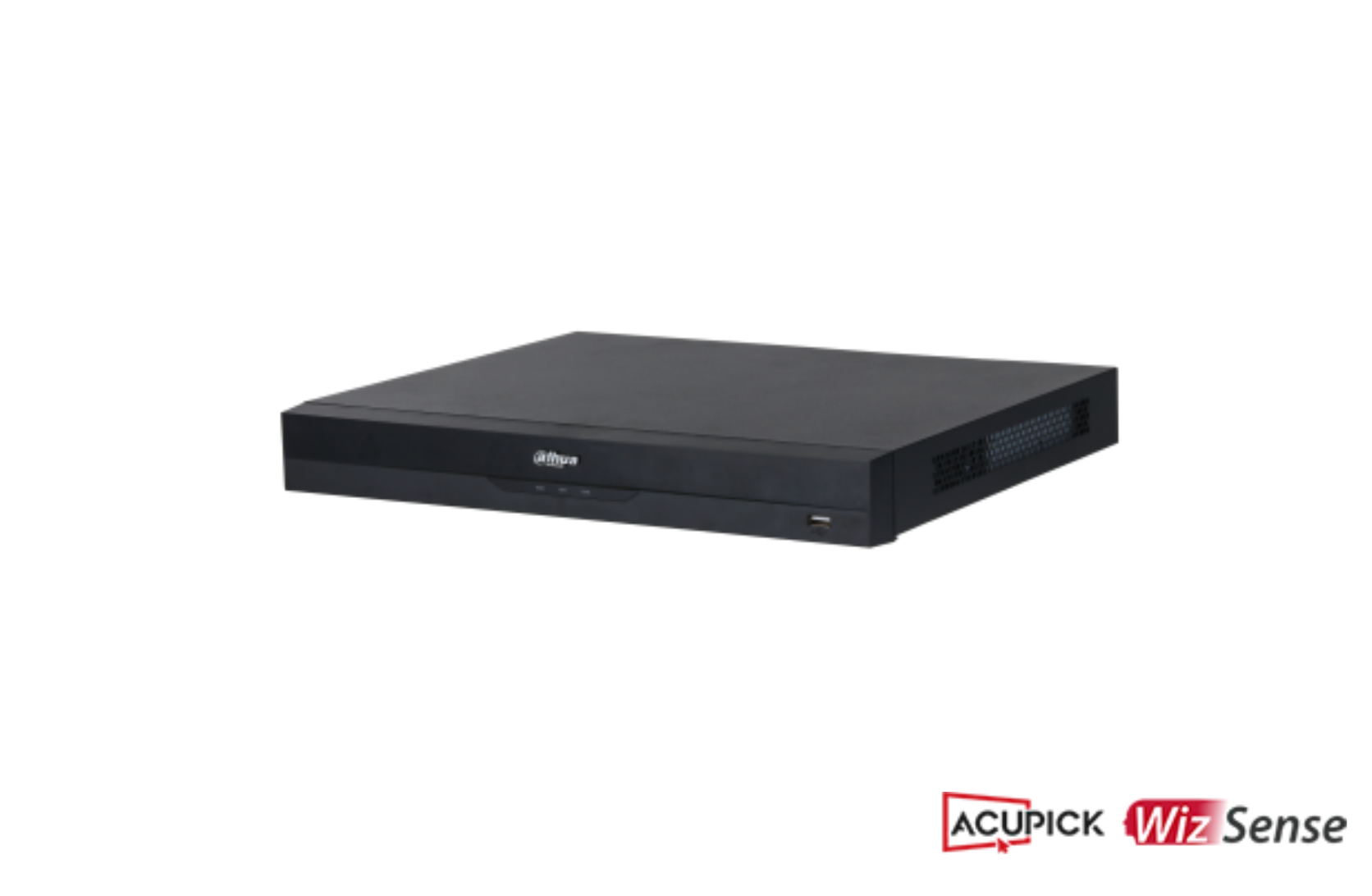

Dahua NVR5208-8P-AI/ANZ Dahua 8CH 2HDD 1U NETWORK VIDEO RECORDER

NVR5208-8P-AI/ANZ Dahua 8-Channel 8-PoE 2-HDD 1U WizMind Network Video Recorder

Key Features

• Supports up to 8 IP camera channels.

• Built-in 8-port PoE switch.

• Supports IP cameras with resolutions up to 32 MP.

• Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG.

• Maximum decoding capability of up to 8 × 8 MP at 30 fps.

• Maximum bandwidth with AI disabled:

  • 384 Mbps incoming

  • 384 Mbps recording

  • 384 Mbps outgoing

• Supports up to 8-channel AcuPick.

• AI by Recorder supports face detection, face recognition, perimeter protection and SMD Plus.

• AI by Camera supports face analytics, metadata, ANPR, people counting, heat map and stereo analysis.

• Supports N+M cluster and iSCSI.

• Supports EPTZ and one-click arming and disarming.

• Supports two SATA hard drives with capacities up to 20 TB per drive.

• Total PoE power budget of 130 W.

• Datasheet

System

• Main Processor: Industrial-grade processor

• Operating System: Embedded Linux

• Operating Interface: Web browser and local GUI

Artificial Intelligence

AI by Recorder

• Face detection

• Face recognition

• Perimeter protection

• SMD Plus

AI by Camera

• Face detection

• Face recognition

• Human, motor vehicle and non-motor vehicle metadata

• Perimeter protection

• SMD Plus

• Stereo analysis

• Crowd distribution

• People counting

• ANPR

• Vehicle density

• Heat map

AcuPick

• Supports up to 8 channels.

• Supports one combined event per channel per second.

• Uses AI processing from compatible cameras and the recorder.

Perimeter Protection

Perimeter Protection by Recorder

• Supports up to 4 channels.

• Supports up to 10 IVS rules per channel.

Perimeter Protection by Camera

• Supported on all channels.

• Processes up to 8 targets per second.

Face Detection

Face Detection by Recorder

• Supports up to 2 channels.

• Supports up to 12 face images per second on each channel.

Face Detection by Camera

• Supports up to 8 channels.

Face Attributes

• Gender

• Age group

• Glasses

• Expression

• Face mask

• Beard

Face Recognition

Face Recognition by Recorder

• Supports 8-channel face detection by camera with face recognition by the recorder.

• Processes up to 16 face images per second using camera-based face detection.

• Supports 2-channel face detection and recognition by the recorder.

• Processes up to 12 face images per second using recorder-based face detection.

Face Recognition by Camera

• Supports up to 8 channels.

Face Database

• Supports up to 20 face databases.

• Stores up to 20,000 face images.

• Total database capacity of up to 2.5 GB.

• Face records can include name, gender, birthday, address, credential details, country, region and state.

Smart Motion Detection

SMD Plus by Recorder

• Supports up to 8 channels.

• Filters human and motor vehicle targets.

• Reduces false alarms caused by leaves, rain and lighting changes.

SMD Plus by Camera

• Supported on all channels.

• Processes up to 16 targets per second.

Video Metadata

Metadata by Camera

• Supports up to 8 channels.

Human Attributes

• Top colour

• Top type

• Bottom colour

• Bottom type

• Hat

• Bag

• Age

• Gender

• Umbrella

Motor Vehicle Attributes

• Licence plate

• Plate colour

• Vehicle body

• Vehicle model

• Vehicle logo

• Calling

• Seatbelt

• Vehicle interior

• Vehicle registration location

Non-Motor Vehicle Attributes

• Vehicle model

• Vehicle colour

• Number of people

• Helmet

Licence Plate Recognition

ANPR by Camera

• Supported on all channels.

• Processes up to 8 targets per second.

Licence Plate Database

• Stores up to 20,000 licence plate numbers.

• Supports blocklists and allowlists.

Audio and Video

• Access Channels: 8 IP camera channels

• Maximum Camera Resolution: 32 MP

• Supported Resolutions: 32 MP, 24 MP, 16 MP, 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p, 960p, D1, CIF and QCIF

Network Bandwidth with AI Disabled

• Incoming bandwidth: 384 Mbps

• Recording bandwidth: 384 Mbps

• Outgoing bandwidth: 384 Mbps

Network Bandwidth with AI Enabled

• Incoming bandwidth: 200 Mbps

• Recording bandwidth: 200 Mbps

• Outgoing bandwidth: 200 Mbps

Decoding Capability

AI Disabled

• 2 × 32 MP at 25 fps

• 2 × 24 MP at 25 fps

• 4 × 16 MP at 30 fps

• 5 × 12 MP at 30 fps

• 8 × 8 MP at 30 fps

AI Enabled

• 1 × 32 MP at 25 fps

• 1 × 24 MP at 25 fps

• 2 × 16 MP at 30 fps

• 4 × 12 MP at 30 fps

• 6 × 8 MP at 30 fps

• 8 × 6 MP at 30 fps

• 8 × 5 MP at 30 fps

Video Output

• HDMI Output: 1

• VGA Output: 1

• HDMI and VGA can display different video sources.

Supported HDMI Resolutions

• 3840 × 2160

• 1920 × 1080

• 1280 × 1024

• 1280 × 720

Supported VGA Resolutions

• 1920 × 1080

• 1280 × 1024

• 1280 × 720

Multi-Screen Display

• Main Screen: 1, 4, 8 or 9 channels

• Sub Screen: 1, 4, 8 or 9 channels

Third-Party Camera Support

• ONVIF

• Panasonic

• Sony

• Axis

• Arecont

• Pelco

• Canon

• Hanwha

Compression

• Video Compression: Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG

• Audio Compression: G.711a, G.711u, PCM and G.726

Network

Network Protocols

• HTTP

• HTTPS

• TCP/IP

• IPv4

• UDP

• NTP

• DHCP

• DNS

• SMTP

• UPnP

• DDNS

• Alarm server

• IP search

• Multicast

• P2P

• Auto-registration

• iSCSI

Mobile Access

• iOS

• Android

Interoperability

• ONVIF 23.12

• ONVIF Profile T

• ONVIF Profile S

• ONVIF Profile G

• CGI

• SDK

Browser Support

• Chrome

• Internet Explorer

• Safari

• Edge

• Firefox

Recording and Playback

• Multi-Channel Playback: Up to 8 channels

Recording Modes

• General

• Motion detection

• Intelligent event

• Alarm

• POS

Playback Modes

• Instant playback

• General playback

• Event playback

• Tag playback

• Smart playback for face and motion detection

Backup Methods

• USB device

• Network

Storage

• Disk Group: Supported

• SATA Interfaces: 2

• Maximum HDD Capacity: Up to 20 TB per drive

• Maximum Potential Storage: Up to 40 TB

• Maximum supported drive capacity can vary depending on the operating temperature.

Alarm

General Alarms

• Motion detection

• Local alarm

• Alarm box

• Camera external alarm

• Network alarm

• Scene change

• PIR alarm

• Thermal alarm

Intelligent Alarms

• Face detection

• Face recognition

• Perimeter protection

• SMD Plus

• Human, motor vehicle and non-motor vehicle metadata

• Stereo analysis

• Crowd distribution

• People counting

• ANPR

• Vehicle density

• Heat map

Abnormality Alarms

• Camera offline

• Storage error

• Hard drive full

• IP address conflict

• MAC address conflict

• Login lock

• Abnormal fan operation

• Cybersecurity exception

Alarm Actions

• Recording

• Panoramic snapshot

• Local alarm output

• Camera external alarm output

• Audio warning

• Buzzer

• Event log

• PTZ preset

• Email notification

Ports and Connections

• Alarm Inputs: 4

• Alarm Outputs: 2

• Audio Input: 1 × RCA

• Audio Output: 1 × RCA

• RS-232: 1

• RS-485: 1

• USB Ports: 2

  • 1 × front USB 2.0

  • 1 × rear USB 3.0

• HDMI Output: 1

• VGA Output: 1

• Network Port: 1 × 10/100/1000 Mbps RJ45 Ethernet port

PoE

• 8 × 10/100 Mbps PoE ports

• Supports IEEE 802.3af and IEEE 802.3at.

• Ports 1–8 support ePoE.

• Total PoE power budget: 130 W

• Maximum power per PoE port: 25.5 W

General

• Power Supply: 100–240 VAC, 47–63 Hz

• Recorder Power Consumption: 10 W or less without hard drives

• Net Weight: 2.57 kg

• Gross Weight: 3.80 kg

• Product Dimensions: 375 × 329.4 × 53 mm

• Packaging Dimensions: 451 × 147 × 425 mm

• Operating Temperature: –10°C to +55°C

• Storage Temperature: –20°C to +60°C

• Operating Humidity: 10%–93% RH, non-condensing

• Certifications: FCC Class A, CE-EMC and CE-LVD
