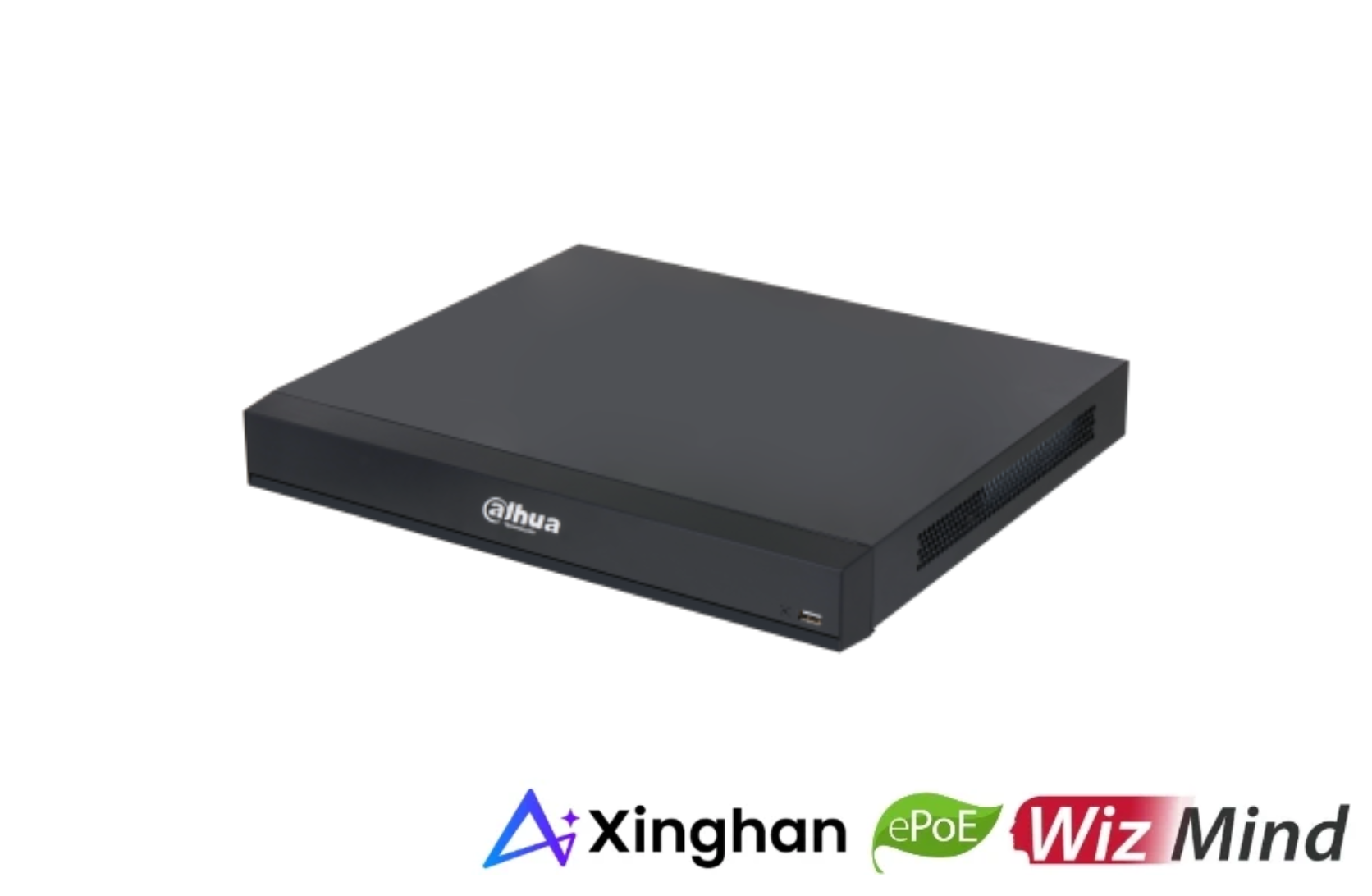

8CH 1U 8PoE 2HDDs WizMind Network Video Recorder
Key Features
- 8 Channel WizMind Network Video Recorder
- Built-in 8 Port PoE Switch
- Supports up to 32MP IP Cameras
- Up to 8K HDMI Video Output
- Supports Smart H.265+ / H.264+ Compression
- Maximum Incoming Bandwidth: 512 Mbps
- AI Powered by Xinghan Large-Scale AI Models
- Face Recognition with up to 200,000 Face Images
- AcuPick Intelligent Search Support
- Perimeter Protection & Video Metadata
- ANPR, People Counting, Heat Map & SMD Plus
- Supports N+M Cluster and iSCSI
- Supports EPTZ and One-Click Arming/Disarming
- 2 SATA Bays – Up to 20TB per HDD
- Mobile Viewing via iOS & Android
- Datasheet
Video & Performance
IP Camera Support
Up to 32MP
Decoding Performance
- 40 × 1080p @ 30fps
- 8 × 8MP @ 30fps
Bandwidth
- Incoming: 512 Mbps
- Recording: 512 Mbps
- Outgoing: 384 Mbps
Video Compression
Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
HDMI Output
Up to 7680 × 4320 (8K)
VGA Output
Up to 1920 × 1080
AI Features
AI by Recorder
- Face Detection
- Face Recognition
- Video Metadata
- Perimeter Protection
- SMD
- AcuPick
- WizSeek
AI by Camera
- Face Detection & Recognition
- Perimeter Protection
- SMD Plus
- ANPR
- Stereo Analysis
- Heat Map
- People Counting
- PPE Detection
- AcuPick
Face Recognition
- Up to 20 Face Databases
- Up to 200,000 Face Images
Playback & Recording
Playback
Up to 8-channel simultaneous playback
Record Modes
Continuous, Motion Detection, Intelligent, Alarm, POS
Backup Methods
USB Device and Network
Storage
HDD Bays
2 SATA Ports
Maximum Capacity
Up to 20TB per HDD
Network
Network Protocols
HTTP, HTTPS, TCP/IP, IPv4, IPv6, DHCP, DNS, FTP, DDNS, SNMP, P2P, ISCSI
Mobile Support
iOS and Android
Browser Support
Chrome, Firefox, IE
Third-Party Camera Support
ONVIF, Panasonic, Sony, Axis, Pelco, Canon, Hanwha
Ports
PoE Ports
8 × PoE Ports
IEEE 802.3af/at with ePoE Support
PoE Budget
130W Total
Network Port
1 × Gigabit RJ-45 Port
USB Ports
- 1 × USB 2.0 Front
- 1 × USB 3.0 Rear
Audio
- 1 × RCA Audio In
- 1 × RCA Audio Out
Alarm
- 4 × Alarm Inputs
- 2 × Alarm Outputs
Power & Physical
Power Supply
100–240VAC
Power Consumption
Less than 15W (Without HDD)
Dimensions
375 × 327.4 × 53 mm
Weight
2.59kg
Operating Temperature
-10°C to +55°C
