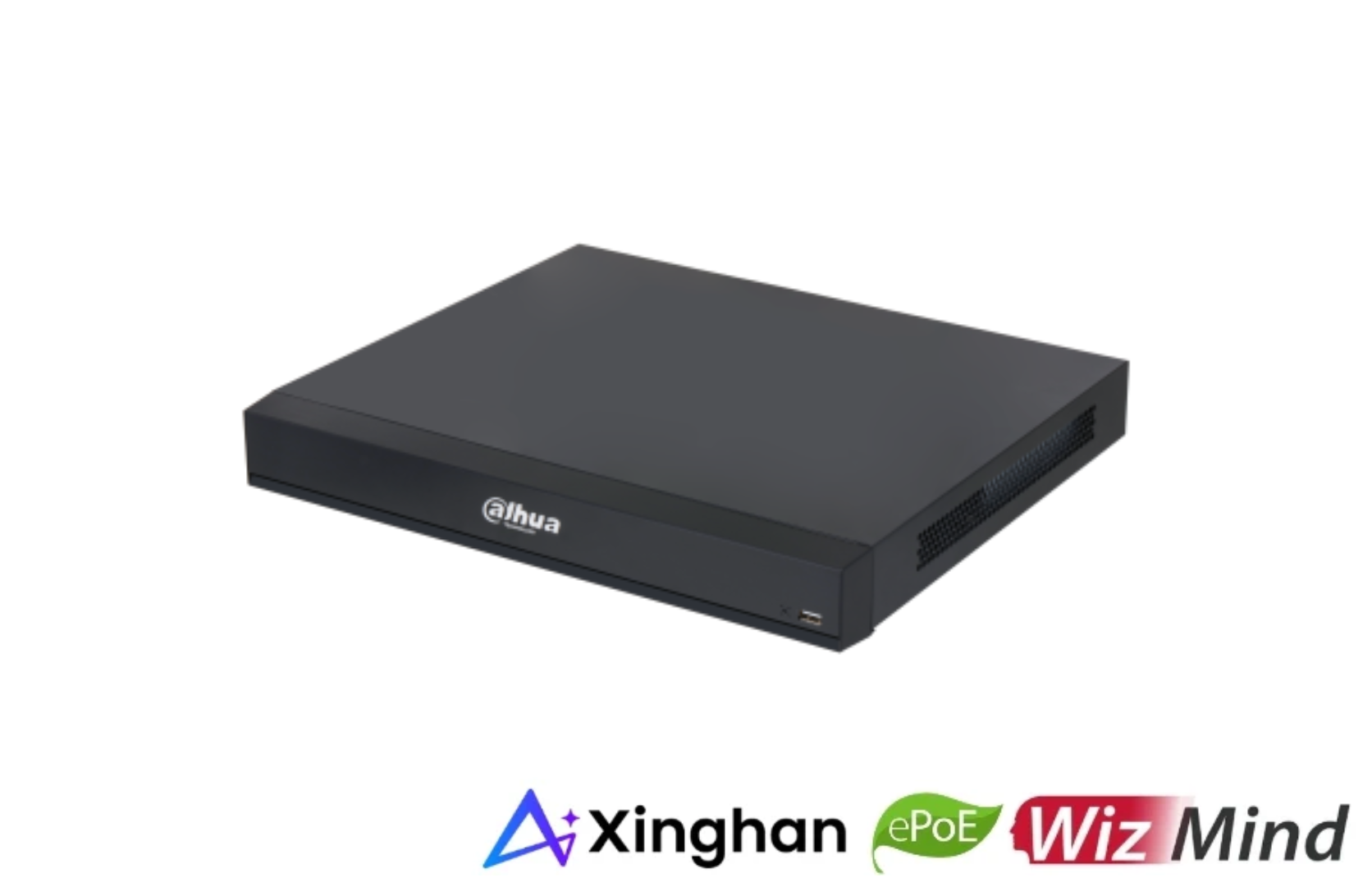

Dahua NVR5216-16HP-AI/ANZ-PRO 16CH 1U 16PoE 2HDDs WizMind Network Video Recorder Includes WizSeek

16CH 1U 16PoE 2HDDs WizMind Network Video Recorder

Key Features

• 16 Channel WizMind Network Video Recorder
• Built-in 16 Port PoE Switch
• Supports up to 32MP IP Cameras
• Up to 8K HDMI Video Output
• Smart H.265+ / H.264+ Compression Support
• 512 Mbps Incoming Bandwidth
• Advanced AI Powered by Xinghan Large-Scale AI Models
• Face Recognition with up to 200,000 Face Images
• AcuPick Intelligent Search Technology
• Perimeter Protection & Video Metadata
• Supports ANPR, Heat Map, People Counting & SMD Plus
• Supports N+M Cluster and iSCSI
• One-Click Arming/Disarming & EPTZ Support
• 2 SATA Bays with up to 20TB per HDD
• Remote Viewing via iOS & Android
• Datasheet

Video & Performance

IP Camera Support
Up to 32MP Resolution

Decoding Capability

• 40 × 1080p @ 30fps
• 16 × 5MP @ 30fps

Bandwidth

• Incoming: 512 Mbps
• Recording: 512 Mbps
• Outgoing: 384 Mbps

Video Compression
Smart H.265+, H.265, Smart H.264+, H.264, MJPEG

Video Output

• HDMI up to 8K (7680 × 4320)
• VGA up to 1080p

AI Features

AI by Recorder

• Face Detection
• Face Recognition
• Video Metadata
• Perimeter Protection
• SMD
• AcuPick
• WizSeek

AI by Camera

• Face Detection & Recognition
• Perimeter Protection
• SMD Plus
• ANPR
• Stereo Analysis
• Heat Map
• People Counting
• PPE Detection
• AcuPick

Face Database

• Up to 20 Face Databases
• Supports up to 200,000 Face Images

Playback & Recording

Playback
Up to 16-channel simultaneous playback

Recording Modes
Continuous, Motion Detection, Intelligent, Alarm, POS

Backup Options
USB Device and Network Backup

Storage

HDD Support
2 × SATA Ports

Maximum HDD Capacity
Up to 20TB per HDD

Network & Compatibility

Protocols Supported
HTTP, HTTPS, TCP/IP, IPv4, IPv6, DHCP, DNS, FTP, DDNS, SNMP, P2P, ISCSI

Mobile Access
iOS and Android

Browser Support
Chrome, Firefox, IE

Third-Party Camera Compatibility
ONVIF, Panasonic, Sony, Axis, Pelco, Canon, Hanwha

Ports & Interfaces

PoE

• 16 × PoE Ports
• IEEE 802.3af/at
• ePoE Support on Ports 1–8
• Total PoE Budget: 200W

Network Port

• 1 × Gigabit RJ-45 Port

USB

• 1 × Front USB 2.0
• 1 × Rear USB 3.0

Audio

• 1 × RCA Audio Input
• 1 × RCA Audio Output

Alarm

• 4 × Alarm Inputs
• 2 × Alarm Outputs

Power & Physical

Power Supply
100–240VAC

Power Consumption
Less than 15W (Without HDD)

Dimensions
375 × 327.4 × 53 mm

Weight
2.72kg

Operating Temperature
-10°C to +55°C
