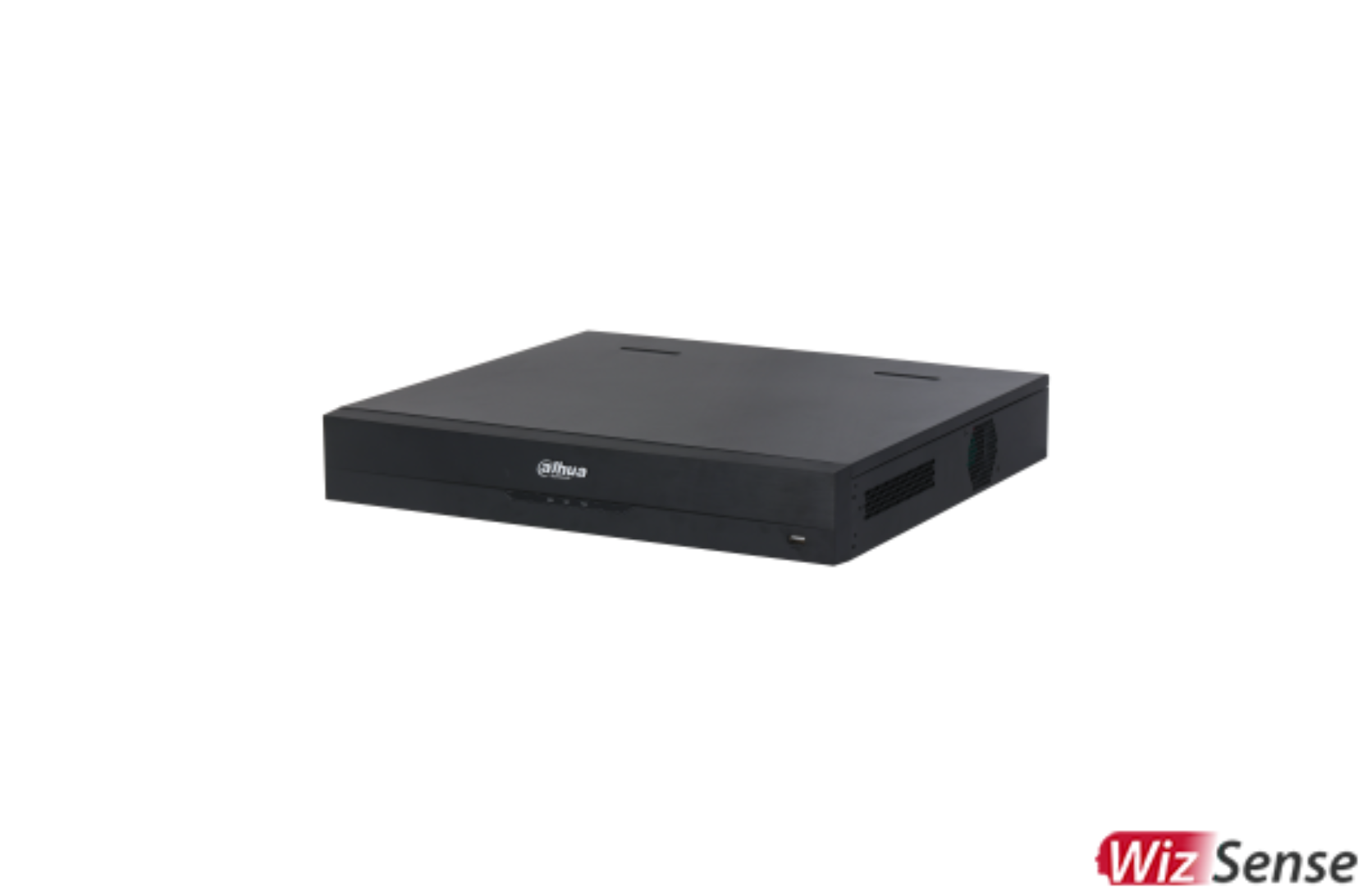

Dahua DHI-NVR5416-16P-AI/ANZ 16 Channels 1.5U 16PoE 4HDD WizSense Network Video Recorder

DHI-NVR5416-16P-AI/ANZ 16-Channel 1.5U 16-PoE 4-HDD WizSense Network Video Recorder

Key Features

• Supports up to 16 IP camera channels.

• Built-in 16-port PoE switch.

• Supports IP cameras with resolutions up to 32 MP.

• Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG compression.

• Maximum bandwidth of 384 Mbps incoming, recording and outgoing.

• Supports up to 32-channel 1080p adaptive decoding.

• AI by Recorder supports:

  • 2-channel face detection and recognition

  • 4-channel perimeter protection

  • 8-channel SMD Plus

• AI by Camera supports face detection, face recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map and people counting.

• Supports two HDMI and two VGA outputs with up to 4K display.

• Four SATA interfaces support hard drives up to 16 TB each.

• Supports ePoE on ports 1–8.

• Total PoE power budget of 130 W.

• Supports Security Baseline 2.3.

• Datasheet

System

• Main Processor: Industrial-grade processor

• Operating System: Embedded Linux

• Operating Interface: Web browser and local GUI

Artificial Intelligence

AI by Recorder

• Face detection

• Face recognition

• Perimeter protection

• SMD Plus

AI by Camera

• Face detection

• Face recognition

• Human, motor vehicle and non-motor vehicle metadata

• Perimeter protection

• SMD Plus

• Stereo analysis

• Crowd distribution

• People counting

• ANPR

• Vehicle density

• Heat map

Perimeter Protection

Perimeter Protection by Recorder

• Supports up to 4 channels.

• Supports up to 10 IVS rules per channel.

Perimeter Protection by Camera

• Supports up to 16 channels.

Face Detection

Face Attributes

• Gender

• Age group

• Glasses

• Expression

• Face mask

• Beard

Face Detection by Recorder

• Supports up to 2 channels.

• Supports up to 12 face images per second on each channel.

Face Detection by Camera

• Supports up to 16 channels.

Face Recognition

Face Database

• Supports up to 20 face databases.

• Stores up to 20,000 face images.

• Total database capacity of up to 2.5 GB.

• Face records can include name, gender, birthday, address, credential details, country, region and state.

Face Recognition by Recorder

• Supports 16-channel face detection by camera with face recognition by the recorder.

• Processes up to 16 face images per second using camera-based face detection.

• Supports 2-channel face detection and recognition by the recorder.

• Processes up to 12 face images per second using recorder-based face detection.

Face Recognition by Camera

• Supports up to 16 channels.

Smart Motion Detection

SMD Plus by Recorder

• Supports up to 8 channels.

• Filters human and motor vehicle targets.

• Reduces false alarms caused by rain, leaves and lighting changes.

SMD Plus by Camera

• Supports up to 16 channels.

Video Metadata

Metadata by Camera

• Supports up to 8 channels.

Human Attributes

• Top colour

• Top type

• Bottom colour

• Bottom type

• Hat

• Bag

• Age

• Gender

• Umbrella

Motor Vehicle Attributes

• Licence plate

• Plate colour

• Vehicle body

• Vehicle model

• Vehicle logo

• Phone use

• Seatbelt

• Vehicle interior

• Vehicle registration location

Non-Motor Vehicle Attributes

• Vehicle model

• Vehicle colour

• Number of people

• Helmet

Licence Plate Recognition

ANPR by Camera

• Supports up to 8 channels.

Licence Plate Database

• Stores up to 20,000 licence plate numbers.

• Supports blocklists and allowlists.

Audio and Video

• Access Channels: 16 IP camera channels

• Maximum Camera Resolution: 32 MP

• Supported Resolutions: 32 MP, 24 MP, 16 MP, 12 MP, 8 MP, 5 MP, 4 MP, 1080p, 720p, D1, CIF and QCIF

Network Bandwidth with AI Disabled

• Incoming bandwidth: 384 Mbps

• Recording bandwidth: 384 Mbps

• Outgoing bandwidth: 384 Mbps

Network Bandwidth with AI Enabled

• Incoming bandwidth: 200 Mbps

• Recording bandwidth: 200 Mbps

• Outgoing bandwidth: 200 Mbps

Decoding Capability

AI Disabled

• 2 × 32 MP at 20 fps

• 2 × 24 MP at 20 fps

• 4 × 16 MP at 30 fps

• 5 × 12 MP at 30 fps

• 8 × 8 MP at 30 fps

• 12 × 5 MP at 30 fps

• 16 × 4 MP at 30 fps

AI Enabled

• 1 × 32 MP at 20 fps

• 1 × 24 MP at 20 fps

• 2 × 16 MP at 30 fps

• 4 × 12 MP at 30 fps

• 4 × 8 MP at 30 fps

• 8 × 5 MP at 30 fps

• 12 × 4 MP at 30 fps

Video Output

• HDMI Outputs: 2

• VGA Outputs: 2

• Supports up to 4K display.

• HDMI 1 and HDMI 2 can display different video sources.

• VGA 1 and HDMI 1 display the same video source.

• VGA 2 and HDMI 2 display the same video source.

Multi-Screen Display

• Main Screen: 1, 4, 8, 9 or 16 channels

• Sub Screen: 1, 4, 8, 9 or 16 channels

Third-Party Camera Support

• ONVIF

• Panasonic

• Sony

• Axis

• Arecont

• Pelco

• Canon

• Samsung

Compression

• Video Compression: Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG

• Audio Compression: G.711a, G.711u, PCM and G.726

Network

Network Protocols

• HTTP

• HTTPS

• TCP/IP

• IPv4

• IPv6

• RTSP

• UDP

• SNMP

• NTP

• DHCP

• DNS

• SMTP

• UPnP

• IP filtering

• PPPoE

• FTP

• DDNS

• Alarm server

• IP search

• Multicast

• P2P

• Auto-registration

Mobile Access

• iOS

• Android

Interoperability

• ONVIF 21.12

• ONVIF Profile T

• ONVIF Profile S

• ONVIF Profile G

• CGI

• SDK

Browser Support

• Chrome

• Internet Explorer 9 or later

• Firefox

Recording and Playback

• Multi-Channel Playback: Up to 16 channels

Recording Modes

• General

• Motion detection

• Intelligent event

• Alarm

• POS

Playback Modes

• Instant playback

• General playback

• Event playback

• Tag playback

• Smart playback for face and motion detection

Backup Methods

• USB device

• Network

Storage

• Disk Group: Supported

• SATA Interfaces: 4

• Maximum HDD Capacity: Up to 16 TB per drive

• Maximum Potential Storage: Up to 64 TB

• eSATA: 1

• Maximum supported drive capacity may vary depending on the operating temperature.

Alarm

General Alarms

• Motion detection

• Privacy masking

• Local alarm

Intelligent Alarms

• Face detection

• Face recognition

• Perimeter protection

• Human, motor vehicle and non-motor vehicle metadata

• SMD Plus

• Stereo analysis

• Crowd distribution

• People counting

• ANPR

• Vehicle density

• Heat map

Abnormality Alarms

• Camera offline

• Storage error

• Hard drive full

• IP address conflict

• MAC address conflict

• Login lock

• Abnormal fan operation

• Cybersecurity exception

Alarm Actions

• Recording

• Panoramic snapshot

• Local alarm output

• Camera external alarm output

• Access controller linkage

• Audio warning

• Buzzer

• Event log

• PTZ preset

• Email notification

Ports and Connections

• Audio Input: 1 × RCA

• Audio Outputs: 2 × RCA

• Alarm Inputs: 16

• Alarm Outputs: 6

• Auxiliary Power Output: 1 × 12 V DC, 1 A

• SATA Interfaces: 4

• eSATA: 1

• RS-232: 1

• RS-485: 1 half-duplex port

• USB Ports: 3

  • 1 × front USB 2.0

  • 2 × rear USB 3.0

• HDMI Outputs: 2

• VGA Outputs: 2

• Network Port: 1 × 10/100/1000 Mbps RJ45 Ethernet port

PoE

• 16 × 10/100 Mbps PoE ports

• Supports IEEE 802.3af and IEEE 802.3at.

• Ports 1–8 support ePoE.

• Total PoE power budget: 130 W

• Maximum PoE output per port: 25.5 W

General

• Power Supply: 100–240 VAC, 50/60 Hz

• Recorder Power Consumption: 13 W or less without hard drives

• Net Weight: 4.82 kg

• Gross Weight: 7.09 kg

• Product Dimensions: 440 × 415.6 × 76 mm

• Packaging Dimensions: 530 × 500 × 210 mm

• Operating Temperature: –10°C to +55°C

• Storage Temperature: –20°C to +60°C

• Operating Humidity: 10%–93% RH

• Installation: Rack or desktop

• Security: Security Baseline 2.3

• Certifications: FCC Class A, CE-EMC and CE-LVD
