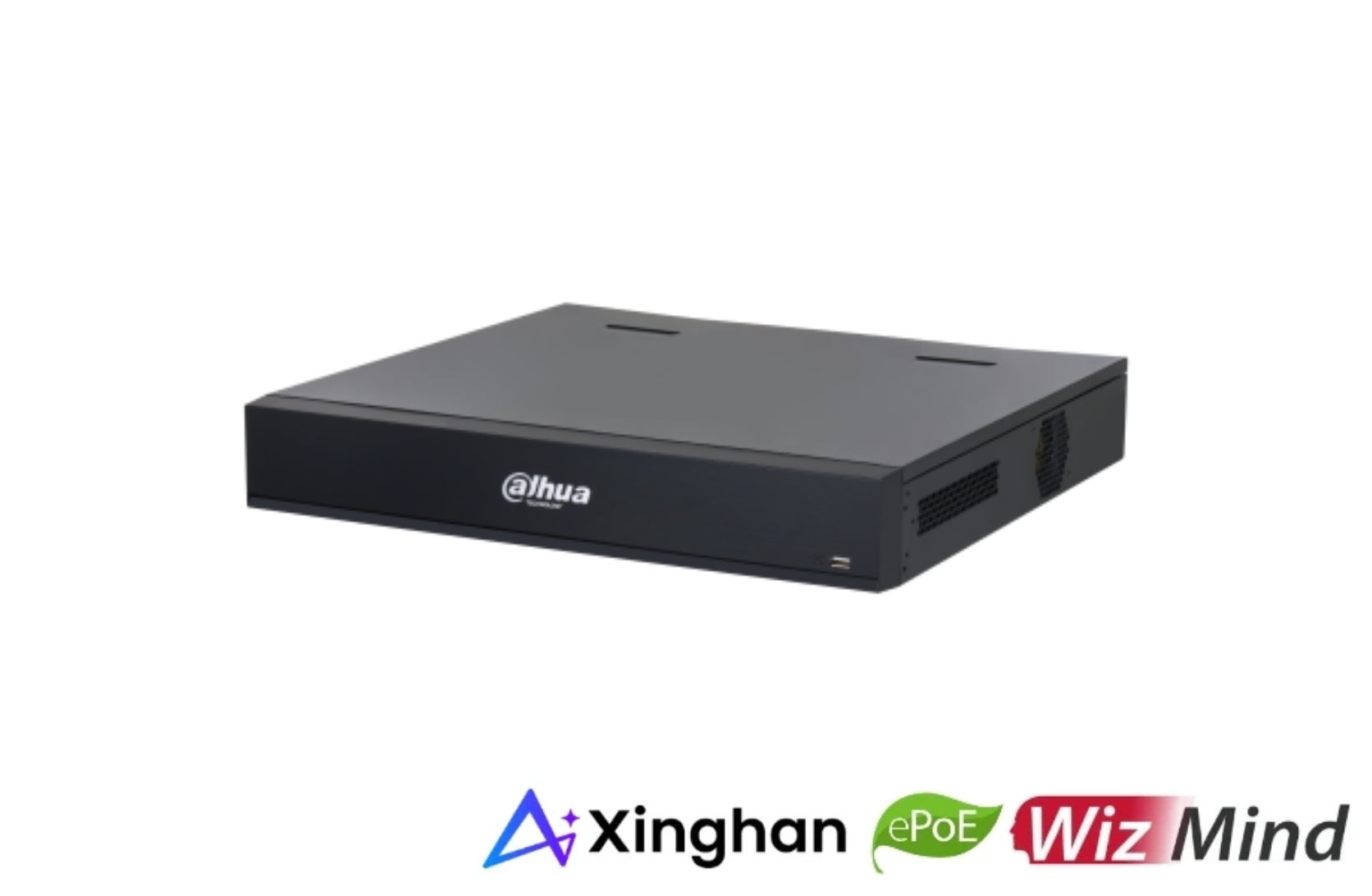

Dahua NVR5432-16HP-AI/ANZ-PRO 32CH 1.5U 16PoE 4HDDs WizMind Network Video Recorder

NVR5432-16HP-AI/ANZ-PRO 32-Channel 1.5U 16-PoE 4-HDD WizMind Network Video Recorder

Key Features

• Supports up to 32 IP camera channels.

• Built-in 16-port PoE switch.

• Supports cameras with resolutions up to 32 MP.

• Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG.

• Maximum bandwidth with AI disabled:

  • 512 Mbps incoming

  • 512 Mbps recording

  • 384 Mbps outgoing

• Maximum bandwidth with AI enabled:

  • 200 Mbps incoming

  • 200 Mbps recording

  • 200 Mbps outgoing

• Supports up to 8K HDMI output.

• Supports Xinghan Large-Scale AI Models.

• Supports face detection, face recognition, metadata, AcuPick, WizSeek and perimeter protection.

• Supports ANPR, SMD, heat map, people counting, stereo analysis and PPE detection by compatible cameras.

• Supports N+M cluster and iSCSI.

• Supports EPTZ and one-click arming and disarming.

• Supports four SATA hard drives with up to 20 TB capacity per drive.

• Datasheet

System

• Main Processor: Industrial-grade processor

• Operating System: Embedded Linux

• Operating Interface: Web browser and local GUI

Artificial Intelligence

AI by Recorder

• Face detection

• Face recognition

• Human, motor vehicle and non-motor vehicle metadata

• Perimeter protection

• Smart Motion Detection

• AcuPick

• WizSeek

• Text-defined alarming

AI by Camera

• Face detection

• Face recognition

• Human, motor vehicle and non-motor vehicle metadata

• Perimeter protection

• Smart Motion Detection

• Stereo analysis

• Crowd distribution

• People counting

• ANPR

• Heat map

• PPE detection

• AcuPick

AcuPick

AcuPick by Recorder at 1080p

• Xinghan AI enabled: Up to 8 channels

• Xinghan AI disabled: Up to 16 channels

AcuPick by Camera at 1080p

• Supported on all channels

• Supports up to 36 targets per second

WizSeek

Performance

• Supports full-channel WizSeek when used with compatible AcuPick cameras.

• Supports up to 8-channel WizSeek with standard cameras when AcuPick is enabled by the NVR.

• Supports modelling of up to 432,000 targets per day.

Search Languages

• English

• Traditional Chinese

• Korean

Perimeter Protection

Perimeter Protection by Recorder

• Xinghan AI enabled: Up to 16 channels

• Xinghan AI disabled: Up to 32 channels

• Supports up to 10 IVS rules per channel

Perimeter Protection by Camera

• Supported on all channels

• Supports up to 32 targets per second

Face Detection

Face Attributes

• Supports six face attributes

Face Detection by Recorder

• Xinghan AI enabled: Up to 8 channels

• Xinghan AI disabled: Up to 16 channels

• Supports up to 12 face images per second on each channel

Face Detection by Camera

• Supported on all channels

• Supports up to 32 targets per second

Face Recognition

Face Database Capacity

• Supports up to 20 face databases

• Stores up to 200,000 face images

• Total database capacity of up to 44 GB

Face Recognition by Recorder

• Supports 32-channel camera-based face detection with recorder-based face recognition.

• Supports up to 32 face images per second using camera-based face detection.

• Xinghan AI enabled:

  • Up to 8-channel recorder-based face detection and recognition

  • Up to 16 face images per second

• Xinghan AI disabled:

  • Up to 16-channel recorder-based face detection and recognition

  • Up to 16 face images per second

Face Recognition by Camera

• Supported on all channels

• Supports up to 32 targets per second

Smart Motion Detection

SMD Plus by Recorder

• Xinghan AI enabled: Not supported

• Xinghan AI disabled: Up to 32 channels

• Filters human and motor vehicle targets.

• Reduces false alarms caused by rain, leaves and lighting changes.

SMD by Camera

• Supported on all channels

• Supports up to 64 targets per second

Video Metadata

Metadata by Recorder

• Xinghan AI enabled: Up to 8 channels

• Xinghan AI disabled: Up to 16 channels

• Supports extraction of up to 23 attributes

Metadata by Camera

• Supported on all channels

• Supports up to 32 targets per second

People Attributes

• Nine human body attributes

Motor Vehicle Attributes

• Nine motor vehicle attributes

Non-Motor Vehicle Attributes

• Four non-motor vehicle attributes

Licence Plate Recognition

ANPR by Camera

• Supported on all channels

• Supports up to 32 targets per second

Licence Plate Database

• Stores up to 20,000 licence plate numbers

• Supports blocklists and allowlists

Audio and Video

• Access Channels: 32 IP camera channels

• Maximum Camera Resolution: 32 MP

• Supported Resolutions: 32 MP, 24 MP, 16 MP, 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p, 960p, D1, CIF and QCIF

Network Bandwidth with AI Disabled

• Incoming bandwidth: 512 Mbps

• Recording bandwidth: 512 Mbps

• Outgoing bandwidth: 384 Mbps

Network Bandwidth with AI Enabled

• Incoming bandwidth: 200 Mbps

• Recording bandwidth: 200 Mbps

• Outgoing bandwidth: 200 Mbps

Decoding Capability

AI Disabled

• 2 × 32 MP at 30 fps

• 3 × 24 MP at 30 fps

• 5 × 16 MP at 30 fps

• 6 × 12 MP at 30 fps

• 10 × 8 MP at 30 fps

• 13 × 6 MP at 30 fps

• 16 × 5 MP at 30 fps

• 20 × 4 MP at 30 fps

• 32 × 1080p at 30 fps

AI Enabled

• 1 × 32 MP at 30 fps

• 1 × 24 MP at 30 fps

• 2 × 16 MP at 30 fps

• 4 × 12 MP at 30 fps

• 6 × 8 MP at 30 fps

• 8 × 6 MP at 30 fps

• 8 × 5 MP at 30 fps

• 12 × 4 MP at 30 fps

• 24 × 1080p at 30 fps

• 32 × 720p at 30 fps

Video Output

• HDMI Outputs: 2

• VGA Outputs: 2

• Maximum HDMI Resolution: 7680 × 4320

• Maximum VGA Resolution: 1920 × 1080

• HDMI 1 and HDMI 2 can display different video sources.

• VGA 1 and HDMI 1 display the same video source.

• VGA 2 and HDMI 2 display the same video source.

Supported HDMI Resolutions

• 7680 × 4320

• 3840 × 2160

• 1920 × 1080

• 1280 × 1024

• 1280 × 720

Supported VGA Resolutions

• 1920 × 1080

• 1280 × 1024

• 1280 × 720

Multi-Screen Display

• Main Screen: 1, 4, 8, 9, 16, 25 or 36 channels

• Sub Screen: 1, 4, 8, 9 or 16 channels

Third-Party Camera Support

• ONVIF

• Panasonic

• Sony

• Axis

• Arecont

• Pelco

• Canon

• Hanwha

Compression

• Video Compression: Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG

• Audio Compression: G.711a, G.711u, PCM and G.726

Network

Network Protocols

• HTTP

• HTTPS

• TCP/IP

• IPv4

• IPv6

• UDP

• NTP

• DHCP

• DNS

• SMTP

• UPnP

• IP filtering

• FTP

• DDNS

• SNMP

• Alarm server

• P2P

• Auto-registration

• IP search

• iSCSI

Mobile Access

• iOS

• Android

Interoperability

• ONVIF 24.12

• ONVIF Profile T

• ONVIF Profile S

• ONVIF Profile G

• CGI

• SDK

Browser Support

• Chrome

• Firefox

• Internet Explorer

Recording and Playback

• Multi-Channel Playback: Up to 16 channels

Recording Modes

• General

• Motion detection

• Intelligent event

• Alarm

• POS

Playback Modes

• Instant playback

• General playback

• Event playback

• Tag playback

• Smart playback

Backup Methods

• USB device

• Network

Storage

• Disk Group: Supported

• SATA Ports: 4

• Maximum HDD Capacity: Up to 20 TB per drive

• Maximum supported capacity can vary depending on the operating temperature.

Alarm

General Alarms

• Motion detection

• Local alarm

• Alarm box

• Camera external alarm

• Network alarm

• Scene change

• PIR alarm

• Thermal alarm

Abnormality Alarms

• No hard drive

• Hard drive error

• Low storage space

• Low quota space

• Abnormal hard drive health

• Network disconnection

• IP address conflict

• MAC address conflict

• Abnormal fan speed

• Video loss

• Video tampering

• Camera offline

• Audio detection

Intelligent Alarms

• Face detection

• Face recognition

• Human, motor vehicle and non-motor vehicle metadata

• Perimeter protection

• Licence plate comparison

Alarm Actions

• Recording

• Panoramic snapshot

• Local alarm output

• Camera external alarm output

• Audio warning

• Buzzer

• Event log

• PTZ preset

• Email notification

Ports and Connections

• Audio Input: 1 × RCA

• Audio Output: 2 × RCA

• Alarm Inputs: 16

• Alarm Outputs: 6

• Auxiliary Power Output: 1 × 12 V DC, 1 A

• SATA Ports: 4

• eSATA: 1

• RS-232: 1

• RS-485: 1 half-duplex port

• USB Ports: 3

  • 1 × front USB 2.0

  • 2 × rear USB 3.0

• HDMI Outputs: 2

• VGA Outputs: 2

• Network Port: 1 × 10/100/1000 Mbps RJ45 Ethernet port

PoE

• 16 × 10/100 Mbps PoE ports

• Supports IEEE 802.3af and IEEE 802.3at

• Ports 1–8 support ePoE.

• Total PoE power budget: 200 W

• Maximum power per PoE port: 25.5 W

General

• Power Supply: 100–240 VAC, 50/60 Hz

• Recorder Power Consumption: Less than 18 W without hard drives

• Net Weight: 4.62 kg

• Gross Weight: 6.75 kg

• Product Dimensions: 440 × 411.4 × 76 mm

• Packaging Dimensions: 529 × 500 × 211 mm

• Operating Temperature: –10°C to +55°C

• Storage Temperature: –20°C to +60°C

• Operating Humidity: 10%–93% RH, non-condensing

• Certifications: CE-EMC and CE-LVD
