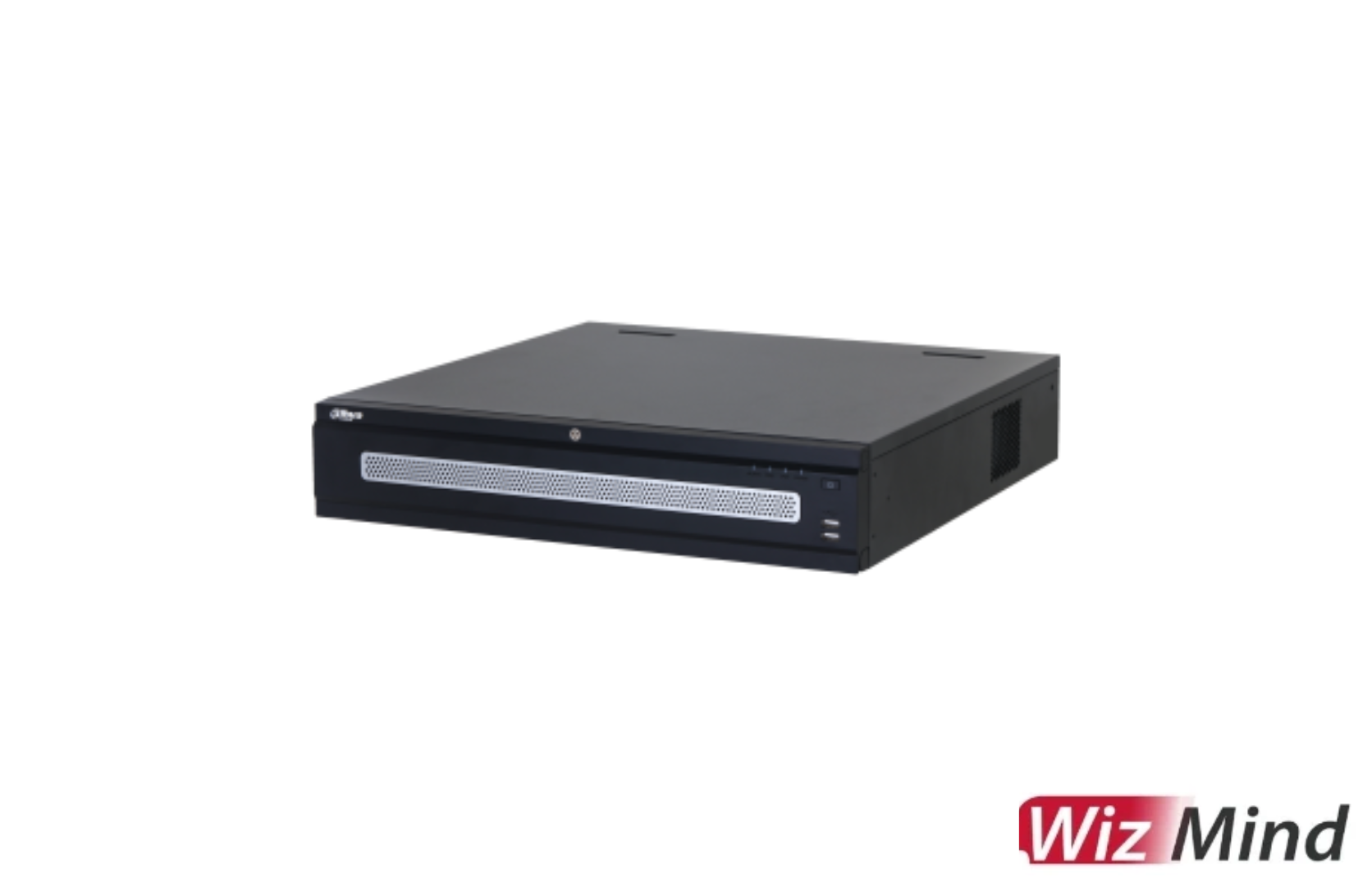

Dahua NVR608H-32-AI/ANZ 32CH 2U 8HDDs WizMind Network Video Recorder

NVR608H-32-AI/ANZ 32-Channel 2U 8-HDD WizMind Network Video Recorder

Lead Time 5-6 Weeks

Key Features

• Supports up to 32 IP camera channels.

• Supports IP cameras with resolutions up to 32 MP.

• Supports Smart H.265+, H.265, Smart H.264+, H.264, MPEG4 and MJPEG.

• Maximum decoding capability of up to 32 × 1080p at 30 fps.

• Maximum bandwidth with AI disabled:

  • 1280 Mbps incoming

  • 1280 Mbps recording

  • 1024 Mbps outgoing

• Supports up to 32-channel AcuPick.

• AI by Recorder supports face detection, face recognition, video metadata, perimeter protection and SMD Plus.

• Supports up to 40 face databases containing 300,000 face images.

• Supports RAID 0, RAID 1, RAID 5, RAID 6 and RAID 10.

• Eight hot-swappable SATA drive bays support hard drives up to 20 TB each.

• Supports N+M cluster and iSCSI.

• Supports EPTZ and one-click arming and disarming.

• Four HDMI and two VGA outputs, including up to 8K output through HDMI 3.

• Dual 2.5 Gigabit Ethernet ports.

• Supports Security Baseline 2.3.

• Datasheet

System

• Main Processor: Industrial-grade processor

• Operating System: Embedded Linux

• Operating Interface: Web browser and local GUI

Artificial Intelligence

AI by Recorder

• Face detection

• Face recognition

• Human, motor vehicle and non-motor vehicle metadata

• Perimeter protection

• SMD Plus

AI by Camera

• Face detection

• Face recognition

• Human, motor vehicle and non-motor vehicle metadata

• SMD Plus

• Stereo analysis

• Crowd distribution

• People counting

• ANPR

• Vehicle density

• Object monitoring

AcuPick

• Supports up to 32 channels.

• Supports one combined event per channel.

• Uses AI processing from compatible cameras and the recorder.

Perimeter Protection

Perimeter Protection by Recorder

• Simultaneous mode: Up to 32 channels

• Heterogeneous mode: Up to 24 channels

• Supports up to 10 IVS rules per channel.

Perimeter Protection by Camera

• Supported on all channels.

• Processes up to 64 targets per second.

Face Detection

Face Attributes

• Gender

• Age group

• Glasses

• Expression

• Face mask

• Beard

Face Detection by Recorder

• Simultaneous mode: Up to 8 channels

• Heterogeneous mode: Up to 5 channels

• Supports up to 12 face images per second on each channel.

Face Detection by Camera

• Supports up to 32 channels.

Face Recognition

Face Database

• Supports up to 40 face databases.

• Stores up to 300,000 face images.

• Total database capacity of up to 48 GB.

Face Recognition by Recorder in Simultaneous Mode

• Supports 32-channel face detection by camera with face recognition by the recorder.

• Processes up to 32 face images per second.

• Supports 8-channel face detection and recognition by the recorder.

• Processes up to 16 face images per second.

Face Recognition by Recorder in Heterogeneous Mode

• Supports 16-channel face detection by camera with face recognition by the recorder.

• Processes up to 16 face images per second.

• Supports 5-channel face detection and recognition by the recorder.

• Processes up to 10 face images per second.

Face Recognition by Camera

• Supports up to 32 channels.

Smart Motion Detection

SMD Plus by Recorder

• Supports up to 32 channels.

• Filters human and motor vehicle targets.

• Reduces false alarms caused by leaves, rain and lighting changes.

SMD Plus by Camera

• Supported on all channels.

• Processes up to 128 targets per second.

Video Metadata

Metadata by Recorder

• Supports up to 8 channels.

Metadata by Camera

• Supports up to 32 channels.

People Attributes

• Supports nine human body attributes.

Human Attributes

• Top colour

• Top type

• Hat

• Bag

• Age

• Gender

• Umbrella

Motor Vehicle Attributes

• Licence plate

• Plate colour

• Vehicle model

• Vehicle logo

• Ornament

• Phone use

Non-Motor Vehicle Attributes

• Vehicle model

• Vehicle colour

• Number of people

• Helmet

Licence Plate Recognition

ANPR by Camera

• Supported on all channels.

• Processes up to 64 targets per second.

Licence Plate Database

• Stores up to 20,000 licence plate numbers.

• Supports blocklists and allowlists.

Audio and Video

• Access Channels: 32 IP camera channels

• Maximum Camera Resolution: 32 MP

• Supported Resolutions: 32 MP, 24 MP, 16 MP, 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 960p, 720p, D1 and CIF

Network Bandwidth with AI Disabled

• Incoming bandwidth: 1280 Mbps

• Recording bandwidth: 1280 Mbps

• Outgoing bandwidth: 1024 Mbps

Network Bandwidth with AI Enabled

• Incoming bandwidth: 640 Mbps

• Recording bandwidth: 640 Mbps

• Outgoing bandwidth: 512 Mbps

Decoding Capability

AI Disabled

• 2 × 32 MP at 30 fps

• 2 × 24 MP at 30 fps

• 4 × 16 MP at 30 fps

• 5 × 12 MP at 30 fps

• 8 × 8 MP at 30 fps

• 11 × 6 MP at 30 fps

• 12 × 5 MP at 30 fps

• 16 × 4 MP at 30 fps

• 32 × 1080p at 30 fps

• 128 × D1 at 30 fps

AI Enabled

• 1 × 32 MP at 30 fps

• 1 × 24 MP at 30 fps

• 2 × 16 MP at 30 fps

• 2 × 12 MP at 30 fps

• 4 × 8 MP at 30 fps

• 5 × 6 MP at 30 fps

• 6 × 5 MP at 30 fps

• 8 × 4 MP at 30 fps

• 16 × 1080p at 30 fps

• 80 × D1 at 30 fps

Video Output

• HDMI Outputs: 4

• VGA Outputs: 2

• Maximum VGA Resolution: 1920 × 1080

• Maximum HDMI 1 Resolution: 3840 × 2160

• Maximum HDMI 2 Resolution: 3840 × 2160

• Maximum HDMI 3 Resolution: 7680 × 4320

• Maximum HDMI 4 Resolution: 1920 × 1080

Simultaneous Mode

• HDMI 1–4 and VGA 1–2 output the same video source.

• VGA 1 and VGA 2 support up to 1080p.

• HDMI 1 and HDMI 2 support up to 4K.

• HDMI 3 supports up to 8K.

• HDMI 4 supports up to 1080p.

Heterogeneous Mode

• Supports different video sources across HDMI outputs.

• VGA 1 and HDMI 1 can display the same video source.

• VGA 2 and HDMI 2 can display the same video source.

• HDMI 1, HDMI 2 and HDMI 3 support up to 4K.

• HDMI 4 supports up to 1080p.

Multi-Screen Display

• Main Screen: 1, 4, 8, 9, 16, 25 or 36 channels

• Sub Screen: 1, 4, 8, 9, 16, 25 or 36 channels

Third-Party Camera Support

• ONVIF

• Panasonic

• Sony

• Axis

• Arecont

• Pelco

• Canon

• Hanwha

Compression

• Video Compression: Smart H.265+, H.265, Smart H.264+, H.264, MPEG4 and MJPEG

• Audio Compression: G.711a, G.711u, PCM and G.726

Network

Network Protocols

• HTTP

• HTTPS

• TCP/IP

• IPv4

• IPv6

• UDP

• SNMP

• NTP

• DHCP

• DNS

• SMTP

• UPnP

• IP filtering

• PPPoE

• FTP

• DDNS

• Alarm server

• IP search

• Multicast

• P2P

• Auto-registration

• iSCSI

Mobile Access

• iOS

• Android

Interoperability

• ONVIF Profile S

• ONVIF Profile T

• ONVIF Profile G

• CGI

• SDK

Browser Support

• Chrome

• Internet Explorer 9 or later

• Firefox

Network Modes

• Multi-address

• Load balancing

• Fault tolerance

• Network port binding

Recording and Playback

• Multi-Channel Playback: Up to 16 channels

Recording Modes

• Manual

• Alarm

• Motion detection

• Scheduled recording

Playback Functions

• Play

• Pause

• Stop

• Fast forward

• Fast backward

• Rewind

• Frame-by-frame playback

• Full-screen playback

• Video backup and clipping

• Partial enlargement

• Audio on and off

Backup Methods

• Portable hard drive

• eSATA drive

• Burner

• USB device

• Network

Storage

• Disk Group: Supported

• SATA Interfaces: 8

• Maximum HDD Capacity: Up to 20 TB per drive

• Maximum Potential Storage: Up to 160 TB

• Hot Swapping: Supported

• Drive Design: Drawer-style hot-swappable drive bays

• eSATA: 1

RAID Support

• RAID 0

• RAID 1

• RAID 5

• RAID 6

• RAID 10

Alarm

General Alarms

• Motion detection

• Video tampering

• Video loss

• Scene change

• PIR alarm

• Camera external alarm

Intelligent Alarms

• Face detection

• Face recognition

• Perimeter protection

• Intrusion detection

• Tripwire detection

• SMD Plus

• ANPR

• People counting

• Stereo analysis

• Crowd distribution

• Heat map

Abnormality Alarms

• Camera offline

• Storage error

• Hard drive full

• IP address conflict

• MAC address conflict

• Login lock

• Abnormal fan operation

Alarm Actions

• Recording

• Snapshot

• Camera external alarm output

• Buzzer

• Event log

• PTZ preset

• Email notification

Ports and Connections

• Audio Input: 1 × RCA

• Audio Outputs: 2 × RCA

• Alarm Inputs: 16

• Alarm Outputs: 8

• SATA Interfaces: 8

• eSATA: 1

• RS-232: 1

• RS-485: 1 × A/B

• USB Ports: 4

  • 2 × front USB 2.0

  • 2 × rear USB 3.0

• HDMI Outputs: 4

• VGA Outputs: 2

• Network Ports: 2 × 10/100/1000/2500 Mbps RJ45 Ethernet ports

General

• Power Supply: 100–240 VAC, 50/60 Hz

• Power Consumption: Less than 18 W without hard drives

• Net Weight: 6.40 kg without hard drives

• Gross Weight: 10.35 kg without hard drives

• Product Dimensions: 444 × 456.6 × 95 mm

• Packaging Dimensions: 570 × 570 × 226 mm

• Operating Temperature: –10°C to +55°C

• Storage Temperature: 0°C to +40°C

• Operating Humidity: 10%–93% RH, non-condensing

• Installation: Rack or desktop

• Certifications: FCC Class A, CE-EMC and CE-LVD
