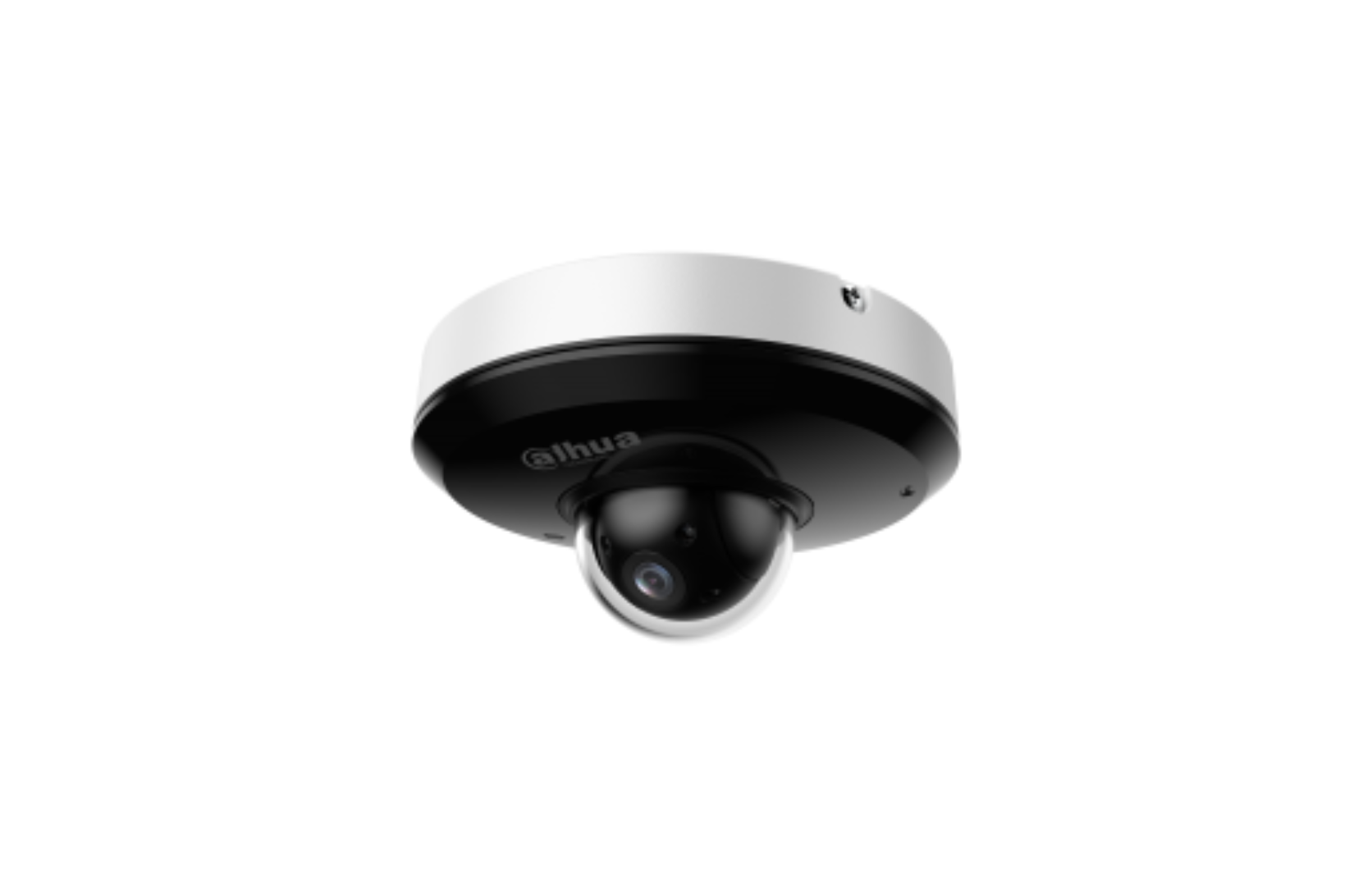

Dahua SD1A404DB-GNY 4MP 4x Starlight IR WizSense Network PTZ Camera

4MP 4x Starlight IR WizSense Network PTZ Camera

Key Features

• 1/2.8" 4MP CMOS image sensor
• 4× optical zoom PTZ camera
• Starlight low-light technology
• Maximum 4MP resolution at 25/30fps
• Up to 20m IR night vision
• WizSense AI analytics
• Human classification perimeter protection
• Face detection and face enhancement
• People counting and queue management
• Built-in microphone support
• Smart H.265+ video compression
• PoE support
• IP66 weatherproof and IK08 vandal resistant
• Datasheet

Specifications

Camera

Image Sensor:

• 1/2.8" CMOS

Resolution:

• 4MP (2560 × 1440)

Minimum Illumination:

• Color: 0.005 Lux @ F1.8
• B/W: 0.0005 Lux @ F1.8
• 0 Lux with IR On

Electronic Shutter:

• 1s–1/30,000s

Scanning System:

• Progressive

Lens

Focal Length:

• 2.8mm–12mm

Optical Zoom:

• 4×

Aperture:

• F1.8–F2.7

Viewing Angle:

• Horizontal: 96.9°–31.6°
• Vertical: 51.4°–17.8°
• Diagonal: 116.2°–36.4°

Focus Control:

• Auto / Semi-auto / Manual

IR & Lighting

IR Distance:

• Up to 20m

IR Control:

• Manual / Smart IR / Off

IR LEDs:

• 3 LEDs

DORI Distance

• Detect: 240m
• Observe: 94.8m
• Recognize: 48m
• Identify: 24m

PTZ

Pan Range:

• 0°–355°

Tilt Range:

• 5°–90°

Manual Speed:

• Pan: 0.1°/s–70°/s
• Tilt: 0.1°/s–30°/s

Preset Speed:

• Pan: 0.1°/s–80°/s
• Tilt: 0.1°/s–40°/s

Presets:

• 300

Tours:

• 8 Tours

PTZ Features:

• Power-off Memory
• Idle Motion
• PTZ Lock

AI Analytics

Perimeter Protection:

• Tripwire
• Intrusion Detection
• Loitering Detection
• Fast Moving Detection
• Parking Detection
• People Gathering Detection
• Human Classification

AI Functions:

• Face Detection
• Face Enhancement
• People Counting
• Queue Management
• SMD

Video

Compression:

• Smart H.265+
• H.265
• Smart H.264+
• H.264
• MJPEG

Streams:

• 3 Streams

Frame Rate:

• Up to 30fps

WDR:

• 120dB True WDR

Image Features:

• 2D/3D Noise Reduction
• Electronic Defog
• Electronic Image Stabilization (EIS)
• Digital Zoom 16×
• ROI Support

Audio

• Built-in Microphone
• Audio Input & Output Support
• Multiple Audio Compression Formats

Network & Storage

Network:

• RJ-45 (10/100 Base-T)

Storage:

• MicroSD Card up to 512GB
• NAS
• FTP/SFTP

Protocols:

• ONVIF Profile S/G/T
• RTSP
• HTTPS
• IPv4/IPv6

Software:

• DMSS
• DSS Pro

Mobile Support:

• iOS & Android

Alarm

Alarm Linkage:

• Capture
• Recording
• Email
• Preset
• Tour

Power

Power Supply:

• 12V DC
• PoE (802.3af)

Power Consumption:

• Basic: 4W
• Max: 13W

Protection

• IP66 Weatherproof
• IK08 Vandal Resistant
• TVS 6000V Lightning Protection
• Surge Protection

Operating Conditions

Operating Temperature:

• -30°C to +60°C

Humidity:

• ≤95%

Build

Dimensions:

• 65.7 × Φ128 mm

Weight:

• Net Weight: 0.5kg
• Gross Weight: 0.7kg
