Description

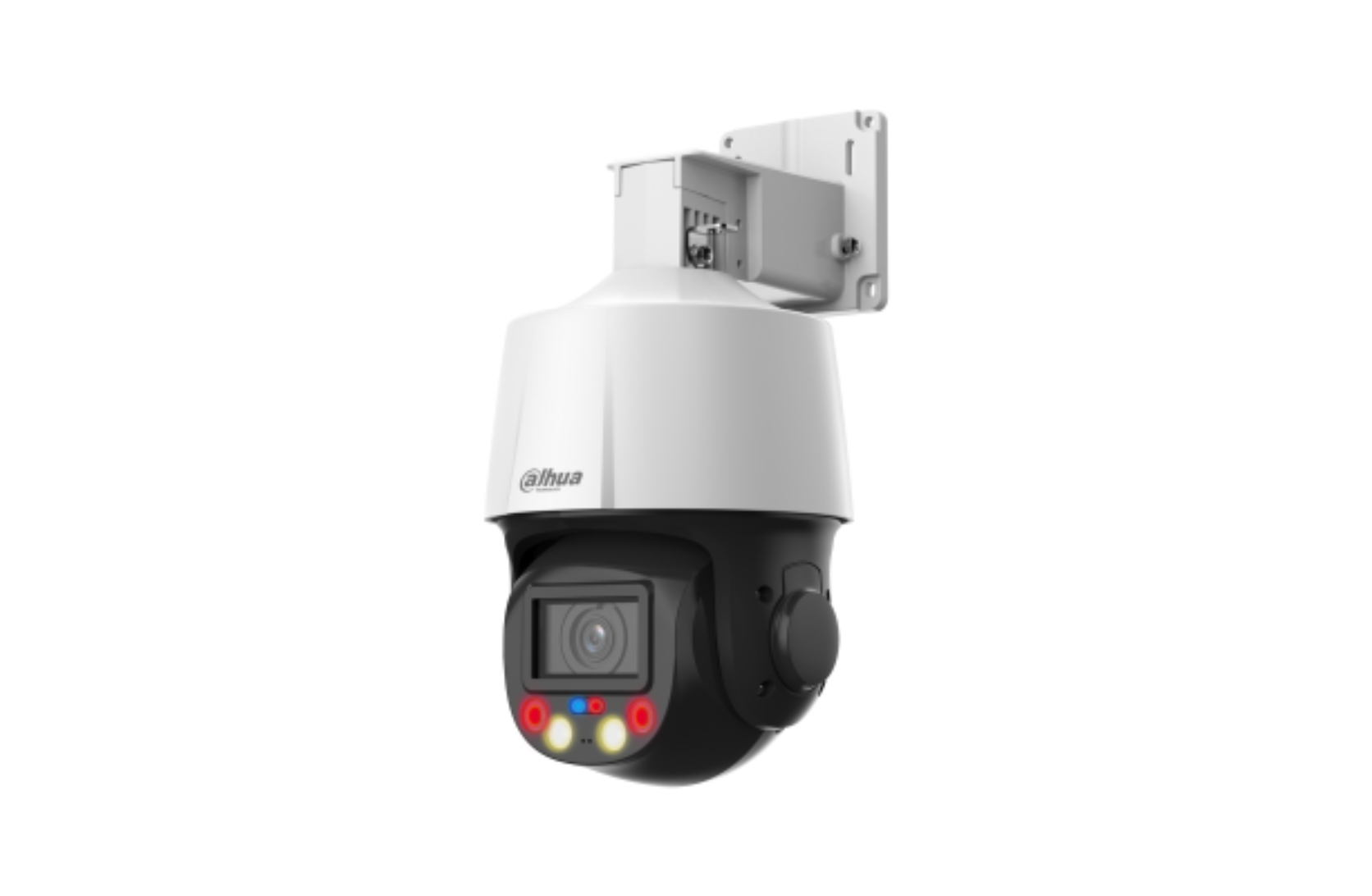

4MP 5x TiOC WizSense Network PTZ Camera
Key Features
- 4MP high-definition PTZ surveillance camera
- 5× optical zoom for long-range monitoring
- Smart Dual Light with IR and warm light illumination
- Up to 50m IR distance and 30m warm light
- Red & blue warning lights with built-in active deterrence
- Deep learning human and vehicle classification
- Auto Tracking Lite and SMD 3.0
- Face detection and perimeter protection
- Built-in two-way audio support
- Triple-stream video support
- H.265 / Smart H.265+ compression
- PoE+ support
- IP66 weatherproof with TVS 6000V protection
- Datasheet
Specifications
Camera
Image Sensor:
- 1/2.8" CMOS
Resolution:
- 4MP (2560 × 1440)
Minimum Illumination:
- Color: 0.005 Lux @ F1.6
- B/W: 0.0005 Lux @ F1.6
- 0 Lux with IR On
Electronic Shutter:
- 1/1s–1/30,000s
Lens
Focal Length:
- 2.7mm–13.5mm
Optical Zoom:
- 5×
Aperture:
- F1.6–F3.0
Viewing Angle:
- Horizontal: 94.9°–30.1°
- Vertical: 51°–17.1°
Focus Control:
- Auto / Semi-auto / Manual
DORI Distance
- Detect: 270m
- Observe: 106.6m
- Recognize: 54m
- Identify: 27m
PTZ
Pan Range:
- 0°–355°
Tilt Range:
- -15° to +90°
Preset:
- 300
Tour:
- 8 Tours
PTZ Functions:
- Auto Patrol
- Power-off Memory
- Idle Motion
- PTZ Lock
Lighting
- 50m IR Distance
- 30m Warm Light Distance
- Red & Blue Active Deterrence Lights
AI Analytics
Perimeter Protection:
- Tripwire
- Intrusion Detection
- Loitering Detection
- Fast Moving Detection
- Parking Detection
- People Gathering Detection
AI Functions:
- Human & Vehicle Classification
- Face Detection
- Auto Tracking Lite
- SMD 3.0
Active Deterrence
Light Warning:
- Red & Blue Flashing Lights
- Adjustable Flash Frequency
Sound Warning:
- 11 Built-in Alarm Sounds
- Supports 10 Custom Alarm Uploads
Video
Compression:
- Smart H.265+
- H.265
- Smart H.264+
- H.264
- MJPEG
Streams:
- 3 Streams
Frame Rate:
- Up to 30fps
WDR:
- 120dB True WDR
Image Features:
- 2D/3D Noise Reduction
- Electronic Defog
- Electronic Image Stabilization (EIS)
- Digital Zoom 16×
- ROI Support
Audio
- Built-in Microphone
- Built-in Speaker
- Two-Way Audio Support
- Audio Input & Output
Network & Storage
Network:
- RJ-45 (10/100 Base-T)
Storage:
- MicroSD Card up to 512GB
- NAS
- FTP/SFTP
Protocols:
- ONVIF Profile S/G/T
- RTSP
- HTTPS
- IPv4/IPv6
Software:
- DMSS
- DSS Pro
Mobile Support:
- iOS & Android
Alarm
- 1 Alarm Input
- 1 Alarm Output
- Alarm Linkage Support
Power
Power Supply:
- 12V DC
- PoE+ (802.3at)
Power Consumption:
- Basic: 4.5W
- Max: 15W
Protection
- IP66 Weatherproof
- TVS 6000V Lightning Protection
- Surge Protection
- Voltage Transient Protection
Operating Conditions
Operating Temperature:
- -30°C to +60°C
Humidity:
- ≤95%
Build
Dimensions:
- 142.6 × 140 × 236.1 mm
Weight:
- Net Weight: 1.5kg
- Gross Weight: 2.1kg
