Description

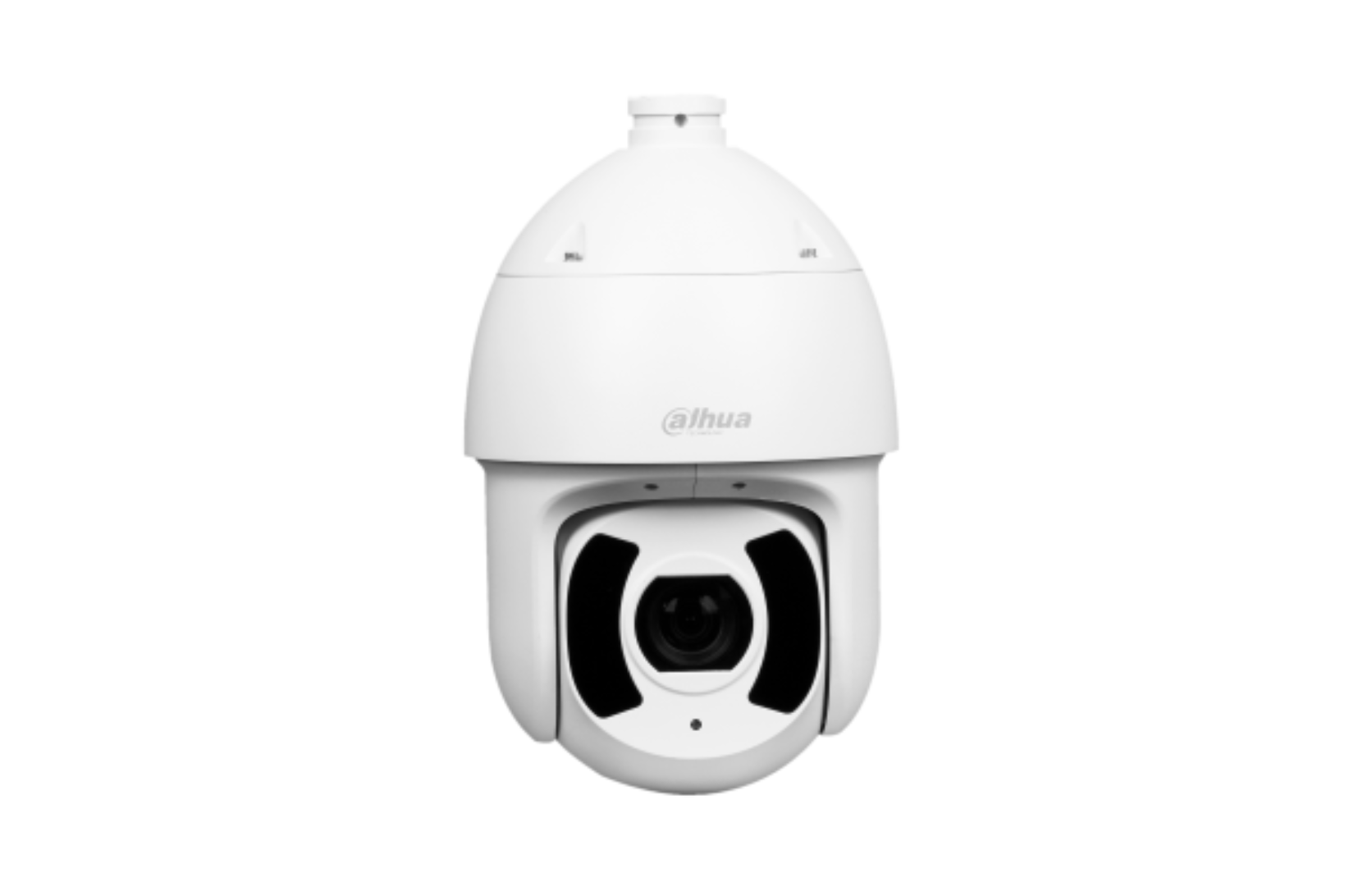

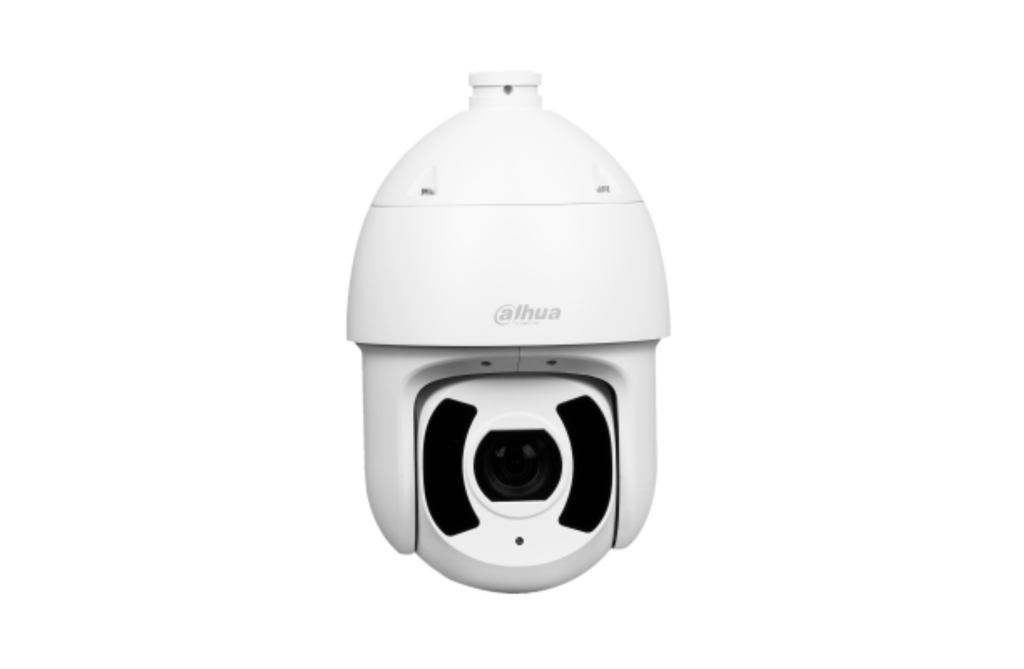

4MP 45x Starlight IR WizSense Network PTZ Camera
Key Features
- 1/2.8" STARVIS™ 4MP CMOS image sensor
- Powerful 45× optical zoom PTZ camera
- Dahua Starlight ultra low-light technology
- Maximum 4MP resolution at 25/30fps
- Up to 250m IR night vision
- WizSense AI analytics
- Deep-learning perimeter protection
- Auto tracking support
- Face detection support
- SMD Plus intelligent motion detection
- Smart human and vehicle classification
- H.265+ video compression
- PoE+ support
- IP67 weatherproof and IK10 vandal resistant
- Datasheet
Specifications
Camera
Image Sensor:
- 1/2.8" STARVIS™ CMOS
Resolution:
- 4MP (2560 × 1440)
Minimum Illumination:
- Color: 0.005 Lux @ F1.6
- B/W: 0.0005 Lux @ F1.6
- 0 Lux with IR On
Electronic Shutter:
- 1/1s–1/30,000s
Scanning System:
- Progressive
Lens
Focal Length:
- 3.95mm–177.75mm
Optical Zoom:
- 45×
Aperture:
- F1.6–F4.95
Viewing Angle:
- Horizontal: 70.3°–1.8°
- Vertical: 37°–1°
- Diagonal: 69.3°–2°
Focus Control:
- Auto / Manual
Iris Control:
- Auto / Manual
IR & Lighting
IR Distance:
- Up to 250m
IR Control:
- Auto / Manual
IR LEDs:
- 6 LEDs
DORI Distance
- Detect: 3176m
- Observe: 1271m
- Recognize: 635m
- Identify: 318m
PTZ
Pan Range:
- 0°–360° Endless Rotation
Tilt Range:
- -20° to +90°
- Auto Flip 180°
Manual Speed:
- Pan: 0.1°/s–260°/s
- Tilt: 0.1°/s–120°/s
Preset Speed:
- Pan: 300°/s
- Tilt: 200°/s
Presets:
- 300
Tours:
- 8 Tours
Patterns:
- 5 Patterns
Scans:
- 5 Scans
PTZ Features:
- Power Restore Memory
- Idle Motion
- Auto Restore PTZ Position
AI Analytics
Perimeter Protection:
- Tripwire
- Intrusion Detection
- Human & Vehicle Classification
- False Alarm Filtering
AI Functions:
- Auto Tracking
- Face Detection
- SMD Plus
- Video Structuralization
- Human, Vehicle & Non-motor Vehicle Capture
Video
Compression:
- H.265+
- H.265
- H.264+
- H.264
- MJPEG
Streams:
- 3 Streams
Frame Rate:
- Up to 30fps
WDR:
- 120dB True WDR
Image Features:
- Ultra DNR (2D/3D)
- Electronic Image Stabilization
- Electronic Defog
- Digital Zoom 16×
- ROI Support
- Privacy Masking up to 24 Areas
Audio
Audio Compression:
- G.711A
- G.711Mu
- AAC
- G.722
- G.726
- G.729
- MPEG2-L2
Audio Ports:
- 1 Audio Input
- 1 Audio Output
Alarm
- 7 Alarm Inputs
- 2 Alarm Outputs
Network & Storage
Ethernet:
- RJ-45 (10/100 Base-TX)
Protocols:
- IPv4 / IPv6
- HTTP / HTTPS
- RTSP / RTP
- RTMP
- SMTP
- FTP
- SNMP
- DDNS
- QoS
Interoperability:
- ONVIF Profile S/G/T
- API
Storage:
- NAS
- Local PC Recording
- MicroSD Card up to 256GB
Software:
- Smart PSS
- DSS
- DMSS
Mobile Support:
- iOS & Android
Power
Power Supply:
- DC 24V / 2.5A
- PoE+ (802.3at)
Power Consumption:
- 13W Normal
- 26W with IR & Heater On
Protection
- IP67 Weatherproof
- IK10 Vandal Resistant
Operating Conditions
Operating Temperature:
- -40°C to +70°C
Humidity:
- Less than 95% RH
Build
Material:
- Metal Housing
Dimensions:
- Φ209 × 337.4 mm
Weight:
- Net Weight: 5.9kg
- Gross Weight: 9.6kg
