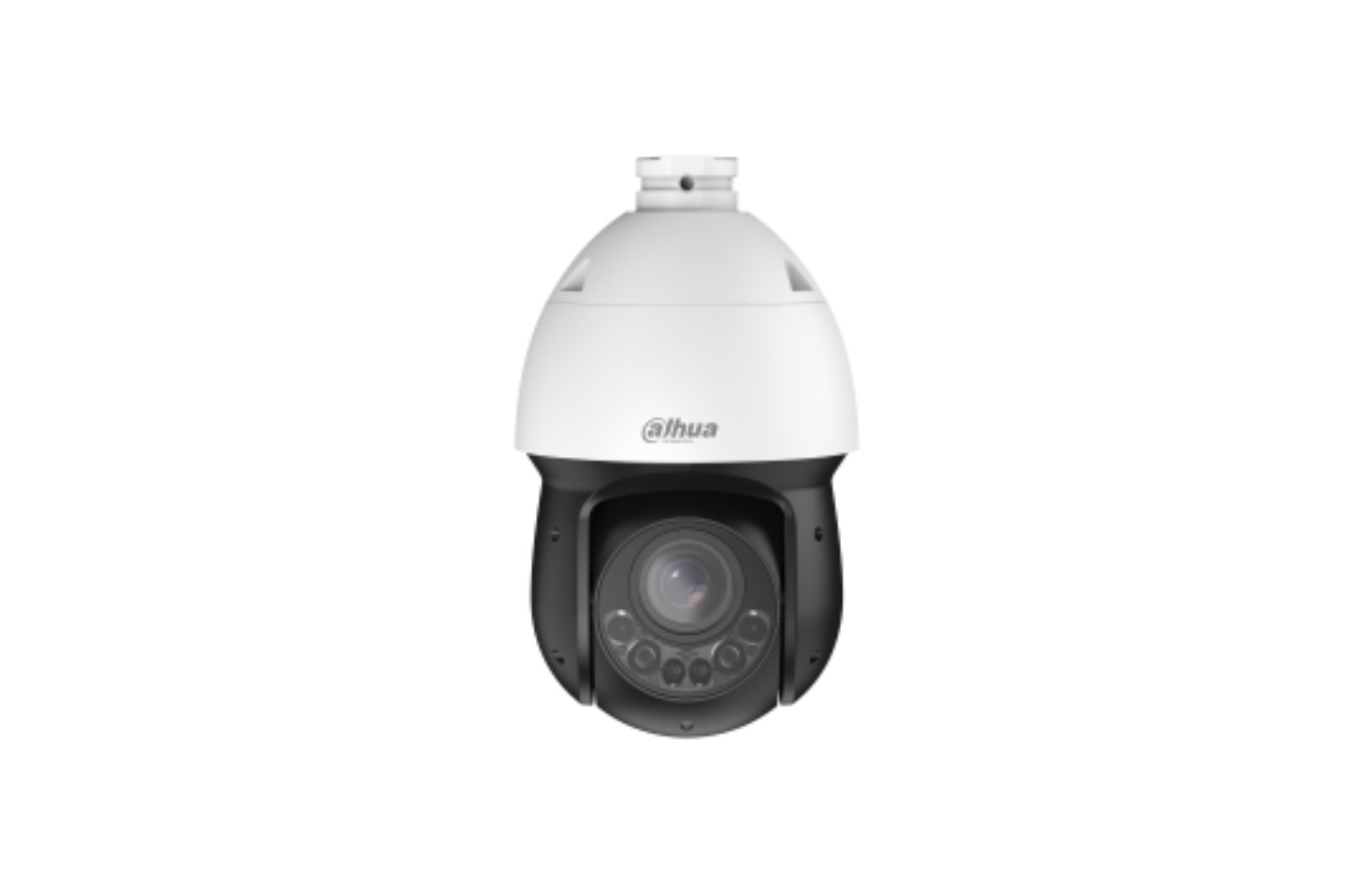

Dahua DH-SD4D425MB-HNR 4MP 25x Smart Dual Light WizSense Network PTZ Camera

Dahua DH-SD4D425MB-HNR 4MP 25× Smart Dual Light WizSense Network PTZ Camera

Key Features

• High-quality imaging with 4MP resolution

• 25× optical zoom for detailed close-up views across expansive areas

• Smart Dual Light with up to 100m IR and 100m warm white light

• Automatically resumes detection along the preset patrol route after an IVS event ends

• WizTracking for effective target monitoring and detailed movement tracking

• AcuPick for fast and accurate human and vehicle searches

• SMD 4.0 intelligent human and vehicle classification

• 120 dB Wide Dynamic Range

• 16× digital zoom

• Supports up to 512GB MicroSD card storage

• IP67 weather-resistant protection

• Supports 12V DC and PoE+ power

• Datasheet

Camera

Image Sensor: 1/2.8" CMOS
Resolution: 4MP
Maximum Resolution: 2560 × 1440
ROM: 4GB
RAM: 1GB
Scanning System: Progressive scan
Electronic Shutter Speed: 1 second to 1/30,000 second

Minimum Illumination:

• Colour: 0.005 lux at F1.6, 30 IRE

• Black and white: 0.0005 lux at F1.6, 30 IRE

• 0 lux with illuminator activated

Illumination Distance:

• IR: Up to 100m

• Warm light: Up to 100m

Illuminators:

• 2 × IR lights

• 2 × warm lights

• 2 × dual-core lights

Illuminator Control: Zoom priority, manual, automatic or off

Lens

Focal Length: 5mm–125mm
Optical Zoom: 25×
Digital Zoom: 16×
Maximum Aperture: F1.6–F3.6

Field of View:

• Horizontal: 54.1°–3.4°

• Vertical: 31.4°–1.9°

• Diagonal: 61.1°–3.9°

Focus Control: Automatic, semi-automatic or manual
Close Focus Distance: 0.1m–0.5m
Iris Control: Automatic

DORI Distance

Wide Angle

• Detect: 100m

• Observe: 40m

• Recognise: 20m

• Identify: 10m

Telephoto

• Detect: 2,500m

• Observe: 1,000m

• Recognise: 500m

• Identify: 250m

DORI distances are based on the EN 62676-4 standard and indicate the general ability to distinguish people or objects. They do not represent intelligent detection distances.

PTZ

Pan Range: 0°–360° endless rotation
Tilt Range: –15° to +90° with 180° automatic flip

Manual Control Speed:

• Pan: 0.1°–200° per second

• Tilt: 0.1°–120° per second

Preset Speed:

• Pan: 0.1°–240° per second

• Tilt: 0.1°–200° per second

Presets: 300
Tours: 8
Patterns: 5
Scans: 5
Power-Off Memory: Supported
Idle Motion: Preset, pattern, tour or scan

Intelligent Features

IVS Perimeter Protection

• Tripwire detection

• Intrusion detection

• Fence-crossing detection

• Loitering detection

• Abandoned and missing object detection

• Fast-moving detection

• Parking detection

• People-gathering detection

• Human alarm classification

• Linkage tracking

Face Detection

Supports face detection, optimisation and high-quality face snapshot capture. The camera can detect facial attributes and expressions, enhance captured face images and generate customised face cutouts.

Supported snapshot modes include:

• Real-time capture

• Quality-priority capture

• Preferred image selection

WizTracking

Automatically tracks detected targets and records detailed movement trajectories.

SMD 4.0

Uses intelligent human and vehicle classification to reduce false alarms caused by irrelevant movement.

AcuPick

Works with compatible backend devices to accurately match people and motor vehicles across live and recorded footage, allowing targets to be located quickly.

Auto Patrol

When an IVS rule is triggered, the camera rotates to the target position and continues patrolling according to its configured presets.

Video

Video Compression:

• Smart H.265+

• H.265

• Smart H.264+

• H.264B

• H.264M

• H.264H

• MJPEG on Sub Stream 1

Streaming Capability: 3 streams

Supported Resolutions:

• 4MP: 2560 × 1440

• 3MP: 2304 × 1296

• 1080p: 1920 × 1080

• 960p: 1280 × 960

• 720p: 1280 × 720

• D1

• VGA

• CIF

Frame Rate:

• Main stream: Up to 25/30 fps

• Sub stream 1: Up to 25/30 fps

• Sub stream 2: Up to 25/30 fps

Bit Rate Control: CBR or VBR

Video Bit Rate:

• H.264: 96 Kbps–11,776 Kbps

• H.265: 38 Kbps–7,168 Kbps

Day and Night: Automatic ICR, colour or black and white
Wide Dynamic Range: 120 dB
Backlight Compensation: Supported
Highlight Compensation: Supported
Noise Reduction: 2D and 3D noise reduction
Motion Detection: Supported
Region of Interest: Supported
Image Stabilisation: Electronic Image Stabilisation
Defog: Electronic
Image Rotation: 180°
Signal-to-Noise Ratio: At least 55 dB

White Balance:

• Automatic

• Indoor

• Outdoor

• ATW

• Manual

• Sodium lamp

• Natural light

• Street lamp

Gain Control: Automatic, manual or gain priority

Privacy Masking: Up to 32 privacy areas, with up to 8 areas visible in the same view

Audio

Audio Compression:

• PCM

• G.711A

• G.711Mu

• G.726

• MPEG2-Layer2

• G.722.1

• G.729

• G.723

Audio Input: 1 × line input, bare wire
Audio Output: 1 × line output, bare wire

Network

Network Port: 1 × RJ45 10/100 Mbps

Network Protocols:

HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, RTP, RTCP, UDP, SMTP, NTP, DHCP, DNS, DDNS, SSL, QoS, FTP, UPnP, ICMP, SNMP, IGMP, ARP, PPPoE, RTMP, Bonjour, SMB, NFS and 802.1X.

Interoperability:

• ONVIF Profile S

• ONVIF Profile G

• ONVIF Profile T

• CGI

• SDK

Streaming: Unicast and multicast
Maximum Users: 20
Total Bandwidth: 64 Mbps

Storage Options:

• MicroSD card up to 512GB

• FTP/SFTP

• NAS

Management Software: DMSS and DSS Pro
Mobile Compatibility: iOS and Android

Browser Support:

• Internet Explorer 9 or later

• Chrome 41 or later

• Firefox 50 or later

• iOS 10 or later

Alarm and I/O

Alarm Inputs: 2
Alarm Outputs: 1
Audio Inputs/Outputs: 1/1

Alarm Linkage Options:

• Snapshot capture

• Recording

• Email notification

• Preset

• Tour

• Pattern

• Digital alarm output

Supported Alarm Events:

• Motion detection

• Tampering detection

• Audio detection

• Network disconnection

• IP address conflict

• Memory card status

• Storage capacity warnings

Power

Power Supply:

• 12V DC, 3A ±10%

• PoE+ IEEE 802.3at

Power Consumption — 12V DC:

• Basic: 8W

• Maximum: 20W with illuminators and PTZ operating

Power Consumption — PoE+:

• Basic: 11W

• Maximum: 23W with illuminators and PTZ operating

Power Adapter: Optional

Environmental

Operating Temperature: –40°C to +70°C
Operating Humidity: Up to 95%
Weather Protection: IP67

Electrical Protection:

• TVS 6000V lightning protection

• Surge protection

• Voltage transient protection

Structure

Dimensions: 270.4mm × Ø160mm
Net Weight: 2.4kg
Gross Weight: 3.9kg

Certification

CE Compliance:

• EN 55032

• EN 55024

• EN 50130-4
