Description

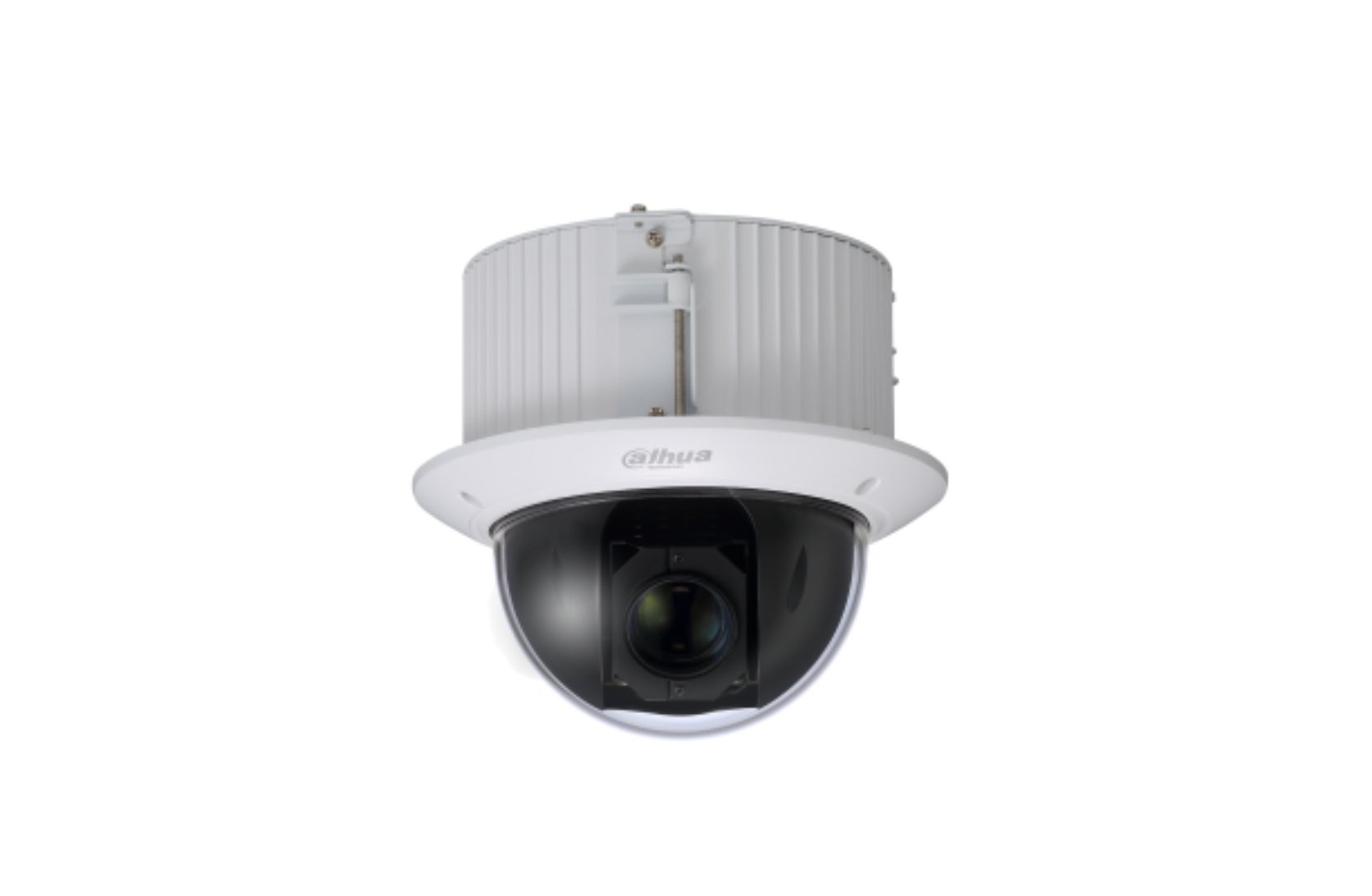

2MP 25x Starlight PTZ Network Camera
Key Features
- 2MP Full HD resolution with 25× optical zoom
- High-speed PTZ performance with preset pan/tilt speed up to 500°/s
- Excellent low-light performance with STARVIS™ sensor technology
- Optional in-ceiling mount for discreet installation
- Optional smoked dome cover for better concealment
- Auto Tracking support for intelligent target tracking
- Advanced IVS analytics including tripwire and intrusion detection
- Face Detection and Heat Map analytics
- Electronic Image Stabilization (EIS) and Defog support
- Supports H.265+ video compression
- IK10 vandal-resistant metal housing
- Suitable for harsh outdoor environments
- Datasheet
Camera
Image Sensor: 1/2.8” STARVIS™ CMOS
Effective Pixels: 1920(H) × 1080(V), 2 Megapixels
RAM / ROM: 1024MB / 128MB
Scanning System: Progressive
Electronic Shutter Speed: 1/1s ~ 1/30,000s
Minimum Illumination:
- Color: 0.005Lux @ F1.6
- B/W: 0.0005Lux @ F1.6
Lens
Focal Length: 4.8mm ~ 120mm
Max. Aperture: F1.6 ~ F4.4
Angle of View: H: 62.8° ~ 2.6°
Optical Zoom: 25×
Focus Control: Auto / Manual
Close Focus Distance: 100mm ~ 1000mm
DORI Distance
Detect: 1613m (5292ft)
Observe: 646m (2119ft)
Recognize: 323m (1060ft)
Identify: 161m (528ft)
PTZ
Pan Range: 0° ~ 360° endless
Tilt Range: 0° ~ 90°, auto flip 180°
Manual Control Speed:
- Pan: 0.1° ~ 350°/s
- Tilt: 0.1° ~ 250°/s
Preset Speed:
- Pan: 500°/s
- Tilt: 500°/s
Presets: 300
PTZ Modes: 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup: Human-oriented focal length/speed adaptation
Power-up Action: Auto restore to previous PTZ and lens status after power failure
Idle Motion: Activate Preset, Scan, Tour, or Pattern after inactivity
Protocol: DH-SD
AI Analytics
Auto Tracking: Supported
IVS Functions:
- Tripwire
- Intrusion
- Abandoned Object Detection
- Missing Object Detection
Advanced Intelligent Functions:
- Face Detection
- Heat Map
Event Triggers:
- Motion Detection
- Video Tampering
- Scene Change Detection
- Network Disconnection
- IP Conflict
- Illegal Access
- Storage Anomaly
Video
Compression: H.265+, H.265, H.264+, H.264, MJPEG (Sub Stream)
Streaming Capability: 3 Streams
Resolution Support:
- 1080P (1920 × 1080)
- 1.3MP (1280 × 960)
- 720P (1280 × 720)
- D1
- CIF
Frame Rate:
- Main Stream: Up to 50/60fps
- Sub Stream 1: Up to 25/30fps
- Sub Stream 2: Up to 25/30fps
Bit Rate Control: CBR / VBR
Bit Rate: 448Kbps ~ 8192Kbps
Day/Night Mode: Auto (ICR) / Color / B/W
Backlight Compensation: BLC / HLC / WDR (120dB)
White Balance: Auto, ATW, Indoor, Outdoor, Manual
Gain Control: Auto / Manual
Noise Reduction: Ultra DNR (2D / 3D)
Region of Interest: Supported
Electronic Image Stabilization (EIS): Supported
Defog: Supported
Digital Zoom: 16×
Image Flip: 180°
Privacy Masking: Up to 24 areas
Audio
Compression: G.711a, G.711Mu, AAC, G.722, G.726, G.729, MPEG2-L2
Audio I/O: 1 / 1
Network & Storage
Ethernet: RJ-45 (10Base-T / 100Base-TX)
Protocols Supported:
IPv4, IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Interoperability: ONVIF Profile S & G, API
Streaming Method: Unicast / Multicast
Max User Access: 20 Users
Edge Storage:
- NAS
- Local PC Instant Recording
- Micro SD Card up to 256GB
Web Viewer: IE, Chrome, Firefox, Safari
Management Software: Smart PSS, DSS, DMSS
Mobile Support: iOS, Android
Alarm Interface
Alarm I/O: 2 / 1
Power
Power Supply: DC24V / 2.5A (±25%), PoE+ (802.3at)
Power Consumption: 13W
Build & Environmental
Operating Conditions:
-30°C ~ 60°C (-22°F ~ +140°F)
Less than 95% RH
Vandal Resistance: IK10
Casing Material: Metal
Dimensions: Φ198mm × 177mm
Net Weight: 2.2kg
Gross Weight: 3.7kg
Certifications
CE: EN55032 / EN55024 / EN50130-4
FCC: Part15 Subpart B, ANSI C63.4-2014
UL: UL60950-1 + CAN/CSA C22.2 No.60950-1
