Description

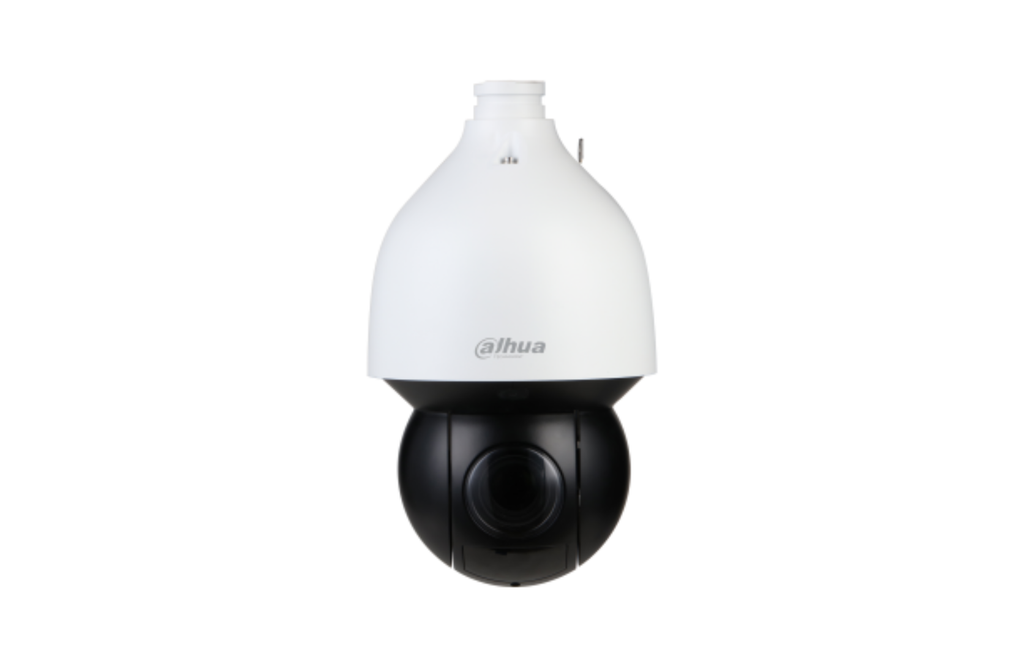

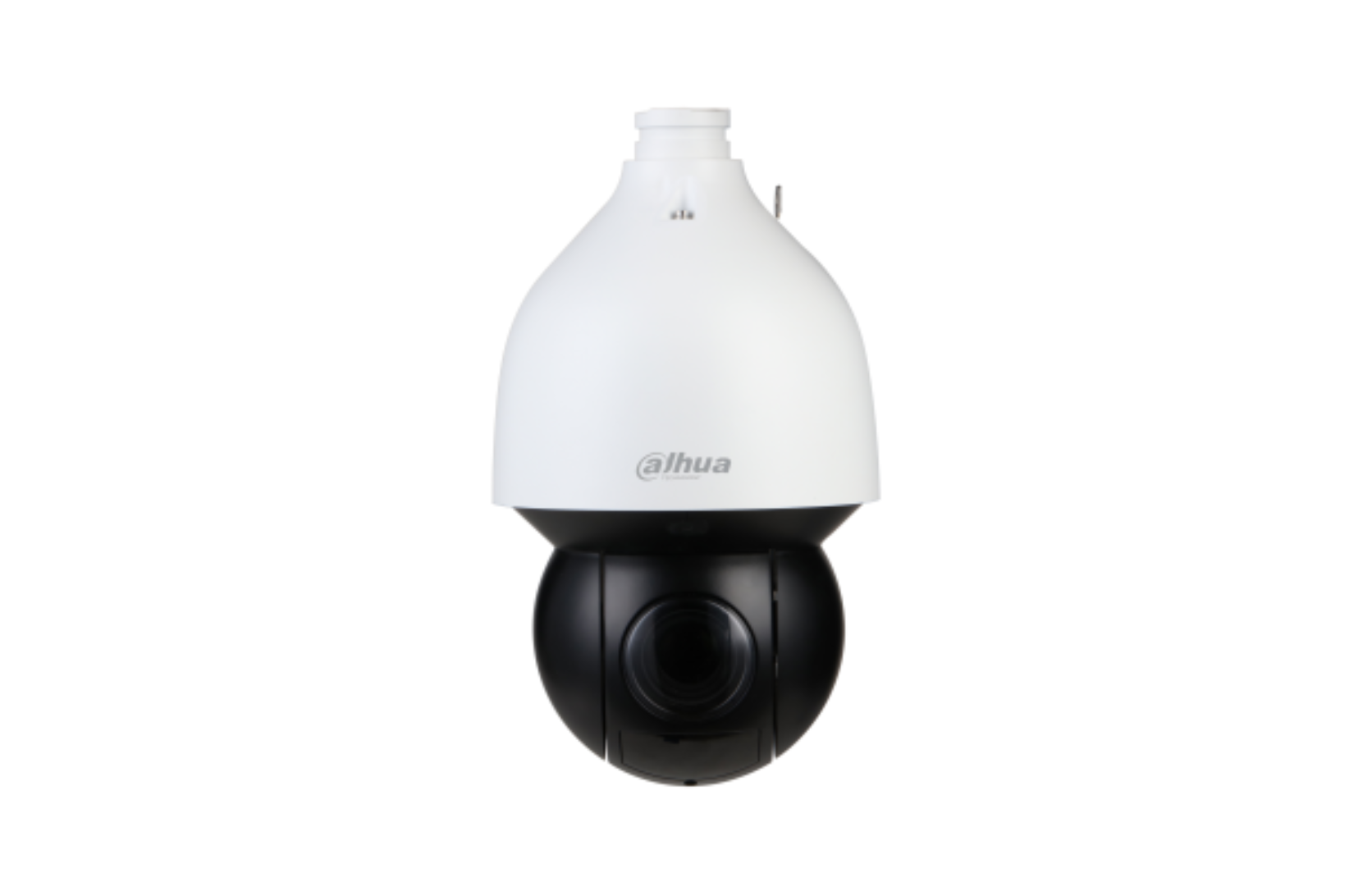

4MP 25x Starlight+ IR WizSense Network PTZ Camera
Key Features
- 1/1.8" 4MP CMOS image sensor
- Powerful 25× optical zoom PTZ camera
- Starlight+ ultra low-light technology
- Maximum 4MP resolution at 25/30fps
- Up to 150m IR night vision distance
- WizSense AI analytics
- SMD Plus intelligent motion detection
- Deep-learning perimeter protection
- Auto Tracking and IVS support
- Smart human and vehicle classification
- H.265+ video compression
- PoE+ support
- IP67 weatherproof and IK10 vandal resistant
- Datasheet
Specifications
Camera
Image Sensor:
- 1/1.8" CMOS
Resolution:
- 4MP (2560 × 1440)
Minimum Illumination:
- Color: 0.001 Lux @ F1.6
- B/W: 0.0001 Lux @ F1.6
- 0 Lux with IR On
Electronic Shutter:
- 1/3s–1/30,000s
Scanning System:
- Progressive Scanning
Lens
Focal Length:
- 5.4mm–135mm
Optical Zoom:
- 25×
Aperture:
- F1.6–F4.0
Viewing Angle:
- Horizontal: 61.6°–3.6°
- Vertical: 35.7°–2°
- Diagonal: 66.6°–4°
Focus Control:
- Auto / Semi-auto / Manual
Iris Control:
- Auto / Manual
IR & Lighting
IR Distance:
- Up to 150m
IR Control:
- Zoom Prio / Manual / Smart IR
IR LEDs:
- 4 LEDs
DORI Distance
- Detect: 1724m
- Observe: 689m
- Recognize: 344m
- Identify: 172m
PTZ
Pan Range:
- 0°–360°
Tilt Range:
- -15° to +90°
Manual Speed:
- Pan: 0.1°/s–300°/s
- Tilt: 0.1°/s–200°/s
Preset Speed:
- Pan: 400°/s
- Tilt: 300°/s
Presets:
- 300
Tours:
- 8 Tours
Patterns:
- 5 Patterns
Scans:
- 5 Scans
PTZ Features:
- Power-off Memory
- Idle Motion
- Speed Adjustment
AI Analytics
Perimeter Protection:
- Tripwire
- Intrusion Detection
- Human & Vehicle Classification
- False Alarm Filtering
AI Functions:
- Smart Capture
- Auto Tracking
- Face Detection
- SMD Plus
- Object Abandoned/Missing Detection
Video
Compression:
- H.265
- H.265+
- H.264
- H.264+
- MJPEG
Streams:
- 3 Streams
Frame Rate:
- Up to 30fps
WDR:
- 120dB True WDR
Image Features:
- 2D/3D Noise Reduction
- Electronic Image Stabilization
- Defog
- Digital Zoom 16×
- ROI Support
- Privacy Masking up to 24 Areas
Audio
Audio Compression:
- G.711A
- G.711Mu
- G.726
- AAC
- G.722.1
- G.723
- G.729
- PCM
- MPEG2-Layer2
Audio Ports:
- 1 Audio Input
- 1 Audio Output
Alarm
- 2 Alarm Inputs
- 1 Alarm Output
Network & Storage
Ethernet:
- 1 × RJ-45 10/100 Base-T
Protocols:
- IPv4 / IPv6
- HTTP / HTTPS
- RTSP / RTP
- SMTP
- SNMP
- DDNS
- RTMP
Interoperability:
- ONVIF Profile S/G/T
- CGI
Storage:
- FTP
- MicroSD Card up to 256GB
- P2P Support
Software:
- Smart Player
- Smart PSS
- DSS
- Easy4IP
Mobile Support:
- iOS & Android
Power
Power Supply:
- DC 24V / 2.5A
- PoE+ (802.3at)
Power Consumption:
- 11W Normal
- 20W with IR On
Protection
- IP67 Weatherproof
- IK10 Vandal Resistant
- TVS 6000V Lightning Protection
- Surge Protection
Operating Conditions
Operating Temperature:
- -40°C to +70°C
Humidity:
- ≤95% RH
Build
Material:
- Metal Housing
Dimensions:
- Φ190 × 332 mm
Weight:
- Net Weight: 4.7kg
- Gross Weight: 8kg
